Basic Info.

• Model NO. A05
• Material SSS
• Type Key Lock
• Style Modern
• Shape Mortise Door Lock
• Anti-theft Standard A
• Part Lock
• Backset 60mm
• Door Thickness Fits 35-50mm
• Lock Cylinder Length 65mm
• Usage Household Door Locks, Bedroom
• Finish Sc/Sn/Black
• Style 1 American Lock
• Style 2 Commercial Lock
• Style 3 ANSI Grade 2 Lock
• Transport Package Export Box
• Specification 85mm
• Trademark OEM
• Origin China
• Production Capacity 100000/Per Month

Packaging & Delivery

• Package Size 15.00cm * 15.00cm * 15.00cm
• Package Gross Weight 1.500kg

Product Description

Door locks new arrive:

• Glass door smart lock:
• Cabinet smart lock:

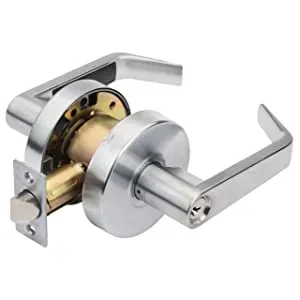

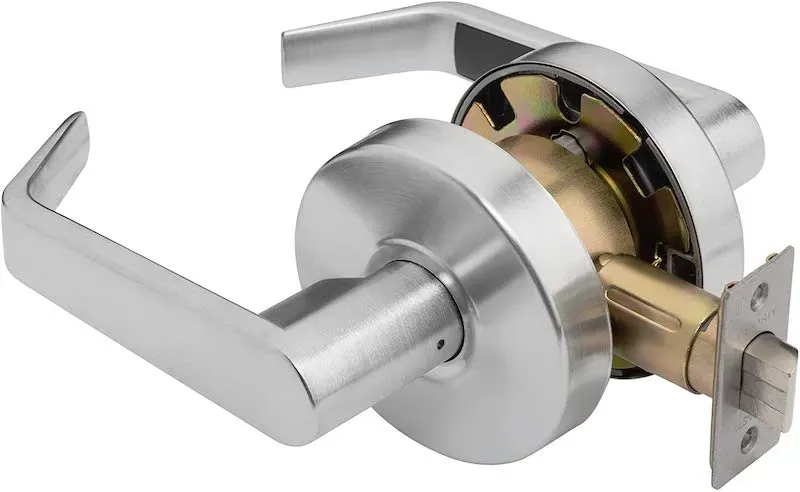

The lock grade 2 commercial door levers are perfectly suited for commercial buildings, hotels, restaurants, medical office buildings, and government buildings. Each lockset features strong individual compression springs and optional through-bolt installation that prevents lever sag. Heavy-duty construction makes this door lock perfect for commercial use. Easy to follow installation instructions.

• 2-3/4 Inch Backset Latch
• UL Rated Classroom Function
• Uses Schlage "C" Keyway
• Meets ANSI Grade 2 Standards
• Each Lever Keyed Different

Specifications:

• Fits Doors 1-3/8" to 1-3/4" (35mm to 44mm) Door Thickness
• Backset 2-3/4" (70mm) --- 2-3/8" Backset Latches Sold Separately
• Latch Front: 1-1/8" x 2-1/4" Square Corner
• Strike ANSI (4-7/8" x 1-1/4")
• NON-HANDED (fits both Right Hand and Left Hand Doors)
• Rosette 3-5/16" (85mm) Diameter Steel
• Fits 161 door prep - 2-1/8" diameter hole in face of door
• Comparable To; Schlage AL Series, Cal-Royal SL, Falcon W Series

Keyed Entry function:

• Exterior Lever: Exterior lever can be locked or unlocked by using a key.
• Uses SC1 keys
• Each set is sold keyed different
• Locks can be easily keyed alike if needed by any local lock shop.
• The exterior handle is removable for ease of re-keying.
• 6 pin solid brass cylinder plug

Interior Lever

• Turn/push-button locking: Pushing and turning the inside button locks the outside lever, requiring the use of a key until the button is manually unlocked.
• Push-button locking: Pushing the inside button locks the outside lever until it is unlocked by key or by turning the inside lever.
• Inside Lever always free for immediate egress

Privacy Function

• Exterior Lever: Exterior lever can be unlocked from the outside by using a flat object to turn the button
• Inside lever is always free for immediate egress.

• Interior Lever: Interior lever is locked by pushing a button on the inside . Turning inside lever or closing the door will release the inside button.
• Inside lever is always free for immediate egress.

Passage function:

• Exterior Lever: Exterior lever always unlocked
• Interior Lever: Interior lever is always free for immediate exit in case of emergency.

Storeroom function:

• Exterior Lever: Exterior Lever is always locked. Enter door using key which is provided with the hardware.
• Uses SC1 keys
• Each set is sold keyed different
• Locks can be easily keyed alike if needed by any local lock shop.
• The exterior handle is removable for ease of re-keying.
• 6 pin solid brass cylinder plug

• Interior Lever: Interior lever is always free for immediate exit in case of emergency.

Classroom function:

• Exterior Lever: Exterior lever can be in the locked or unlocked position. Set the exterior lever to be either locked or unlocked using the key which is included with the hardware.
• Uses SC1 keys
• Each set is sold keyed different
• Locks can be easily keyed alike if needed by any local lock shop.
• The exterior handle is removable for ease of re-keying.
• 6 pin solid brass cylinder plug

• Interior Lever: Interior lever is always free for immediate exit in case of emergency.
