Product ID: 68589582

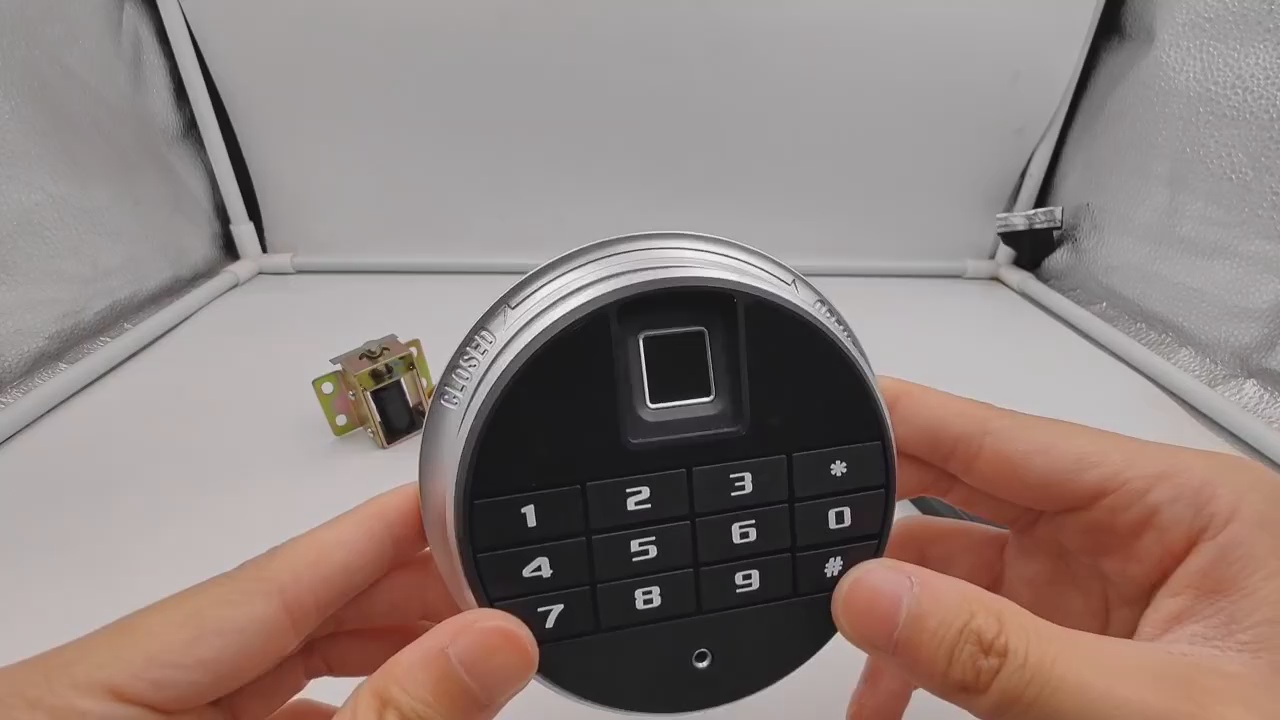

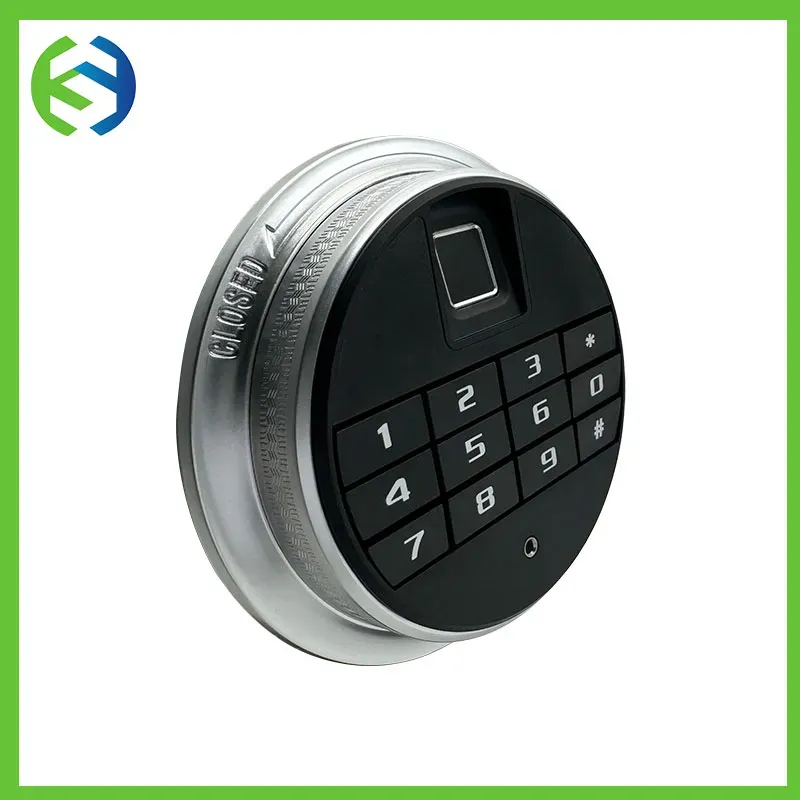

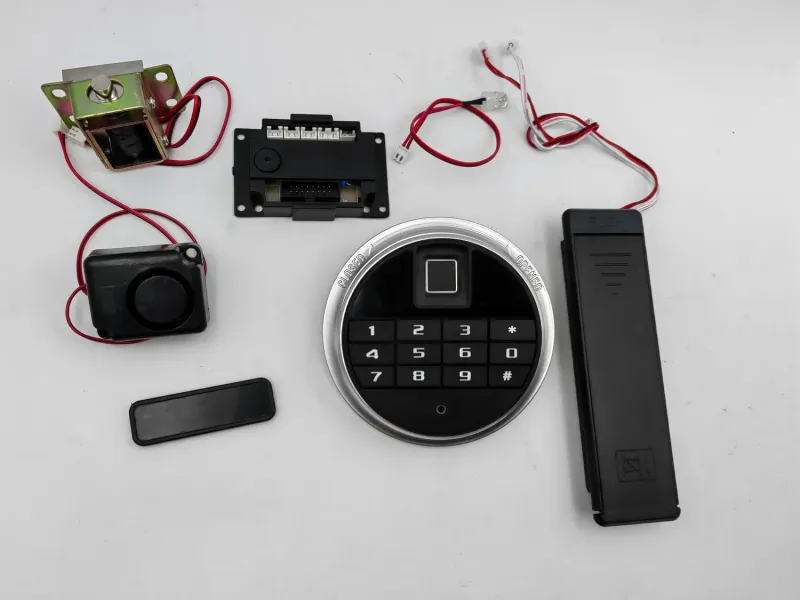

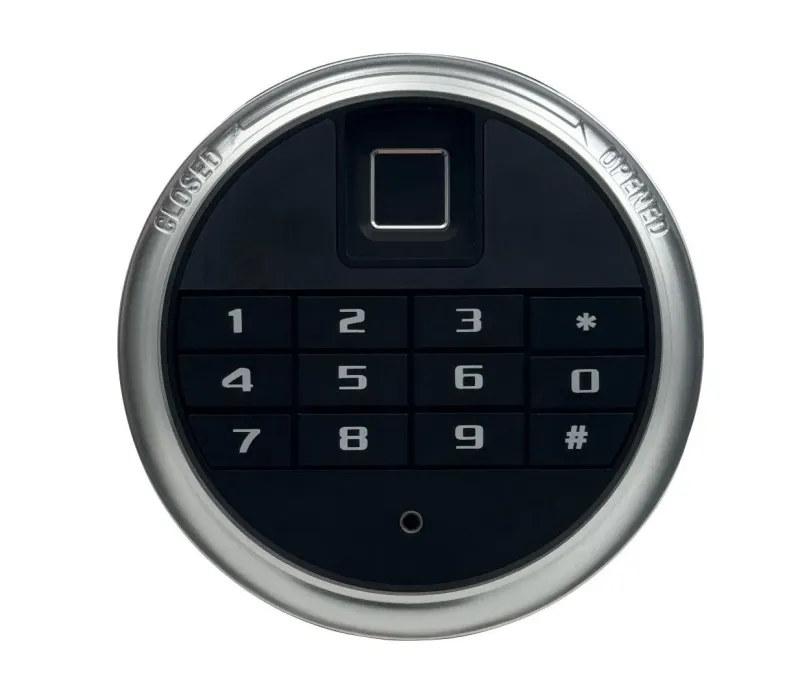

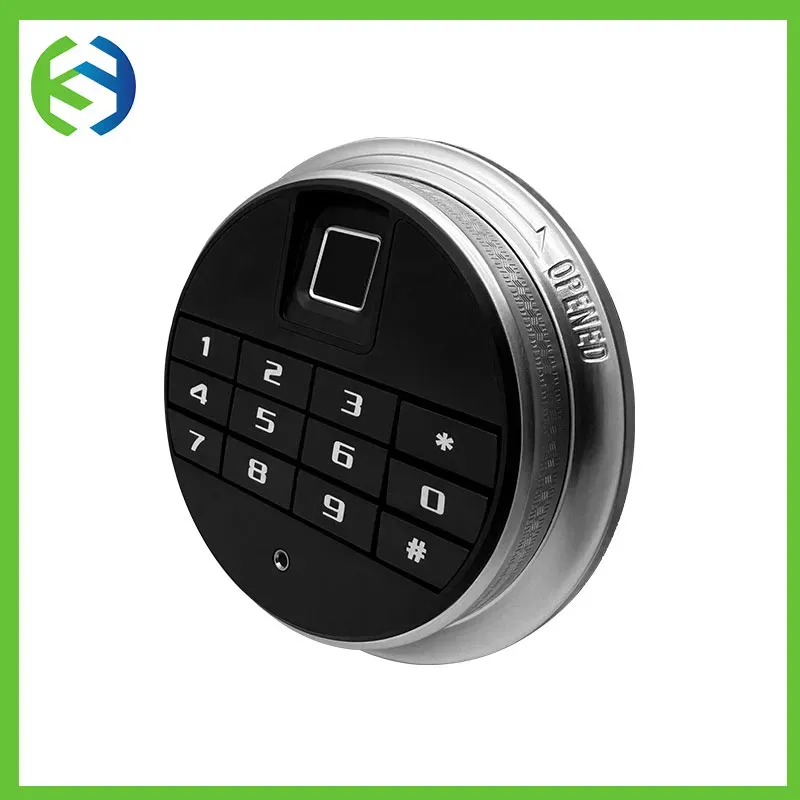

Integrated Biometric Safe Lock System
Contact Now
Description
Basic Info.
- Model NO. SY-605-BZ
- Design Button
- Material Plastic
- Suitable for Safe
- Customized Non-Customized
- Usage Commercial, Household, Industrial
- Power Supply Four No. 5 "AA" Alkaline Batteries
- Delivery Time 20 Days
- Colour Black
- Working Voltage Range 4.5V to 6.8V
- External Power Supply Pj Interface
- Transport Package Carton
- Specification Standard
- Trademark Shuoyi
- Origin China
- HS Code 83030000
- Production Capacity 30000 pieces/Month
Product Description
Panel features:
- Adopting a rotary knob without the need for additional installation, it is aesthetically pleasing and easy to install.
- Adopting semiconductor fingerprint module, it is safer, more sensitive, has a high recognition rate, and consumes less power.
- Equipped with password memory function, the power-off password will not be lost.
- Adopting dual passwords for more flexible use.
- Equipped with vibration alarm function, undervoltage alarm, and alarm for 3 incorrect password inputs or 5 fingerprint verifications.
- Support multiple modes of door opening, single authentication mode (fingerprint door opening, password door opening) and dual authentication mode (fingerprint+password door opening) can be freely switched.
- Support mute function, button sound can be freely turned on or off.
Technical Parameter
- Working power supply: Four No. 5 "AA" alkaline batteries
- Working voltage range: 4.2V to 6.8V
- Undervoltage point at work: 4.8V ± 0.30V
- Working current: ≤ 380mA
- Static current: <25uA
- Working temperature: -10 ºC ~ +70 ºC
- Working humidity: 10% to 90% RH
The company adopts advanced production technology, including production line configuration, automation level, and quality control system; Immersion welding, welding, semi-finished product testing, gluing, finished product assembly, finished product testing, packaging and shipping (this is our production process).
