Product ID: 68592434
Skid Steer Loader with Attachments for Sale
Contact Now
Description
Basic Info.
- Model NO. JC
- Certification ISO, CE
- Condition New
- Rated Load 3-6t
- Transmission Hydraulic
- Load and Unload Mode Front Discharge
- Walking Mode Wheeled
- Type Medium-sized Loader
- Feature 1 Skid Steer
- Feature 2 Loader
- Feature 3 Wheel or Crawler
- Transport Package 2 Sets/20'' Container
- Specification 3350× 1720× 2050mm
- Trademark LIFTOR
- Origin Jiangsu, China
- HS Code 84295100
- Production Capacity 3000/Month
Packaging & Delivery
- Package Size 3080.00cm * 1400.00cm * 2200.00cm
- Package Gross Weight 2300.000kg
Product Description
CE ISO EPA LIFTOR New Mini 50HP 65HP 75HP 85HP 500kg-1200kg Skid Steer Loader Micro Wheel and Track Steer Skid Loader with Attachment Parts Price for Sale
LIFTOR Skid Steer Loader can be widely used in public works, agriculture and forestry construction. Suitable for loading and unloading loose materials with flexible operation and high working efficiency.
LIFTOR Skid Steer Loader Features:
- Compact structure, maneuverable movement suitable for narrow space operation
- Close cabin with air conditioner
- Joystick control, big flow hydraulic system
- Auto-leveling system
- Multi-function with a wide range of attachments
- Hydraulic brake
- Famous brand hydraulic system: German Rexorth pump and motor
LIFTOR Skid Steer Loader Parameters:
| Model | JC30 | JC40 | JC45 | JC60 | JC65 | JC100 |
|---|---|---|---|---|---|---|
| Operating load (kg) | 300 | 500 | 700 | 850 | 1050 | 1100 |
| Max Speed(km/h) | 9 | 10 | 12 | 12 | 12 | 12\18 |
| Rated flux (L/min) | 37 | 60 | 62.5 | 75 | 75 | 75 |
| High Flow Flux (L/min) | 120 | 140 | ||||
| Tire(track) model | 23×8.5-15 | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 18.4 | 37 | 37 | 45 | 55 | 74 |
| Fuel tank capacity (L) | 25 | 60 | 70 | 80 | 75 | 90 |
| self weight bucket (kg) | 1500 | 2300 | 2700 | 2800 | 3500 | 3550 |
| Bucket capacity (m³) | 0.2 | 0.3 | 0.4 | 0.4 | 0.5 | 0.55 |
| Overall operating height (mm) | 3126 | 3300 | 3980 | 4000 | 4070 | 4070 |
| Height to bucket hinge pin (mm) | 2399 | 2725 | 3080 | 3100 | 3150 | 3150 |
| Hheight to top of cab (mm) | 1813 | 2000 | 2140 | 2160 | 2160 | 2160 |
| Height to bottom of level bucket(mm) | 2399 | 2558 | 2913 | 2933 | 2983 | 2983 |
| Without bucket length(mm) | 1918 | 2300 | 2640 | 2750 | 2880 | 2880 |
| Overall length with bucket(mm) | 2560 | 2950 | 3420 | 3490 | 3580 | 3580 |
| Dumping angle at maximum height(° ) | 36 | 40 | 40 | 40 | 40 | 40 |
| Dumping height(mm) | 1882 | 2050 | 2380 | 2400 | 2450 | 2450 |
| Dumping reach(mm) | 458 | 790 | 700 | 750 | 700 | 700 |
| Rollback o bucket on ground(° ) | 24 | 30 | 30 | 30 | 30 | 30 |
| Rollback of bucket at full height(° ) | 97 | 104 | 104 | 104 | 104 | 104 |
| Wheelbase(mm) | 722 | 897 | 991 | 991 | 1115 | 1185 |
| Ground clearance(mm) | 148 | 140 | 185 | 205 | 205 | 205 |
| Angle of departure(° ) | 28 | 20 | 20 | 20 | 20 | 20 |
| Front turning radius without bucket(mm) | 971 | 1098 | 1168 | 1198 | 1250 | 1278 |
| Front tuning radius(mm) | 1557 | 1760 | 1958 | 1958 | 2112 | 2144 |
| Rear tuning radius(mm) | 1146 | 1296 | 1630 | 1728 | 1774 | 1857 |
| Rear axle to bumper (mm) | 738 | 964 | 1108 | 1208 | 1082 | 1082 |
| Tread width (mm) | 747 | 1080 | 1450 | 1500 | 1500 | 1500 |
| Width (mm) | 900 | 1350 | 1720 | 1880 | 1880 | 1880 |
| Bucket width (mm) | 914 | 1400 | 1740 | 1880 | 1880 | 1880 |
LIFTOR Skid Steer Loader Details:

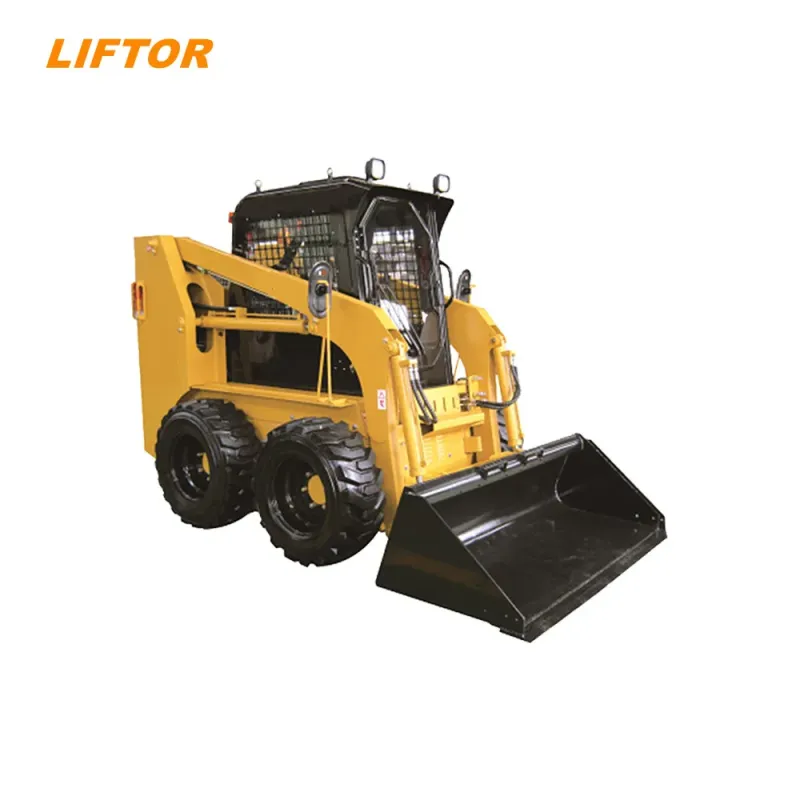

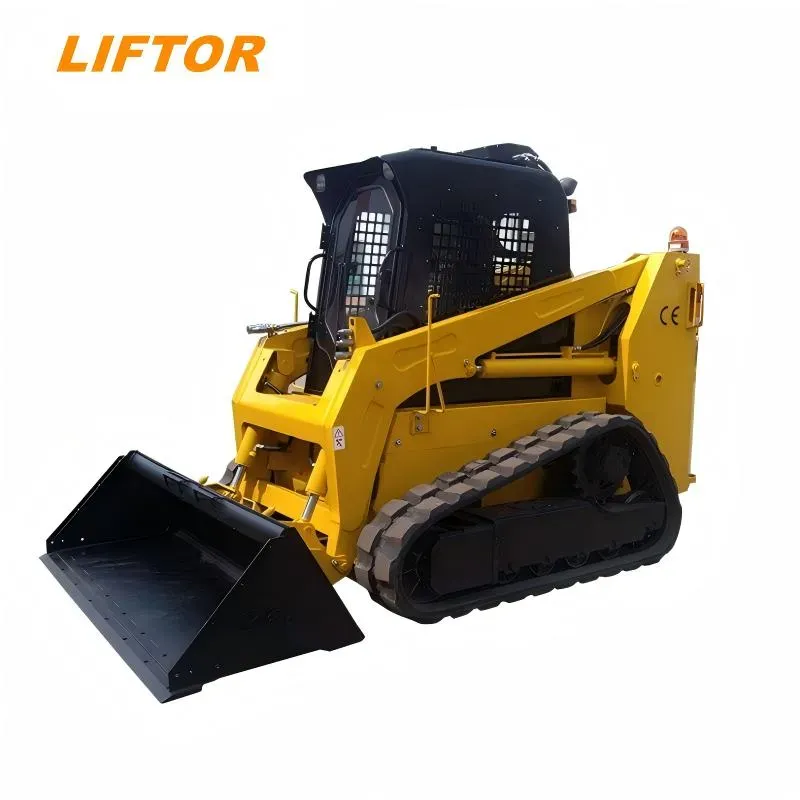

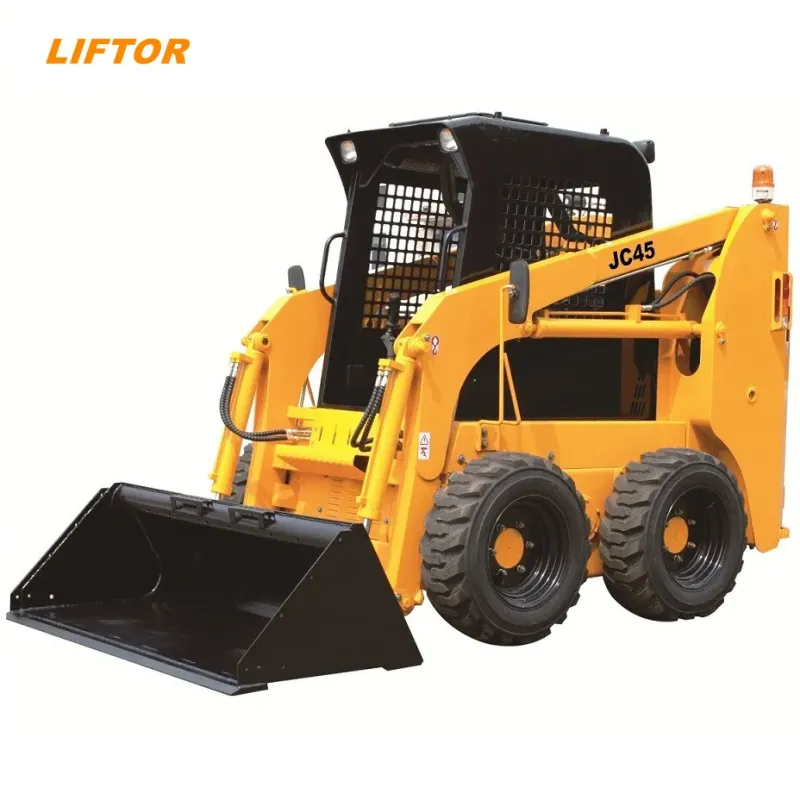

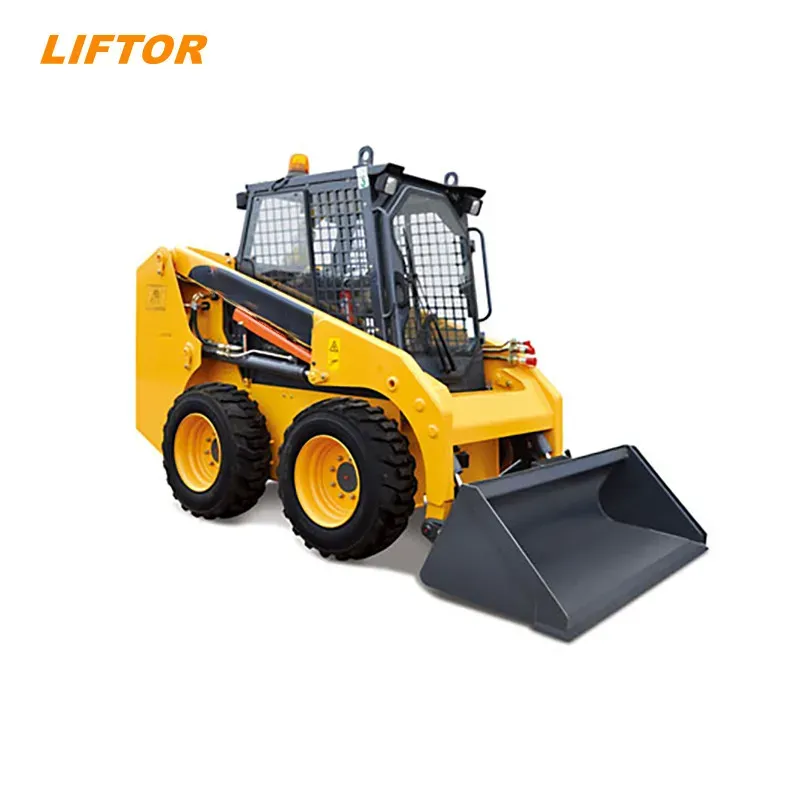

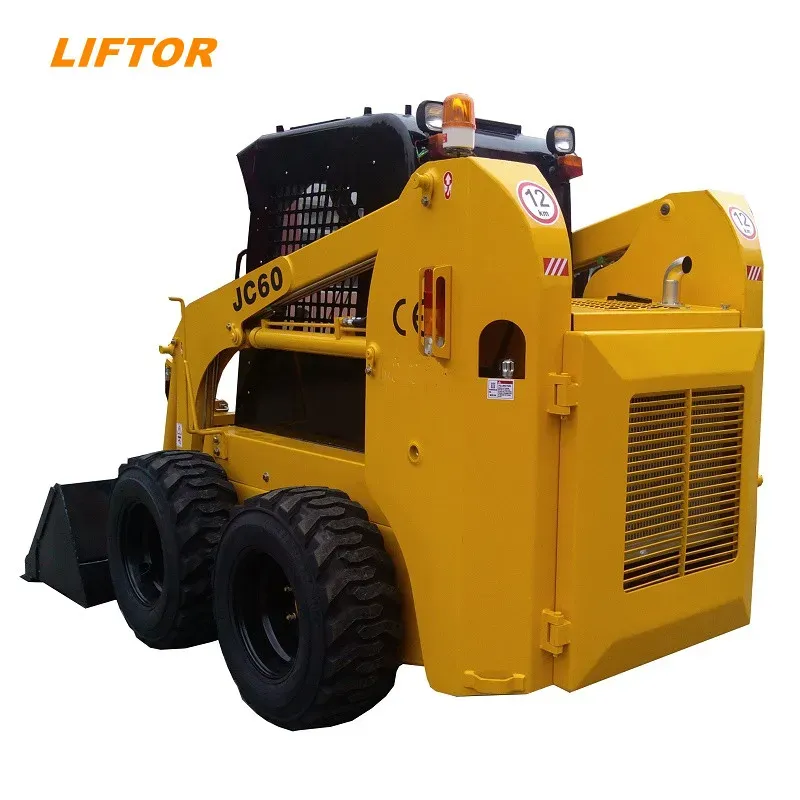

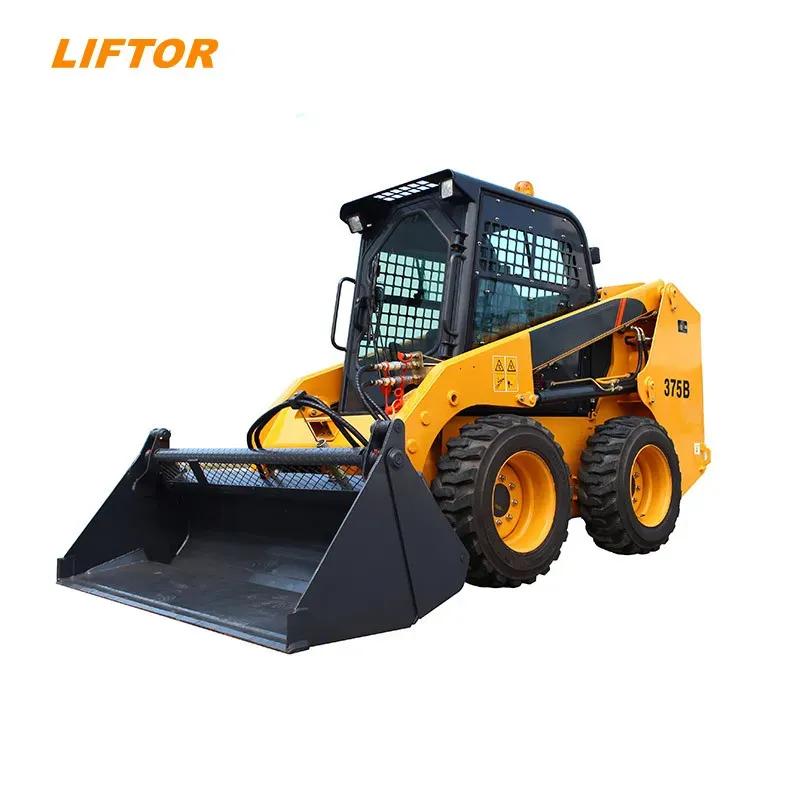

LIFTOR Skid Steer Loader Pictures:
LIFTOR Factory:
Package & Delivery:
FAQ:
- Q: Why should I choose Wolf instead of other brands?
- A: With 10 years' exporting experience, LIFTOR has been a well known brand in the market, now you can see LIFTOR machines in more than 50 countries.
- What we can provide:
- 1. Quality machines, CE certificated.
- 2. More competitive price based on same configuration machines.
- 3. More timely and effective service base on same price.
- Q: What is your delivery time?
- A: The delivery time is around 30 working days. In peak season, the production time would take longer.
- Q: What is the payment term?
- A: Normally we use T/T 30% deposit for production, balance 70% before shipment. Or upon loading photos.
- Q: What color can I choose?
- A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color when you order more.
- Q: Can I see the loader production progress after order?
- A: Yes, during production, we could take some photos/videos for your reference.
- Q: What kind of service can I get from you if I buy? How can I get parts?
- A: We have 1 year warranty for each machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge, within 5 working days. We have professional after sales department to support for you at any time.
