Product ID: 68592458
50% Discount: New Chinese Mini Tractors (0.8t-5t) with Backhoe Loader for Sale
Contact Now
Description
Basic Info.
Model NO.
946
Certification
ISO, CE, SGS Eac
Condition
New
Rated Load
3-6t
Transmission
Hydraulic - Mechanical
Load and Unload Mode
Front Discharge
Walking Mode
Wheeled
Type
Medium-sized Loader
Rated Loading
4000kg
Overall Weight
11000kg
Rated Power
129kw
Fuel Tank Capacity
140L
Parking Brake
Electric Pneumatic Caliper Disc Brake
Transport Package
Sea Cabinet
Specification
7230X2520X3250mm
Trademark
DAOJ
Origin
Shandong
HS Code
8429510000
Production Capacity
1000pieces/Year
Product Description
Our company has been specialized in producing various mechanical engineering equipment for more than 25 years,
wheel loaders, excavators,self-loading concrete mixer trucks, backhoe loaders, skid loaders, telescopic forklifts, etc., with loader specifications ranging from 0.8ton to 5ton
suitable for farms, construction, mines, docks, etc., all configurations and colors can be customized
at the same time, we also sell SEM, Lonking, Liugong and other brand vehicles, with CE, ISO and other certifications
we have warehouses for various mechanical parts, sufficient post-maintenance support, and one-stop professional services from accessories to complete vehicles to meet your various needs
About Us
Our Advantages
1.Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ
Q1: How long is the Warranty for DAOJ product?
A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course
wheel loaders, excavators,self-loading concrete mixer trucks, backhoe loaders, skid loaders, telescopic forklifts, etc., with loader specifications ranging from 0.8ton to 5ton
suitable for farms, construction, mines, docks, etc., all configurations and colors can be customized
at the same time, we also sell SEM, Lonking, Liugong and other brand vehicles, with CE, ISO and other certifications
we have warehouses for various mechanical parts, sufficient post-maintenance support, and one-stop professional services from accessories to complete vehicles to meet your various needs

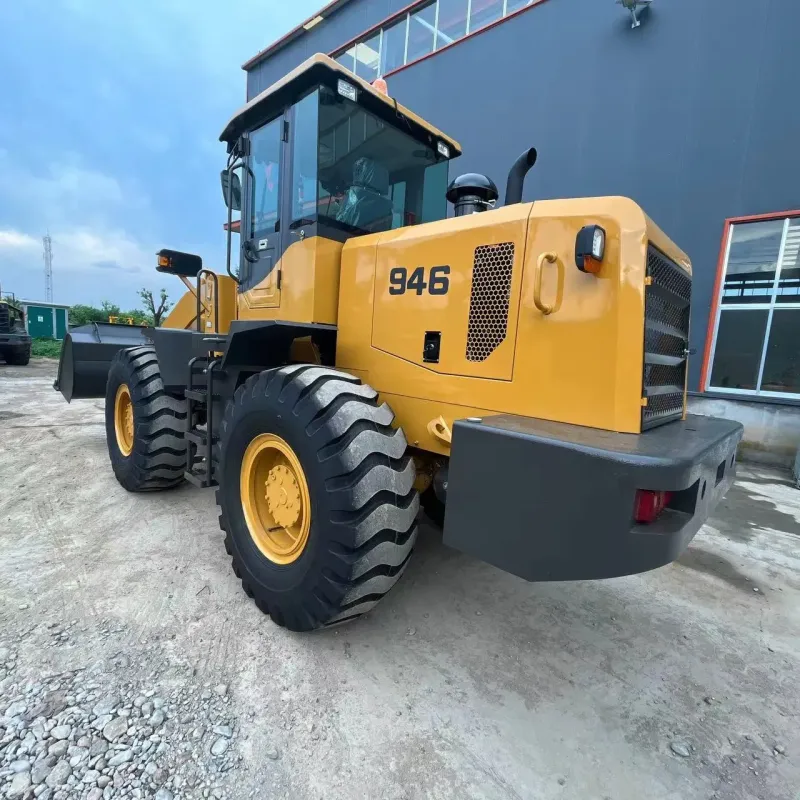

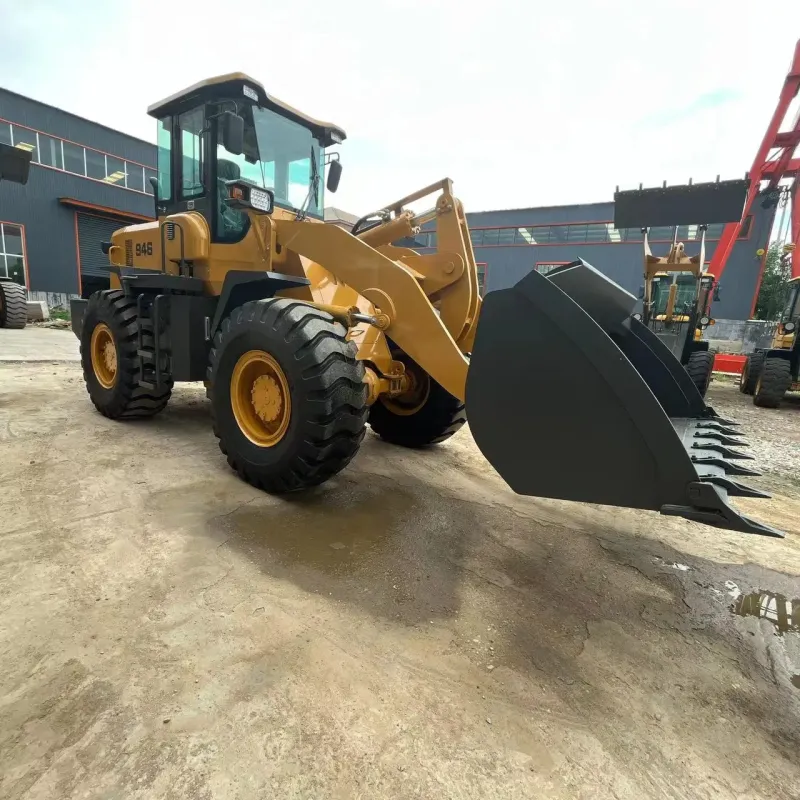

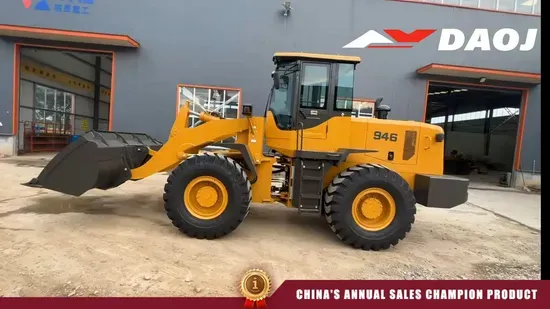

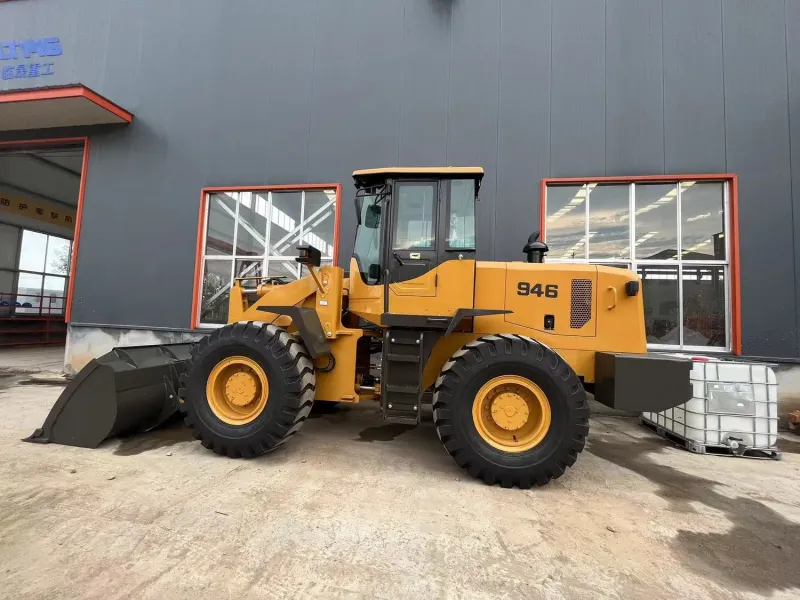

| 946 WHEEL LOADER | ||
| performance | rated loading | 4000kg |
| overall weiaht | 11000kg | |

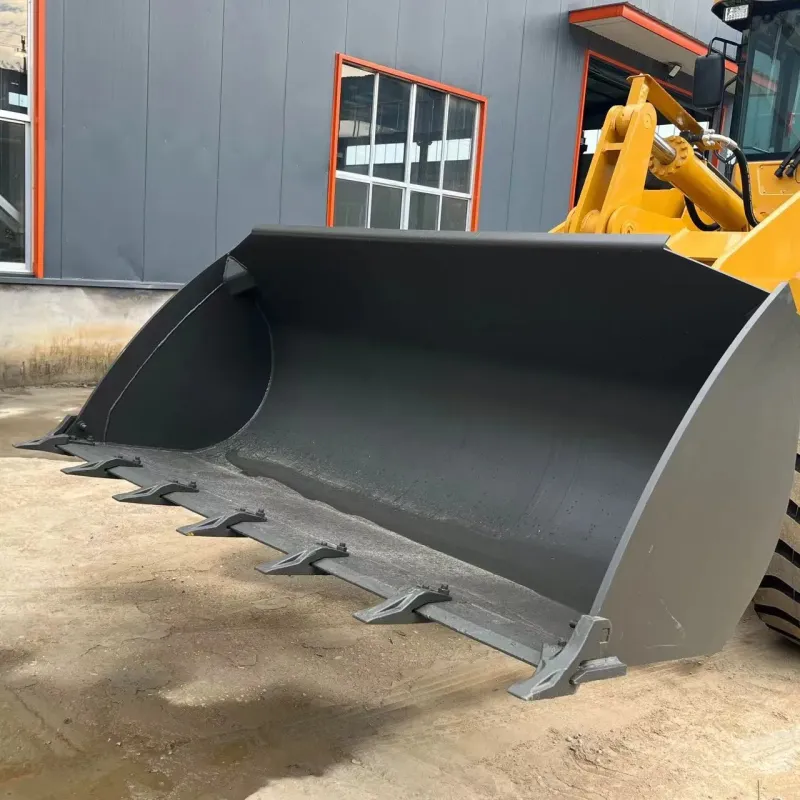

| rated bucket capacity | 2m³ | |
| maximum tractive force | 105KN | |
| maxirum breakout force | 110KN | |
| maximum grade ability | 30° | |
| maximum dump height | 3200mm | |
| maximum dump reach | 1100mm | |
| overall dimension (LxWxH) | 7230*2520*3250mm | |
| minimum turning radius | 6400mm | |
| maximum speed | 40km/h | |
| Engine | model | WP6G175E22 |
| type | Inline water cooled, foustroke | |
| rated power | 129KW | |
| maximum torque | 500N.m | |
| min fuel-consume ratio | ≤210g/kw.h | |
| Transmission system | torque converter | YJ315 |
| gearbox mode | Power shift normally engaged straight gear | |
| gear shift | 4forward shift 2 reverse shift | |
| Drive axle | main reducing mode | Spiral bevel gear one-stage reduction |
| decelerating mode | First-stage planetary reduction | |
| wheel base (mm) | 2750mm | |
| wheel tread | 1850mm | |
| ground clearance | 400mm | |

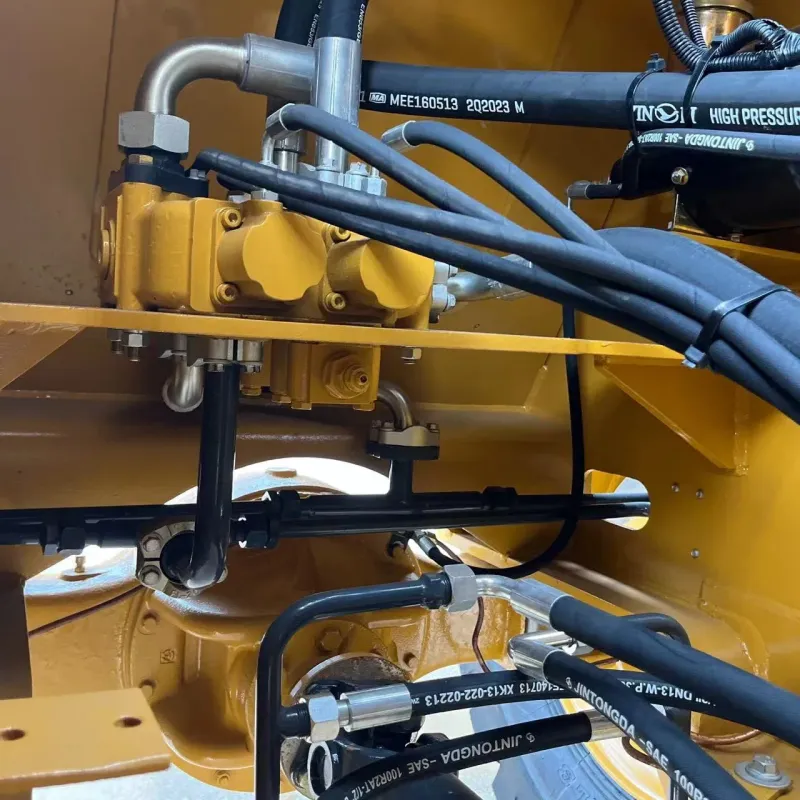

| Hydraulic system | system working pressure | 16.5Mpa |
| boom lifting time | 5.7s | |
| total time | 10.5s±0.5s | |
| fuel tank capacity | 140L | |
| function of leveling automatically | yes | |
| Braking System | service brake | air assist disc brake on 4wheels |
| parking brake | Electric pneumatic caliper disc brake | |
| Steering system type | Load sensing fully hydraulic articulated steering | |
| Tire | type specification | 20.5-25 |
