Overview

Basic Info.

Model NO.: JKW-35S

Type: Crawler Excavator

Usage: Mining Excavator, GM Excavator, Household Excavator

Bucket: Backhoe

Transmission: Hydraulic Transmission

Drive Type: Internal Combustion Drive

Bucket Capacity: 0.09 cbm

Size: Small-Scale

Certification: CE, ISO9001: 2000, Euro 5 & EPA Approved

Condition: New

Engine Power: 20.5kw/2400rpm

Fuel Tank Capacity: 40L

Crawler Material: Rubber/Steel Tracks

Turning Radius: 2035mm

Max. Digging Force: 26.5 kN

Max. Digging Height: 4600mm

Max. Dumping Height: 3175mm

Max. Digging Depth: 2880mm

Max. Digging Radius: 4845mm

Max. Vertical Digging Depth: 2305mm

Overall Dimension (LxWxH): 4485*1550*2440mm

Weight: 3515kg

Average Lead Time: Within 15 Days

Transport Package: FCL and LCL

Specification: 4485*1550*2440mm

Trademark: SDJK

Origin: Shandong, China

HS Code: 8429521200

Production Capacity: 500 sets/Year

Packaging & Delivery

Package Size: 500.00cm * 500.00cm * 500.00cm

Package Gross Weight: 1200.000kg

Product Description

Wholesale 3.5 ton Mini Excavator Large Excavator Earth Moving Machinery Construction Machine Digger for Sale

Our customers are all over the world and continue to create value for customers

Product Description

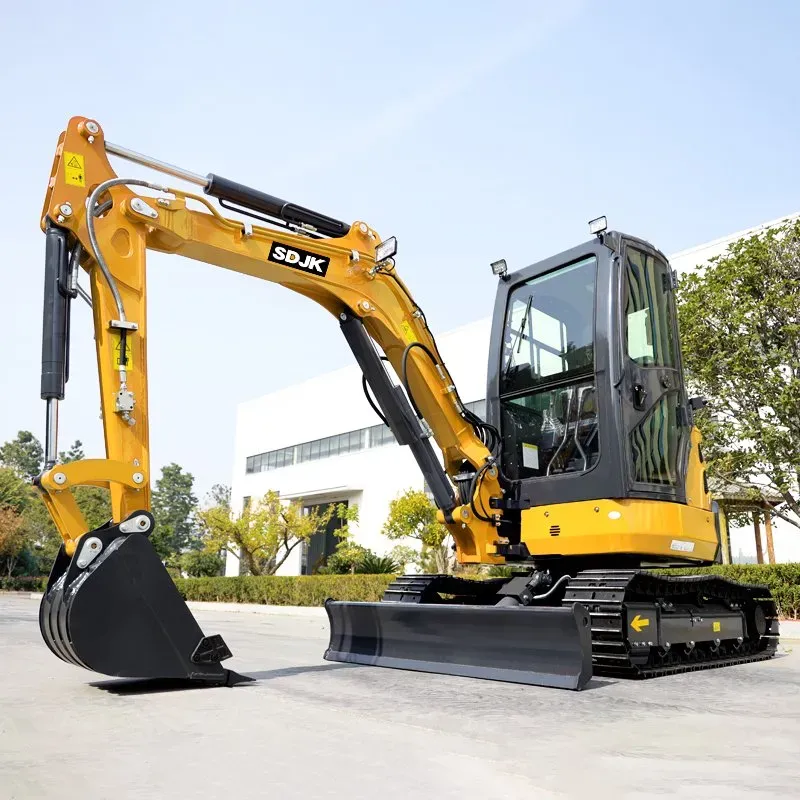

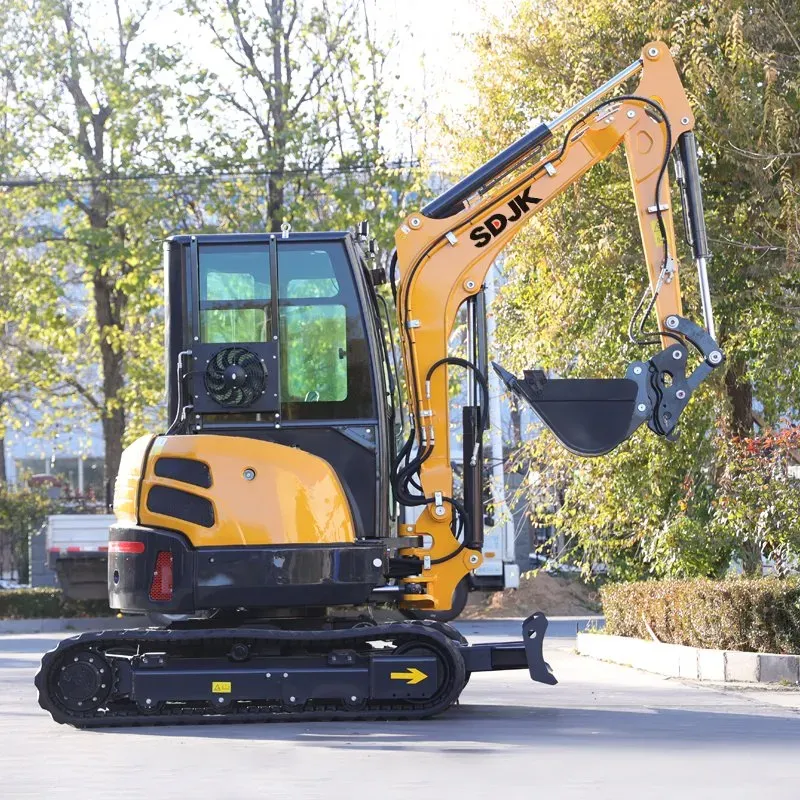

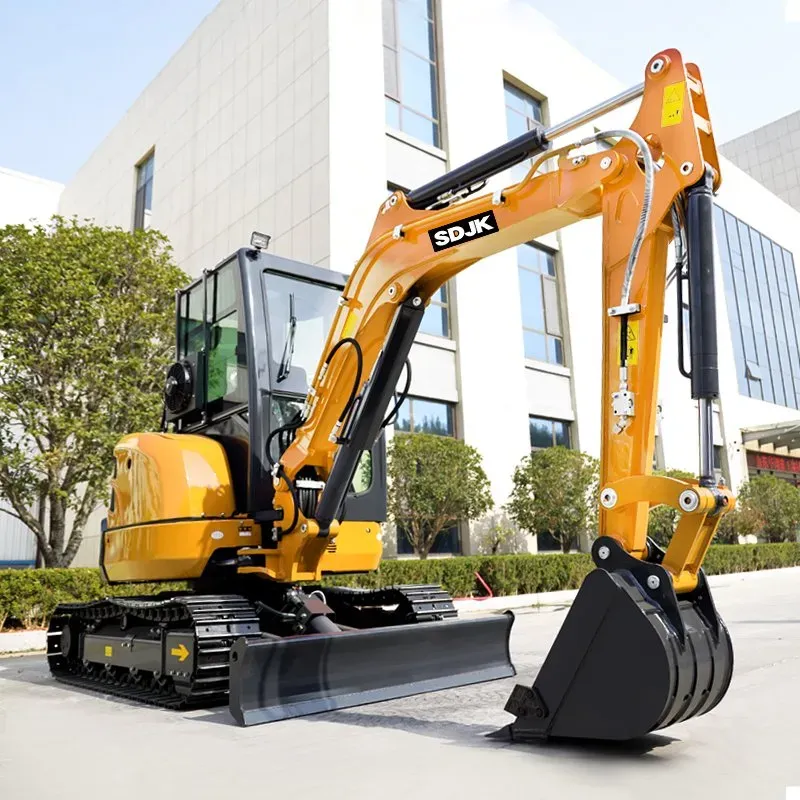

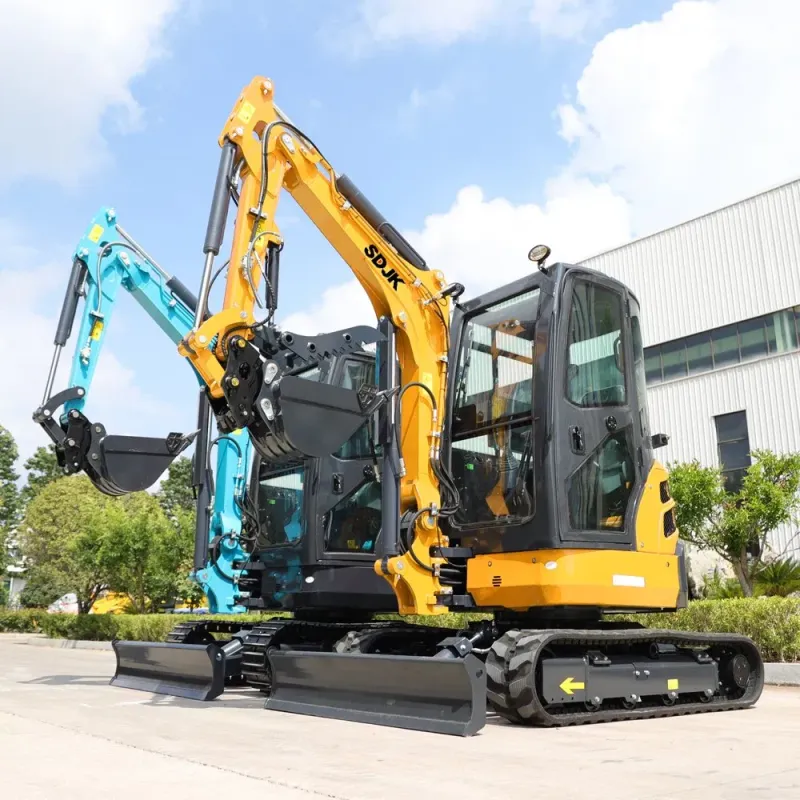

SDJK Machinery mini excavator multi-functional hydraulic excavator.

• Tailless model excavator, low fuel consumption, flexible and convenient operation, suitable for small space operations.
• Light weight, convenient transportation and transfer, saving transportation cost.
• Adopts D902 diesel engine, provides powerful power and low fuel consumption, meets Euro V and EPA emission standards.
• Clamshell design, integrated and durable, good sealing, convenient maintenance.

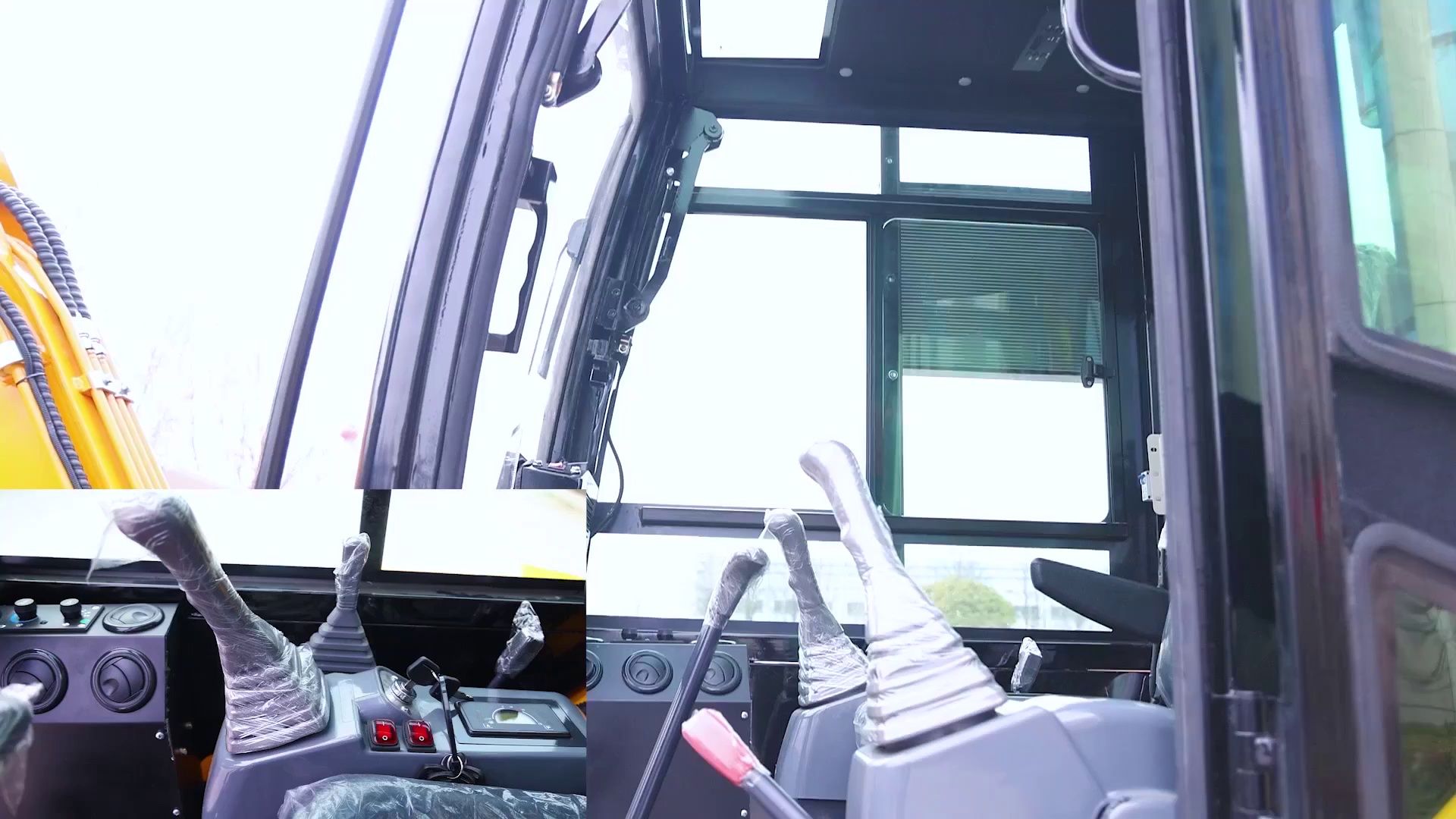

• Hydraulic pilot operation is more flexible and convenient, and the working performance is more stable.
• Adopts rubber crawler, reduce the damage to the road during the construction of the excavator, and the steel crawler can also be replaced according to customer requirements.
• Multifunctional excavator, different work can be completed by replace different working heads.

Features:

• Excavators with compact dimensions can easily drive through narrow passages and doors.
• Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
• Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
• Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
• The operator area is spacious and laid out to provide comfort and ease of operation.
• Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

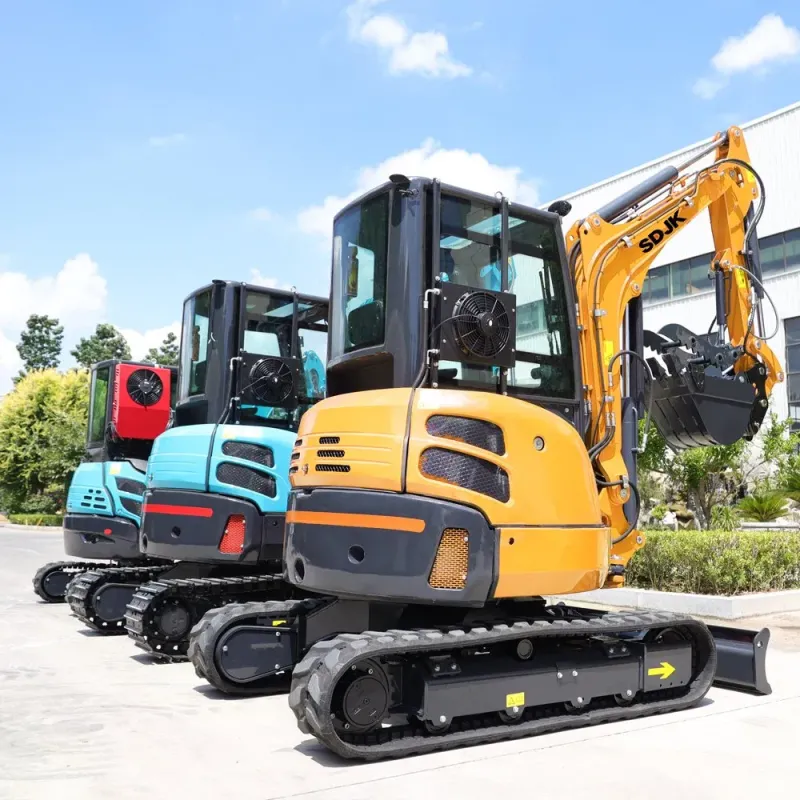

The SDJK Factory Produces Excavators From 1 Ton To 20 Tons. These Are The Hot-Selling Models In Our Store. If You Need Other Types Of Excavators, Please Contact Our Customer Service

JKW-18S mini crawler excavator

Bucket Capacity: 0.04m³

Engine: 370/ D902

Excavator Width: 990/1240 mm

Engine Power: 10.3 KW/2200rpm 11.8 KW/2200rpm

Track Length: 1585mm

Turning Radius: 1430mm

Chassis Ground Clearance: 145mm

Max. Digging Height: 3540mm

Crawler Material: Rubber/Steel tracks

Max. Dumping Height: 2440mm

Track Width: 230mm

Max. Digging Depth: 2310mm

MAX. digging Force: 14.8 KN

Max. Digging Radius: 3840mm

Gradeability: 30°

Max. Vertical Digging Depth: 1910mm

Excavator Height: 2250mm

Fuel Tank Capacity: 18 L

Overall Dimension (LxWxH): 3570*990*2250mm

Weight: 1760 kg;1920 kg

TAIFENG Multi-way Valve

Traveling Motor: EATON

Swing Motor: EATON

Taifeng Plunger Hydraulic Pump

Optional Accessories

We Can Also Provide Private Customization Services According To Your Needs

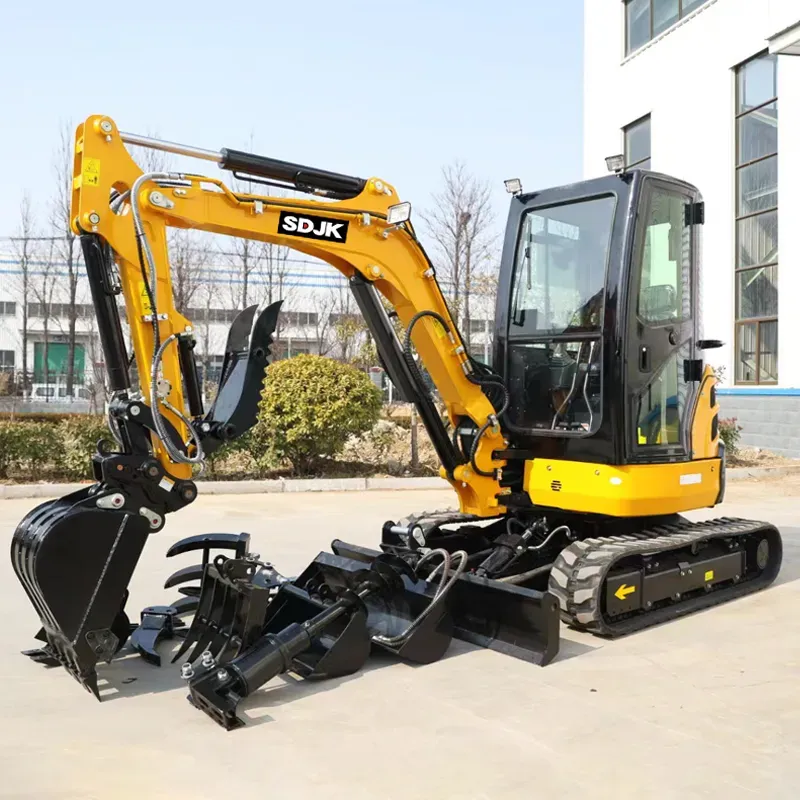

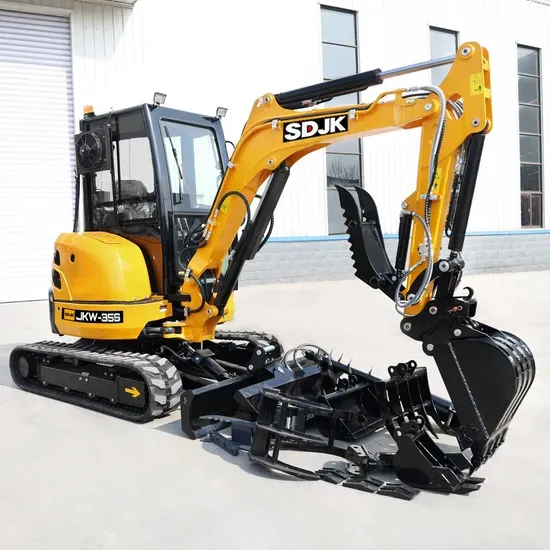

• Optional attachment: Breaker Hammer, Augers, Rakes, Quick Hitch, Rippers, Log Grabbers, Buckets of all sizes and more...
• Color and style can be customize.
• Different types of engines can be matched according to your different needs.
• Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.
