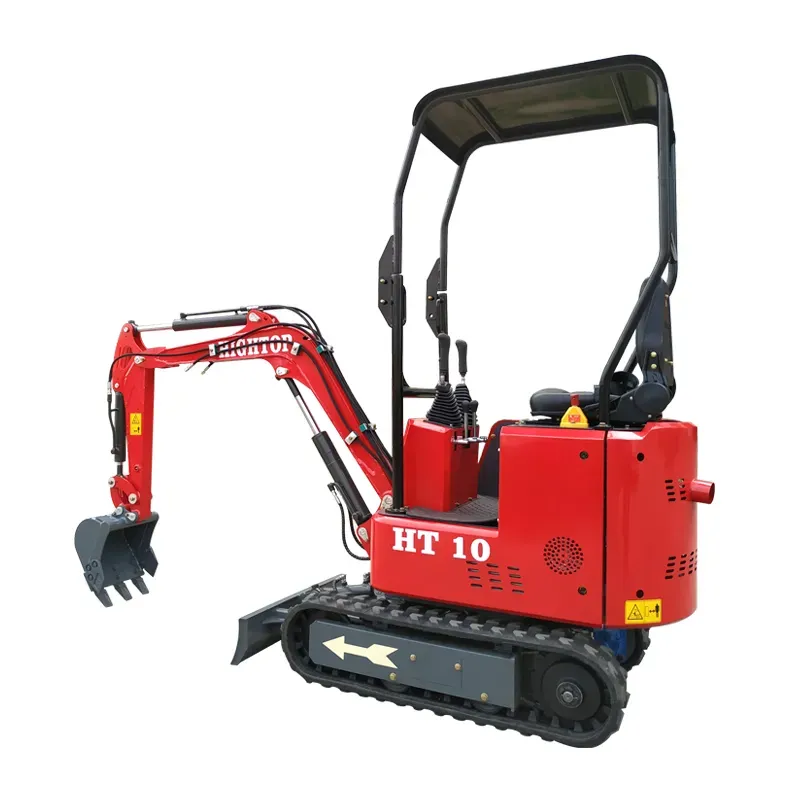

High Performance Hydraulic Crawler Small Wheel Construction Backhoe
Description
Basic Info.
| Model NO. | HT-08/HT-10 |
|---|---|
| Bucket | Dragline |
| Transmission | Hydraulic Transmission |
| Drive Type | Internal Combustion Drive |
| Bucket Capacity | 0.025 cbm |
| Size | Mini-Sized |
| Certification | CE |
| Condition | New |
| Maximum Digging Height | 2610 mm |
| Maximum Digging Depth | 1650 mm |
| Max Digging Radius | 2850 mm |
| Rated Speed | 1.5 km/H |
| Rated Power | 8.6 Kw / 3600r/Min |
| Displacement | 0.211 L |
| Digging Bucket Width | 350mm, Can Add Narrow Bucket Is 200mm |
| Main Pump | Saisida |
| Bore Stroke | Single Cylinder, Fan Cool |
| Pump Flow | 16L/Min |
| Hydraulic Pump Pressure | 16MPa |
| Hydraulic Oil Tank | 16.5L |
| Bucket Digging Force | 9.5kn |
| Specification | 8000kg |
| Trademark | HT |
| Origin | Shandong, China |
| HS Code | 8429521200 |
| Production Capacity | 30 Set/Year |
Product Description
High Performance Crawler Hydraulic Mini Excavator Price

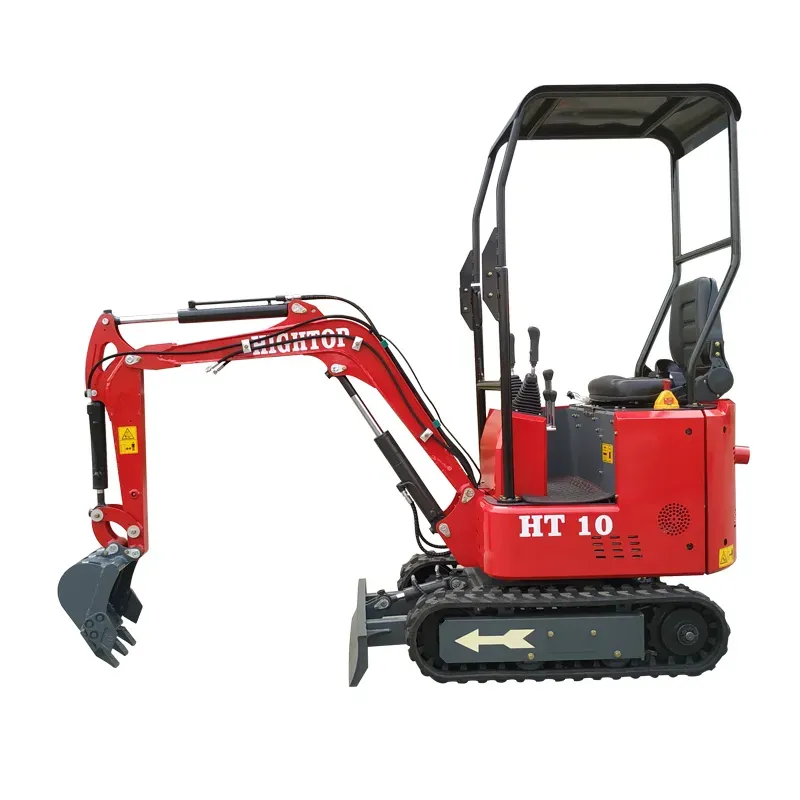

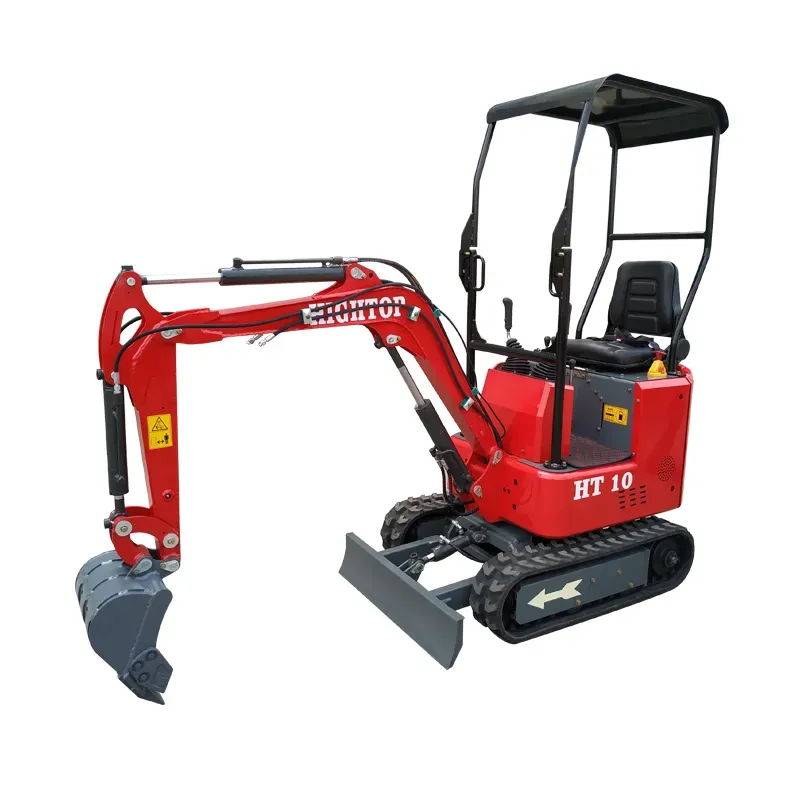

Hightop Construction Machinery HT10 Digger Mini Excavator for Sale
The 0.9 ton small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.
- Because 0.9 ton mini excavator volume is reduced compared with the traditional excavator, it is also reduced in terms of fuel consumption, so the improvement of energy saving is the optimization of environmental protection projects.
- High usage rate, wide range of use environment, high efficiency, these are also the advantages of small excavators, in the construction team, efficiency and quality is undoubtedly in the first place.
- Noise pollution is also a source of pollution. Small excavators also do a good job in reducing noise, which is conducive to promoting the safety and efficiency of workers.
We also have 0.8 ton, 1 ton, 1.6 ton, 1.8 ton, 2 ton and 2.2 ton mini Excavator for you to choose!
Model
HT10
Operating Weight
900kg
Digging bucket capacity
0.025cbm / 100kg
Bucket width
340mm
Engine
CHANG CHAI fan cool
Rated power
8.6 kw / 3600r/min
Displacement
0.211 L
Bore stroke
70x55
Main pump
CBK-F6.8
Displacement
6.8ml/r
Swing motor
SJ-TECH (MP-1-160)
Traveling motor
KERSEN(OMS-2450)
Travel speed
1.5km/h
MAIN DEMENSIONS
| Overall dimension (LxWxH) | 2770x896x1490 mm |
|---|---|
| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 130 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
OPERATING RANGE
| Max. Digging depth | 1650 mm |
|---|---|
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Product Display
Customer Feedback
Company Information
JINING CHINA MACHINERY CO.,LTD.
THE CHINA MACHINERY (JINING) GROUP CMJ OFFERS A WIDE RANGE OF IN-NOVATIVE COMPACT CONSTRUCTION EQUIPMENT FOR TODAY'S URBAN CONSTRUCTION SITES.
China Machinery(Jining) Co Ltd 's aim is to offer compact class construction equipment with superior performance concerning flexibility, speed and process innovation. Our products are designed for highest fuel efficiency and environmental protection, whereby we intentionally optimize the application processes of our users.
Our manufacturing facilities are located in Jining City, Shandong province, China. We apply with good reasons a high integration of manufacturing. Robot assisted steel fabrication as well as manufacturing of turning joints and cylinders are part of our inhouse manufacturing processes.
