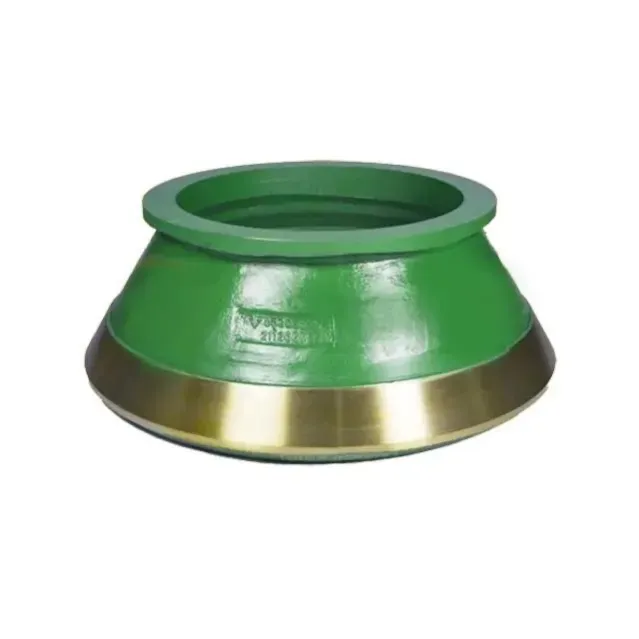

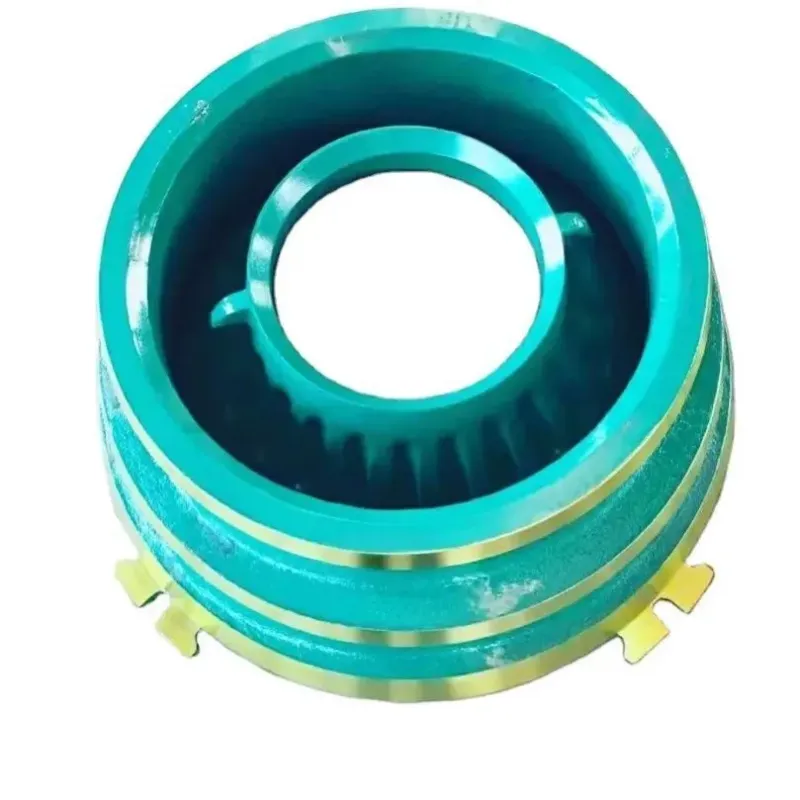

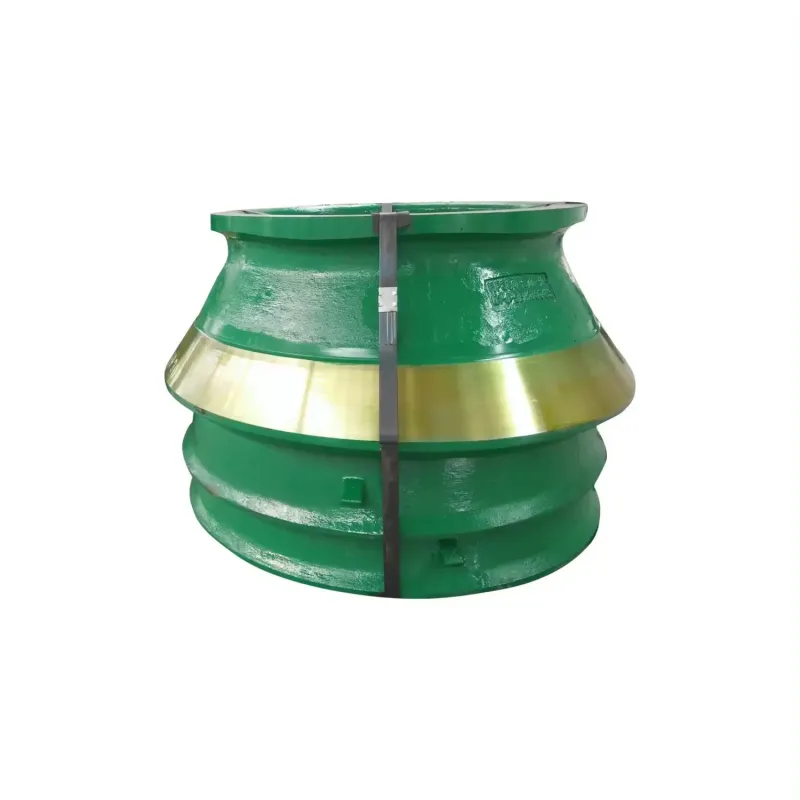

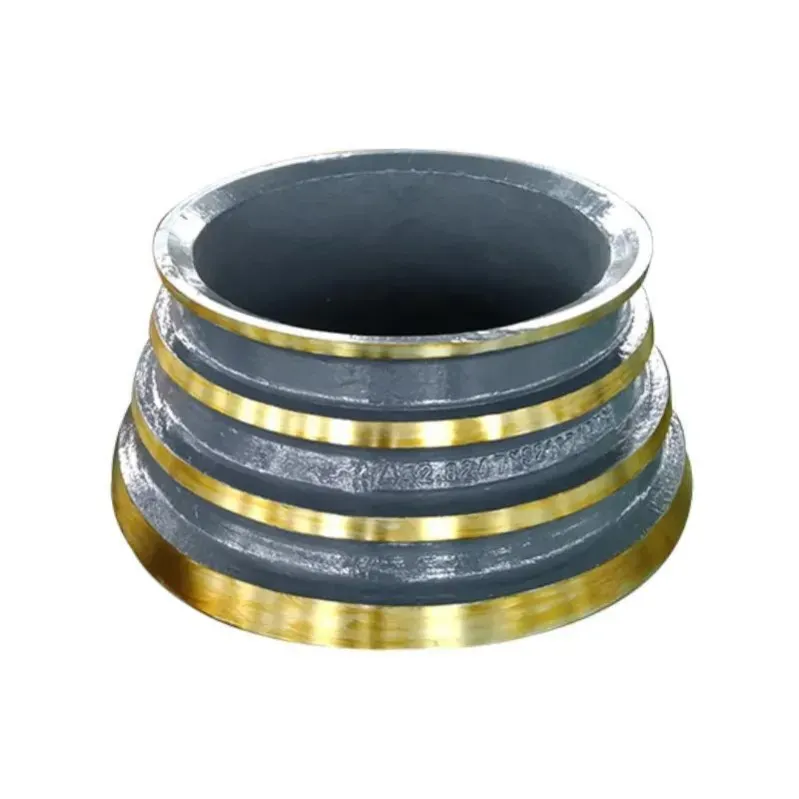

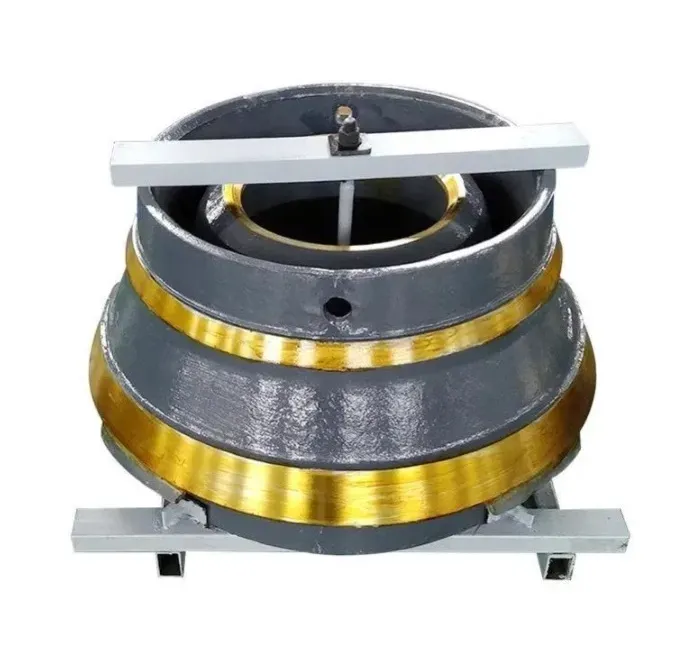

Minyu Concave Mantle Bowl Jawcone Crusher Parts
Description
Overview
Basic Info.
Certification
ISO 9001:2000
Standard
AISI, ASME, BS, ANSI, JIS, GB, GOST, ASTM, DIN
Surface Treatment
Polishing
Manufacturing Process
Casting
Material
Copper Alloy
Factory
Casting Factory
Quality Control
100% Inspection
Application
Milling Machinery, Crusher, Rubber Maching, Quarry
Processing
Centrifugal Casting, Sanding Casting, Machining
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Condition
New
Machine Type
Crusher
Use
Ore Mining
Packaging
Standard Export Wooden Box
Quality Assurance
2D Projector, Height Gague, Micrometer
Advantage
Wear Resistance
Transport Package
Customized Packaging
Specification
Customized
Trademark
Customized logo
Origin
China
HS Code
84749000
Production Capacity
1000 piece/Year
Packaging & Delivery
Package Size
100.00cm * 60.00cm * 50.00cm
Package Gross Weight
51.000kg
Product Description
| Machine name | Part Name | Drawing No. | Weight(kg) |
|---|---|---|---|
| MCC60 | Frame bushing | C 61041 | 233 |
| Eccentric bushing | C 63021 | 170 | |
| Seat liner | C 69111 | 109 | |
| Lower thrust plate | C 63071 | 32 | |
| Thrust plate | C 63051 | 32 | |
| MCC54 | Lower thrust plate | C5 3071 | 26 |
| Thrust plate | C5 3051 | 19 | |
| Seat liner | C5 1111 | 115 | |
| Eccentric bushing | C5 3021E | 115 | |
| Frame bushing | C5 1041E | 186 | |
| MCC51 | Frame bushing | CH 1041A | 151 |
| Eccentric bushing | CH 3021 | 96 | |
| Seat liner | CH 1111 | 98 | |
| Lower thrust plate | CH 3071 | 23 | |
| Thrust plate | CH 3051 | 20 | |
| Seat liner Pin | CH 111A | 0.2 | |
| MCC45 | Frame bushing | CX 1041E | 106 |
| Frame bushing | CX 1041B | 106 | |
| Eccentric bushing | CX 3021E | 68 | |
| Eccentric bushing | CX 3021B | 68 | |
| Seat liner | CX 1111A | 66 | |
| Lower thrust plate | CX 3071 | 17 | |
| Thrust plate | CX 3051 | 11 | |
| MCC40 | Frame bushing | CD1041A | 65 |
| Eccentric bushing | CD3021 | 45 | |
| Seat liner | CD1111 | 27 | |
| Seat liner Pin | CD111A | 0.07 | |
| Thrust plate | CD3051 | 12 |
Our Capacity:
- 1.Centrifugal Casting:
- a:For bronze parts
- b:Diameter under 2200mm
- c:Finished Machining output:10,000kg
- d:Maximum weight per piece:4000kg
- 2.Sand Casting:
- a: For High manganese steel parts
- b: Diameter under 3000mm
- c: Finished Machining output:20,000kg/day
- d: Maximum weight per piece:40,000kg
- 3.Other special shaped parts can use other methods of casting or shaped moulds.
- 4.ODM/OEM services are available
Cu Main Material
| Cu | Sn | Zn | Pb | Fe | Al | Mn | P | Ni |
|---|---|---|---|---|---|---|---|---|
| C93700 | 78-82 | 9-11 | 8-11 | |||||
| C93200 | 81-85 | 6.3-7.5 | 1-4 | 6-8 | 1 | |||
| C95400 | >83 | 3-5 | 10-11.5 | 0.5 | ||||
| C95500 | >78 | 3-5 | 10-11.5 | 3.5 | 3-5 | |||
| C90700 | 88-90 | 10-12 | ||||||
| C95300 | >86 | 0.8-1.5 | 9-11 | |||||
| C95800 | >79 | 3.5-4.5 | 8.5-9.5 | 0.8-1.5 | 4-5 | |||
| C93600 | 79-83 | 6-8 | 1 | 11-13 | 1 | |||
| C86300 | 60-66 | 22-28 | 2-4 | 5-7.5 | 2.5-5 | |||
| C83600 | 84-86 | 4-6 | 4-6 | 4-6 | 1 |
More related products
Main Products: Crusher Bushing, Socket Liner, Piston Step Bearing, Eccentric Bushing, Main Shaft Step Bearing, Crusher Countershafte, Cone Crusher Upper Frame, Bottom Shell Bushing, Top Shell, Bottom Shell, Main Frame, Adjustment Ring, Head Assy, Bowl, Drive Gear, Counterweight assy, Shaft, Pitman, Bronze Bushing, Pump, Tramp Release Cylinder, Protection Bushing, Gear and Gear & Pinion, Jaw Crusher Fixed Jaw, Movable Jaw, Cone Crusher Mantle, Concave, Bowl Liner. Seals, Spring, Wedge, Toggle Plate, and Etc.
Company Profile
Nanjing Gloria International Trading Co., Ltd. specialize in providing high-quality OEM aftermarket Bronze Parts and High Manganese Casting Parts for various crusher brands. Our crusher spares are designed to fit your crushers perfectly, ensuring optimal performance and longevity. Precision-engineered Bronze Parts Durable High Manganese Casting Parts Compatible with Crushers Guaranteed fit for your crushers. we offer a wide range of OEM crusher parts for different crusher models.
