Cone Crusher Wear Parts: Concave Bowl Liner & Mantle for Quartz, Gold, Granite Crushing
Contact Now
Description
Overview
Basic Info.
| Model NO. | Mantle |
| Certification | CE, ISO 9001:2000, TUV |
| Standard | AISI, ASME, BS, ANSI, JIS, GB, GOST, ASTM, DIN |
| Surface Treatment | Polishing |
| Manufacturing Process | Casting |
| Material | High Manganese Steel |
| Works | Cone Crusher |
| Customize | Support |
| MOQ | 1 PCS |
| Advantage | High Efficiency, Non-Pegging, High Separating |
| Transport Package | Standard Packing |
| Specification | Mn13-Mn18, Cr26 |
| Trademark | SMYHI |
| Origin | Chongqing, China |
| HS Code | 8474209000 |
| Production Capacity | 10000 Sets/Month |
Packaging & Delivery
| Package Size | 120.00cm * 120.00cm * 90.00cm |
| Package Gross Weight | 600.000kg |
Product Description
20 50 100tph Cone Stone Rock Crusher Wear Spare Parts Concave Bowl Liner and Mantle Rolling Mortar Wall for Quartz Gold Granite Crushing Equipment
Product Information

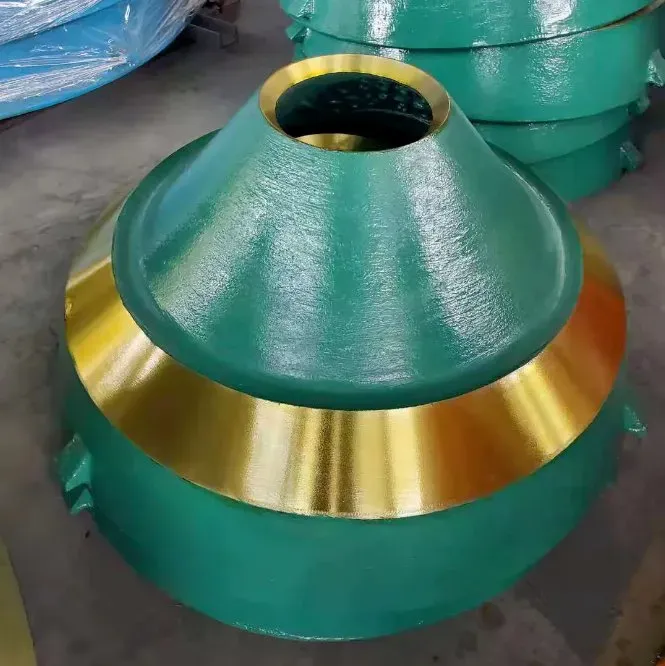

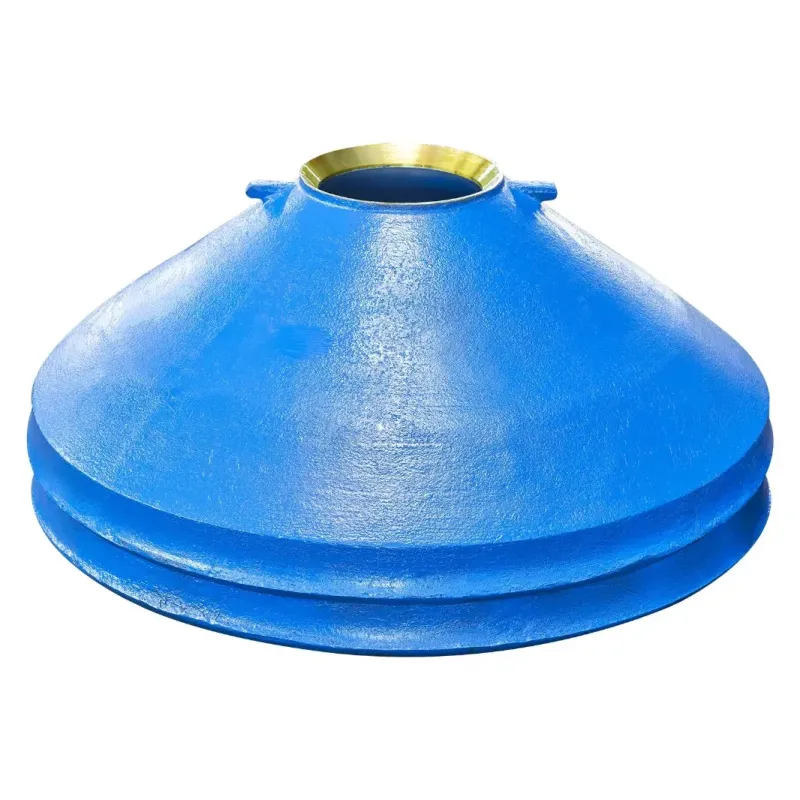

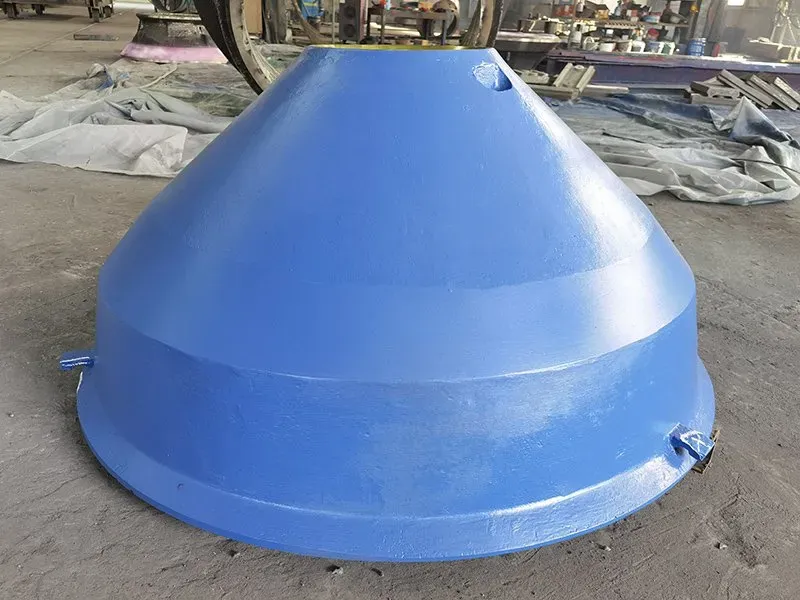

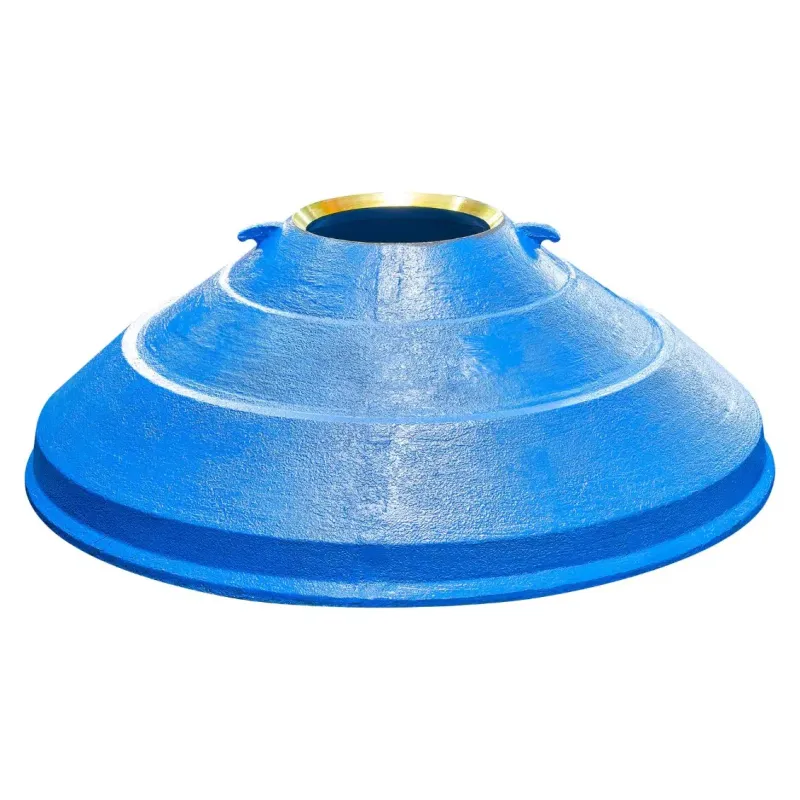

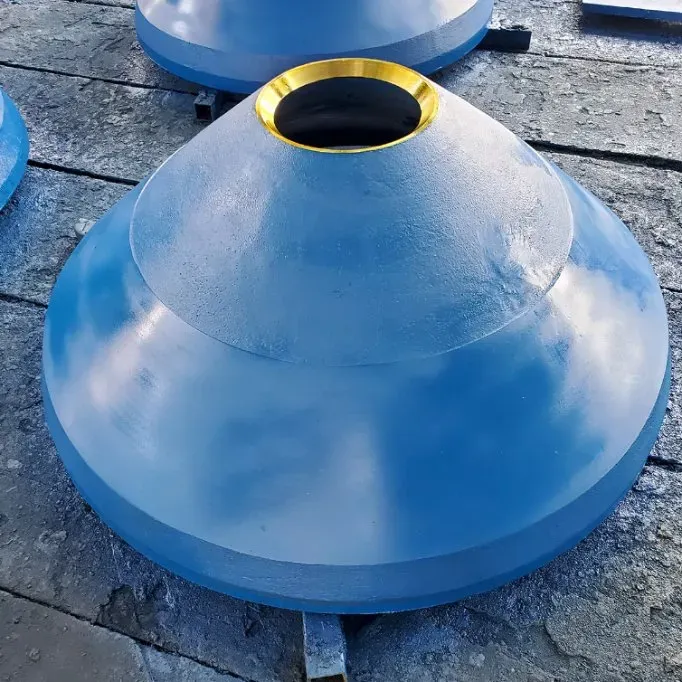

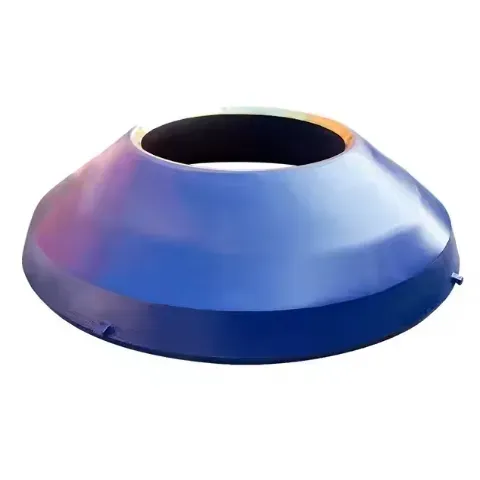

Bowl Liner is also called Bowl Liner. It is the main component that works with the crushing wall in the cone crusher to crush the material. Bowl Liner is fixed so it is also called fixed cone, and crushing wall is movable so it is also called moving cone.
Material code
| C | Mn | Si | Cr | P | S | |
|---|---|---|---|---|---|---|
| ZGMn13Cr2 | C:1.0~1.3 | Mn:11~14 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |
| ZGMn18Cr2 | C:1.1~1.4 | Mn:17~20 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |
| ZGMn22Cr2 | C:1.1~1.4 | Mn:20~24 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |

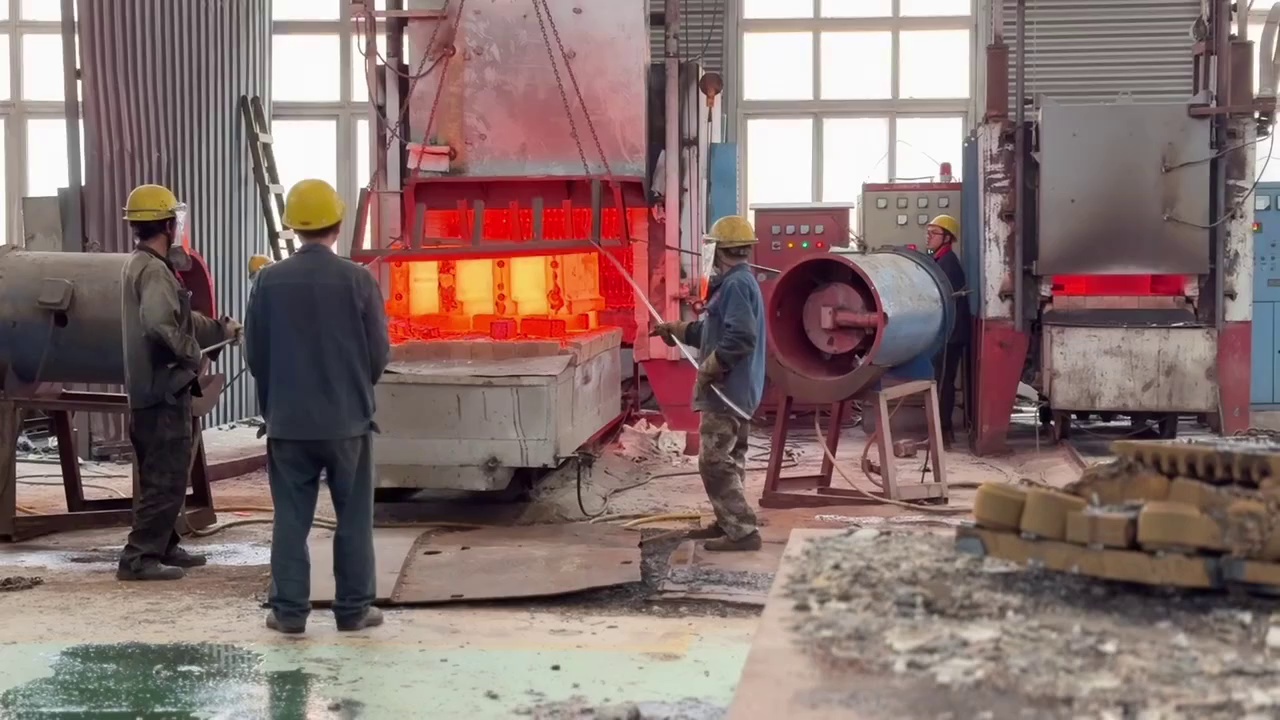

Process
Applicable Materials
- 1. Mining, coal, chemical, power.
- 2. Building materials, sands and gravels, quarries.
- 3. Metallurgy, petroleum, petrochemical industries etc.
- 4. Screening, filtration, dehydration, and desliming.
