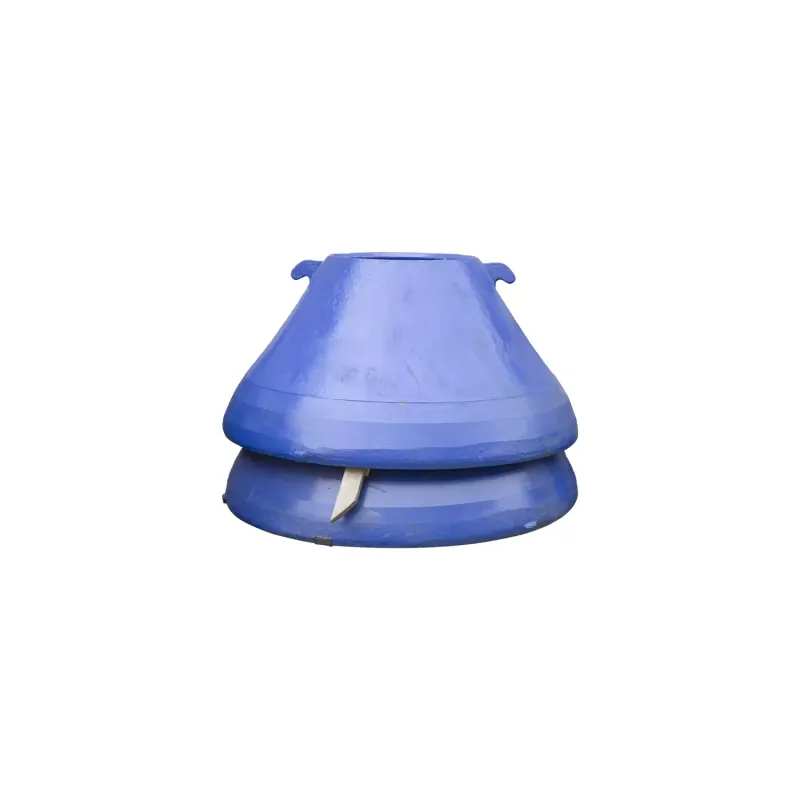

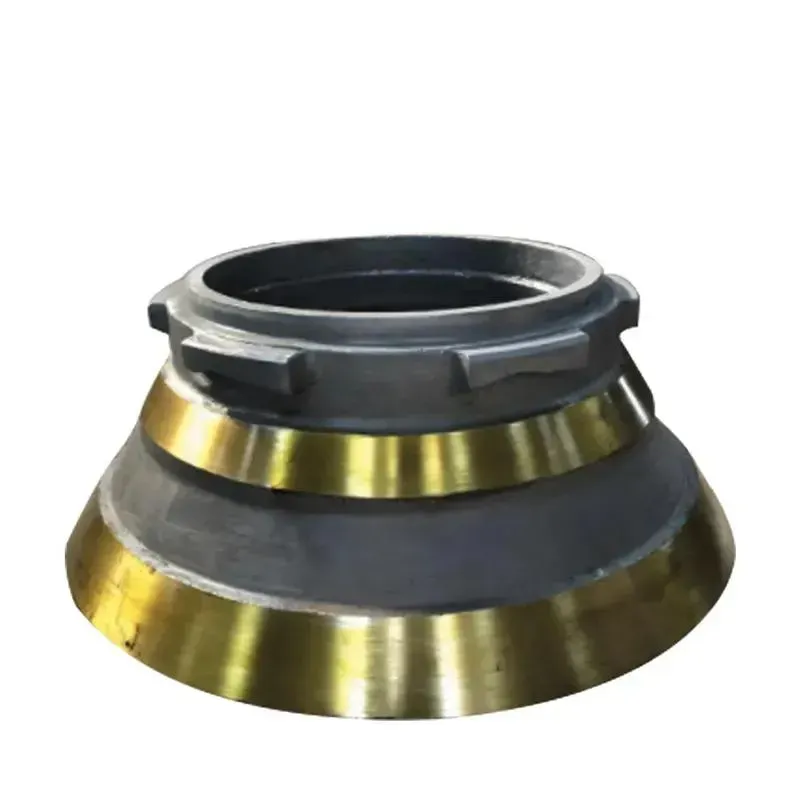

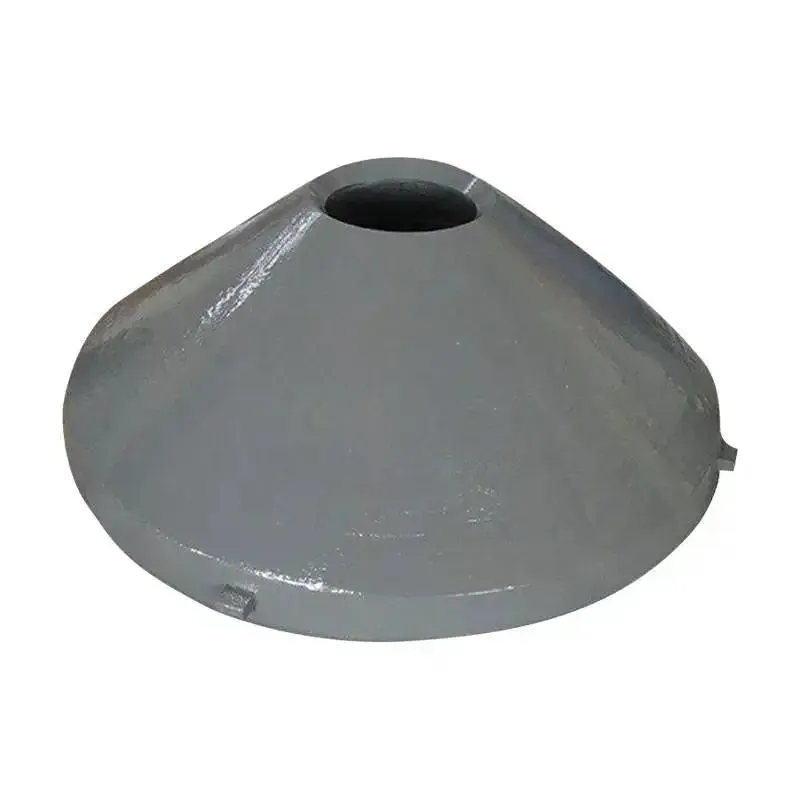

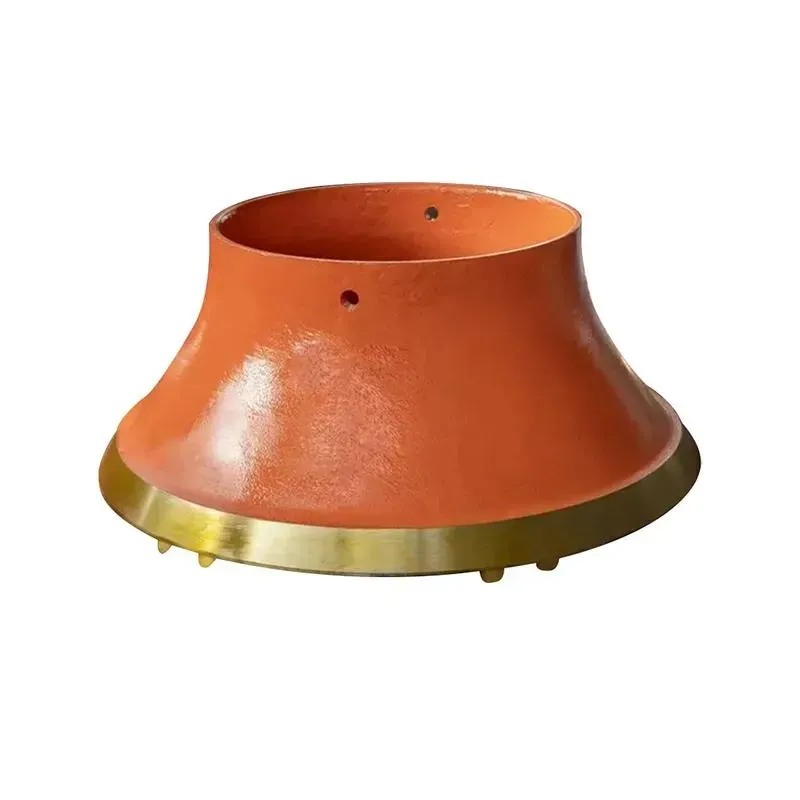

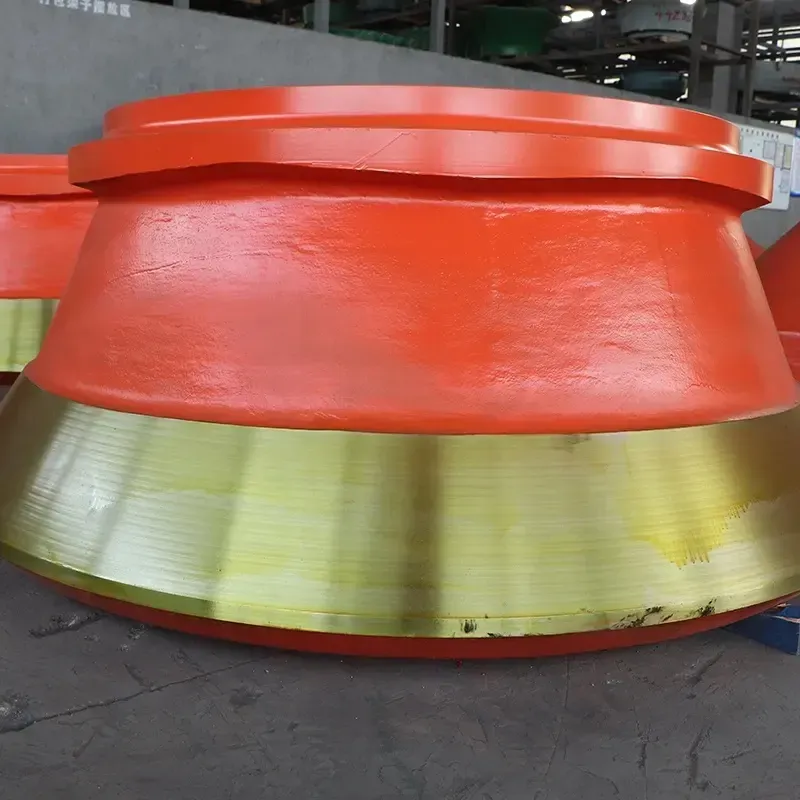

High Manganese Cone Crusher Mantle
Description
Overview
Basic Info.
Certification
ISO 9001:2000
Standard
AISI, ASME, BS, ANSI, JIS, GB, GOST, ASTM, DIN
Surface Treatment
Polishing
Manufacturing Process
Casting
Material
Copper Alloy
Factory
Casting Factory
Quality Control
100% Inspection
Application
Milling Machinery, Crusher, Rubber Maching, Quarry
Processing
Centrifugal Casting, Sanding Casting, Machining
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Condition
New
Machine Type
Crusher
Use
Ore Mining
Packaging
Standard Export Wooden Box
Quality Assurance
2D Projector, Height Gauge, Micrometer
Advantage
Wear Resistance
Transport Package
Customized Packaging
Specification
Customized
Trademark
Customized logo
Origin
China
HS Code
84749000
Production Capacity
1000 piece/Year
Product Description
| Machine name | Parts Name | Drawing No. | Weight(kg) | Note |
|---|---|---|---|---|
| Symons 3' | Outer eccentric bushing | 2214-5321 | 71 | |
| Symons 3' | Inner eccentric bushing | 2207-0561 | 50 | Standard |
| Symons 3' | Inner eccentric bushing | 2207-1401 | 51 | Short head |
| Symons 3' | Socket liner | 4872-3565 | 38 | Standard |
| Symons 3' | Socket liner | 4872-4795 | 41 | Short head |
| Symons 3' | Countershaft box bushing | 2206-0762 | 11 | |
| Symons 3' | Center step bearing plate | 5759-8701 | 9 | |
| Symons 3' | Lower step bearing plate | 9785-7501 | 9 | |
| Symons 4' | Outer eccentric bushing | 2214-5601 | 129 | |
| Symons 4' | Inner eccentric bushing | 2214-4481 | 75 | |
| Symons 4' | Socket liner | 4872-5205 | 71 | |
| Symons 4' | Center step bearing plate | 5760-0801 | 15 | |
| Symons 4' | Lower step bearing plate | 5759-9601 | 15 | |
| Symons 4 1/4' | Outer eccentric bushing | 2214-5885 | 148 | |
| Symons 4 1/4' | Inner eccentric bushing | 2214-3930 | 103 | |
| Symons 4 1/4' | Socket liner | 4872-6435 | 74 | Standard |
| Symons 4 1/4' | Socket liner | 4872-6430 | 61 | Short head |
| Symons 4 1/4' | Countershaft box bushing | 2206-2090 | 18 | |
| Symons 4 1/4' | Center step bearing plate | 5760-1701 | 22 | |
| Symons 4 1/4' | Lower step bearing plate | 5760-2601 | 22 | |
| Symons 5 1/2' | Outer eccentric bushing | 2214-6161 | 306 | |
| Symons 5 1/2' | Inner eccentric bushing | 2214-5706 | 180 | |
| Symons 5 1/2' | Socket liner | 4872-7050 | 195 | |
| Symons 5 1/2' | Countershaft box bushing | 2206-5840 | 22 | Standard |
| Symons 5 1/2' | Countershaft box bushing | 2206-5871 | 22 | Short head |
| Symons 5 1/2' | Center step bearing plate | 5760-4401 | 23 | |
| Symons 5 1/2' | Lower step bearing plate | 5760-3501 | 28 | |
| Symons 7' | Outer eccentric bushing | 2214-7561 | 485 | |
| Symons 7' | Inner eccentric bushing | 2214-6721 | 331 | |
| Symons 7' | Socket liner | 4872-8485 | 300 | Standard |
| Symons 7' | Socket liner | 4872-8520 | 300 | Short head |
| Symons 7' | Countershaft box bushing | 2206-8500 | 29 | |
| Symons 7' | Center step bearing plate | 5760-7701 | 43 | |
| Symons 7' | Lower step bearing plate | 5760-7401 | 47 | |
| 36"GD | Outer bushing | 2207-3501 | 62 | |
| 36"GD | Inner bushing | 2206-3100 | 52 | |
| 36"GD | Socket liner | 4872-4100 | 40 | |
| 48"GD | Outer bushing | 2214-5900 | 136 | |
| 48"GD | Inner bushing | 2207-2400 | 98 | |
| 48"GD | Socket liner | 4872-6702 | 103 |
Our Capacity:
- Centrifugal Casting:
- For bronze parts
- Diameter under 2200mm
- Finished Machining output:10,000kg
- Maximum weight per piece:4000kg
- Sand Casting:
- For High manganese steel parts
- Diameter under 3000mm
- Finished Machining output:20,000kg/day
- Maximum weight per piece:40,000kg
- Other special shaped parts can use other methods of casting or shaped moulds.
- ODM/OEM services are available.
Cu Main Material
| Cu | Sn | Zn | Pb | Fe | Al | Mn | P | Ni |
|---|---|---|---|---|---|---|---|---|
| C93700 | 78-82 | 9-11 | 8-11 | |||||
| C93200 | 81-85 | 6.3-7.5 | 1-4 | 6-8 | 1 | |||
| C95400 | >83 | 3-5 | 10-11.5 | 0.5 | ||||
| C95500 | >78 | 3-5 | 10-11.5 | 3.5 | 3-5 | |||
| C90700 | 88-90 | 10-12 | ||||||
| C95300 | >86 | 0.8-1.5 | 9-11 | |||||
| C95800 | >79 | 3.5-4.5 | 8.5-9.5 | 0.8-1.5 | 4-5 | |||
| C93600 | 79-83 | 6-8 | 1 | 11-13 | 1 | |||
| C86300 | 60-66 | 22-28 | 2-4 | 5-7.5 | 2.5-5 | |||
| C83600 | 84-86 | 4-6 | 4-6 | 4-6 | 1 |
More related products
Main Products: Crusher Bushing, Socket Liner, Piston Step Bearing, Eccentric Bushing, Main Shaft Step Bearing, Crusher Countershafte, Cone Crusher Upper Frame, Bottom Shell Bushing, Top Shell, Bottom Shell, Main Frame, Adjustment Ring, Head Assy, Bowl, Drive Gear, Counterweight assy, Shaft, Pitman, Bronze Bushing, Pump, Tramp Release Cylinder, Protection Bushing, Gear and Gear & Pinion, Jaw Crusher Fixed Jaw, Movable Jaw, Cone Crusher Mantle, Concave, Bowl Liner. Seals, Spring, Wedge, Toggle Plate, and Etc.
Company Profile
Nanjing Gloria International Trading Co., Ltd. specialize in providing high-quality OEM aftermarket Bronze Parts and High Manganese Casting Parts for various crusher brands, including Symons, Pegson, Telsmith, and Nordberg. Our crusher spares are designed to fit your crushers perfectly, ensuring optimal performance and longevity. Precision-engineered Bronze Parts Durable High Manganese Casting Parts Compatible with Symons, Pegson, Telsmith, and Nordberg Crushers Guaranteed fit for your crushers. we offer a wide range of OEM crusher parts for different crusher models, including:GP Series, HP Series, MP Series, C-Jaws, Gyrotary, VSI, NP Impact, S Series, H Series, Jaw Series, VSI Series, Minyu Series, Telsmith Series, Nordberg Series.
