Overview

Basic Info

Model NO. PY series, Symons series, HP series
Motor Power 75-375kw
Application Mine
Materials Limestone, Granite, Quartz, Basalt
Outlet Size ≤240mm
Inlet Size 150×750mm
Condition New
Warranty 1year
After-sales Service 1year
Dimension (L*W*H) According to Product
Capacity (T/H) 90-110 Tph
Key Words Mining Crushing Machine HP 200 Cone Crusher for SA
Key Selling Points Competitive Price
Discharging Size 16-38mm
Core Components Bearing
Spare Parts Supply Anytime
Advantage High Efficiency Low Energy
Machinery Test Report Provided
Video Outgoing-Inspection Provided
After-Sales Service Provided Provided
Transport Package Wooden Case Packing
Specification 25.2
Trademark Baichy
Origin China, Hanan
HS Code 8474209000
Production Capacity 150sets/Month

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 60.00cm
Package Gross Weight 600.000kg

Product Description

Compatible Cone Crusher Spare Parts HPC300/HPC400/HPC500 Bowl Liner And Mantle Wear Parts For Mining Machinery

Product Description

Mantle, covers the head of the crusher to protect it from wear, typical material ZGMn18Cr2 or XT710

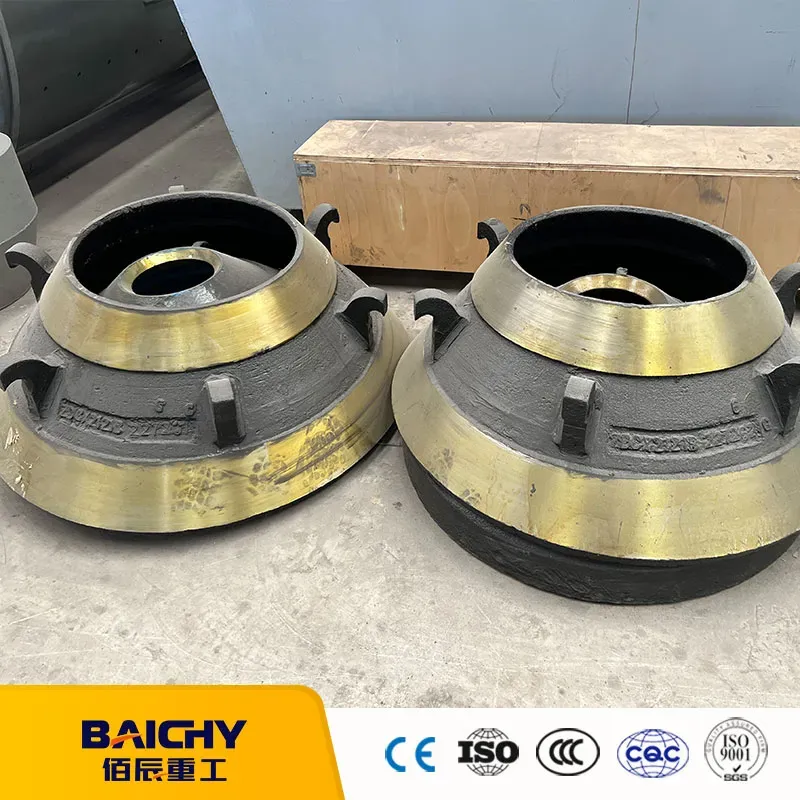

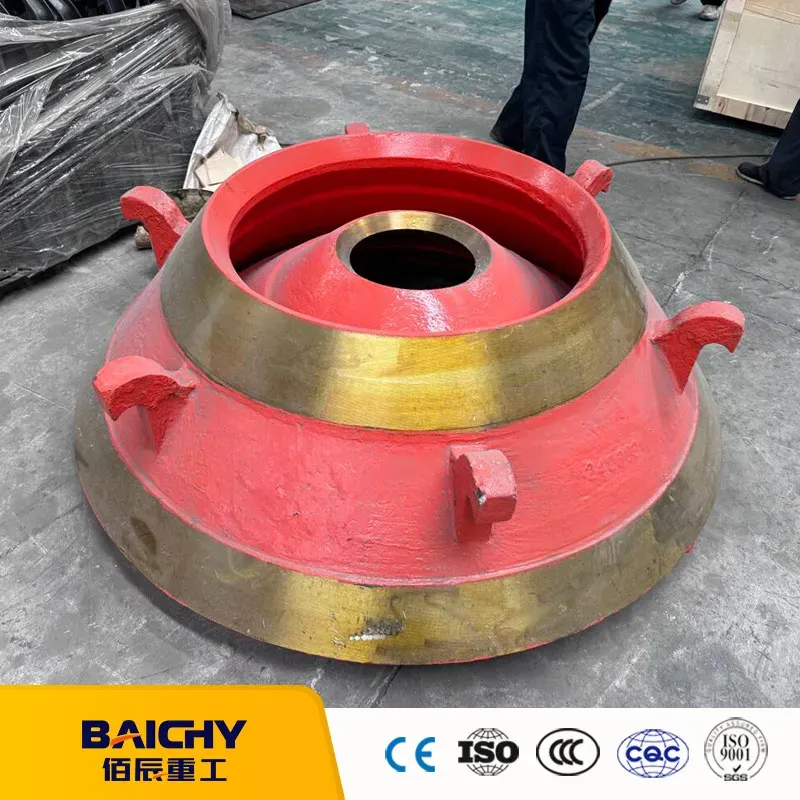

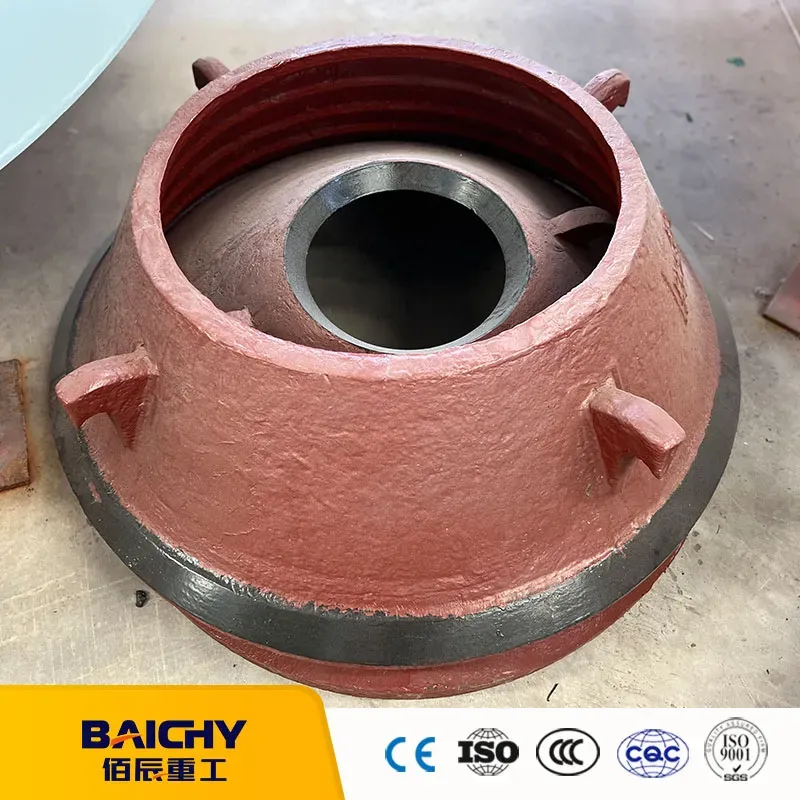

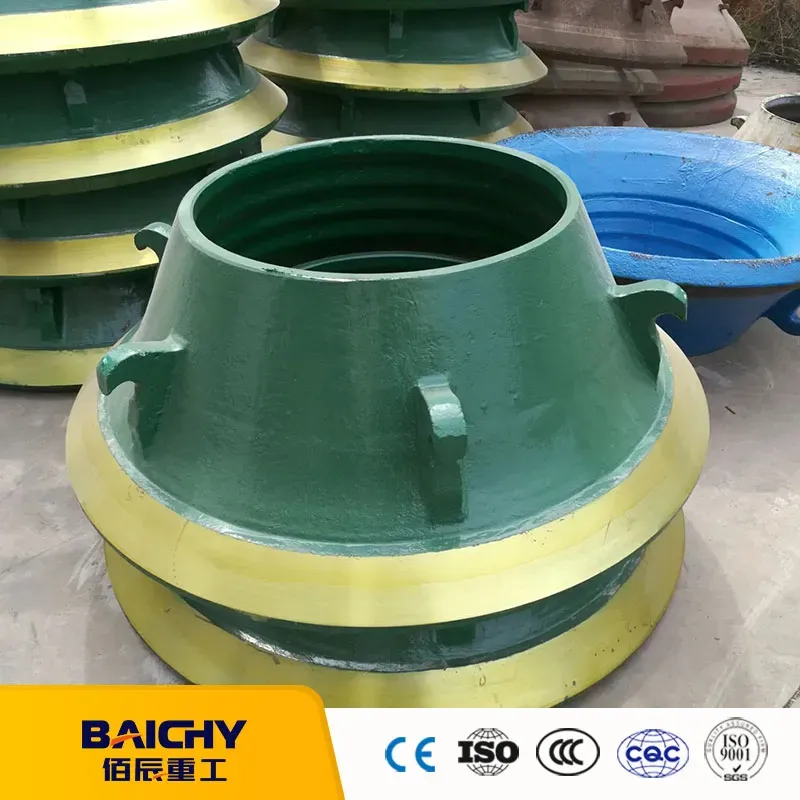

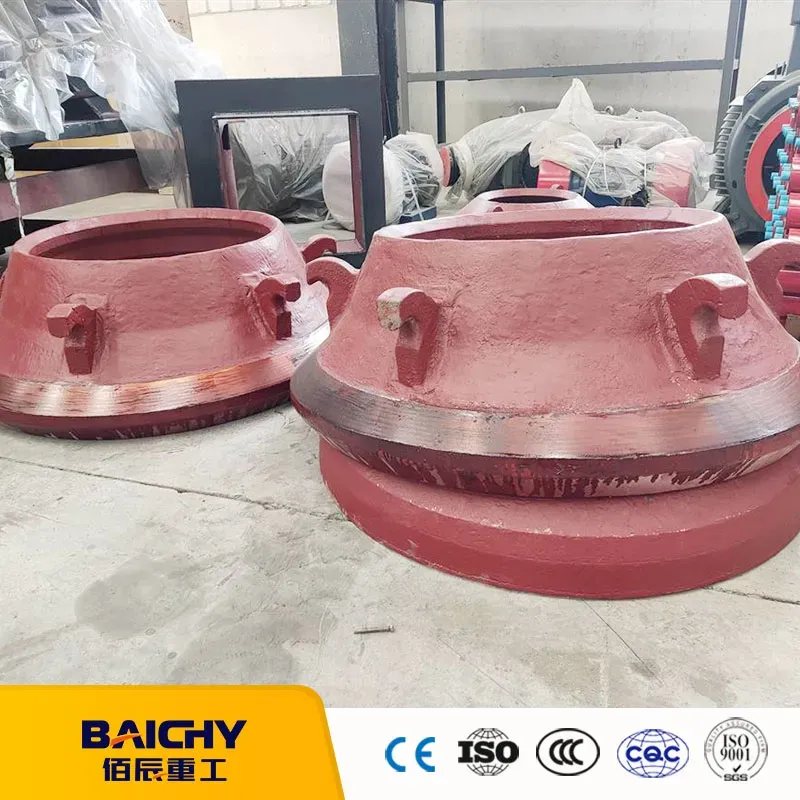

Bowl Liner, secured inside of the bowl to protect it from wear, typical material ZGMn18Cr2 or XT710

The design of Deya Machinery's cone crusher wear parts starts with CAD and SolidWorks simulations of the cone crusher cavity, which is the heart of the crushing process.

By computer based planning and continuous quality control of the casting we can guarantee premium material quality, which translates into improved wear life and a higher operational capacity and reliability.

Compatible Cone Crusher Spare Parts Hpc300/Hpc400/Hpc500 Bowl Liner and Mantle Wear Parts for Mining Machinery

Spare parts name | Material | Hardness | Size | OEM

cone crusher bowl liner	Mn13Cr2/ Mn18Cr2/ Mn22Cr2	HRA≥85	Customize Size	Accept customization by drawing
cone crusher mantle	Mn13Cr2/ Mn18Cr2/ Mn22Cr2	HRA≥85	Customize Size	Accept customization by drawing
jaw crusher wear parts	Mn13Cr2/ Mn18Cr2/ Mn22Cr2	HRA≥85	Customize Size	Accept customization by drawing

Materials: Mn13Cr2, Mn18Cr2, etc.
Application: spare parts for cone crusher used in the mining, metallurgy, construction, road building, etc.
Advantages: The production process, especially the heat treatment, is strictly controlled, thus improving the service life even for crushing of hard rocks with high abrasiveness.

When change the mantle and bowl liner?

In order to prevent damage to the liner seating surfaces of the crusher head or bowl, wear parts must be replaced before they are worn through.

In normal conditions, approximately 50% of the liner weight is consumed when liners are worn out. It is important to keep a record of liner wear in order to assess the degree of liner wear without the need to stop the crusher operation.

Production considerations may sometimes favor the changing of wear parts before they are fully worn. Hourly capacity or product quality may decrease towards the end of the liner wear life, and it may be more economical to change the liner before the end of its lifetime.

Typically, distorted wear profiles can cause a reduction in capacity. Other symptoms of abnormal worn liners are high power draw and ring bounce.

Also, the wear life can be reduced because the wear is sometimes concentrated in a small zone rather than spread along the full cavity, and the cavity may have to be replaced before it is fully worn. This results in poor utilization and higher operating wear costs.
