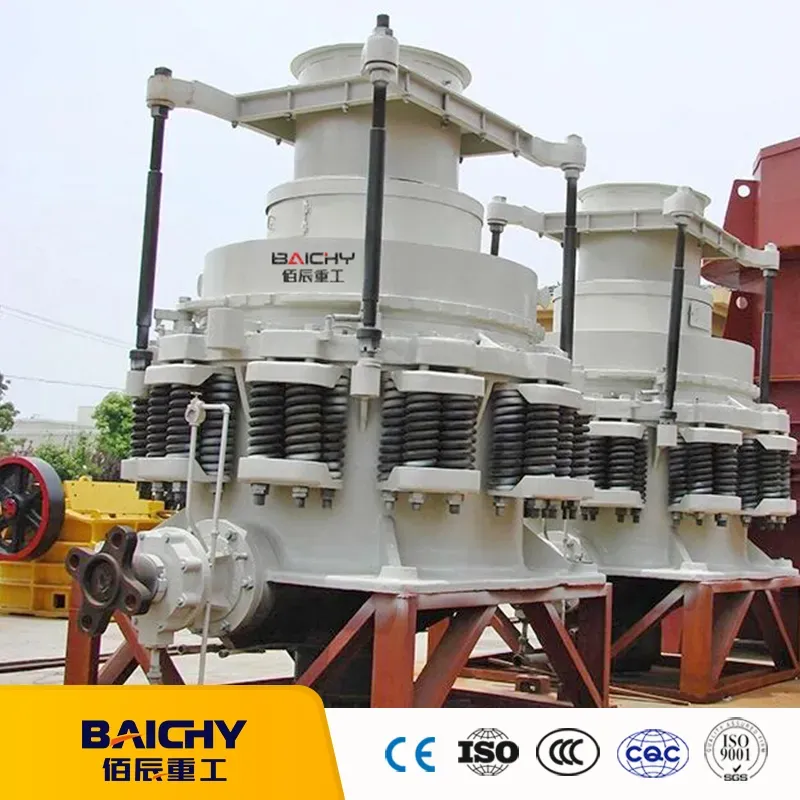

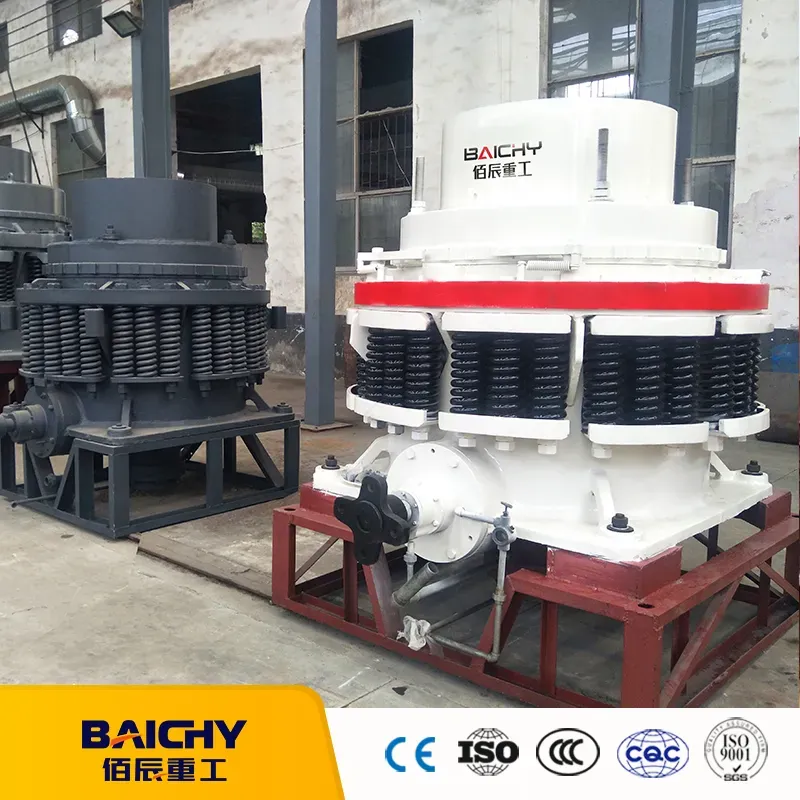

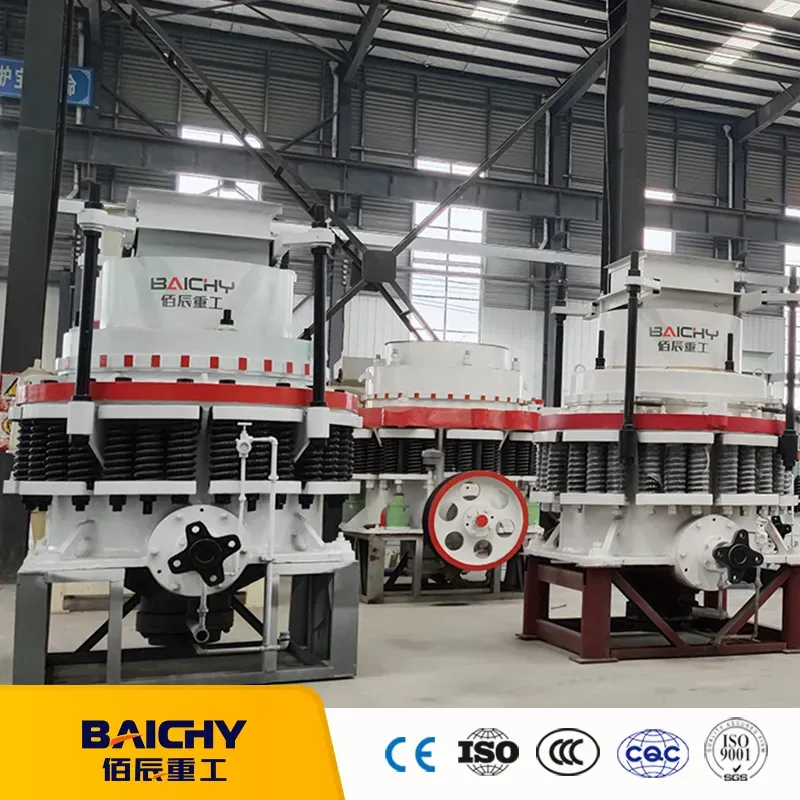

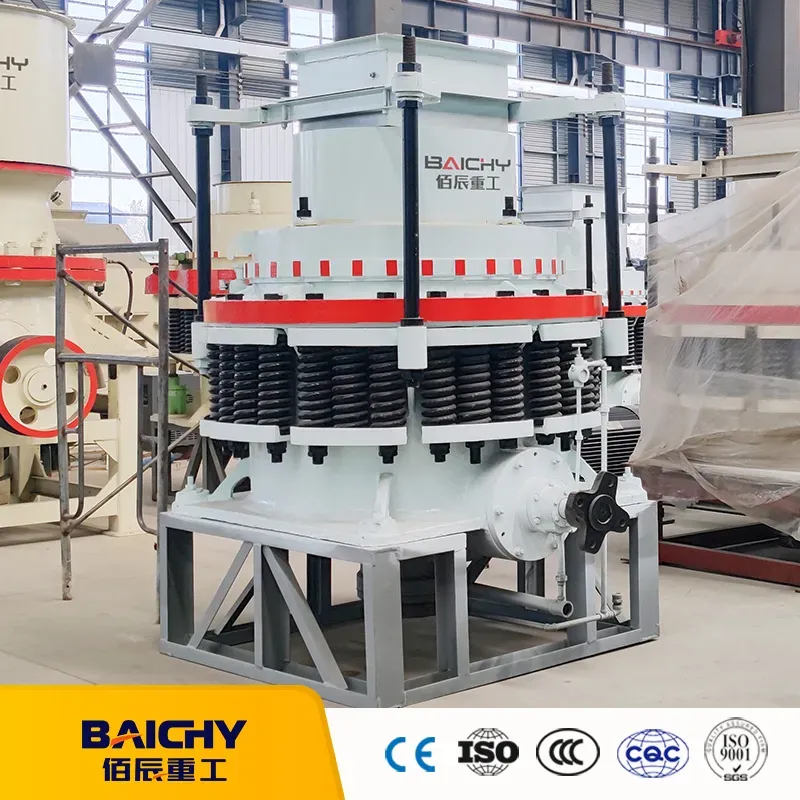

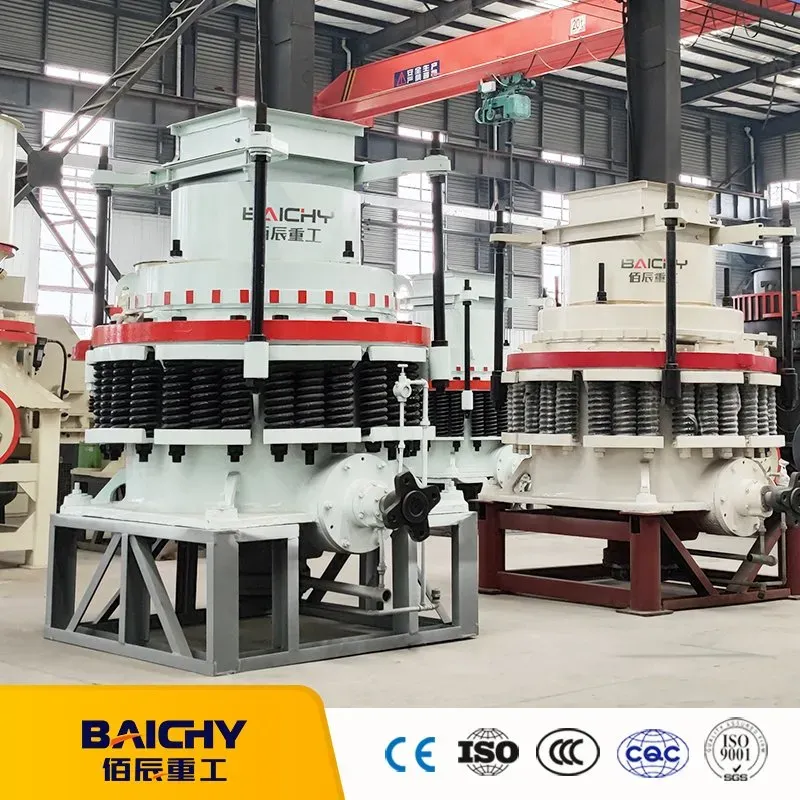

China Sale CS75, CS110, CS160 Quartz Hydraulic Spring Cone Crusher
Description
Overview
Basic Info.
- Model NO. CS75, CS110, CS160
- Motor Power 75-315kw
- Application Mine
- Materials Limestone
- Outlet Size 80-200mm
- Inlet Size 150×750mm
- Condition New
- Warranty 1year
- After-sales Service 1year
- Capacity(T/H) 100-250 T/H
- Quality Advanced Technology
- Core Components Bearing
- Key Selling Points Competitive Price
- Spare Parts Supply Anytime
- Advantage High Efficiency Low Energy
- Video Outgoing-Inspection Provided
- Factory Visit Welcomed Warmly
- Machinery Test Report Provided
- Certification ISO,CE
- Transport Package Wooden Boxes
- Specification 1000KG
- Trademark Baichy
- Origin China, Hanan
- HS Code 8474209000
- Production Capacity 30-800 T/H
Packaging & Delivery
- Package Size 500.00cm * 380.00cm * 400.00cm
- Package Gross Weight 17000.000kg
Product Description
China sale CS75, CS110, CS160 quartz hydraulic Spring Cone Crusher Granite Gyratory Ore Gold quarry compound cone crusher
Product Advantage
Features: 1. Easy maintenance and easy operation. The lamination crushing process makes the final material have a good particle shape. 2. The hydraulic overload protection device helps to remove iron and reduce downtime. The thin oil lubrication station is equipped with a cooling system for better cooling performance. 3. The standard or short head crushing chamber can be replaced by different sleeves and bowl liners to better meet the needs of users. 4. Heavy-duty design and use of high-quality components with optimized wear parts reduce operating costs.
Applied Material
Symons cone crusher is widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry, and silicate industry. It is suitable for crushing ores and rocks with medium hardness and above. It has the characteristics of strong crushing force, reliable structure, high efficiency, large output, low operating cost, convenient adjustment, and economical use. CS cone crusher is used to crush more than 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc. Different final output sizes can meet your different needs.
Product Type
Symons cone crusher is used as a secondary crusher or fine crusher for occasions that do not require high particle size standards. Since the Simmons cone crusher controls the particle size of the product by reducing the size of the discharge opening, it is not suitable for ultra-fine crushing and sand-making operations. Baichy Machinery provides users with various types of cone crushers such as compound, single-cylinder, multi-cylinder, and full-hydraulic. Complete specifications, affordable price, environmental protection, and energy saving. Our professional technical designers provide free design solutions and provide suitable solutions according to the customer's site and broken materials. If you want to know more about the cone crusher equipment, please click the picture below for more details↓↓↓

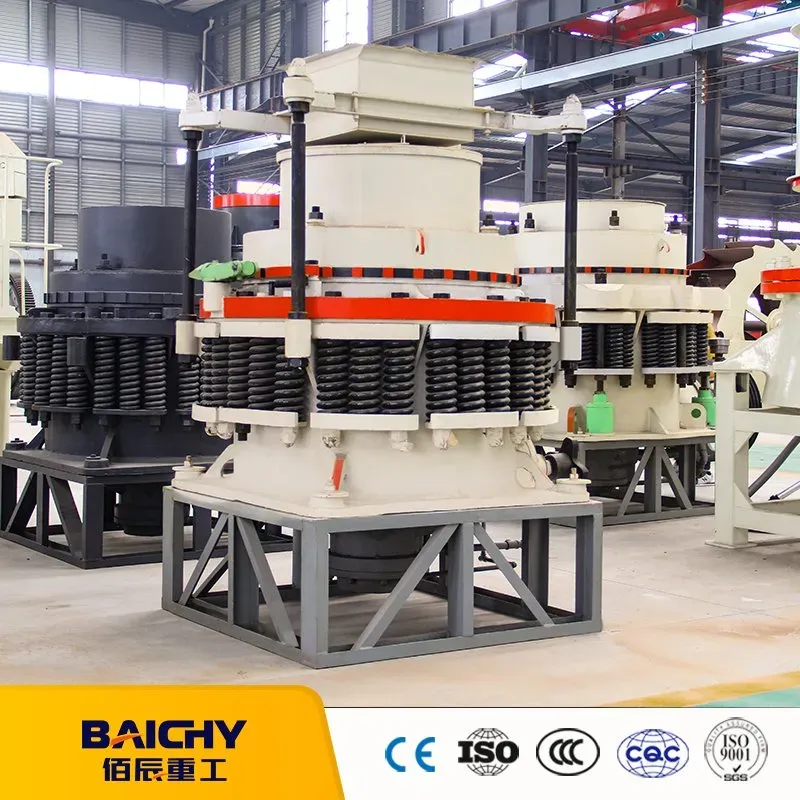

Spring Cone Crusher
DG Cone Crusher

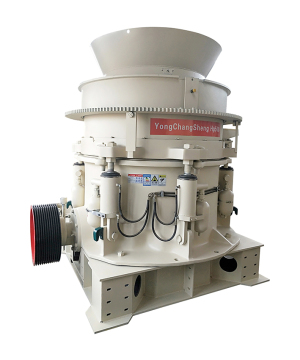

HP Cone Crusher
Working Principle
When Symons cone crusher works, the motor drives the eccentric sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear. The conical shaft core rotates and moves by the driving of the eccentric sleeve, causing the surface of the broken wall to be close to or leave the surface of the rolling wall, therefore, the material is continuously crushed by the crushing and bending in the annular crushing cavity composed of the fixed cone and the moving cone. After multiple extrusion impacts and bending, the material is crushed to the required particle size and discharged through the lower portion.
Product Parameters
| Model | Moveable Cone Dia. (mm) | Cavity Type | Feeder Opening Size | Adjusting Range of Discharge Opening(mm) | Main Shaft Speed (r/min) | Motor Power (kw) | Capacity(t/h) | Overall Dimension L*W*H (mm) | Shutting Size(mm) | Opening Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| CS75B | 900 | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880×2164 | |
| Coarse | 159 | 175 | 13-38 | 59-163 | ||||||
| CS110B | 1200 | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 2821×1974×2651 | |
| Medium | 156 | 156 | 13-38 | 100-200 | ||||||
| Coarse | 178 | 191 | 19-51 | 141-308 | ||||||
| CS160B | 1295 | Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 2800×2342×2668 | |
| Medium | 188 | 210 | 16-38 | 132-253 | ||||||
| Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| CS220B | 1650 | Fine | 188 | 209 | 16-38 | 485 | 220 | 181-327 | 3911×2870×3771 | |
| Medium | 213 | 241 | 22-51 | 258-417 | ||||||
| Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| CS315B | 2134 | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 4613×3251×4732 | |
| Medium | 303 | 334 | 25-51 | 608-998 | ||||||
| Coarse | 334 | 369 | 31-64 | 789-1270 |
We are able to design and manufacture complete sets of crushing plants with capacities ranging from 30tph to 500tph and provide the best and most economical solutions according to customers' requirements on stone specifications, output, application, etc. We have the best one-stop service, providing customers with equipment installation, commissioning, and after-sales service.
If you have any questions, you can contact us anytime! We can give you the most satisfactory answer about the stone you need to be crushed and the output size!
