High performance and stability

Wide range of uses

Low cost of use

Easy maintenance

Safe and Environmental protection

Product description：

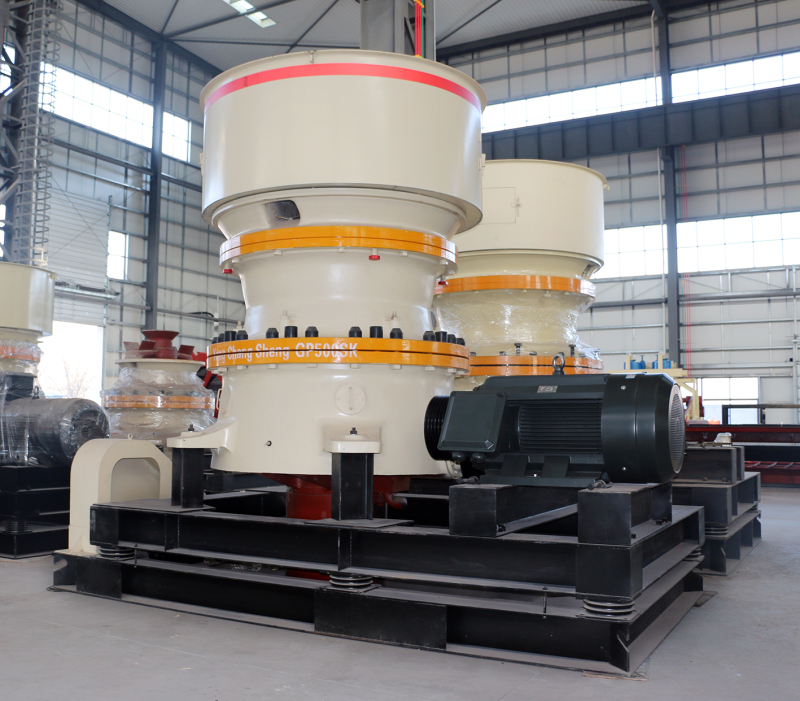

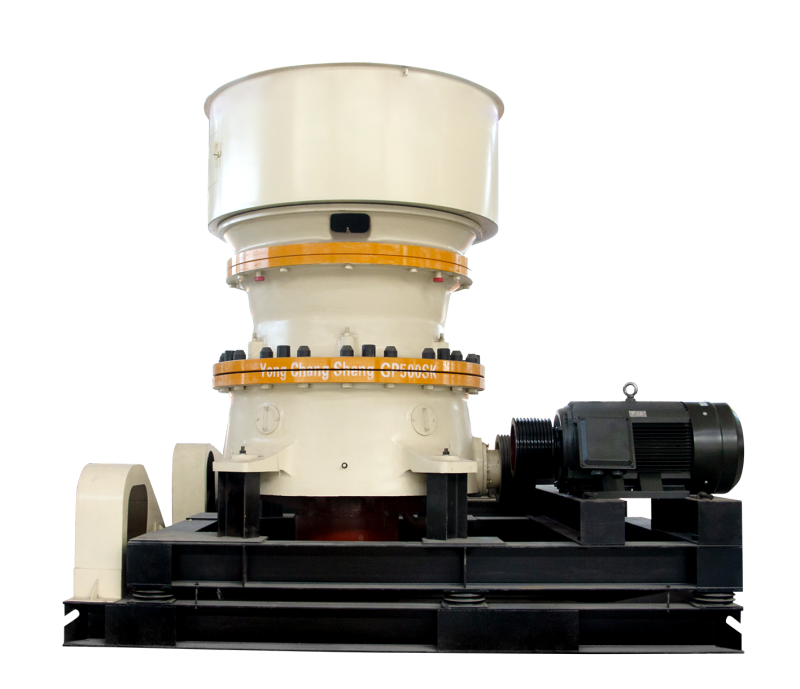

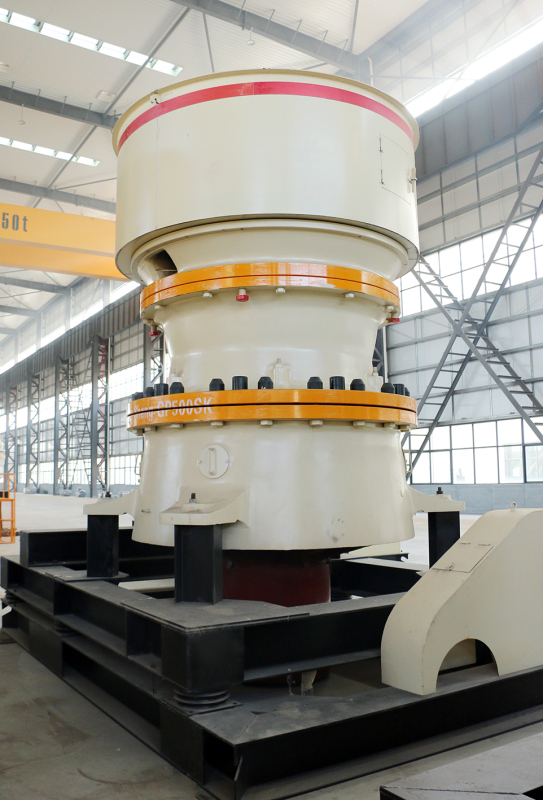

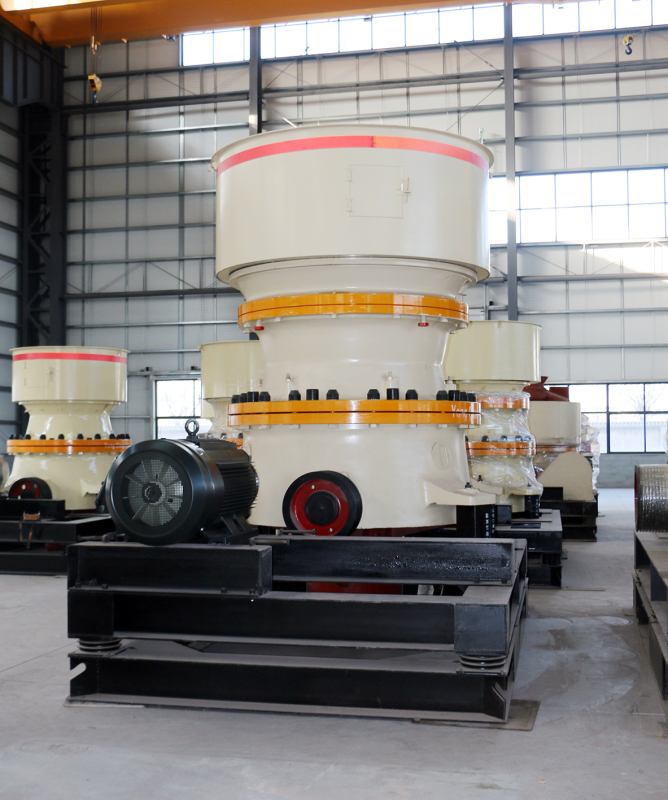

Hebei Zhongwei GP series single-cylinder hydraulic cone crusher is an internationally technologically advanced product. Strong structure, large crushing ratio and high productivity. It is suitable for large and medium-sized sand and gravel and mining processing enterprises, and can crush harder rocks, ore and river pebbles. It can be applied to the second, third and fourth stages of crushing. The same host machine can obtain a variety of cavity types by replacing wear parts, so as to adapt to various applications. The medium crusher has a wide feed inlet, which is suitable for secondary crushing or even coarse crushing of materials.

The crushing process of Hebei Zhongwei GP series single-cylinder hydraulic cone crusher is that the horizontal shaft is driven by the motor to drive the eccentric sleeve through the gear, and the eccentric sleeve drives the broken wall of the eccentric swing. Periodic distance changes occur between the broken wall and the rolling mortar wall. And complete the crushing of the material.

Hebei Zhongwei GP series single-cylinder hydraulic cone crusher has the advantages of solid structure, exquisite structure, simple operation, low maintenance, large crushing ratio, high productivity, large output, low cost of use, wide application range and high utilization rate.

Features:

★Wide range of application

The same host machine can obtain a variety of cavities by replacing wear parts to meet the needs of coarse crushing, medium crushing and fine crushing. It can be applied to the second, third and fourth stage crushing. The medium crusher has a wide feed inlet, which is suitable for secondary crushing or even coarse crushing of materials.

★Good product shape

The optimized crushing cavity design, the perfect combination of crushing frequency and eccentricity, and laminated crushing keep the material smaller than the discharge opening of the crusher in a better shape.

★Large output

The sturdy frame design allows the crusher to operate under high power. High power and large eccentricity allow the crusher to obtain greater production capacity.

★Low production cost

Optimized crushing cavity design and high-quality wear-resistant parts make the unit steel consumption lower; laminated crushing and full feeding make the crusher work more efficiently.

★Simple and fast operation and maintenance

The discharge port can be dynamically adjusted. When the crusher is working, the size of the discharge port can be adjusted by pressing the button through hydraulic pressure, so that the crusher can reach the ideal working power.

★No filling required for installation of wear parts

The precision-machined wear-resistant parts require no filling during installation, which makes the replacement of the wear-resistant parts faster and does not need to wait for the filler to solidify, which saves time and improves the operating rate.

★high degree of automation。

Using PLC control system, all data and working status are displayed on the touch screen, making the operation more convenient. Large-scale production lines can be fully automated.

Technical parameter(Medium broken type)

The production capacity and sieving curve in the table are only for reference, and only apply to the parameters of the medium-hard granite with a bulk density of 1.6t/m³ when the crushing cavity is packed. The reference output of other materials can be approximated by the bulk density conversion.

Different cavity types and strokes have different applicable discharge opening ranges. Find the allowable discharge opening size from the main parameter table and combine it with the production capacity reference. The maximum discharge will become larger after the broken wall and the rolling mortar wall are worn.



Customer site:

Company Profile：

Hebei Zhongwei Mining Machinery Manufacturing was founded in 1990. After 36 years of development, it has grown into a modern mining machinery manufacturing enterprise integrating scientific research, production, design and EPC project general contracting. It is a director unit of the China Sand and Gravel Association, a member unit of the China Heavy Machinery Association, and a vice president unit of the Hebei Sand and Gravel Association. It is also a qualified supplier for China Power Construction Corporation, China Railway Construction Corporation, China Railway Group, China Energy Construction Corporation, China Nonferrous Metal Mining Group, and China Communications Construction Company.

Hebei Zhongwei is located in Wangdu County, Hebei Province, in the center of the Beijing-Tianjin-Shijiazhuang triangle.Hebei Zhongwei has three mechanical factories and two steel foundries under its umbrella, covering a total area of 101,300 square meters and a construction area of 86,300 square meters. It is equipped with over 90 sets of specialized processing equipment and has more than 160 professional technicians and production workers. Its annual production capacity can reach 700 sets of mining machinery and equipment.

Hebei Zhongwei fully implements the "three systems" certification standards including ISO9001-2015 Quality Management System, ISO14001-2015 Environmental Management System, and ISO45001-2018 Occupational Health and Safety Management System. By introducing advanced foreign technologies and conducting independent research and development, it has produced 18 series of mining machinery and equipment, such as the C series European-style jaw crusher, GP series single-cylinder hydraulic cone crusher, HP series multi-cylinder hydraulic cone crusher, PCZ series hammer crusher, B series vertical shaft impact crusher, N series impact crusher, 2PG series hydraulic double-roller sand making machine, YKJ series thin oil lubrication maintenance-free circular vibrating screen, and ZSW series vibrating feeder. The high manganese steel wear-resistant parts independently cast and produced by Hebei Zhongwei feature advanced technology, low wear cost, and long service life. With excellent quality and comprehensive after-sales service, its products are sold all over the country and exported to the Middle East, Central Asia, Southeast Asia, Africa, South America, Mongolia, Russia and other countries and regions, receiving unanimous praise from customers.

Address: Wangdu Economic Development Zone,Baoding city, Hebei province
