Single-Cylinder Hydraulic Cone Crusher Plant
Description
Basic Info.
| Model NO. | VSS860 |
| Motor Power | 90-350kw |
| Application | Mine |
| Outlet Size | Option |
| Inlet Size | Option |
| Condition | New |
| Warranty | 1 Year |
| After-sales Service | 1 Year |
| Model | Vss860 |
| Power (Kw) | 315 |
| Ec | 560 |
| C | 500 |
| Transport Package | Option |
| Specification | option |
| Trademark | VOSTOSUN |
| Origin | China |
| HS Code | 8474209000 |
| Production Capacity | 45 Sets/Year |
Packaging & Delivery
| Package Size | 1.00cm * 1.00cm * 1.00cm |
| Package Gross Weight | 10000.000kg |
Product Description
Product Overview

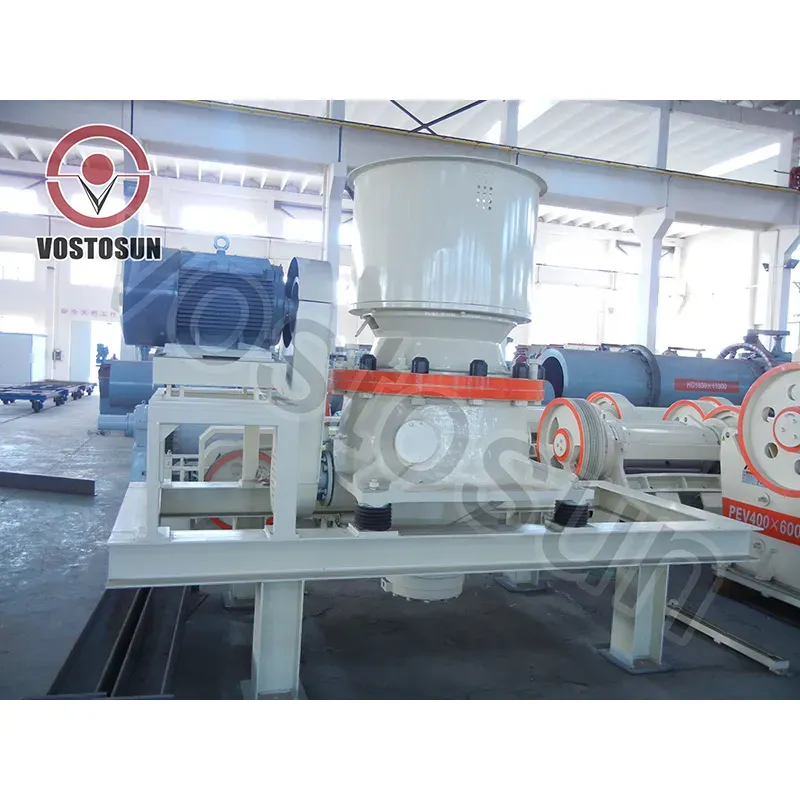

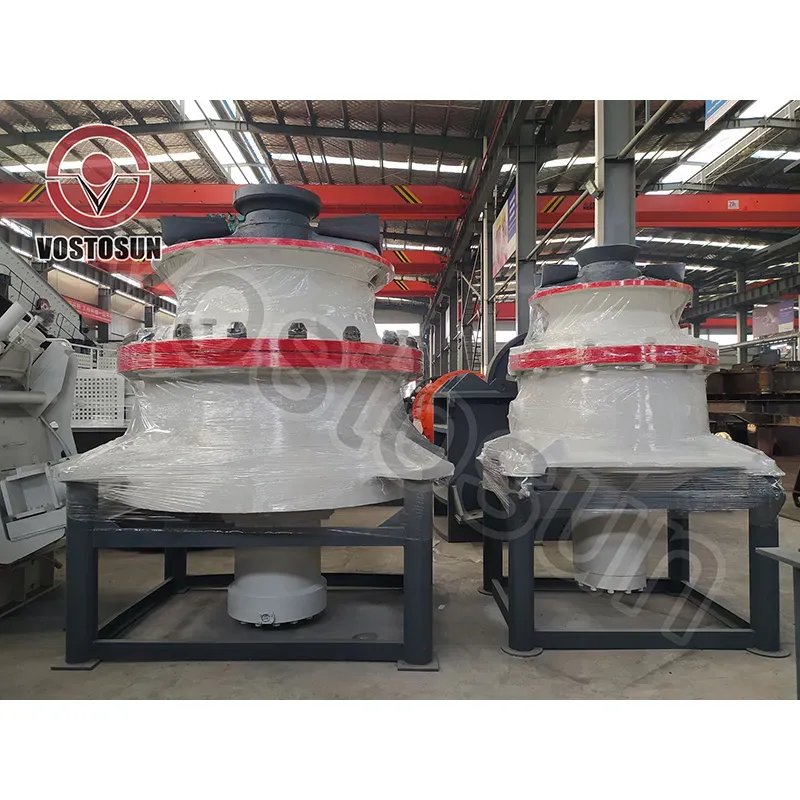

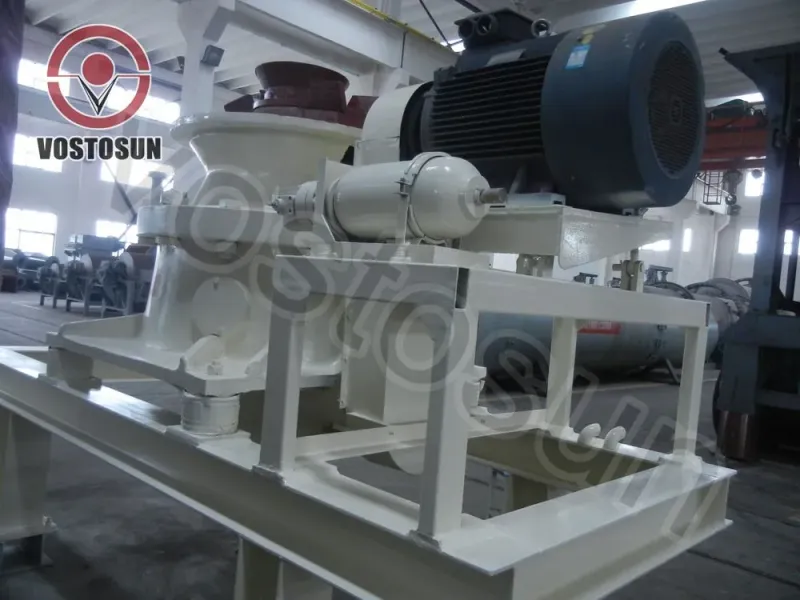

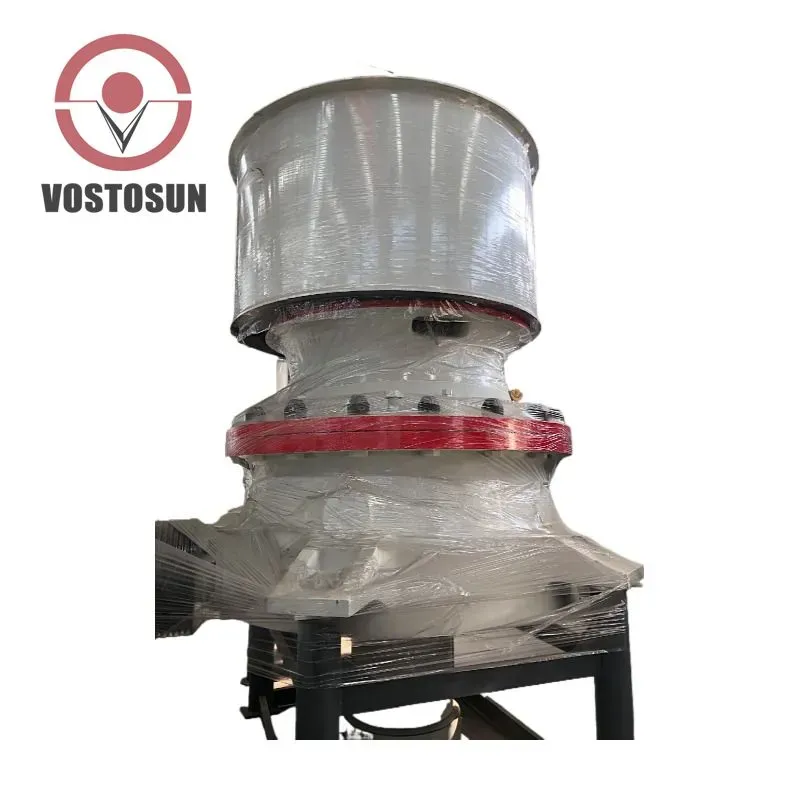

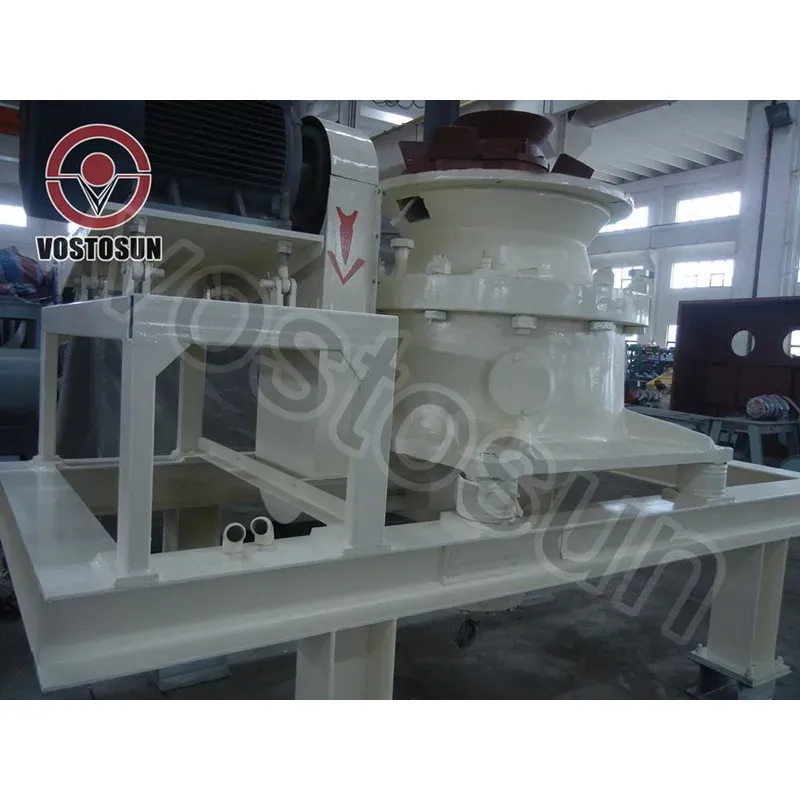

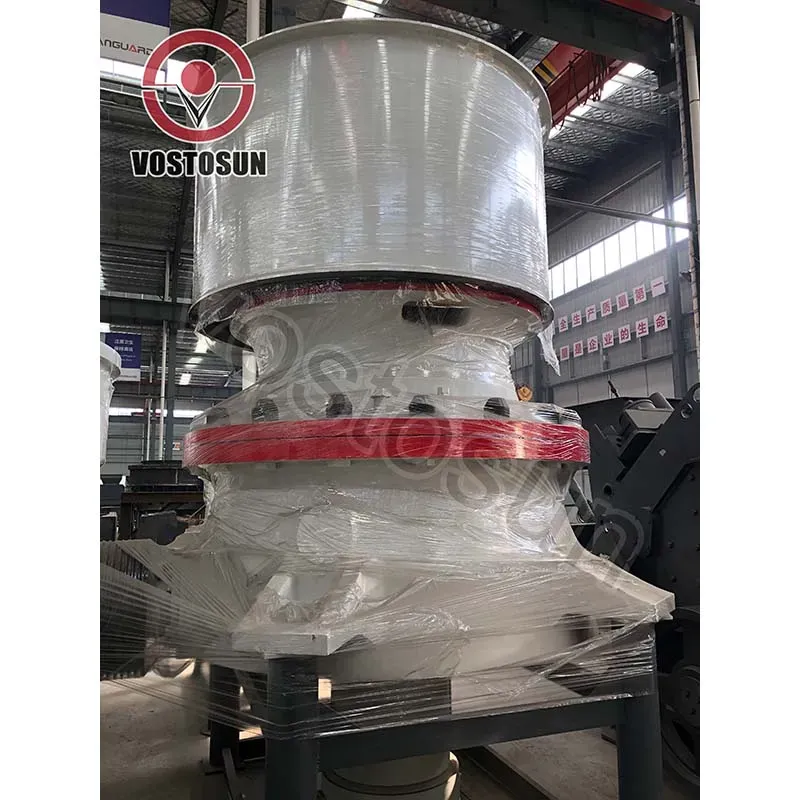

Single Cylinder Hydraulic Cone Crusher
The single cylinder hydraulic cone crusher is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry, etc. It is widely used in secondary crushing of limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, cooper ore, zinc ore, manganese ore, with medium hardness and above.
Features At A Glance
The single cylinder hydraulic cone crusher has features of simple structure, stable and reliable operation, easy maintenance. It is the ideal crusher machine for middle crushing or fine crushing of rocks or minerals.
Product Specification
| Model | VSH820 | VSH830 | VSH840 | VSH860 | VSH870 | VSH880 | VSH885 | VSS820 | VSS830 | VSS840 | VSS860 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Power (kW) | 90 | 160 | 250 | 315 | 500 | 750 | 750 | 90 | 160 | 250 | 315 |
| Cavity Type | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) | Max Feeding Size (mm) |
| EC | 135 | 190 | 215 | 275 | 300 | 370 | 240 | 360 | 450 | 560 | |
| C | 90 | 145 | 175 | 215 | 240 | 330 | 200 | 300 | 400 | 500 | |
| MC | 115 | 140 | 175 | 195 | 300 | ||||||
| M | 65 | 90 | 110 | 135 | 155 | 230 | |||||
| MF | 50 | 75 | 85 | 115 | 100 | 160 | |||||
| F | 38 | 50 | 70 | 85 | 90 | 120 | |||||
| EF | 28 | 35 | 38 | 65 | 80 | 85 | |||||
| EFX | 100 | ||||||||||
| EEF | 75 |
Advantages
- Large crushing ratio and high production efficiency;
- Laminated crushing, more uniform finished products;
- Low consumption of wearing parts and low operating costs;
- The advanced hydraulic technology realizes the overload protection and hydraulic adjustment discharge outlet, which simplifies the crusher structure and reduces the weight;
- Thin oil lubrication is reliable and advanced, which can increase the service life of the crusher;
- Easy maintenance, easy to operate.
Working Principle
Successful Cases
Sales and Service Network
About Company
Shanghai VOSTOSUN Industrial Co., Ltd was founded in 2006, it is a subsidiary company of AVP GROUP, which has been focusing on centralized procurement and supply services for engineering, mining and Civil or Construction Project over the past decade.
Cooperating with excellent institutes in the domestic industries, domestic high-quality suppliers, international financial and insurance partners, we have integrated all high-quality resources and established a mature oversea regional service networks around the world, e.g, regional service centers in Russia, Kazakhstan and Australia, providing machinery, equipment and parts display, warehousing and after-sales services throughout the country. Our service covers more than 30 countries and regions including Eastern Europe, Central Asia, The Middle East, Africa, South America, Southeast Asia, and Australia, etc.
Since 2006, SHANGHAI VOSTOSUN, as the UN(United Nations) designated supplier for the procurement and supply of machinery & equipment for its aid projects in Asia and Africa, has provided lots of machineries, equipments and general contracting services for many national large-scale projects, such as:
- Kazakhstan Astana Capital Moving Project,
- Russia Voronezh Nuclear Power Station,
- Shanghai Pengxin Mining Congo (Gold) Copper Project,
- Equatorial Guinea National Highway Equipment General Contracting.
Our Advantage Resources:
- International standard purchasing and supply process management;
- Technological solutions of production process experts;
- Oversea exhibition rooms, warehousing and after- sales services;
- Overseas basic engineering equipment leasing and projects construction.
- International settlements, financing and insurance;
Our Company Belief: "Professional Services to Customers, Achieve Future by Heart".
