Basic Info.

• Model NO. ASRS
• Type Multi-Layer Warehouse
• Material Steel
• Height 5m-35m
• Load Capacity per Layer 0-10000kg
• Usage Tool Rack, Supermarket, Food, Industrial, Warehouse Storage
• Serviceability Common Use
• Shelf height 5m-35m
• Goods characteristics No Special Requirements
• Function Storage Type Stereoscopic Warehouse, Save Inventory Floor Space and Improve Space Utili
• Operation Unmanned Operation
• Certification CE, SGS, ISO
• Finish Electrostatic Spraying
• Customized or Not Customized
• Design Free
• Structural Features Shelf
• Mobility Adjustable Shelves
• Closure Open Type
• Development New
• Applicability General
• Transport Package Standard Export Carton
• Specification According to pallet size and weight
• Trademark JiaGong
• Origin Hebei China
• HS Code 73089000
• Production Capacity 20 Tons/Month

Product Description

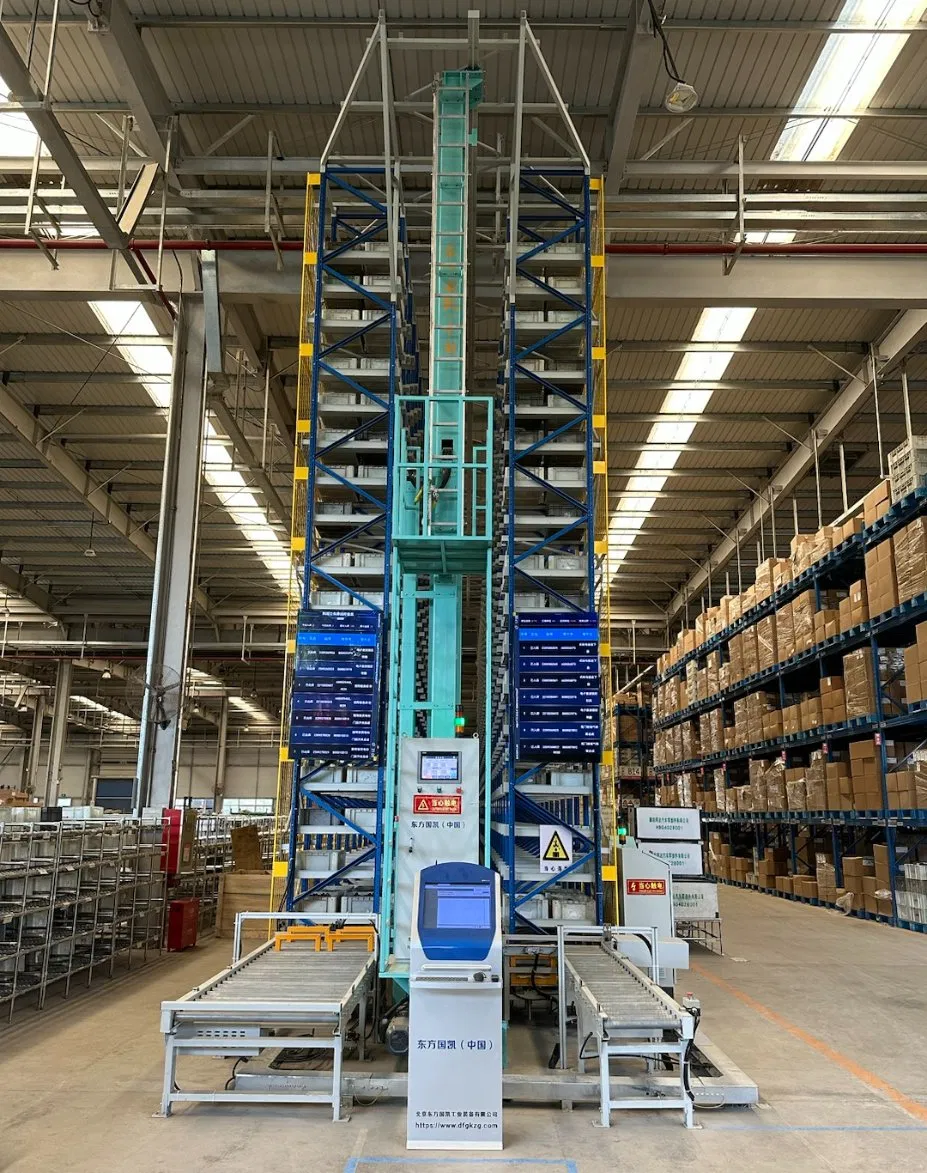

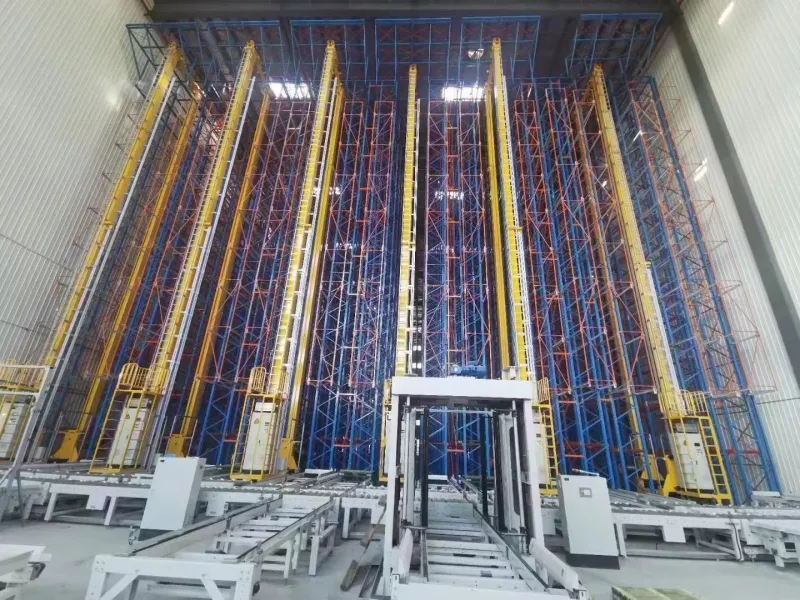

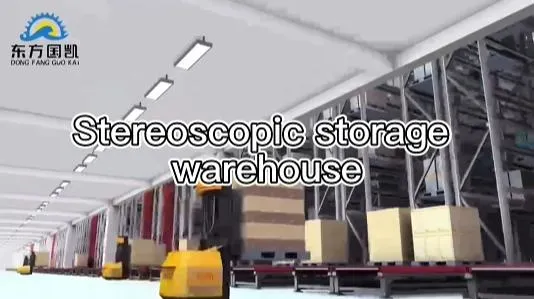

Automated Storage Retrieval Systems (ASRS)

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.

Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.

Advantages

• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises

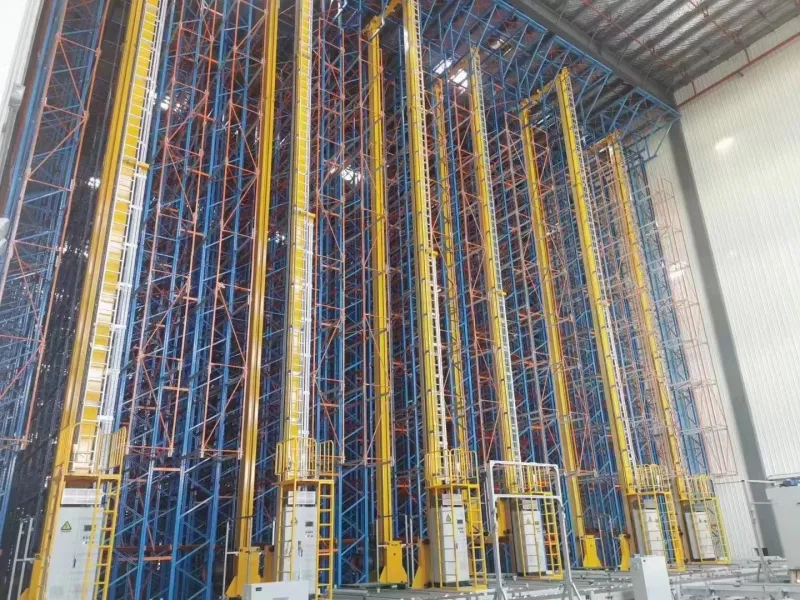

Racking

Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity.

Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

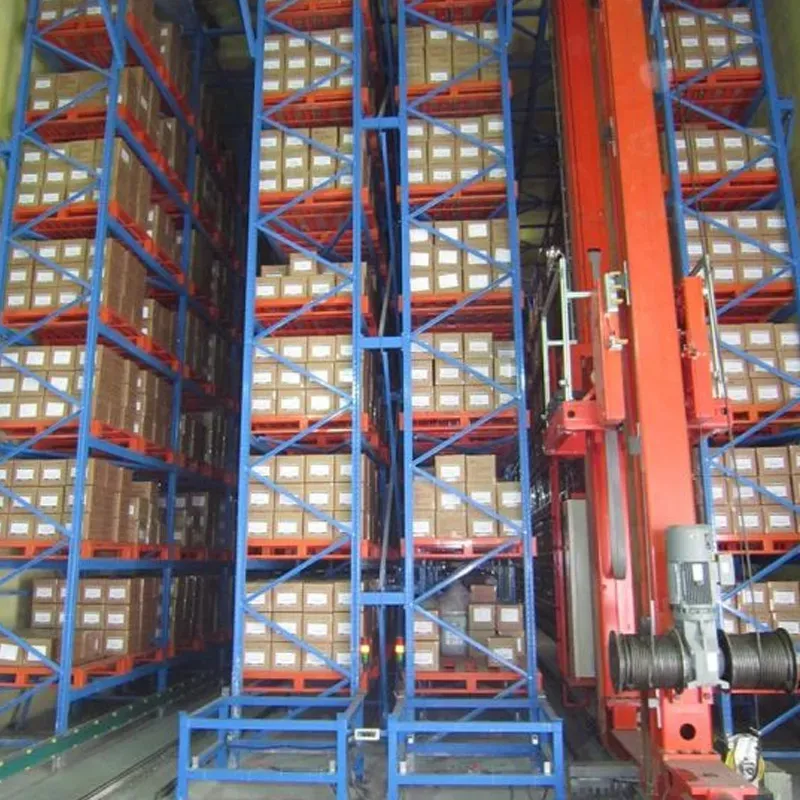

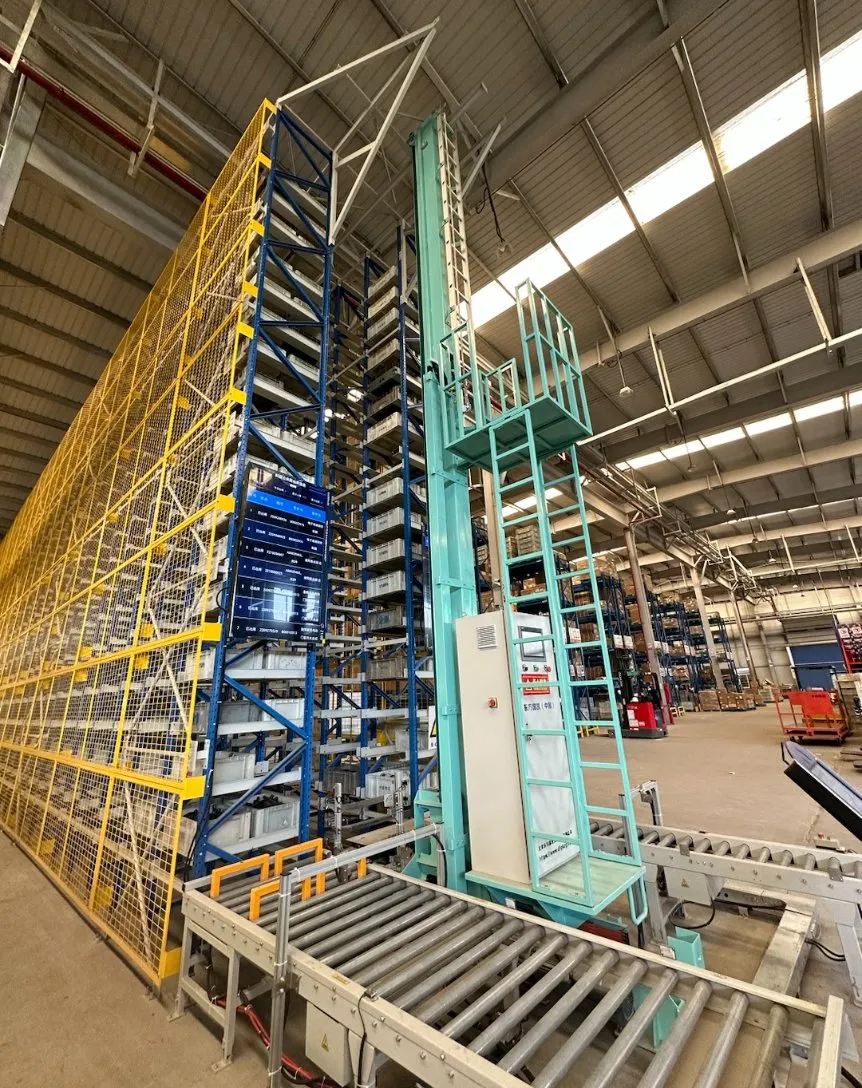

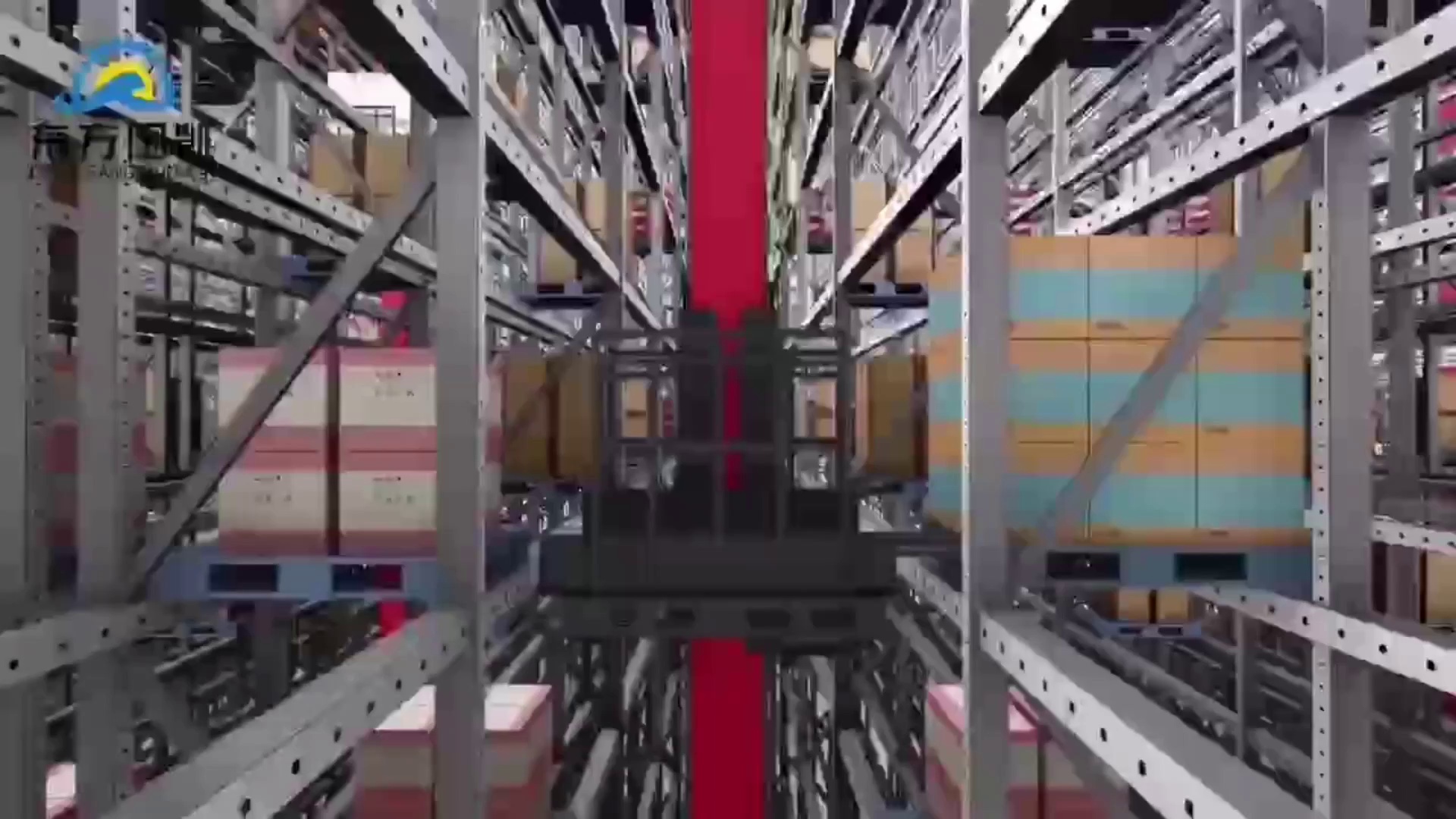

Stacker

Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring;

Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semi-automatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

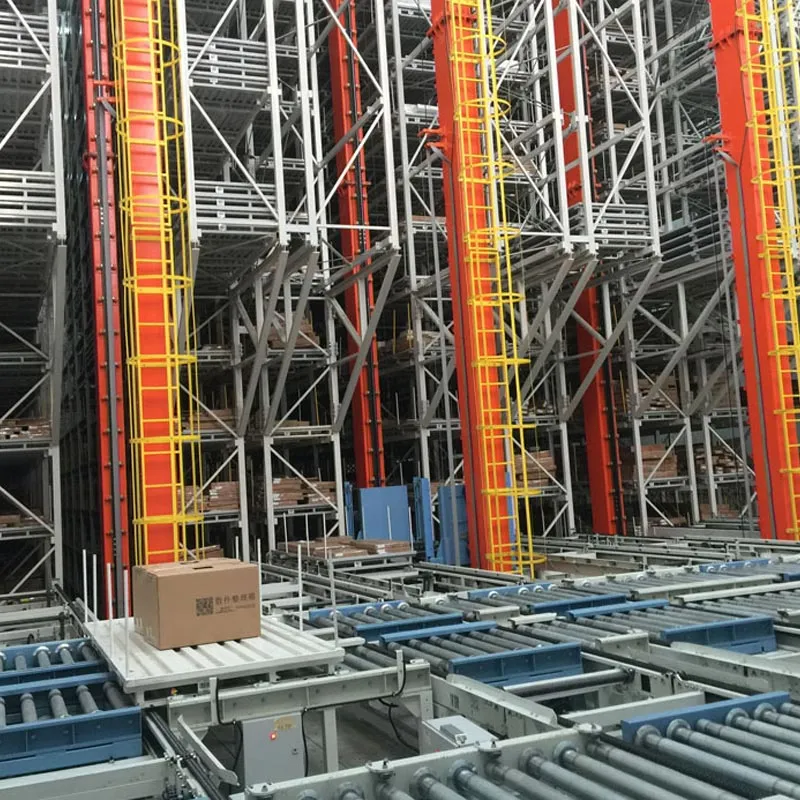

Conveying System

Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

Controlling System

Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.

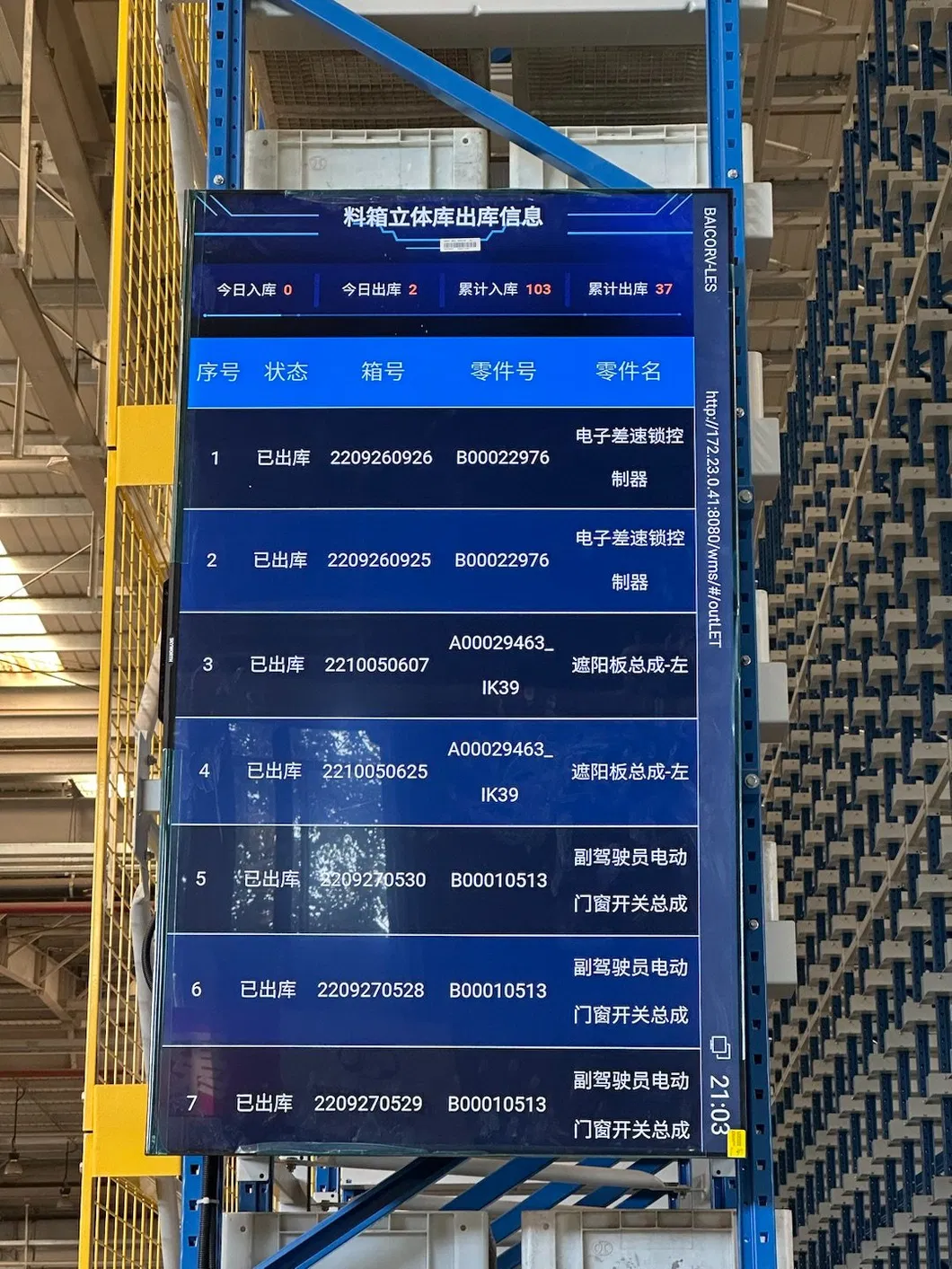

WMS System

Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods

Softwares of WMS System

• Operating system: WINDOW 2000X SEVER
• Data-base: MS SQL SEVER 2000X
• Warehouse management software: WMS
• Equipment controlling software: WCS
• Bar code management software: RFS

Material

• Q235 Cold-rolled Steel
• Surface Electrostatic spraying
• Size Customize according to your needs
• Color Customize according to your needs
• Feature Corrosion Protection

Payment Terms

40% deposit upon signing the contract, the balance will be cleared by T/T before delivery

Delivery Time

25-35 working days after received deposit

FAQ

Q1: Are you manufacture or trading company?

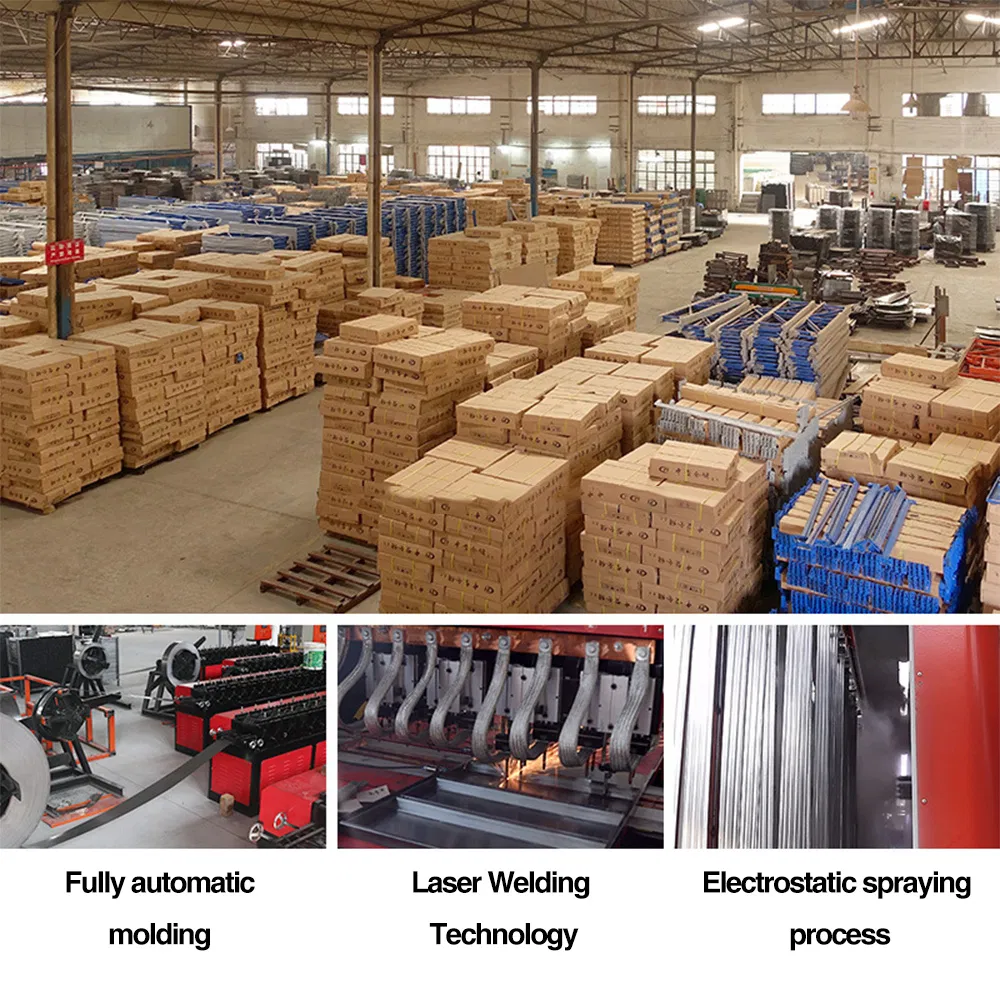

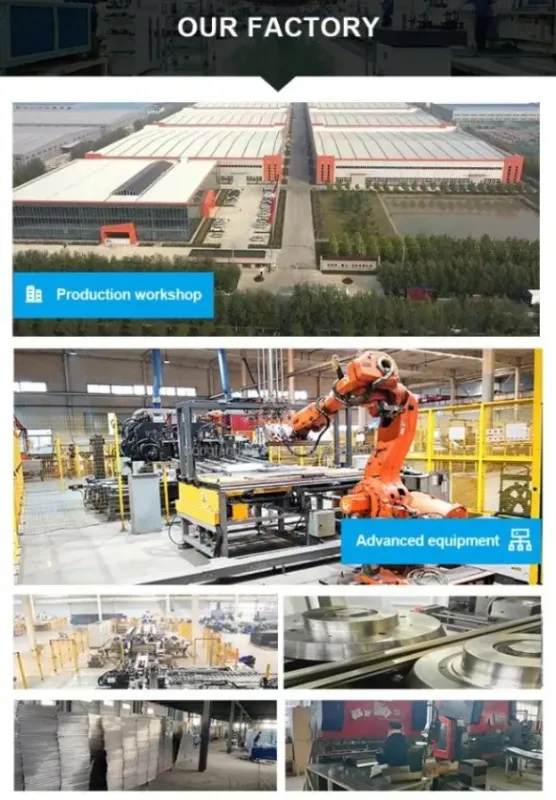

Since 2003, we have started to provide overall warehouse solutions. We have two factories located in Tianjin and Nanning, China. Welcome to visit anytime.

Q2: What information is required for stereo library quotation request?

First of all, we need to know the number of your storage space, the maximum number of goods in and out per hour, and the size of the warehouse. This is a complex system, and we need to fully communicate.

Q3: Could you produce according to customers' design?

Of course, we have rich experience in the overall warehouse solution, and we need to build hundreds of projects every year.

Q4: What's your trading terms?

Deposit 40% upon signing the contract, the balance will be cleared by T/T before delivery.

Q5: What is your delivery time?

25-35 working days after received deposit, according to the order quantity and drawing size.

Q6: How could I install the racks?

We provide detailed instal instruction for every type of shelf. If needed, we can also ask engineers to teach you for free.

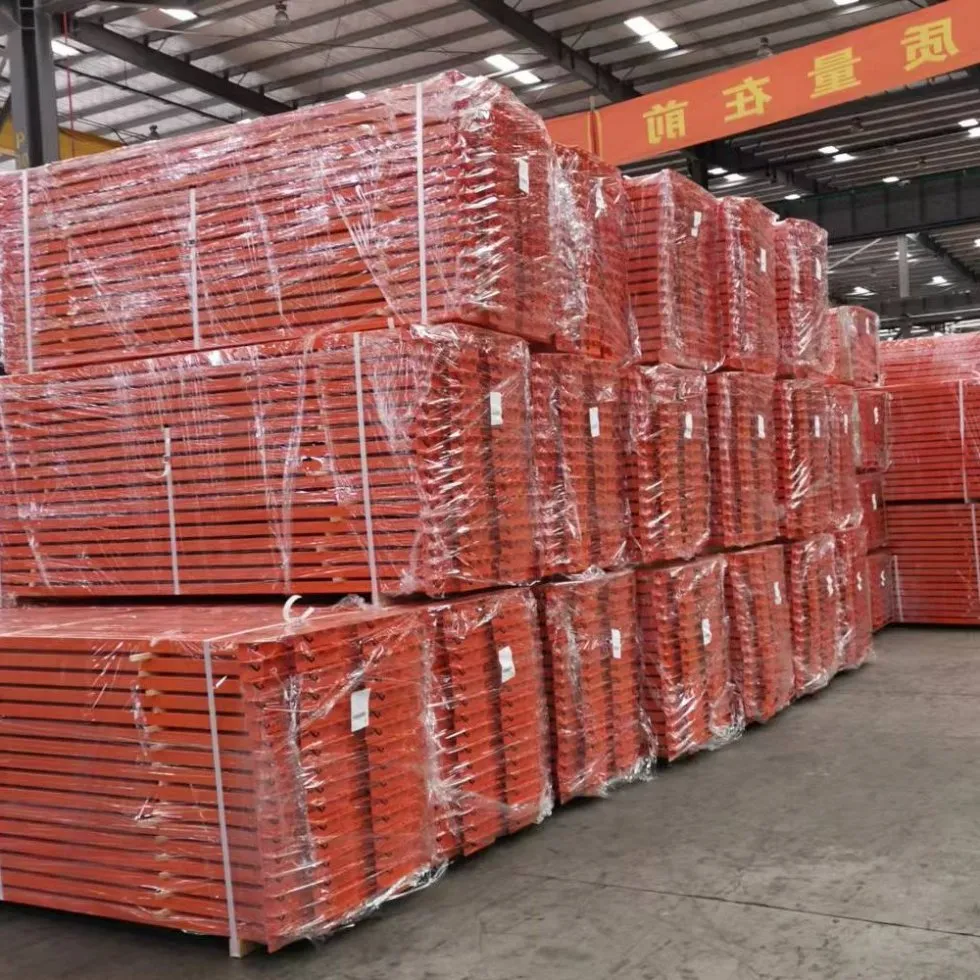

Q7: What is the manner of packing?

Generaly, shelves are flat packed by air bubble film in standard export cartons. Other packing like wooden box are available to clients' requirement.
