Product ID: 68594428
Intelligent Robotic Storage Racking System
Contact Now
Description
Basic Info.
Model NO.
ASRS
Type
Multi-Layer Warehouse
Material
Steel
Height
5m-35m
Load Capacity per Layer
0-10000kg
Usage
Tool Rack, Supermarket, Food, Industrial, Warehouse Storage
Serviceability
Common Use
Shelf height
5m-35m
Goods characteristics
No Special Requirements
Function
Storage Type Stereoscopic Warehouse, Save Inventory Floor Space and Improve Space Utili
operation
Unmanned Operation
Certification
CE, SGS, ISO
Finish
Electrostatic Spraying
Customized or Not
Customized
Design
Free
Structural Features
Shelf
Mobility
Adjustable Shelves
Closure
Open Type
Development
New
Applicability
General
Transport Package
Standard Export Carton
Specification
According to pallet size and weight
Trademark
JiaGong
Origin
Hebei China
HS Code
73089000
Production Capacity
2000 Tons/Month
Product Description

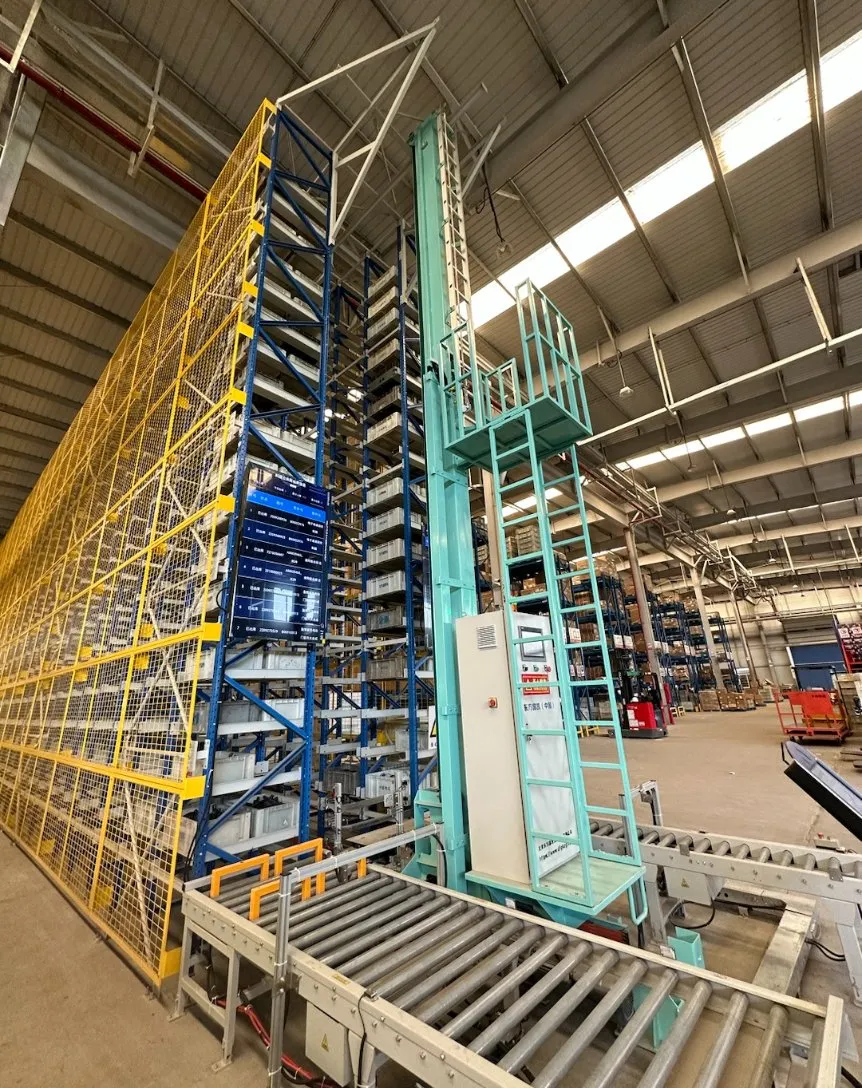

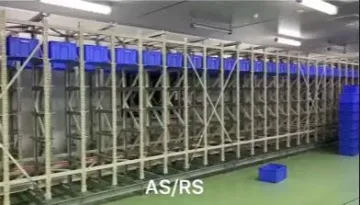

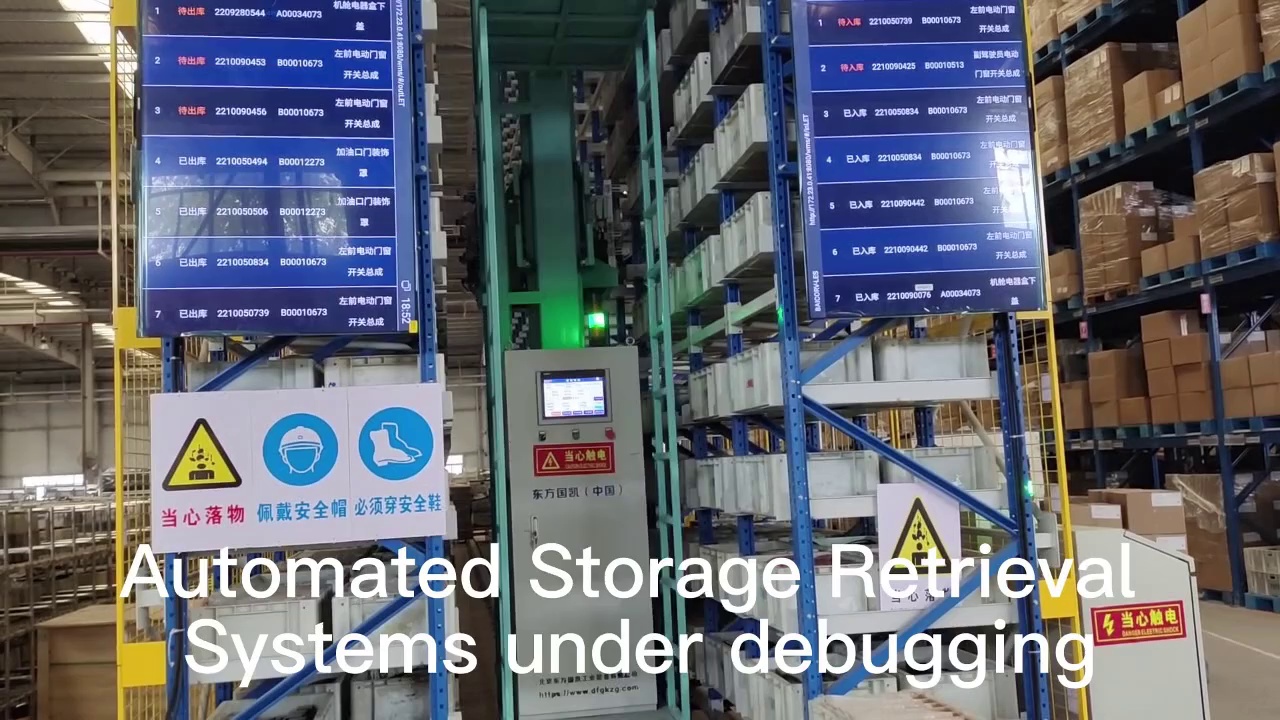

Automated Storage Retrieval Systems(ASRS)

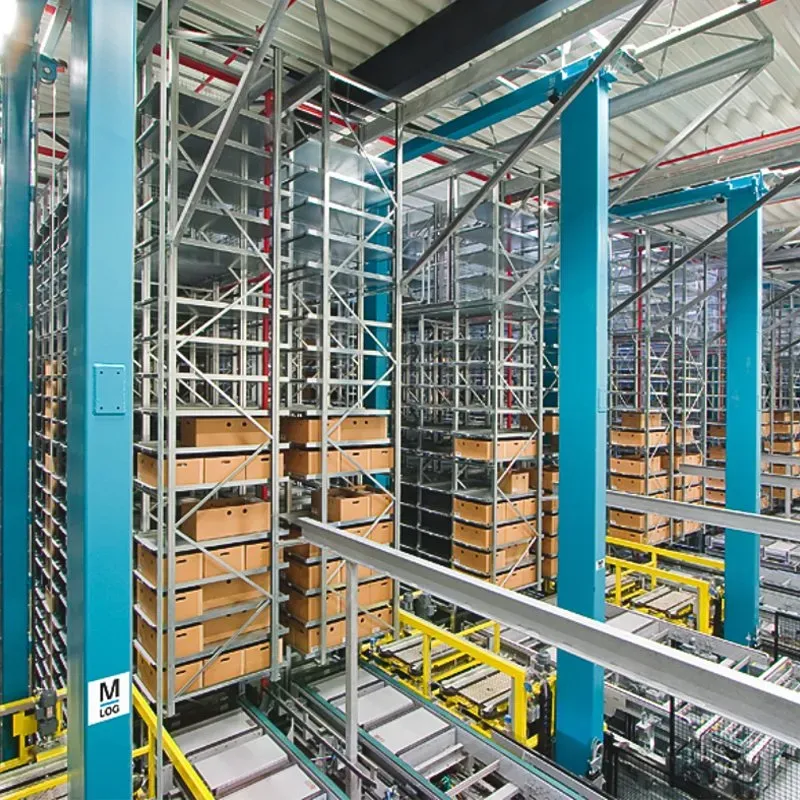

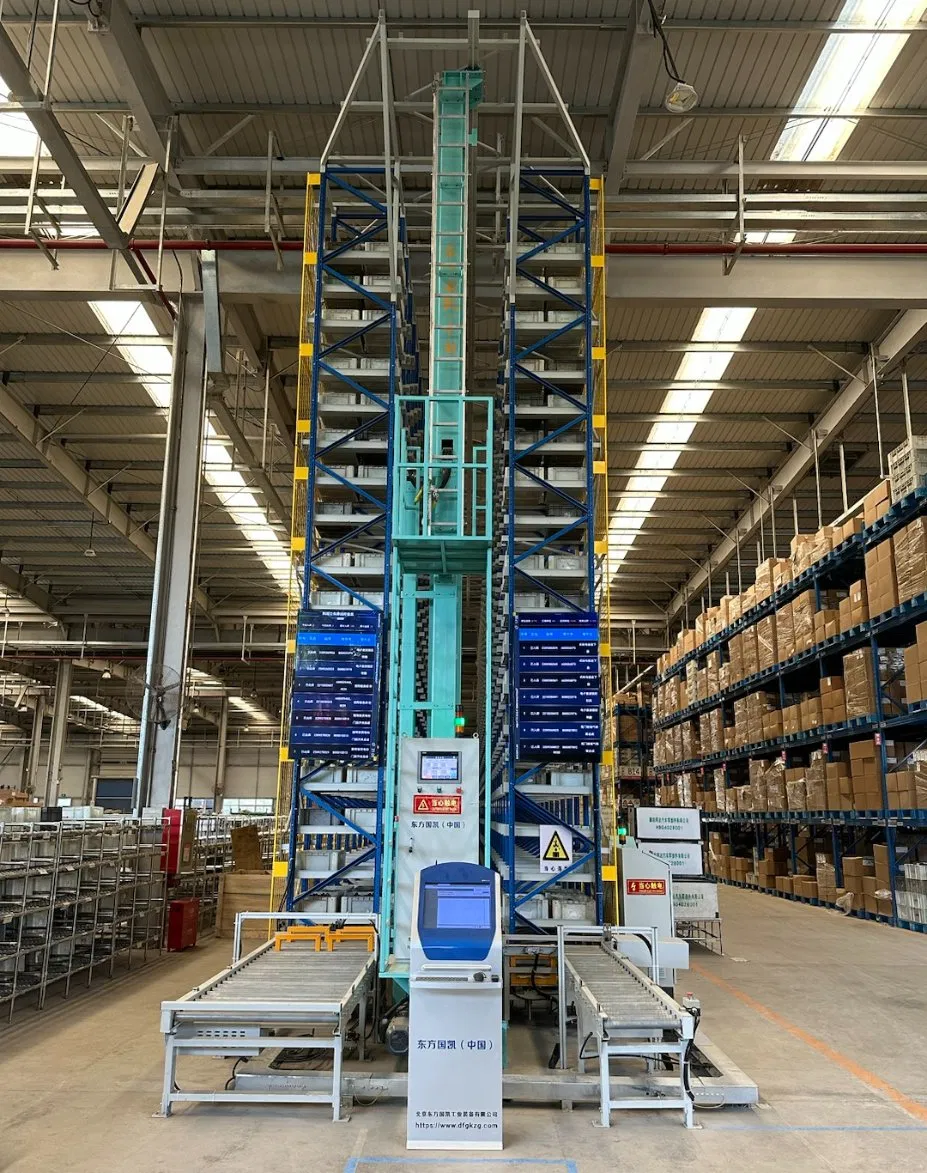

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.
Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.
Advantages
• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises
Q1: Are you manufacture or trading company?
Advantages
• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises

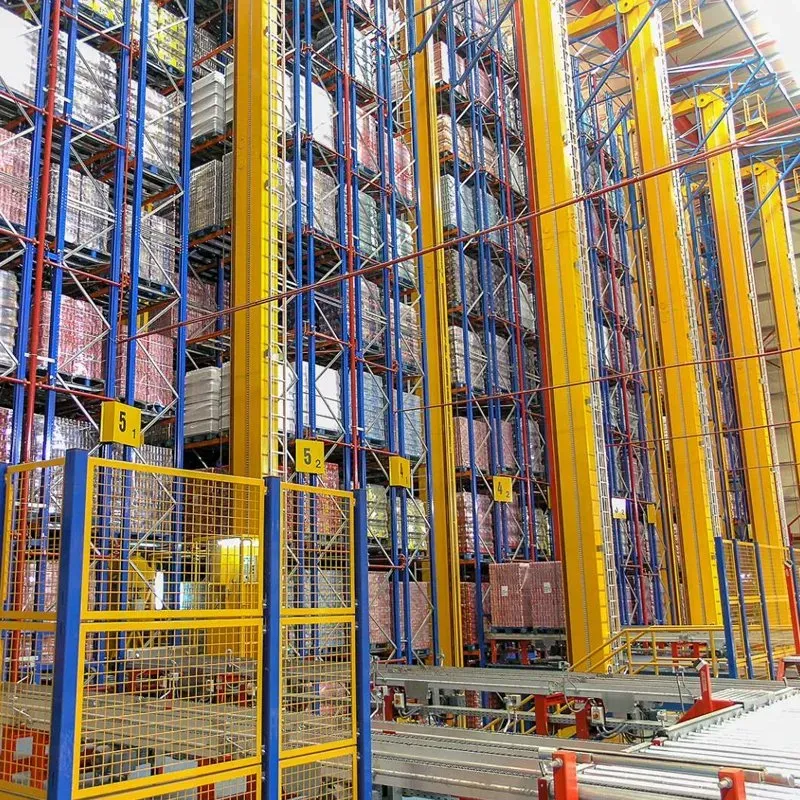

| Racking | Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity.
Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic,mechanical and armament industry.
|
|

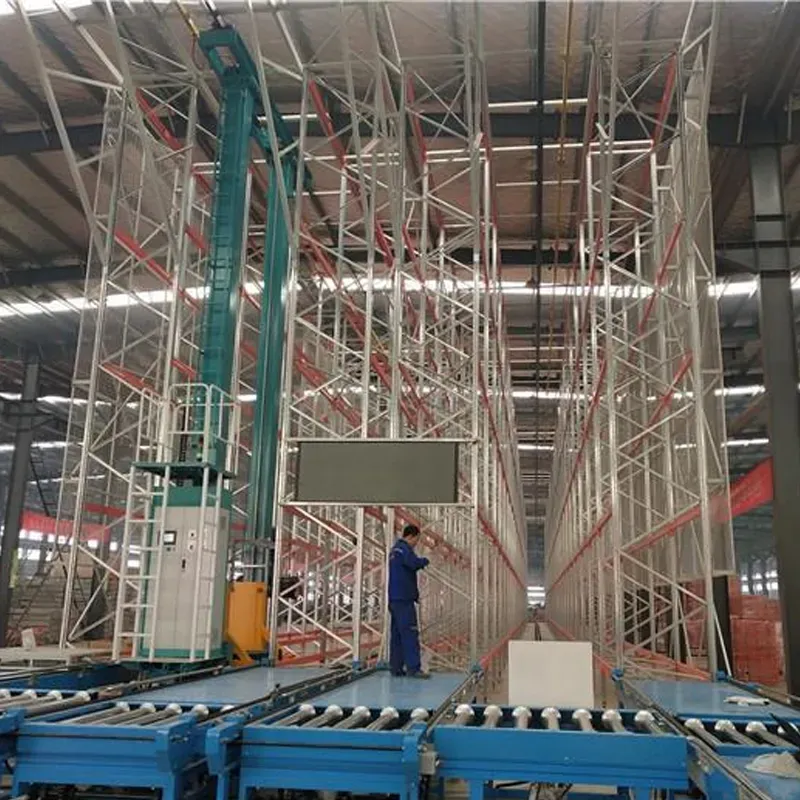

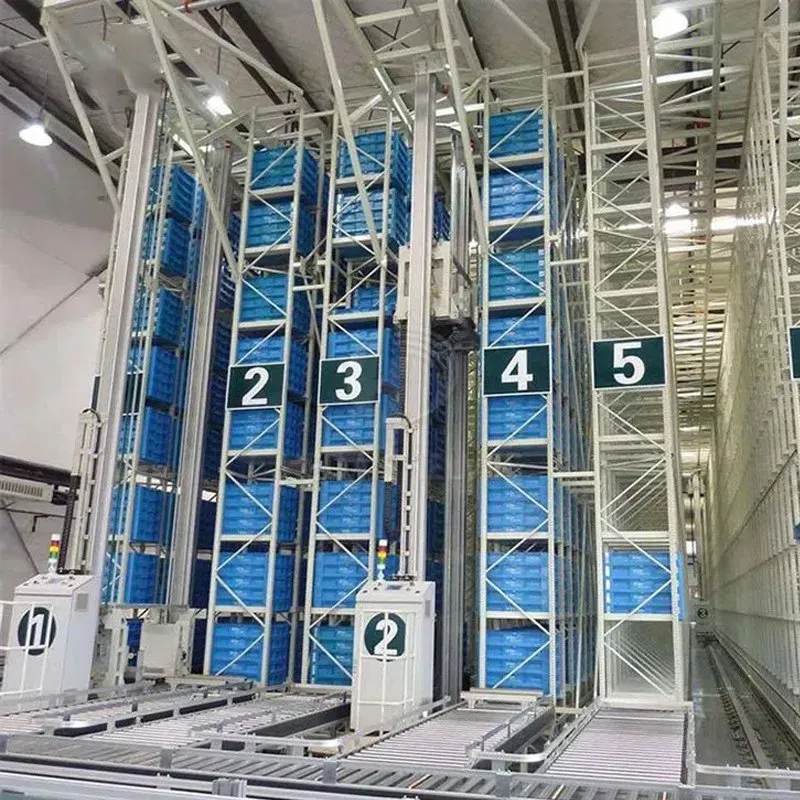

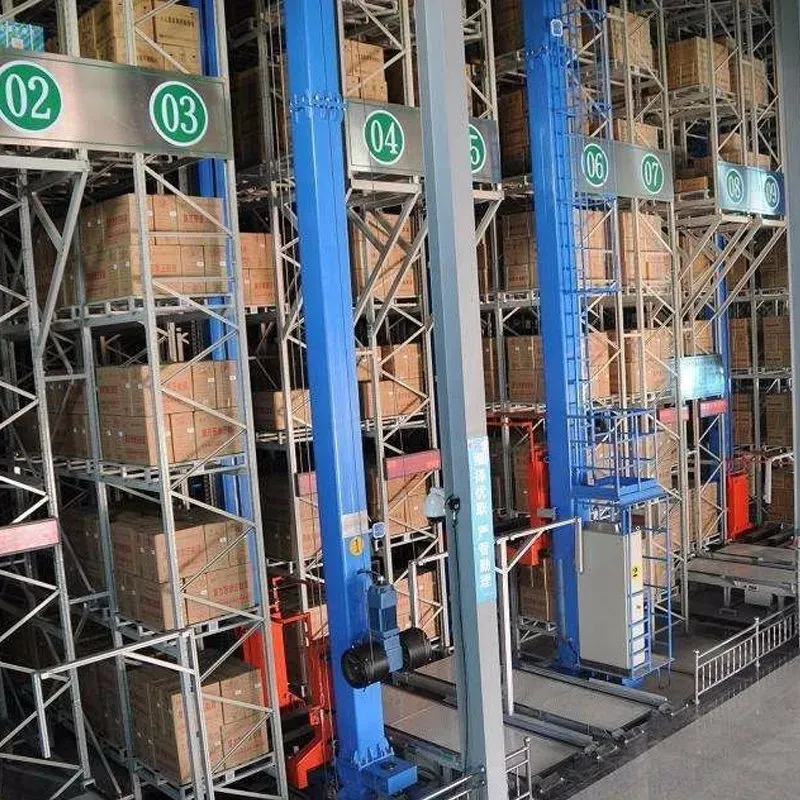

| Stacker | Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control,mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring;
Electric components are imported from abroad; Touching screen interface for easy operation; Making manual,semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.
|
|

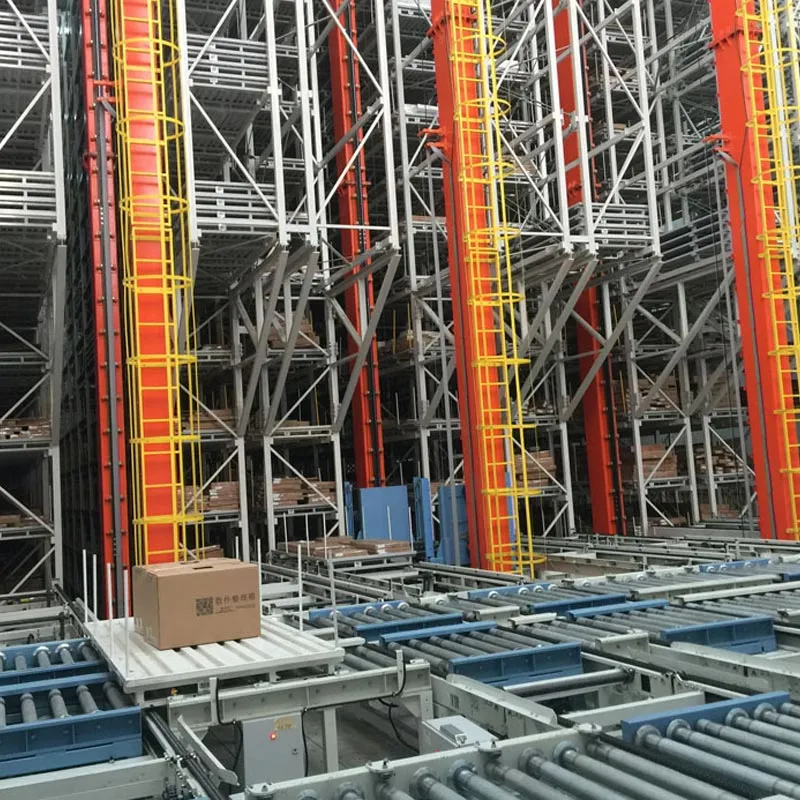

| Conveying system | Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there,bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts,rotating devices and other equipments. | |
| Controlling system | Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system. | |

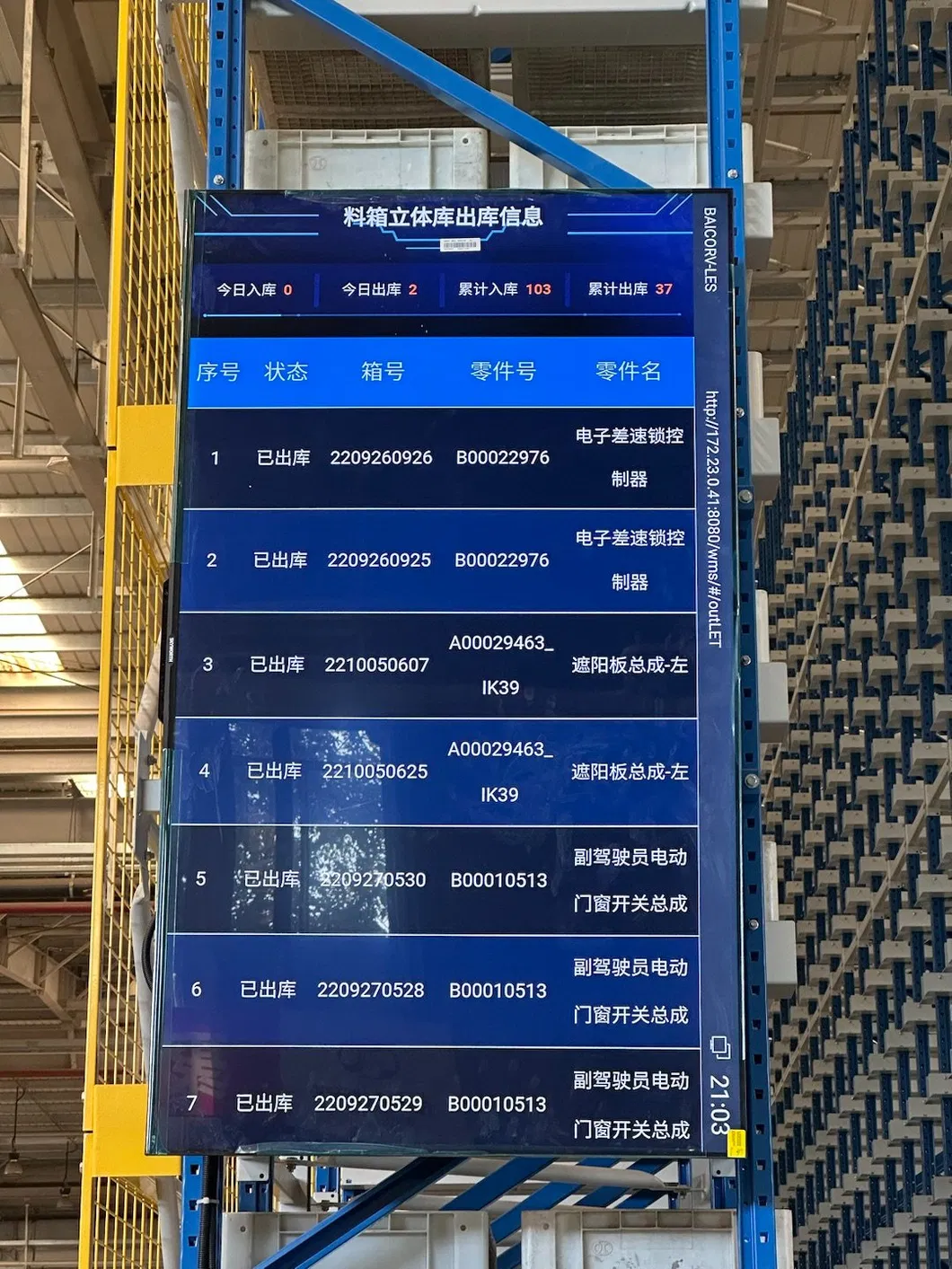

| WMS System | Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods | |
| Softwares of WMS System | Operating system: WINDOW 2000X SEVER | |
| Data-base: MS SQL SEVER 2000X | ||
| Warehouse management software: WMS | ||
| Equipment controlling software: WCS | ||
| Bar code management software: RFS | ||
| Material | Q235 Cold-rolled Steel |
| Surface | Electrostatic spraying |
| Size | Customize according to your needs |
| Color | Customize according to your needs |
| Feature | Corrosion Protection |
| Payment Terms | 40% deposit upon signing the contract,the balance will be cleared by T/T before delivery |
| Delivery Time | 25-35 working days after received deposit |
Q1: Are you manufacture or trading company?

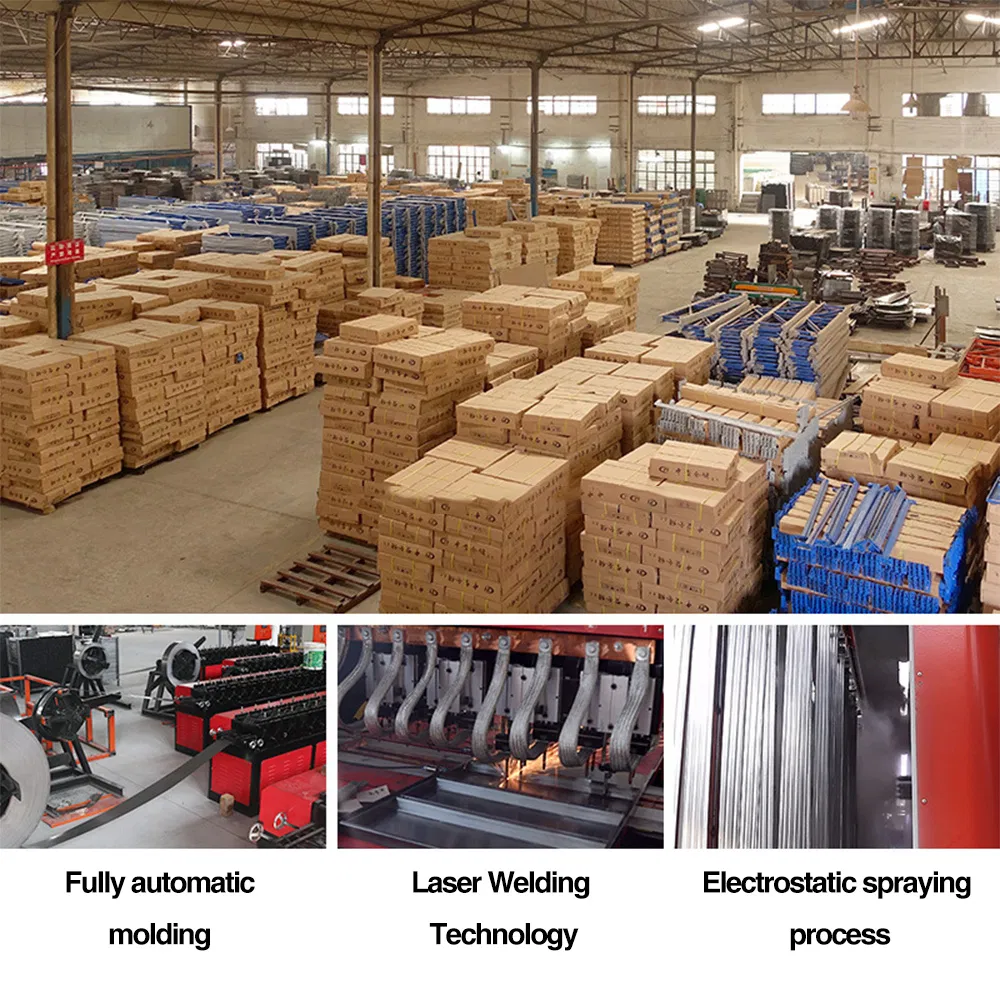

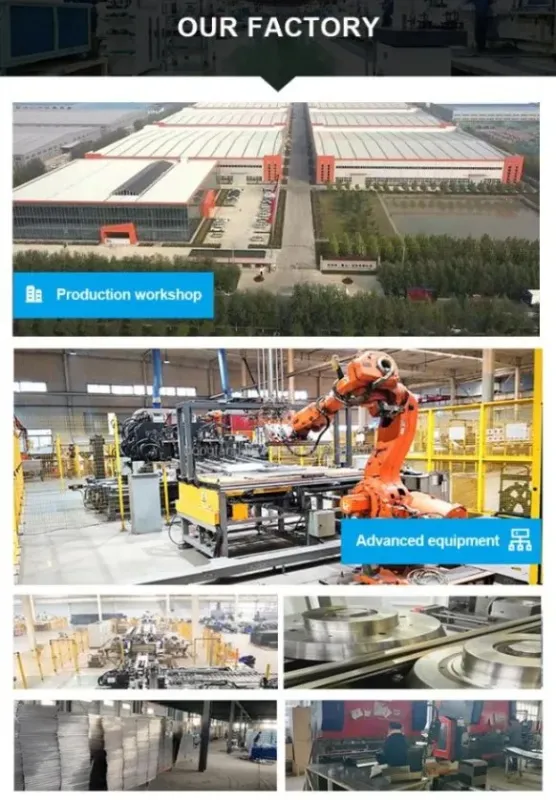

Since 2003, we have started to provide overall warehouse solutions. We have two factories located in Tianjin and Nanning, China. Welcome to visit anytime.
Q2:What information is required for stereo library quotation request?
First of all, we need to know the number of your storage space, the maximum number of goods in and out per hour, and the size of the warehouse. This is a complex system, and we need to fully communicate.
Q3:Could you produce according to customers' design?
Of course, we have rich experience in the overall warehouse solution, and we need to build hundreds of projects every year.
Q4:What's your trading terms?
Deposit 40% upon signing the contract,the balance will be cleared by T/T before delivery.
Q5:What is your delivery time?
25-35 working days after received deposit,according to the order quantity and drawing size.
Q6:How could I install the racks?
We provide detailed instal instruction for every type of shelf. If needed,we can also ask engineers to teach you for free.
Q7:What is the manner of packing?
Q7:What is the manner of packing?

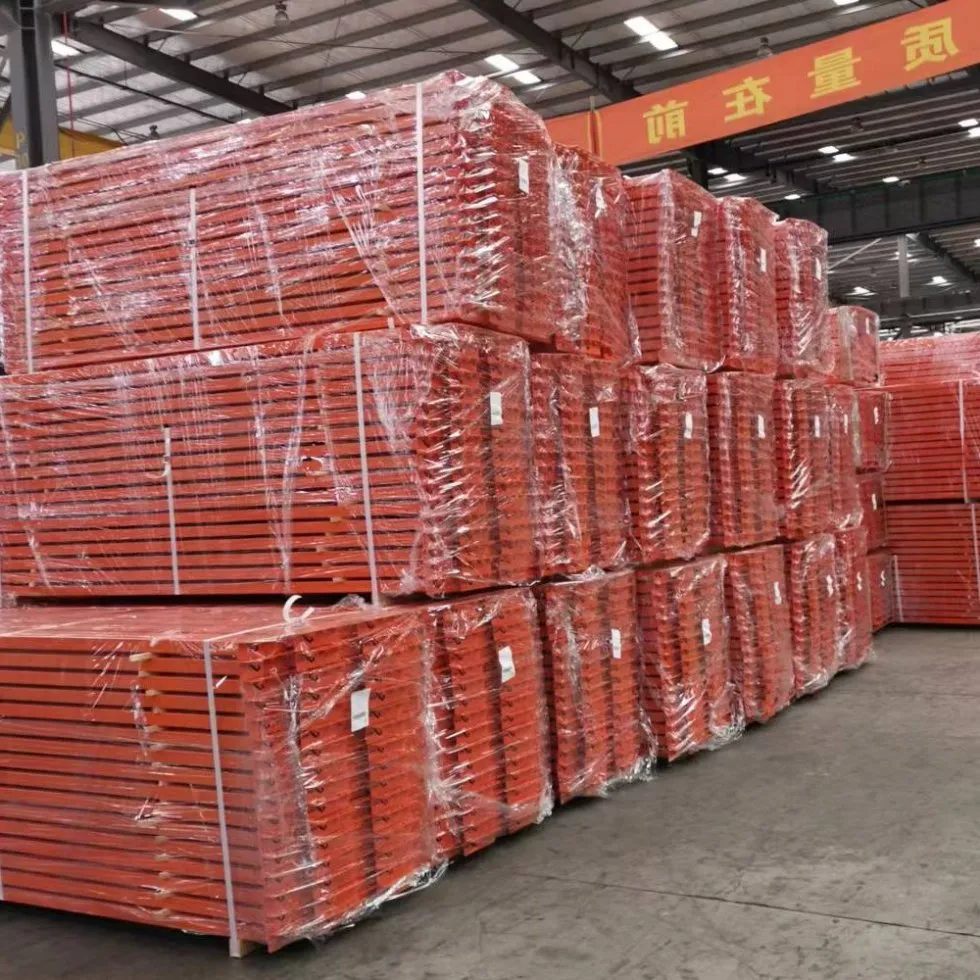

Generaly,shelves are flat packed by air bubble film in standard export cartons .Other packing likewooden box are available to clients' requirement.
