Overview

Basic Info.

Model NO. ASRS
Type Multi-Layer Warehouse
Material Steel
Height 3-25m
Load Capacity per Layer 100-3000 Kgs
Usage Tool Rack, Supermarket, Food, Industrial
Serviceability Common Use
Shelf height 3-25m
Goods characteristics Product Warehouse
Function Chose Type Stereoscopic Warehouse, Storage Type Stereoscopic Warehouse
Operation Unmanned Operation
Certification CE, SGS, ISO
Finish Electrostatic Spraying
Customized or Not Customized
Design Free
Structural Features Shelf
Mobility Adjustable Shelves
Closure Open Type
Development New
Applicability General
Transport Package Standard Export Carton
Specification According to pallet size and weight
Trademark JiaGong
Origin Hebei China
HS Code 73089000
Production Capacity 2000 Tons/Month

Product Description

Asrs Factory OEM Automated Asrs Racking Storage Retrieval Systems Warehouse

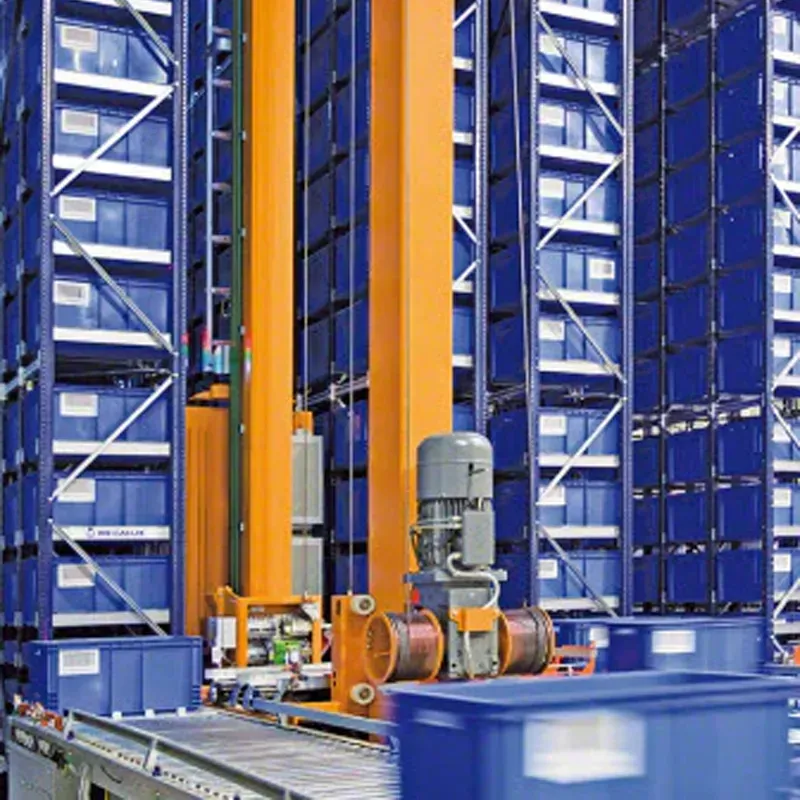

Automated Storage Retrieval Systems (ASRS)

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.

Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.

Advantages

Save inventory floor space and improve space utilization
Automatic cargo access, accurate, fast and safe
Be precise in information management and save labor force
Improve the contingency capacity of production
Accelerate the turnover of warehousing funds
Low transportation cost and high operating efficiency
Improve the inventory management level of enterprises

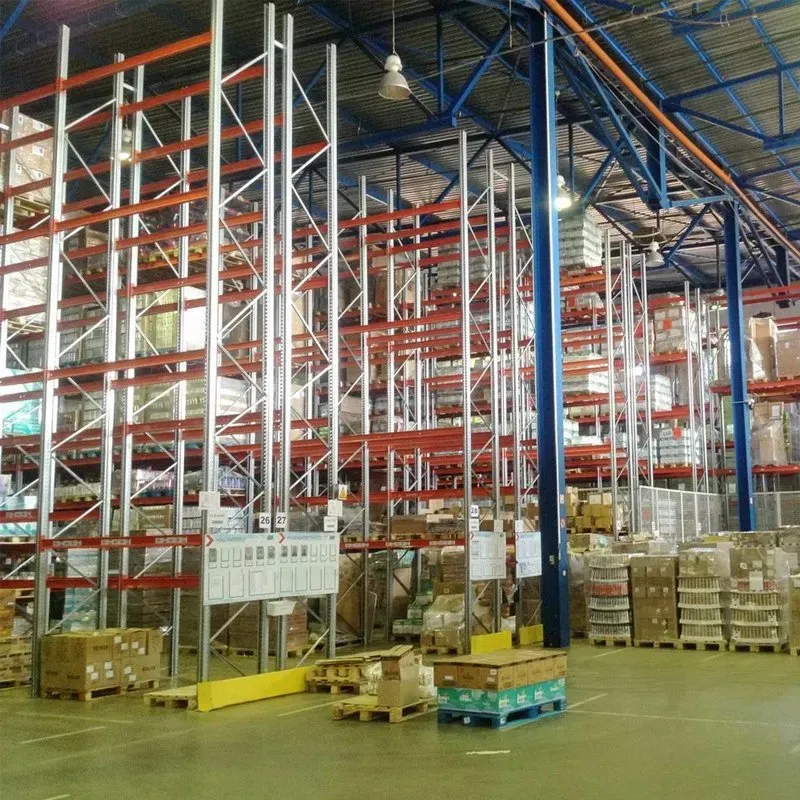

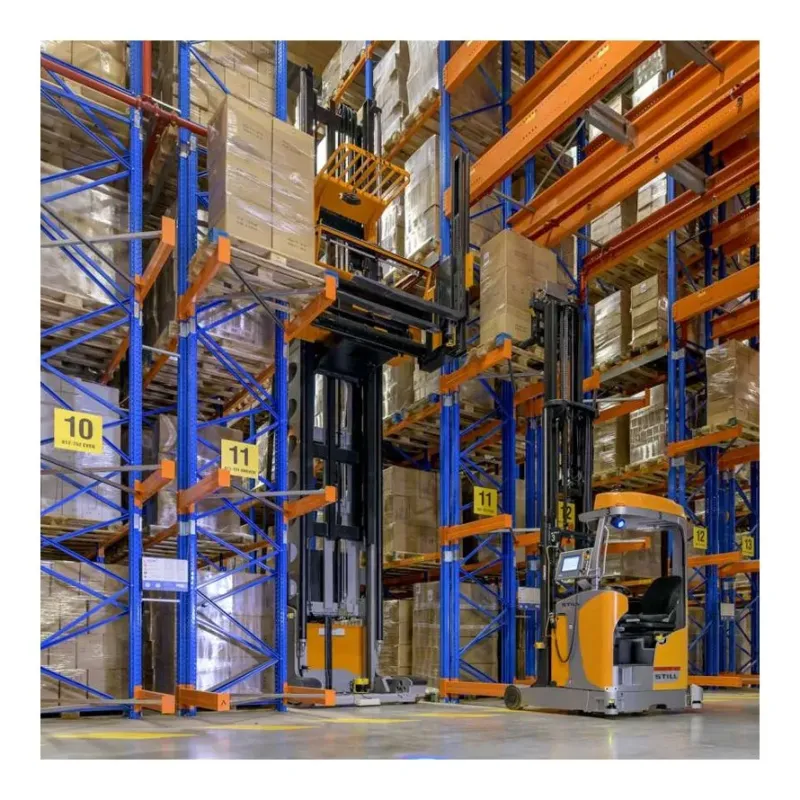

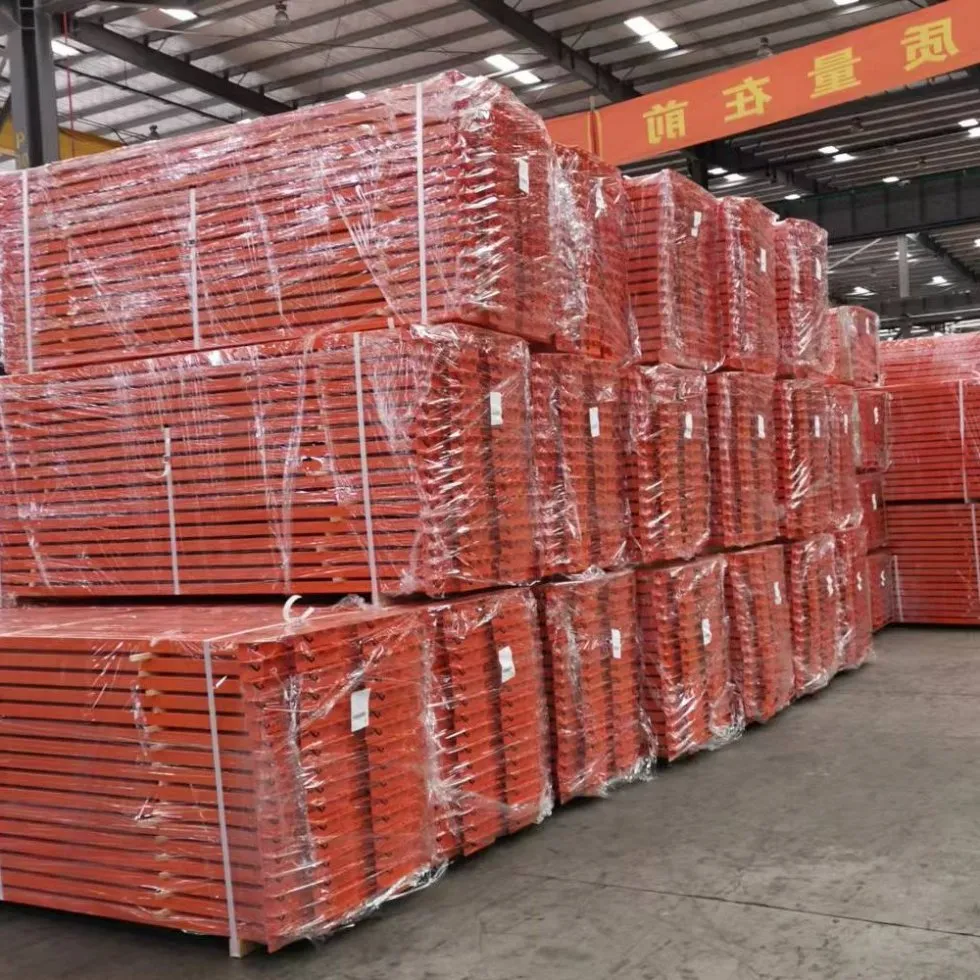

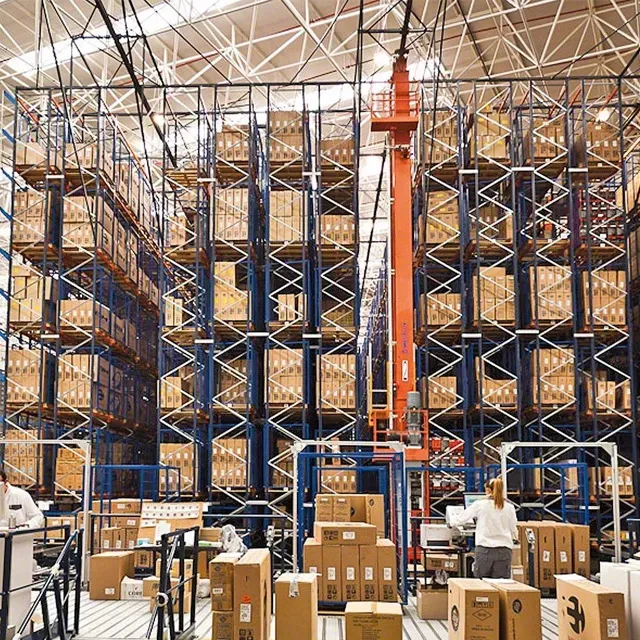

Racking

Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity.

Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, electronic, mechanical and armament industry.

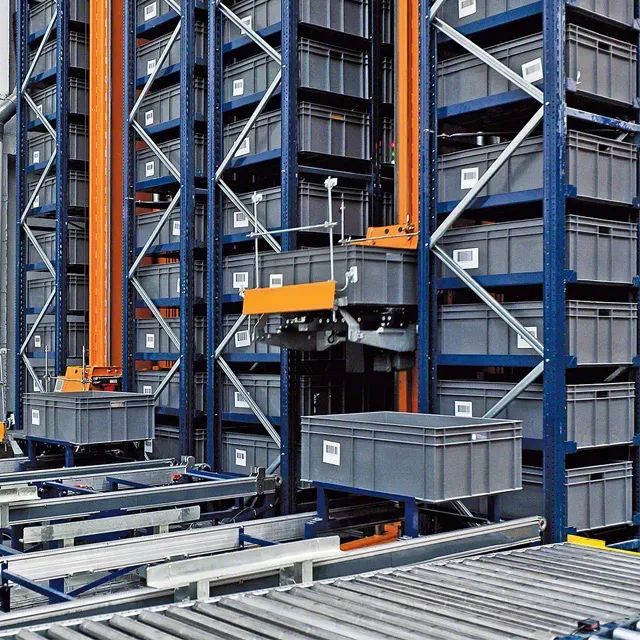

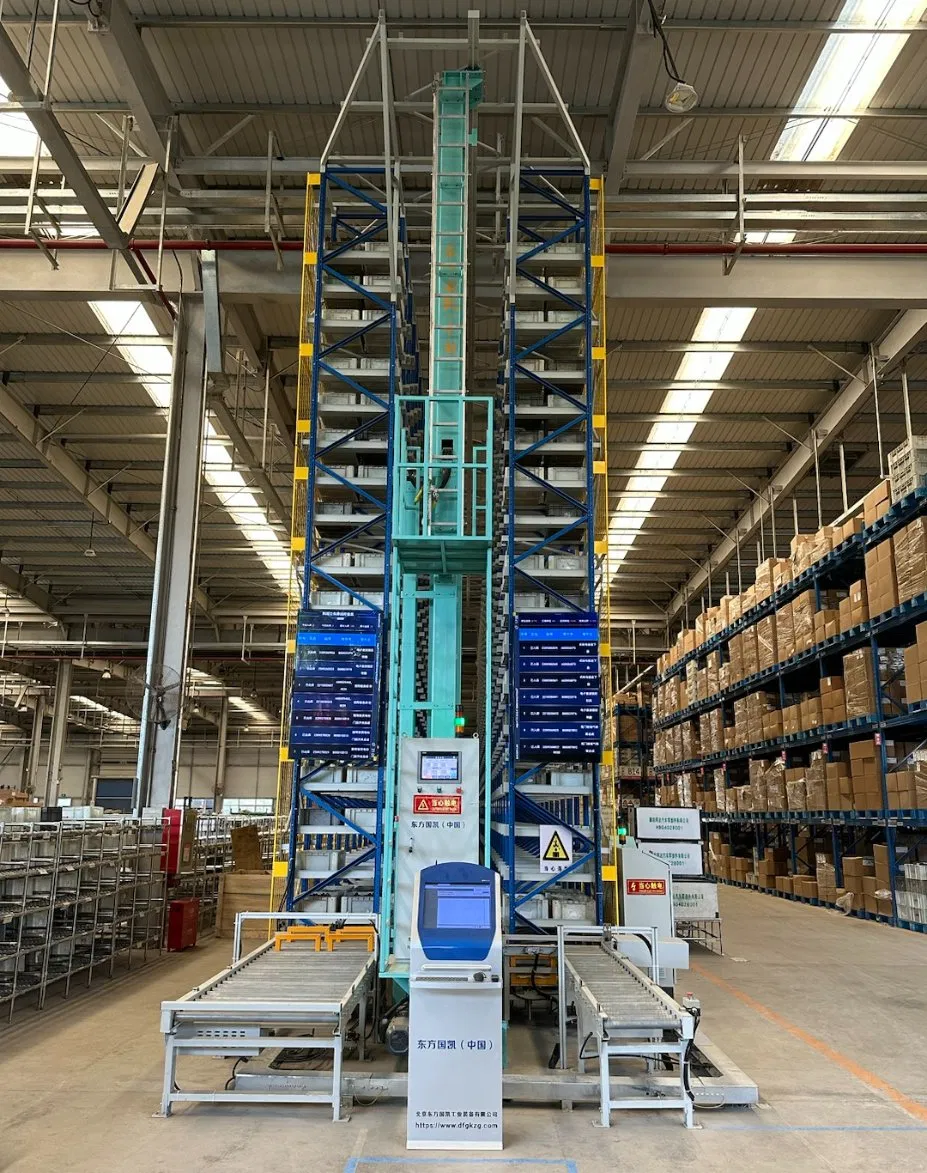

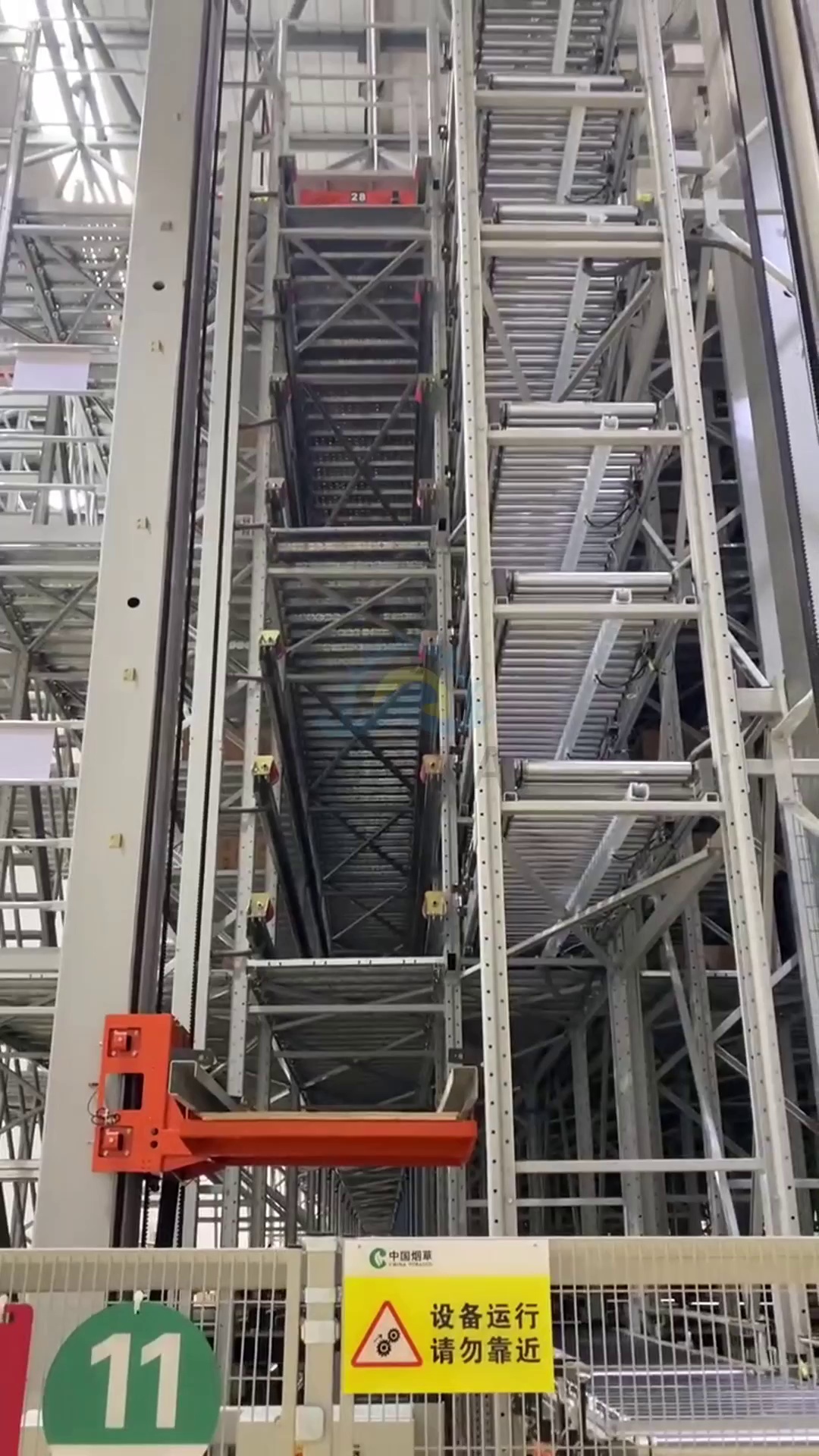

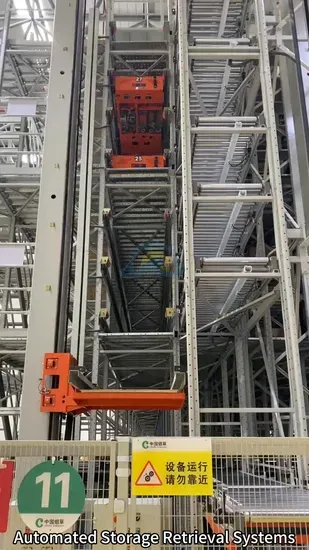

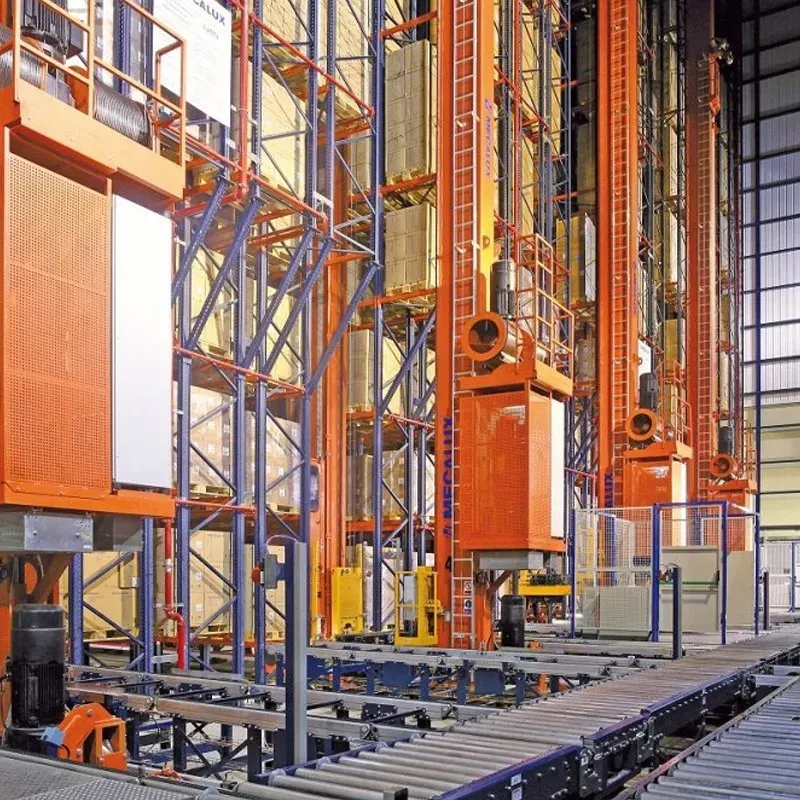

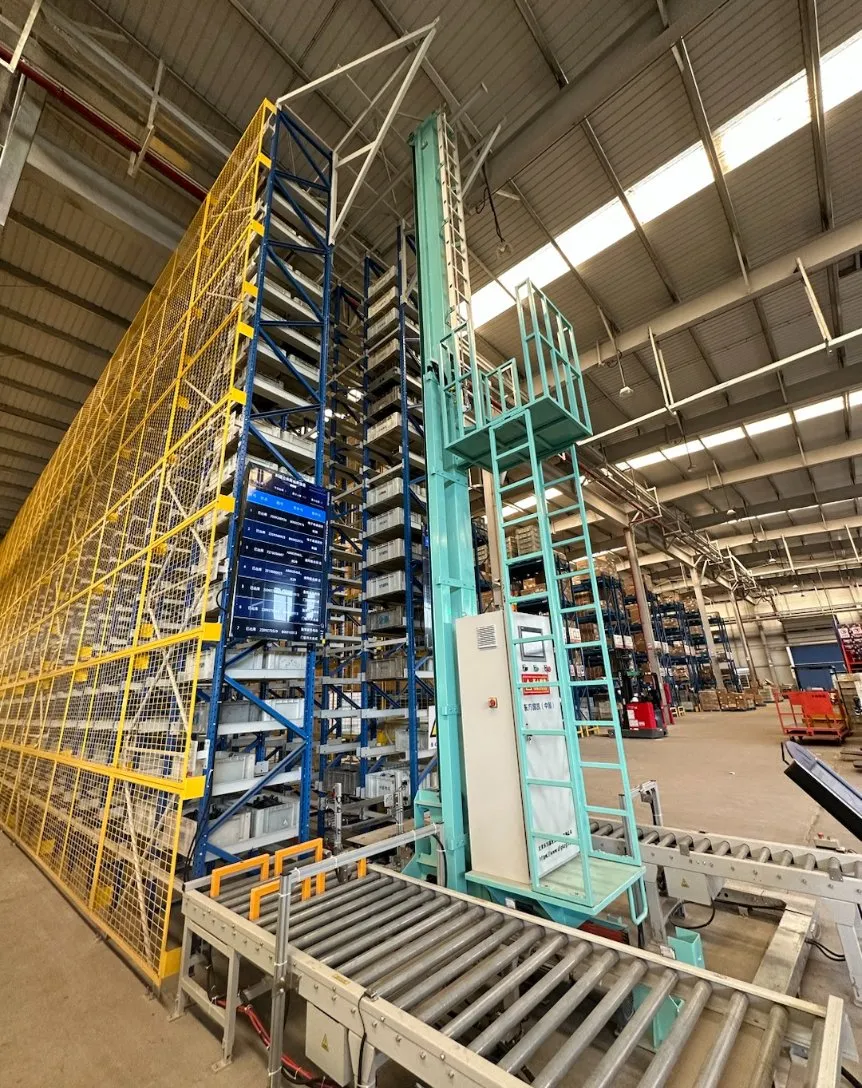

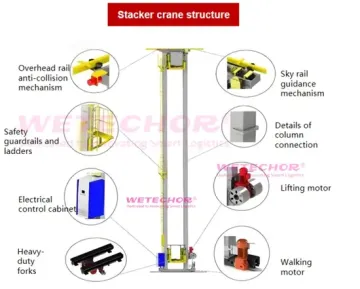

Stacker

Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring;

Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semi-automatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

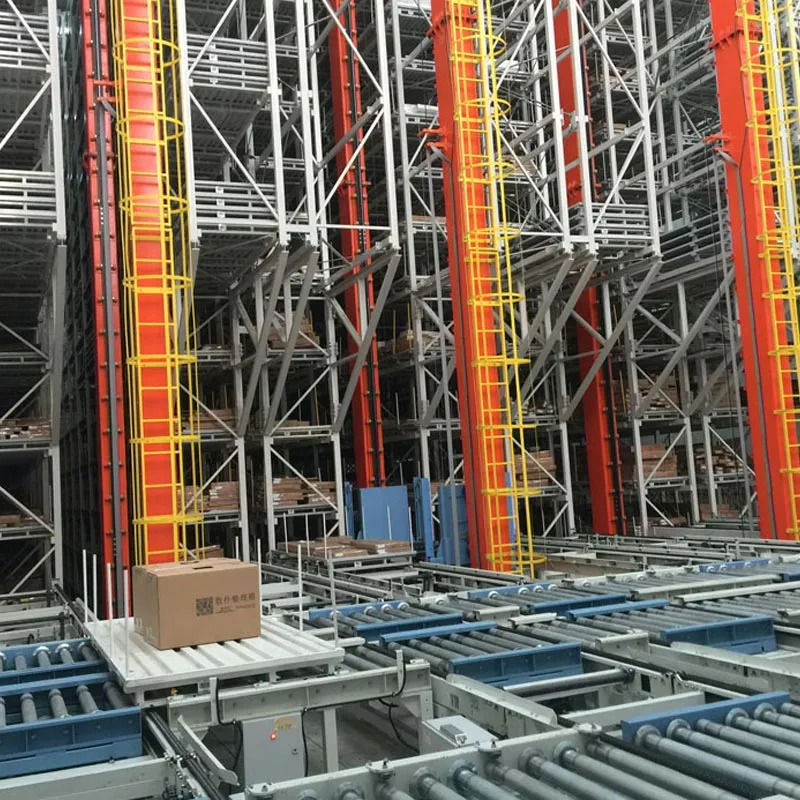

Conveying system

Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

Controlling system

Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.
