Working principle:

The 2PG roller crusher consists of two squeezing rollers that rotate in the same synchronization, a fixed roller and a movable roller. The material is fed in from the top of the rollers and discharged after passing between the two squeezing rollers. The squeezing force between the two rollers is adjustable (50-200MPA). After the discharged particles are subjected to high pressure, a large number of cracks are generated inside, and the energy consumption can be reduced in the further crushing process.

Main feature:

★ The discharge port is adjusted hydraulically, and the accumulator is combined with the hydraulic system to ensure that the crusher works continuously at a constant pressure;

★ With hydraulic system overload protection function, to prevent metal from entering the crushing cavity and damage the crusher. After the metal is removed, the crusher automatically resumes the continuous operation of the discharge port;

★ The crushing pressure can be adjusted accurately;

★ The rate of finished products is high, and the finished materials smaller than the discharge opening are as high as 70%;

★  Simple and reliable structure, small size, small installation space and simple operation;

★  The maintenance rate is low, and routine maintenance saves time and effort;

★ Good sealing, less dust and low working noise.

Technical parameter:

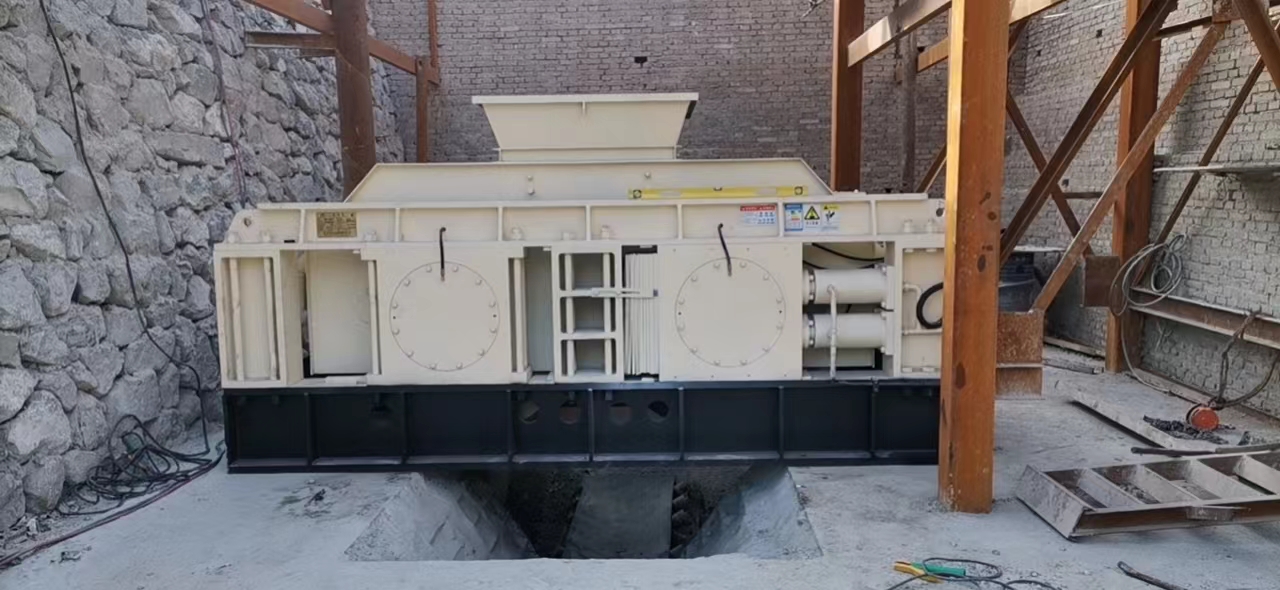

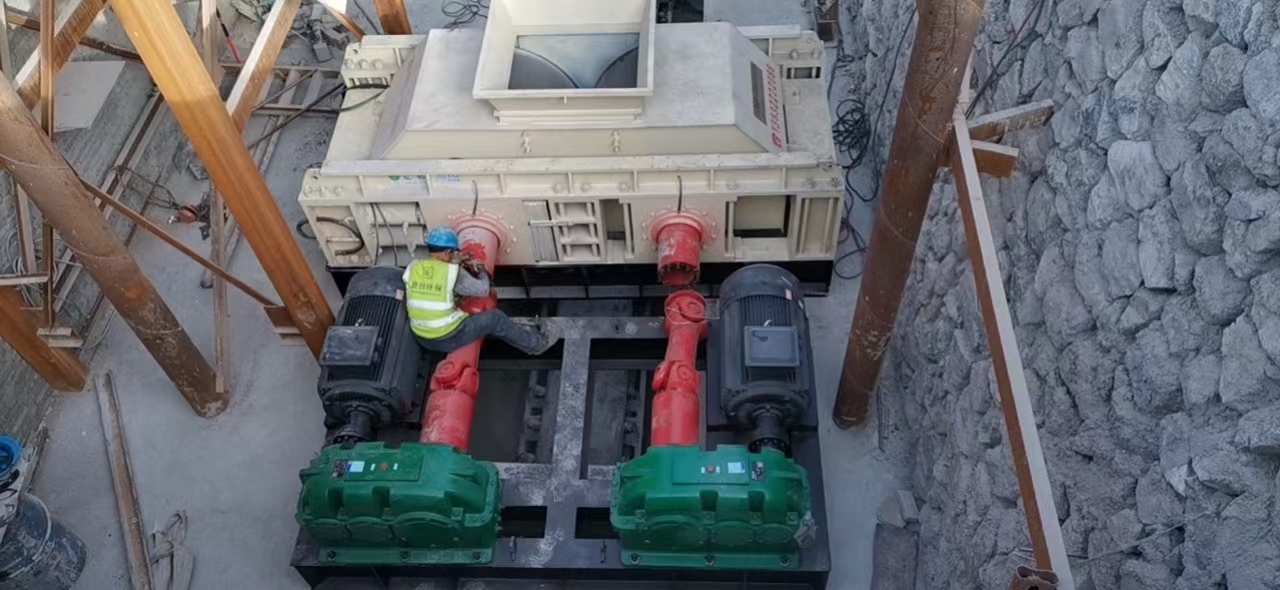

Customer site:

Company Profile:

Hebei Zhongwei Mining Machinery Manufacturing was founded in 1990. After 36 years of development, it has grown into a modern mining machinery manufacturing enterprise integrating scientific research, production, design and EPC project general contracting. It is a director unit of the China Sand and Gravel Association, a member unit of the China Heavy Machinery Association, and a vice president unit of the Hebei Sand and Gravel Association. It is also a qualified supplier for China Power Construction Corporation, China Railway Construction Corporation, China Railway Group, China Energy Construction Corporation, China Nonferrous Metal Mining Group, and China Communications Construction Company.

Hebei Zhongwei is located in Wangdu County, Hebei Province, in the center of the Beijing-Tianjin-Shijiazhuang triangle.Hebei Zhongwei has three mechanical factories and two steel foundries under its umbrella, covering a total area of 101,300 square meters and a construction area of 86,300 square meters. It is equipped with over 90 sets of specialized processing equipment and has more than 160 professional technicians and production workers. Its annual production capacity can reach 700 sets of mining machinery and equipment.

Hebei Zhongwei fully implements the "three systems" certification standards including ISO9001-2015 Quality Management System, ISO14001-2015 Environmental Management System, and ISO45001-2018 Occupational Health and Safety Management System. By introducing advanced foreign technologies and conducting independent research and development, it has produced 18 series of mining machinery and equipment, such as the C series European-style jaw crusher, GP series single-cylinder hydraulic cone crusher, HP series multi-cylinder hydraulic cone crusher, PCZ series hammer crusher, B series vertical shaft impact crusher, N series impact crusher, 2PG series hydraulic double-roller sand making machine, YKJ series thin oil lubrication maintenance-free circular vibrating screen, and ZSW series vibrating feeder. The high manganese steel wear-resistant parts independently cast and produced by Hebei Zhongwei feature advanced technology, low wear cost, and long service life. With excellent quality and comprehensive after-sales service, its products are sold all over the country and exported to the Middle East, Central Asia, Southeast Asia, Africa, South America, Mongolia, Russia and other countries and regions, receiving unanimous praise from customers. Address: Wangdu Economic Development Zone,Baoding city, Hebei province
