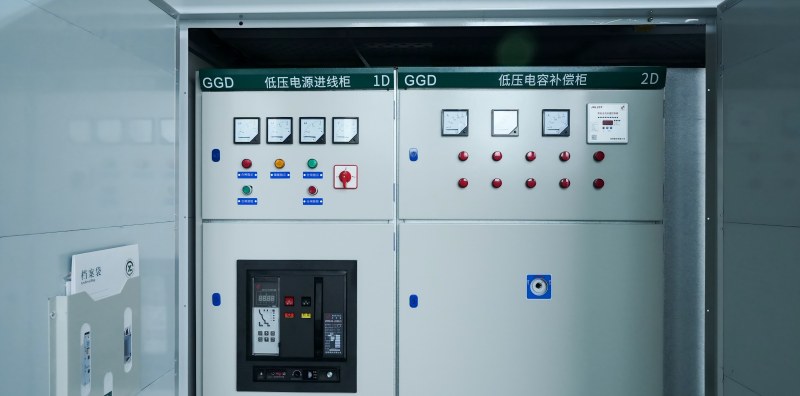

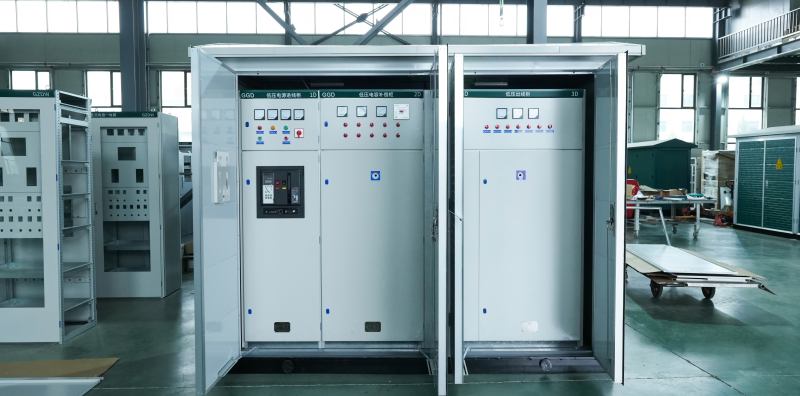

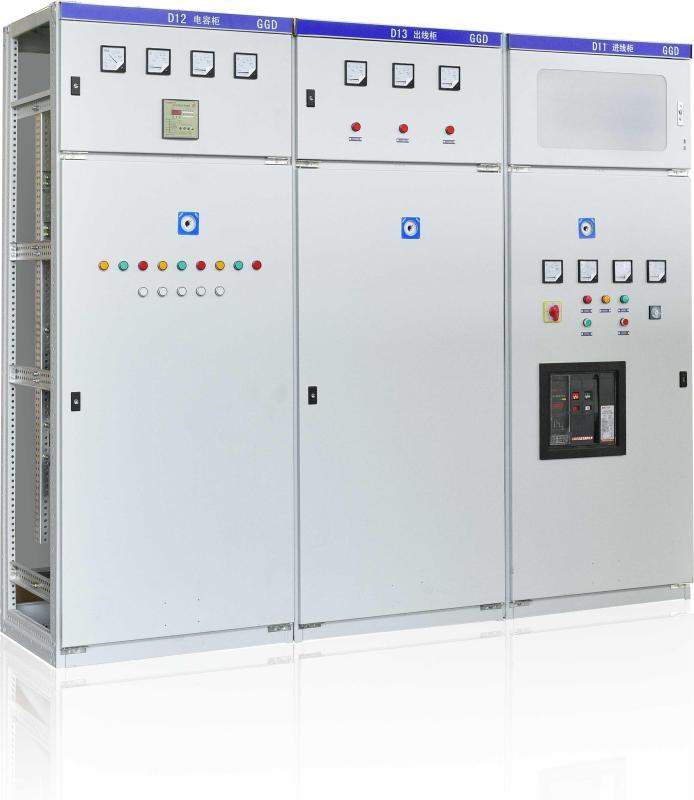

GGD Ac low-voltage power distribution cabinet
Contact Now
Description
The GGD type AC low-voltage distribution cabinet is suitable for the AC 50Hz, rated working voltage 380V, and rated working current up to 3150A distribution system of power users such as power plants, substations, factories and mines, and is used for the conversion, distribution and control of power for power, lighting and distribution equipment.
The GGD type AC low-voltage distribution cabinet is a new type of low-voltage distribution cabinet designed based on the requirements of the superior authorities of the Ministry of Energy, the majority of power users and design departments, adhering to the principles of safety, economy, rationality and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, strong practicability, etc., and can be used as an updated product of low-voltage switchgear assemblies.
Terms of Use
The ambient air temperature shall not exceed+40 ℃, not be lower than -5 ℃, and the average temperature within 24 hours shall not exceed+35 ℃;
Indoor installation and use, the altitude of the usage location shall not exceed 2000m;
The relative humidity of the surrounding air should not exceed 50% at a maximum temperature of+40C, and a higher relative humidity should be allowed at lower temperatures (such as 90% at+20C), taking into account the possible impact of condensation caused by temperature changes;
When users have special requirements, they can negotiate with the manufacturer to resolve them.
Main Features
Divided by purpose: power receiving cabinet, power feeding cabinet, reactive power compensation cabinet, busbar connection cabinet, lighting distribution cabinet, etc.
The cabinet is assembled using C-shaped or 8MF shaped profiles, with modular holes on the side of the profiles for flexible and convenient assembly.
The door panel layout is designed using the golden ratio method, which is overall coordinated and aesthetically pleasing.
The top cover of the cabinet can be removed when needed to facilitate the assembly and adjustment of the main busbar.
