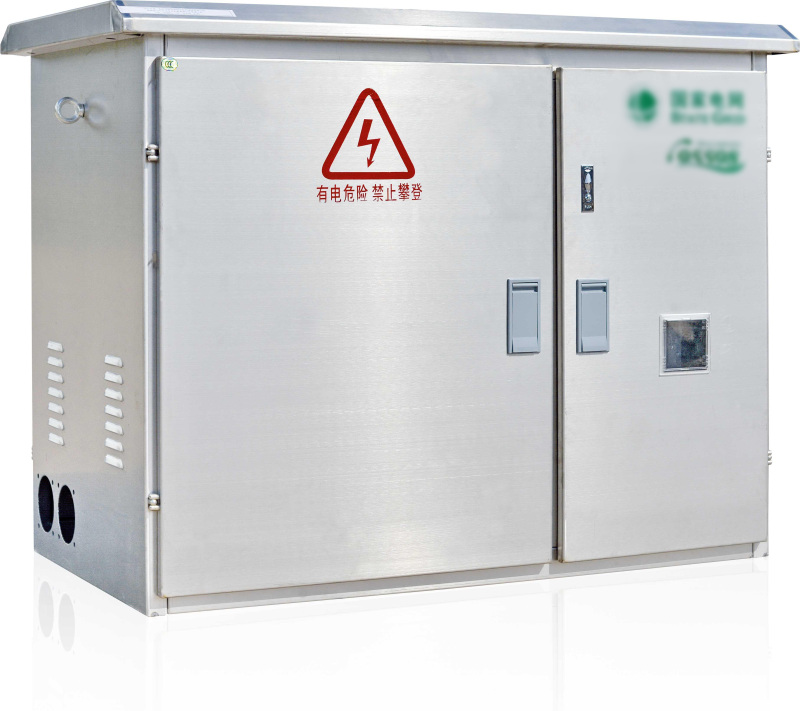

JP Cabinet intelligent integrated distribution box
Contact Now
Description
The JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, distribution, and reactive power compensation. It has functions such as short circuit, overload, overvoltage, and leakage protection. It is small in size, beautiful in appearance, and economical and practical. It is installed on the poles of outdoor column mounted transformers and is an ideal new generation of distribution products for urban and rural power grid renovation.
Usage environment
Environmental temperature: -25 ℃+40 ℃;
Relative humidity of the air: daily average not exceeding 90%, monthly average not exceeding 90%:
Altitude: not exceeding 2000m;
Installed in a place without severe vibration and impact, and without corrosive gases
Main Features
The box structure is separate and horizontal, and the outer shell is made of 2mm high-quality stainless steel plate bent by multiple folding processes (or made of honeycomb structured stainless steel double layered composite plate, which has flame retardant, environmental protection, thermal insulation, anti condensation and other properties). Special stainless steel welding technology is used. After the box is formed, the overall strength is high, the surface is as smooth as a mirror, and no weld marks are left; The internal installation beams (plates) are treated with hot-dip galvanizing technology, and the box has front and rear doors for easy user operation and maintenance. The doors are surrounded by high elasticity and anti-aging sealing strips, door locks, and anti rust rain covers; Measurement room fully enclosed with lead sealing device; The side of the box is equipped with rainproof and foreign object proof cable conduit, with ventilation holes and cable outlet holes punched at the bottom, and ventilation ducts and wire mesh at the top, which have the functions of waterproofing, rust prevention, dust prevention, and foreign object prevention.
