Product ID: 68622209

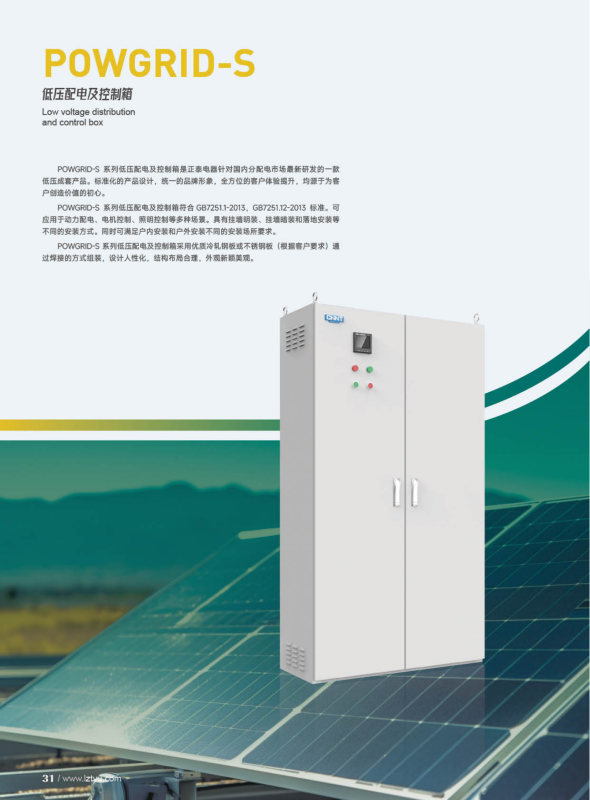

Low Voltage Distribution and Control Box
Contact Now
Description
The POWGRID-S series low-voltage distribution and control box is the latest low-voltage complete set product developed by Chint Electric for the domestic distribution market. Standardized product design, unified brand image, and comprehensive customer experience enhancement all stem from the original intention of creating value for customers.
The POWGRID-S series low-voltage distribution and control box complies with the GB7251.1-2013 and GB7251.12-2013 standards. It can be applied to various scenarios such as power distribution, motor control, lighting control, etc. There are different installation methods such as wall mounted exposed installation, wall mounted concealed installation, and floor mounted installation. At the same time, it can meet the requirements of different installation locations for indoor and outdoor installations.
The POWGRID-S series low-voltage distribution and control box is assembled by welding high-quality cold-rolled steel plates or stainless steel plates (according to customer requirements), with a humanized design, reasonable structural layout, and novel and beautiful appearance.
Terms of Use
runtime environment
Minimum temperature -5 ℃, short-term maximum temperature+40 ° C, 24-hour maximum average temperature+35 ° C
When using equipment in temperatures higher than the above mentioned environment, consideration should be given to reducing capacity operation
environmental conditions
Relative humidity: ≤ 50% (+40 ℃)
If the temperature is low, a higher humidity is allowed, with a maximum of 90% (+20 ℃)
If the equipment is installed at an altitude above 2000 meters, consideration should be given to reducing capacity operation.
Transportation temperature
Normal temperature: -25 ° C~55 ° C
Within a short period of time (not exceeding 24 hours):+70 ℃
Features and Advantages
Threshold mechanism: When the box door is opened, the threshold mechanism can effectively prevent the opening and closing of the box door from hitting and disturbing the operation and maintenance personnel.
Door opening lighting: convenient for maintenance and repair in environments with poor lighting, without the need for additional lighting.
Folder: A folder is provided on the inside of the box door, which can store product drawings, samples, technical information and other documents for easy access.
Transport base: An optional transport base is available for easy transportation without lifting equipment on site.
Foam sealing: Using a one-time molding foam sealing process, compared to traditional sealing strips, it has higher elasticity, no seams, better sealing performance, and can achieve true IP54.
Prefabricated installation holes: The installation brackets and crossbeams of prefabricated installation holes can facilitate the installation, positioning, and adjustment of components, and fix cables.
