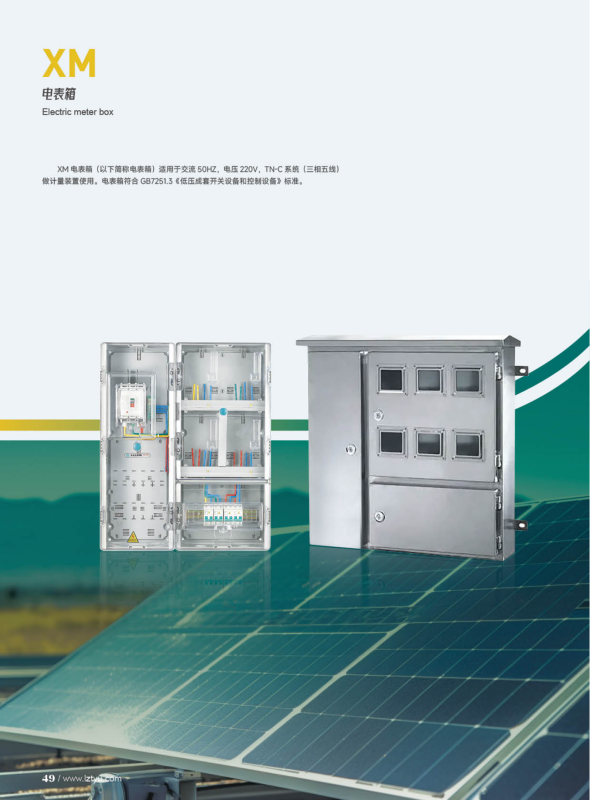

XM Low-voltage electric meter box
Contact Now
Description
XM meter box (hereinafter referred to as meter box) is suitable for use as a metering device in AC 50HZ, voltage 220V, TN-C system (three-phase five wire). The electric meter box complies with the GB7251.3 standard for low-voltage switchgear and control equipment.
Terms of Use
The ambient air temperature shall not exceed 40 ℃, not be lower than -5 ℃, and the average temperature within 24 hours shall not exceed+35 ℃.
Indoor use, use at an altitude of ≤ 2000m.
When the relative humidity of the surrounding air reaches a maximum temperature of+40 ° C, it should not exceed 50%. A higher relative humidity is allowed at lower temperatures, with 90% at+20 ° C. The influence of condensation that may occur accidentally due to temperature changes should be considered.
The device should be installed in a place without severe vibration and impact, and in a place where electrical components are not subjected to undue corrosion.
When users have special requirements, they can negotiate with the manufacturer to resolve them.
Technical Specifications
Rated insulation voltage: AC 500V
Rated working voltage main circuit: AC 220V
Rated frequency: 50Hz
Rated current: Maximum allowable current of 40A for single-phase electricity meter
Front isolation switches 45, 63, 100A
Rear circuit breakers 80, 63, 40, 32, 25, 20A
Rated short-time withstand current 4.5, 6kA
