Product ID: 68622240

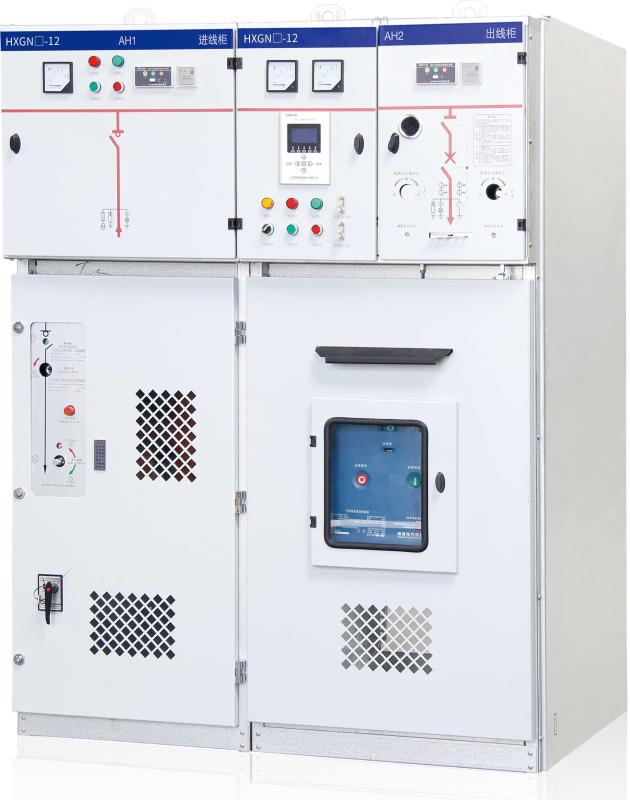

Unit-type AC metal closed-loop network switch equipment
Contact Now
Description
The HXGN-12 (VS1) type modular AC metal enclosed ring network switchgear (hereinafter referred to as the ring network cabinet) is a new generation of high-voltage electrical products that we have independently designed and developed in accordance with the requirements of domestic agricultural power and urban network transformation, by introducing advanced foreign technology. All technical performance indicators comply with IEC62271-200:2003 and GB3906 standards.
HXGN port-12 (VS1) type modular AC metal enclosed ring network switchgear is suitable for use in 50Hz, 12kV power networks for the reception and distribution of electrical energy. The main switch inside the cabinet is VS1 switch.
Structural characteristics
The main switch, operating mechanism, and components of the ring main unit are made of ABB original parts or imported VS1-12/24 switchgear produced domestically. ABB original HAD/US VS1 circuit breakers or VD4-S vacuum circuit breakers can also be installed according to user needs. Its operation modes are divided into manual and electric.
The cabinet is processed by CNC machine and riveted, with a protection level of IP3X, and has reliable mechanical interlocking and anti misoperation functions. This product has significant features such as small size, light weight, beautiful appearance, easy operation, long life, high parameters, no pollution, and minimal maintenance.
Terms of Use
Environmental temperature: upper limit+40 ℃, lower limit -25 ℃;
Altitude: The altitude shall not exceed 2000m;
Relative temperature: daily average not exceeding 95%; Monthly average not exceeding 90%;
Surrounding environment: The surrounding air is not significantly polluted by corrosive gases, flammable gases, water vapor, etc;
No frequent severe vibrations.
