Product ID: 68628799

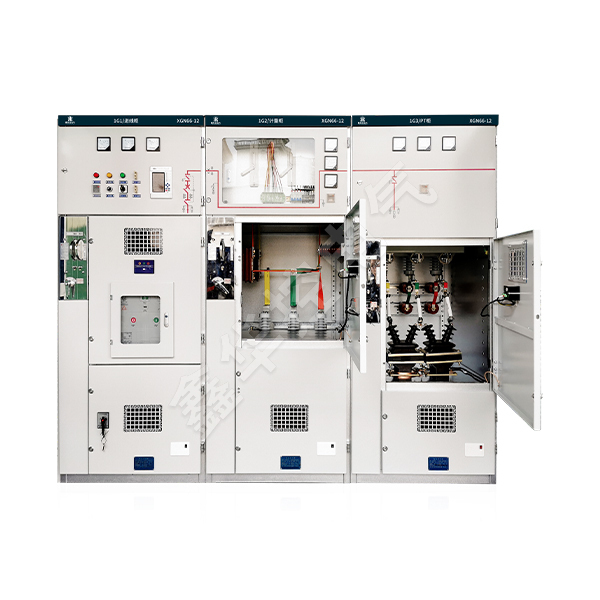

Unit type AC metal closed ring switchgear
Contact Now
Description

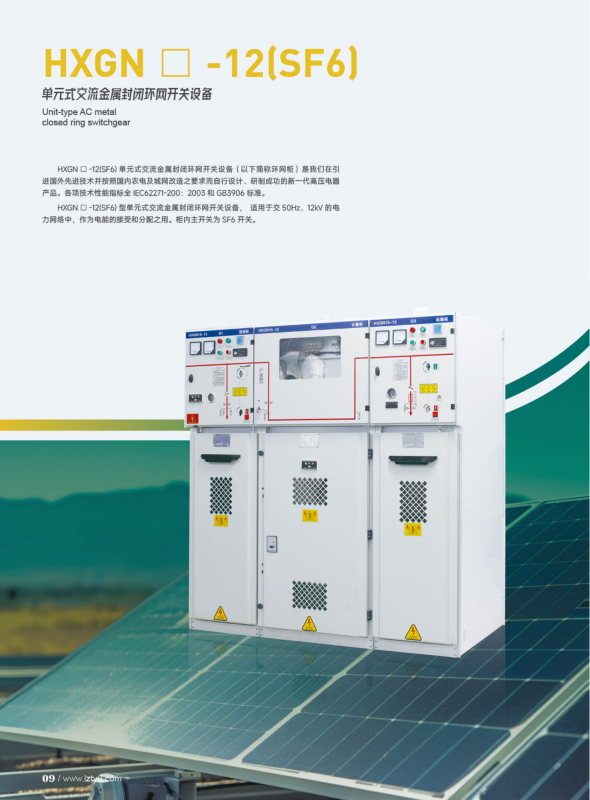

The HXGN-12 (SF6) modular AC metal enclosed ring main switchgear (hereinafter referred to as the ring main unit) is a new generation of high-voltage electrical products that we have successfully designed and developed by introducing advanced foreign technology and in accordance with the requirements of domestic rural and urban power grid transformation. All technical performance indicators comply with IEC62271-200:2003 and GB3906 standards.
HXGN port-12 (SF6) type modular AC metal enclosed ring network switchgear is suitable for use in 50Hz, 12kV power networks for the reception and distribution of electrical energy. The main switch inside the cabinet is SF6 switch.
Structural characteristics
The main switch, operating mechanism, and components of the ring main unit are made of ABB original parts or domestically assembled SFL-12/24 switchgear using imported components. ABB original HAD/US SF6 circuit breakers or VD4-S vacuum circuit breakers can also be installed according to user needs. Its operation mode is divided into two types: dynamic and electric.
The cabinet is processed by CNC machine and riveted, with a protection level of IP3X, and has reliable mechanical interlocking and anti misoperation functions. This product has significant features such as small size, light weight, beautiful appearance, easy operation, long life, high parameters, no pollution, and minimal maintenance.
HXGN port-12 (SF6) modular AC metal enclosed ring network switchgear is suitable for use in 50Hz, 12kV power networks for the reception and distribution of electrical energy. The main switch inside the cabinet is SF6 switch.
Terms of Use
Environmental temperature: upper limit+40 ℃, lower limit -25 ℃;
Altitude: The altitude shall not exceed 2000m;
Relative temperature: daily average not exceeding 95%; monthly average not exceeding 90%;
Surrounding environment: The surrounding air is not significantly polluted by corrosive gases, flammable gases, water vapor, etc;
No frequent and intense vibrations.
