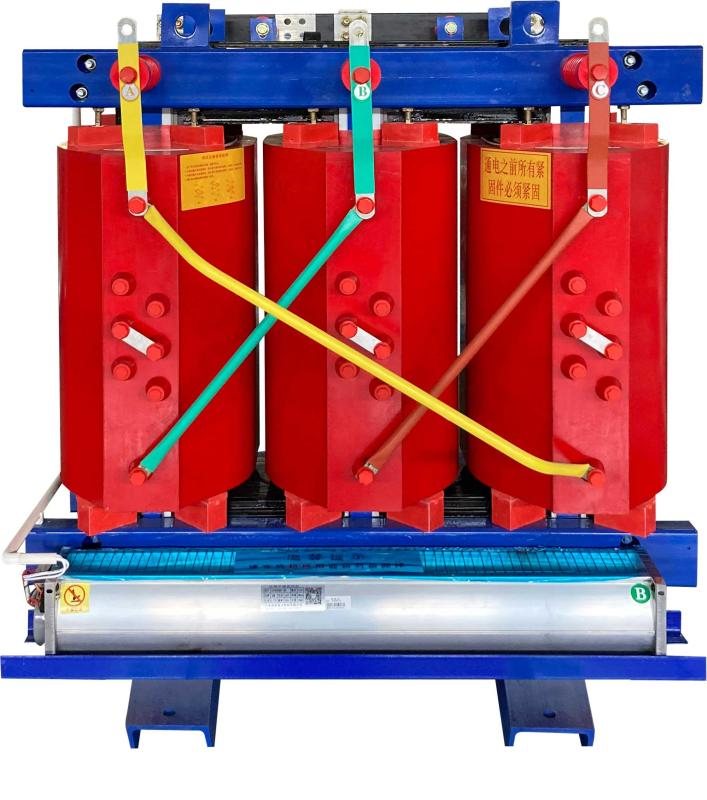

20KV 35KV Dry transformer
Contact Now
Description
Product Features
1. High performance and low loss, it is a replacement product for the Type 9 series.
2. Select high-quality silicon steel sheets while significantly reducing magnetic flux density, minimizing the magnetostriction of silicon steel sheets during operation, and effectively reducing noise.
3. Optimized the structure of the high-voltage coil, improved the distribution of interlayer voltage and capacitance, greatly enhanced the product's ability to withstand atmospheric and operational overvoltages, and also improved the electric field distribution, further reducing the partial discharge of the product.
4. Configurable temperature control system and air cooling device, automatically starting the fan cooling device when the load is too high, effectively improving the equipment's overload capacity.
Terms of Use
ambient temperature
◎ Maximum temperature:+40 ℃
◎ Minimum temperature: -25 ℃ (special customization can adapt to lower temperatures)
The average temperature within 24 hours shall not exceed+35 ℃
. Altitude
◎ Generally applicable to areas with an altitude of ≤ 1000 meters, and requiring derating or special design beyond 1000 meters
● Relative humidity
Daily average relative humidity ≤ 95%
Monthly average relative humidity ≤ 90%
● Environmental conditions
The installation location should be free from severe vibrations and impacts
◎ Avoid direct invasion by rainwater, moisture, corrosive gases, or conductive dust
● Ventilation conditions
Dry type transformers require good ventilation to ensure heat dissipation
The installation site should have sufficient ventilation space, and ventilation equipment can be installed if necessary
