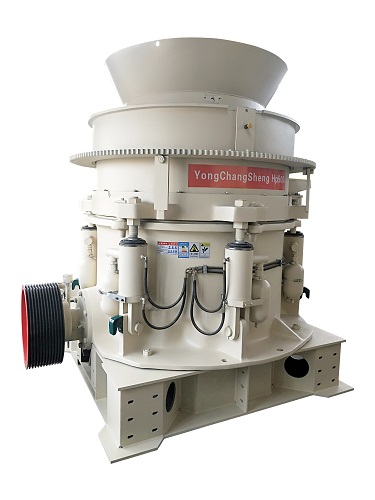

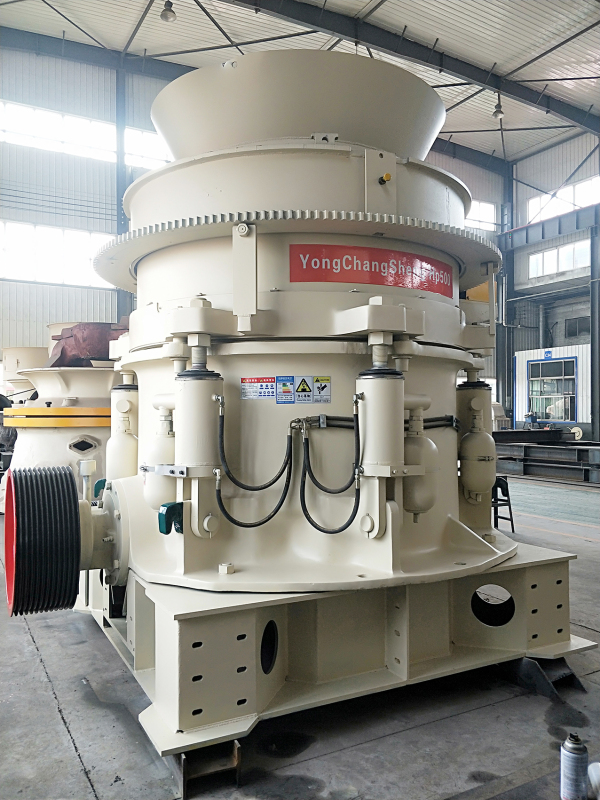

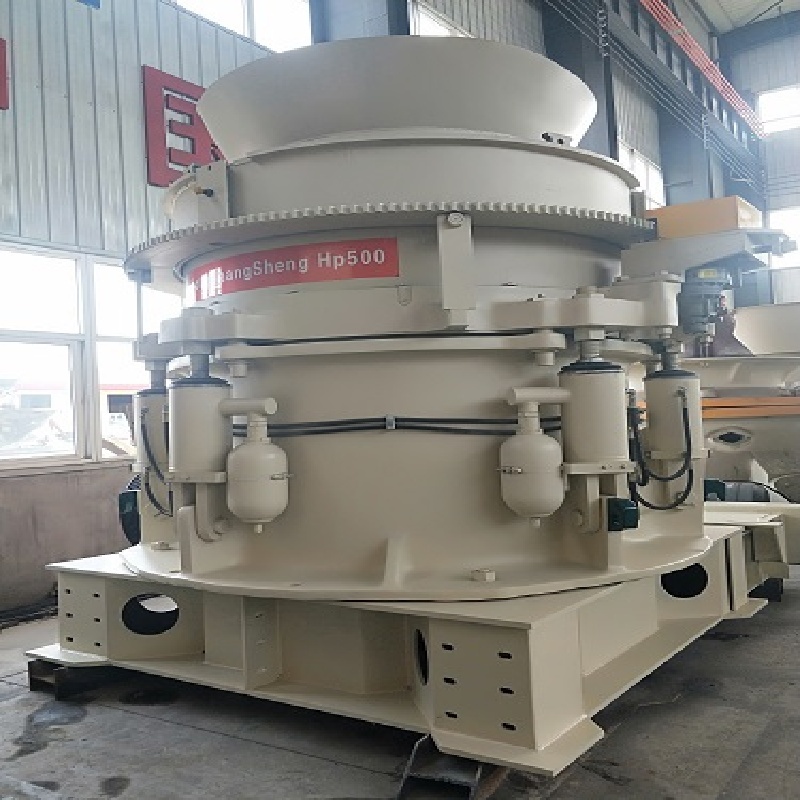

HP200 Multi-Cylinder Hydraulic Cone Crusher
Description
Hebei zhongwei Hp Series Multi-Cylinder Hydraulic Cone Crusher
High performance
Good reliability
Strong crushing force
Low maintenance rate
Convenient maintenance
Energy saving and environmental protection
First-class product shape and size
The advantage of Hebei Zhongwei HP series multi-cylinder hydraulic cone crusher lies in the perfect combination of crushing speed, stroke and crushing cavity design. It not only improves production capacity and product quality, but also expands the scope of application. From limestone to iron ore, from ballast production to machine-made sand, and small mobile crushing stations; Hebei Zhongwei HP series multi-cylinder hydraulic cone crushers can provide excellent crushing performance in medium, fine and ultra-fine crushing operations .
The crushing process of Hebei Zhongwei HP series multi-cylinder hydraulic cone crusher is that the horizontal shaft is driven by the motor to drive the eccentric sleeve through the gear. The eccentric sleeve rotates around the main shaft fixed on the main frame, and the eccentric sleeve friction drives the moving cone to drive the crushing wall. The pendulum movement produces periodic distance changes between the crushing wall and the rolling mortar wall to complete the crushing of the material.
Features:
★high performance
The best speed, large eccentricity, crushing cavity design and high power determine the high performance of Hebei Zhongwei HP series multi-cylinder hydraulic cone crusher.
★High content of fines
The optimized crushing cavity design, the perfect combination of high frequency crushing, large eccentricity, and lamination crushing make the material smaller than the discharge port of the crusher excellent in shape and higher in fine-grained materials.
★Large output
Rugged frame design, increased eccentricity, and application of high-strength alloy steel materials enable the crusher to withstand greater crushing force. High-power operation enables the crusher to obtain a large crushing ratio and high productivity.
★Long running time and shorter maintenance time
The two-way iron-pass release hydraulic cylinder provides iron-pass protection, and the double accumulator improves the response speed of the hydraulic system and avoids the iron-pass shutdown. The fixed-stroke hydraulic cavity cleaning function allows the production of unexpected shutdowns to be quickly resumed.
★Simple and fast operation and maintenance
Hydraulic motor drive discharge opening adjustment, one-key fixed cone rotation and disassembly function, convenient and quick replacement of wear parts, all key components can be disassembled from the top of the crusher and the horizontal axis; there is no need to disassemble and install frame bolts when replacing wear parts , There is no need for fillers to install wear-resistant parts, no need to wait for fillers to solidify, which saves time and improves the operating rate.
★High degree of automation
Using PLC control system, all data and working status are displayed on the touch screen, making the operation more convenient. Large-scale production lines can be fully automated.

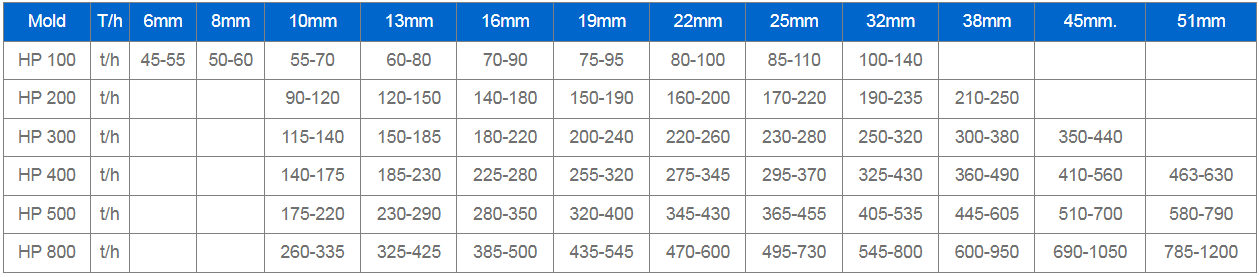

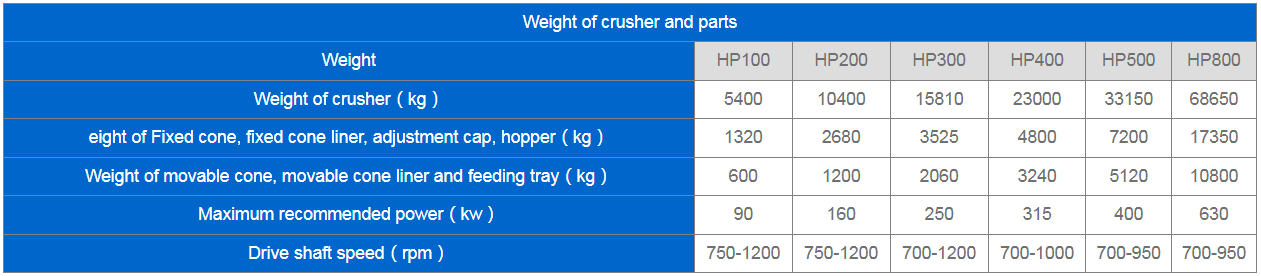

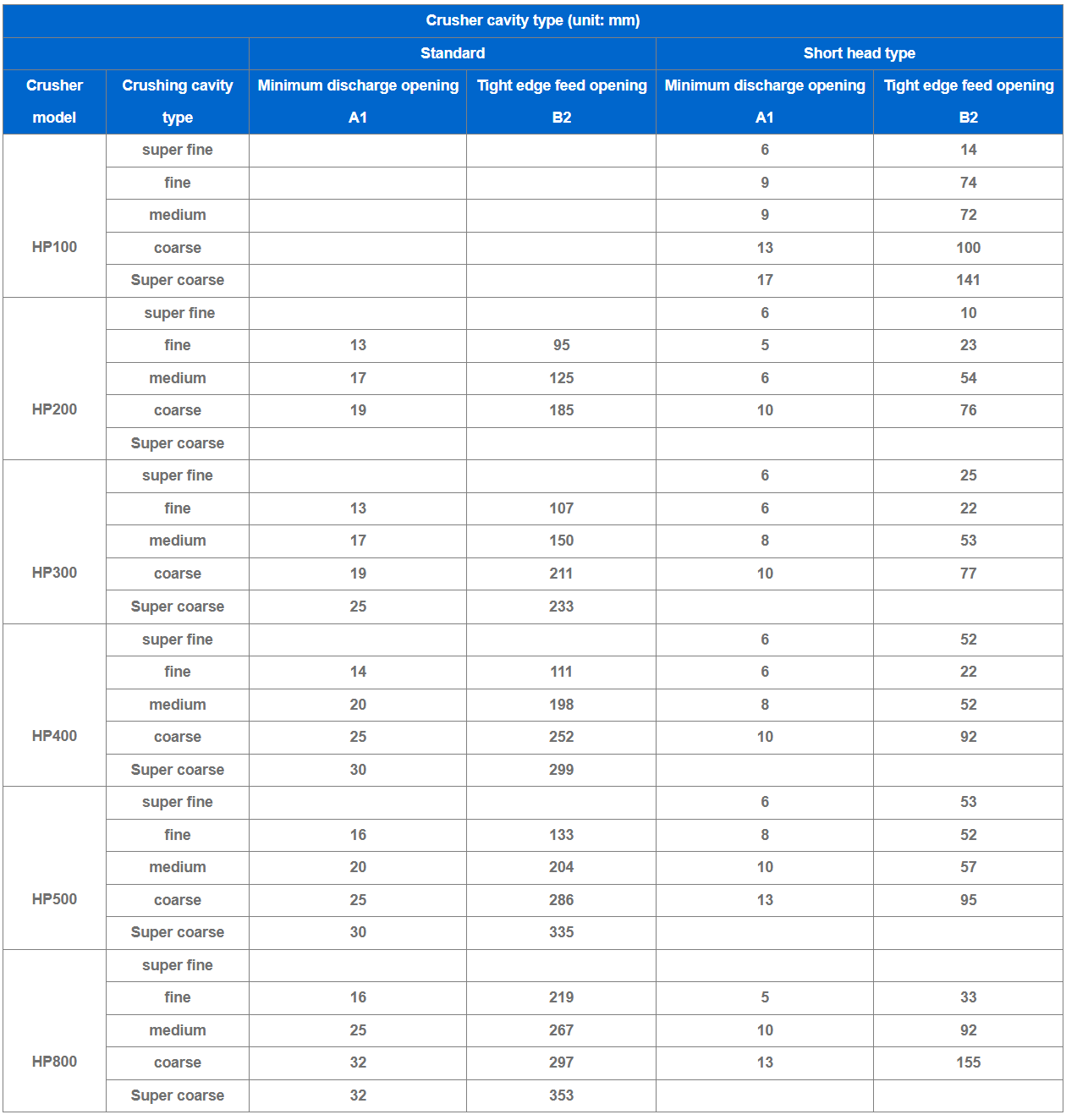

Technical parameter：

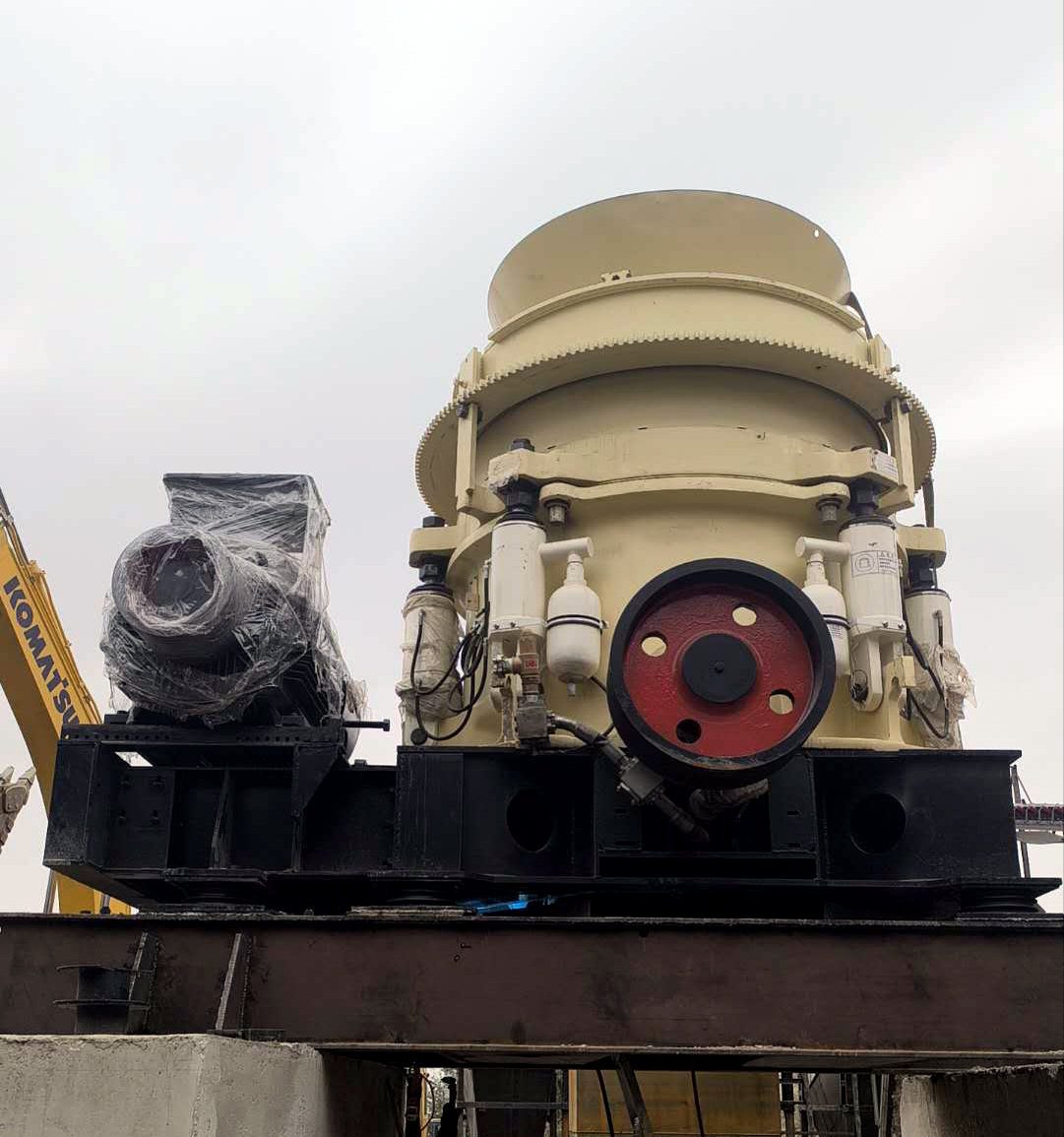

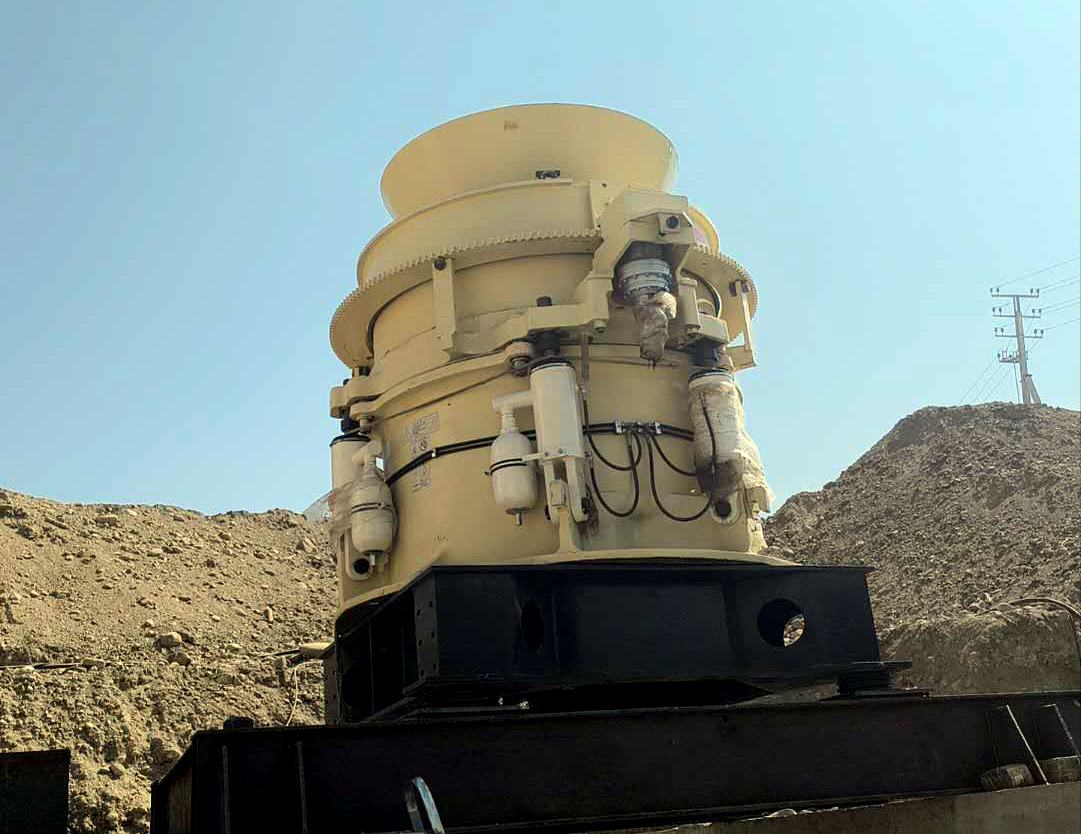

Customer site:
Company Profile:
Hebei Zhongwei Mining Machinery Manufacturing was founded in 1990. After 36 years of development, it has grown into a modern mining machinery manufacturing enterprise integrating scientific research, production, design and EPC project general contracting. It is a director unit of the China Sand and Gravel Association, a member unit of the China Heavy Machinery Association, and a vice president unit of the Hebei Sand and Gravel Association. It is also a qualified supplier for China Power Construction Corporation, China Railway Construction Corporation, China Railway Group, China Energy Construction Corporation, China Nonferrous Metal Mining Group, and China Communications Construction Company.
Hebei Zhongwei is located in Wangdu County, Hebei Province, in the center of the Beijing-Tianjin-Shijiazhuang triangle.Hebei Zhongwei has three mechanical factories and two steel foundries under its umbrella, covering a total area of 101,300 square meters and a construction area of 86,300 square meters. It is equipped with over 90 sets of specialized processing equipment and has more than 160 professional technicians and production workers. Its annual production capacity can reach 700 sets of mining machinery and equipment.
Hebei Zhongwei fully implements the "three systems" certification standards including ISO9001-2015 Quality Management System, ISO14001-2015 Environmental Management System, and ISO45001-2018 Occupational Health and Safety Management System. By introducing advanced foreign technologies and conducting independent research and development, it has produced 18 series of mining machinery and equipment, such as the C series European-style jaw crusher, GP series single-cylinder hydraulic cone crusher, HP series multi-cylinder hydraulic cone crusher, PCZ series hammer crusher, B series vertical shaft impact crusher, N series impact crusher, 2PG series hydraulic double-roller sand making machine, YKJ series thin oil lubrication maintenance-free circular vibrating screen, and ZSW series vibrating feeder. The high manganese steel wear-resistant parts independently cast and produced by Hebei Zhongwei feature advanced technology, low wear cost, and long service life. With excellent quality and comprehensive after-sales service, its products are sold all over the country and exported to the Middle East, Central Asia, Southeast Asia, Africa, South America, Mongolia, Russia and other countries and regions, receiving unanimous praise from customers.
Address: Wangdu Economic Development Zone,Baoding city, Hebei province
