Fine grain type

Deep rotor、high capacity

On the safe side

Energy saving and environmental protection

Product description：

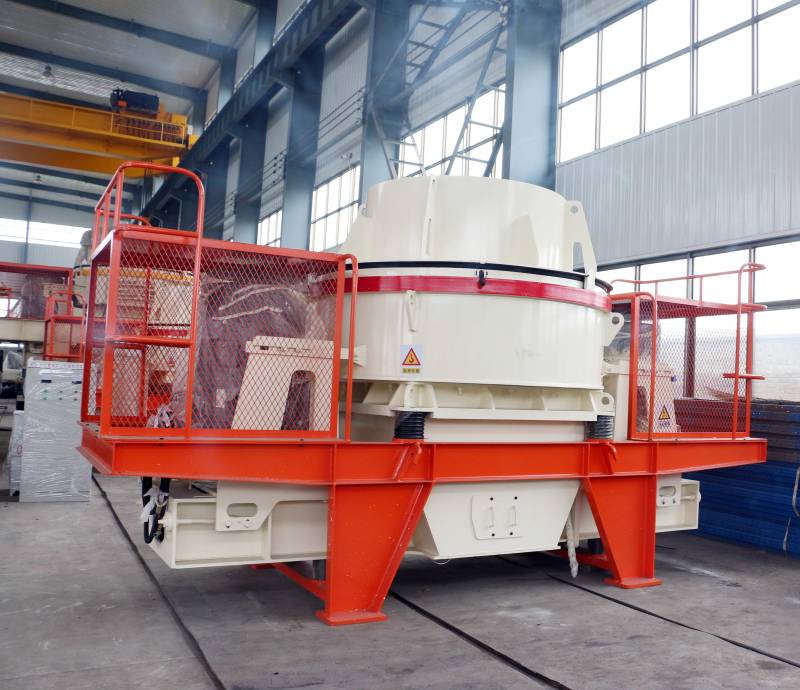

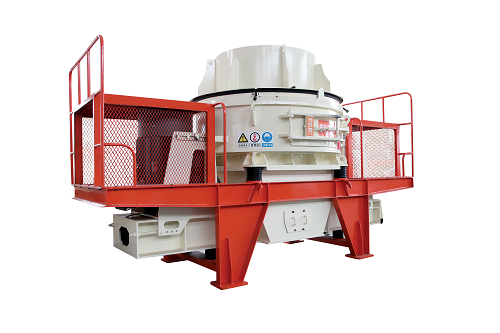

The B series vertical shaft impact crusher is a vertical shaft impact crusher developed by Zhongwei Company absorbing the design concept of European crushers. Most of the crushers are crushed by the extrusion of metal elements, while the vertical shaft impact crusher is the material fed in by the rotor thrown out by the impact waterfall material to be broken by itself. This self-crushing process can produce high-quality granular aggregates.

The high-speed impact crushing of the B series crusher improves the compactness of the rock, improves the grain shape, and produces high-quality products at low cost, while reducing the moisture of the products, which is convenient for screening.

Based on the principle of rock-to-rock crushing, the B series crusher maintains an excellent record of cost saving, durability and excellent performance in various applications. These applications include the production of high-quality stone, machine-made sand, heap leaching materials, ball mill feed and industrial mining products.

The B series crusher reduces the operating cost of the crusher by improving the energy utilization rate, reducing the wear rate, extending the maintenance cycle, reducing the maintenance time, and improving the crushing effect and control level.

The B series crusher has strong adaptability and wide application. It can show its outstanding ability in the fields of construction, industrial ore, metal ore, and material recovery. Its unique free-type crushing and grinding action, and precise adjustment by changing the rotor speed or waterfall flow.

The B series rock-to-rock crusher can control the product size by optimizing a variety of variables:

Change the rotor speed

Choose different annular crushing chambers

Adjust waterfall flow

Choose rotors of different diameters

The B series crusher adopts a quickly balanced rotor for easy use and maintenance

Grease lubrication is simple and reliable

Installation is simple and quick. The equipment is light in weight, small in transmission load during operation, has low requirements on the foundation, and requires very few supporting structures. It is an ideal mobile equipment. It can be installed on the original foundation or on the support structure provided.

 Product Features：

The patented waterfall flow feeding system is used to introduce the second material into the crushing cavity with a certain controlled amount.

This increases the amount or density of materials in the crushing cavity, which in turn promotes energy transfer between particles. The waterfall flow feature enables the operator to make full use of the available power to process the product size and shape to make it fully meet the requirements.

The success of the B series crusher comes from its outstanding rotor design:

★The deep cavity rotor has many advantages over the old design:

★Increased the passing capacity of the rotor-greater output

★Extend the service life of wear parts and ejector heads---lower operating cost per ton of product

★Extend the service life of the wearing parts and the throwing head---Reduce the downtime caused by replacing the wearing parts

★The deep cavity rotor can feed larger materials

★Increased rotor speed can obtain higher product quality

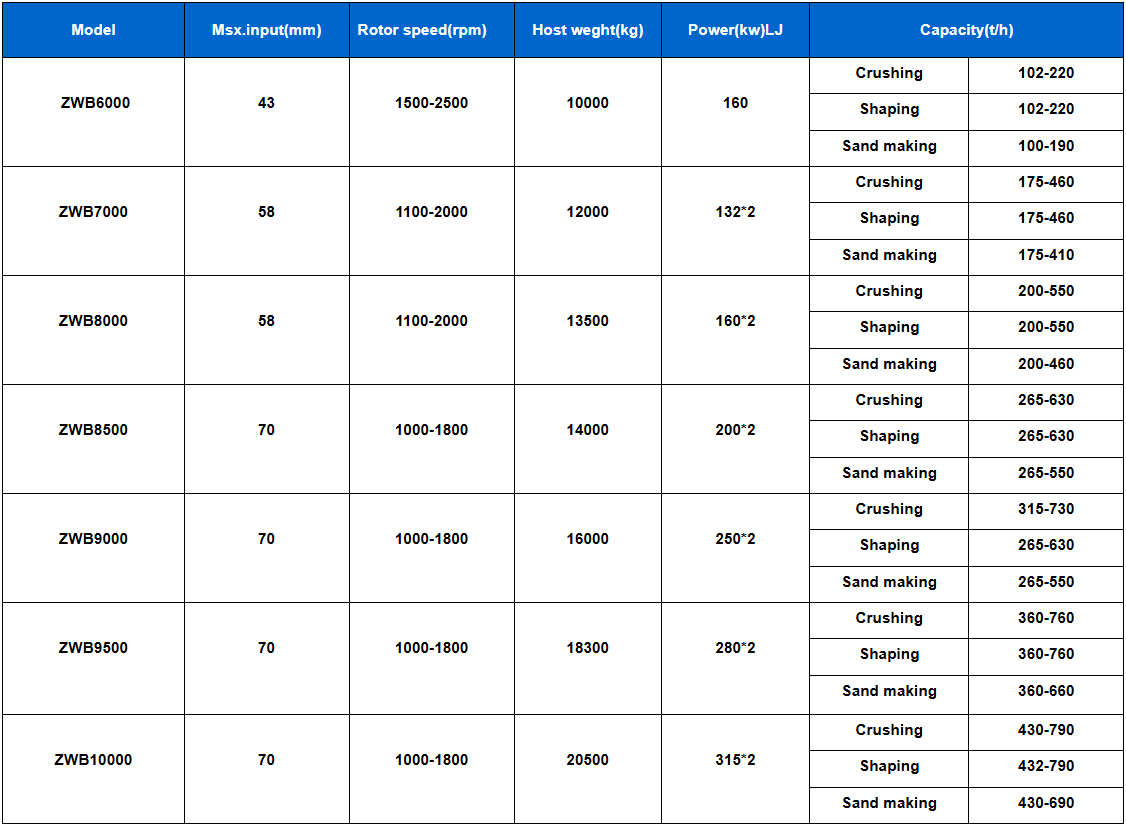

Technical parameter：

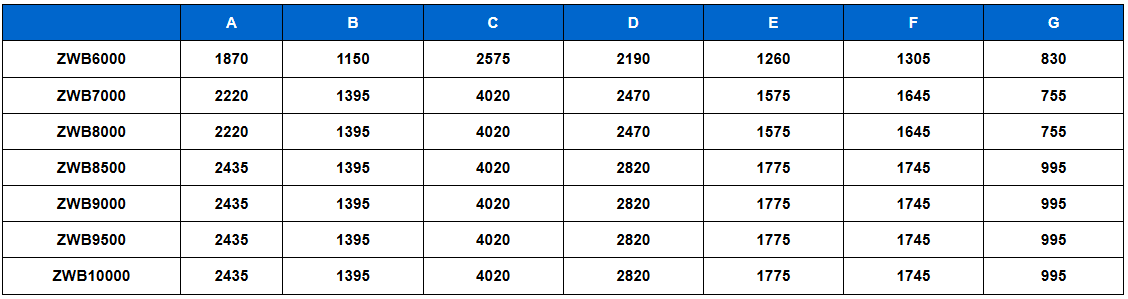

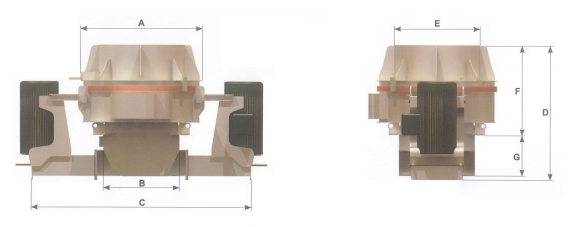

Overall Dimension ：

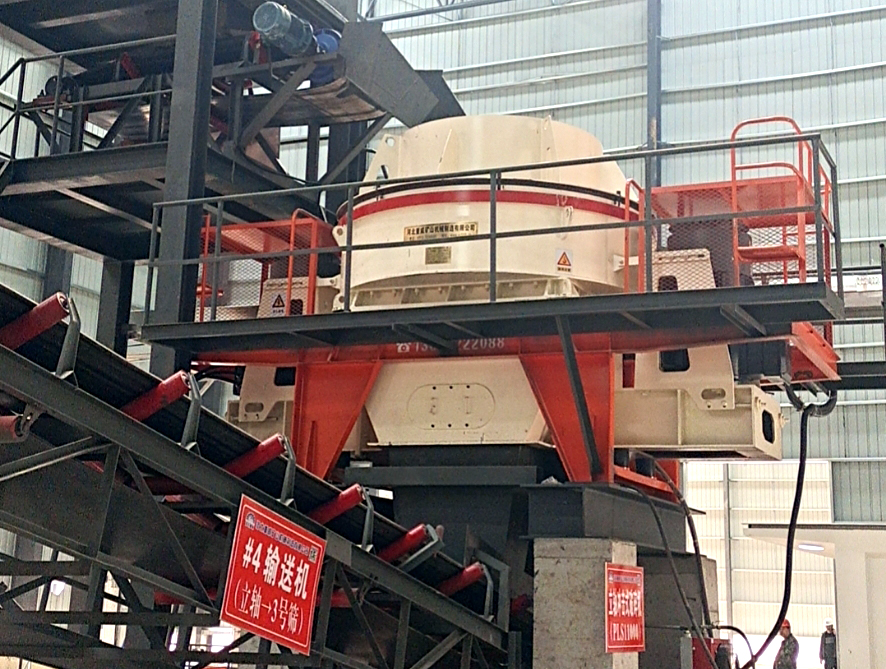

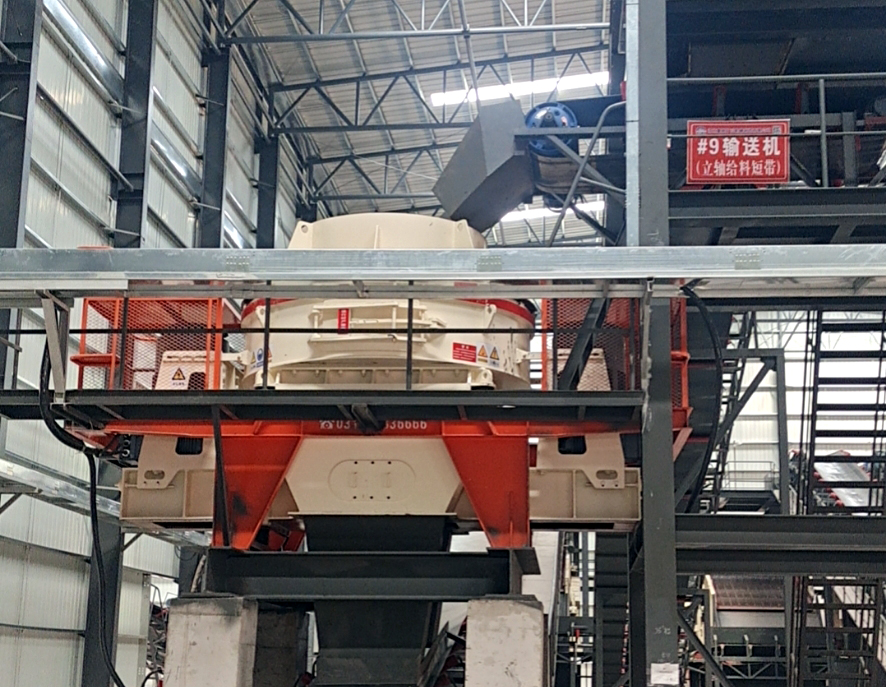

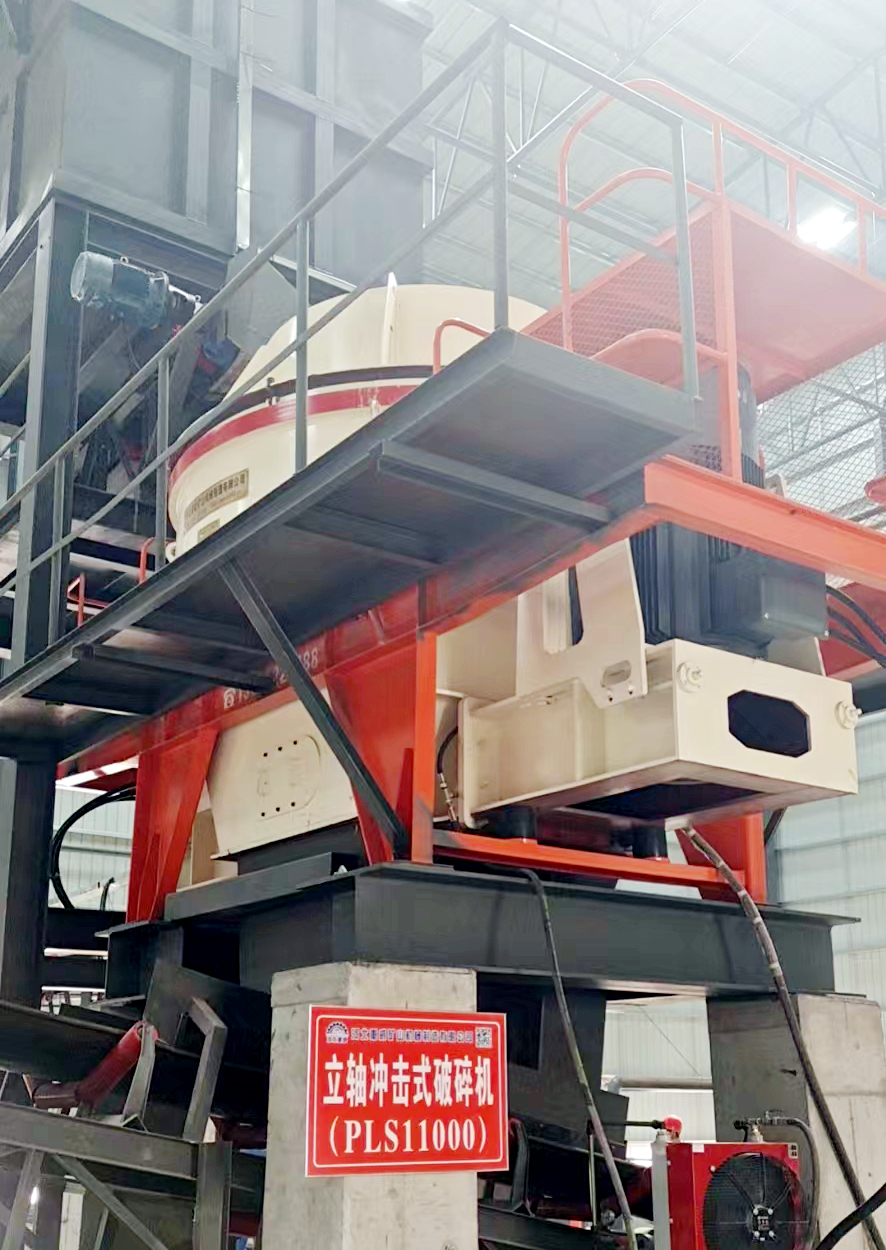

Customer site:
