Single segment crushing

High capacity

No grate plate

Long life of wear parts

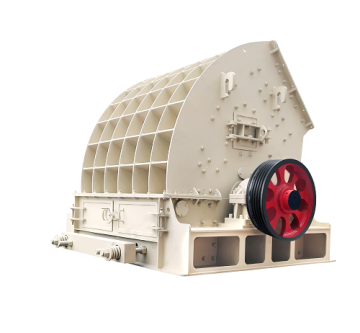

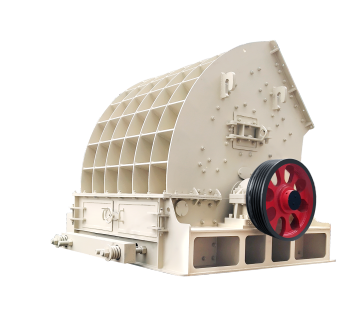

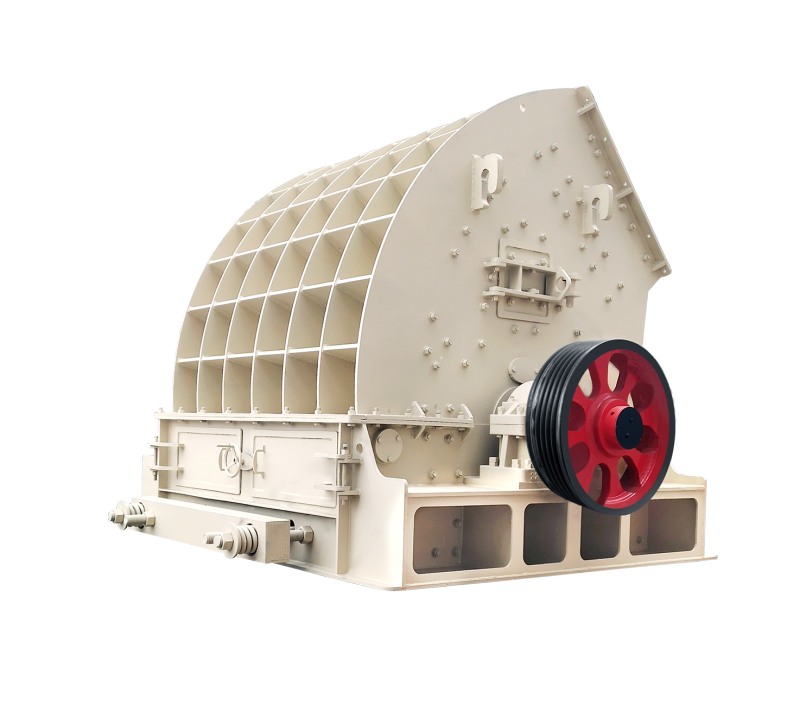

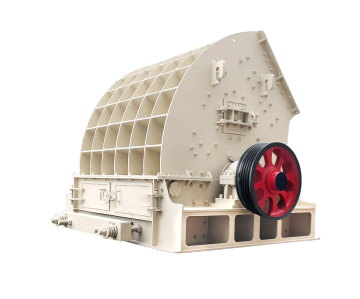

The heavy-duty hammer crusher specializes in limestone crushing. It adopts a unique design without fence. The maximum output can reach 1,200 tons per hour. It can be directly crushed and formed at one time to achieve the output. The grain shape meets the national standard. The rotor uses a wear-resistant retainer, which is more durable, and it is convenient to replace the hammer head hydraulically. This technology is the first in the industry to use this technology.

Suitable materials:

Limestone, coal gangue, gneiss and other brittle materials with compressive strength not greater than 200Mpa

Hourly output: 100-1200 tons/hour

Feed size: can be adjusted according to demand

Motor power: minimum 132KW, maximum 900KW.

Product structure：

The hammer crusher is composed of a casing, a rotor, a counterattack plate, a hammer head, a bracket, a liner, etc.

Working principle：

The motor drives the rotor to rotate at a high speed through the motor pulley, the V-belt, and the main machine pulley; the material to be crushed is fed into the crushing chamber through the feeder through the feeding device, and the high-speed rotating rotor drives the hammer to strike the material for the first time; after gaining kinetic energy The material hits the counter-attack plate at high speed and is broken again; after the collision rebounds, it is hit by the hammer again or collides with other materials. During the collision, the material gradually swims towards the movable counterattack plate at the lower part of the crushing cavity. When the particle size of the material is smaller than the gap between the hammer head and the movable counterattack plate, it will leave the crushing cavity under the pressure of its own weight and other materials, thus ending a The complete crushing process. After the discharged materials are screened by the screening equipment, some of the materials larger than the selection standard need to be transported to the crusher for secondary crushing.

Technical parameter：

Company Profile：

Hebei Zhongwei Mining Machinery Manufacturing was founded in 1990. After 36 years of development, it has grown into a modern mining machinery manufacturing enterprise integrating scientific research, production, design and EPC project general contracting. It is a director unit of the China Sand and Gravel Association, a member unit of the China Heavy Machinery Association, and a vice president unit of the Hebei Sand and Gravel Association. It is also a qualified supplier for China Power Construction Corporation, China Railway Construction Corporation, China Railway Group, China Energy Construction Corporation, China Nonferrous Metal Mining Group, and China Communications Construction Company.

Hebei Zhongwei is located in Wangdu County, Hebei Province, in the center of the Beijing-Tianjin-Shijiazhuang triangle.Hebei Zhongwei has three mechanical factories and two steel foundries under its umbrella, covering a total area of 101,300 square meters and a construction area of 86,300 square meters. It is equipped with over 90 sets of specialized processing equipment and has more than 160 professional technicians and production workers. Its annual production capacity can reach 700 sets of mining machinery and equipment.

Hebei Zhongwei fully implements the "three systems" certification standards including ISO9001-2015 Quality Management System, ISO14001-2015 Environmental Management System, and ISO45001-2018 Occupational Health and Safety Management System. By introducing advanced foreign technologies and conducting independent research and development, it has produced 18 series of mining machinery and equipment, such as the C series European-style jaw crusher, GP series single-cylinder hydraulic cone crusher, HP series multi-cylinder hydraulic cone crusher, PCZ series hammer crusher, B series vertical shaft impact crusher, N series impact crusher, 2PG series hydraulic double-roller sand making machine, YKJ series thin oil lubrication maintenance-free circular vibrating screen, and ZSW series vibrating feeder. The high manganese steel wear-resistant parts independently cast and produced by Hebei Zhongwei feature advanced technology, low wear cost, and long service life. With excellent quality and comprehensive after-sales service, its products are sold all over the country and exported to the Middle East, Central Asia, Southeast Asia, Africa, South America, Mongolia, Russia and other countries and regions, receiving unanimous praise from customers.
