On the safe side

High capacity

Ratio and reduction large

Convenient maintenance

High startup rate

Green environmental protection

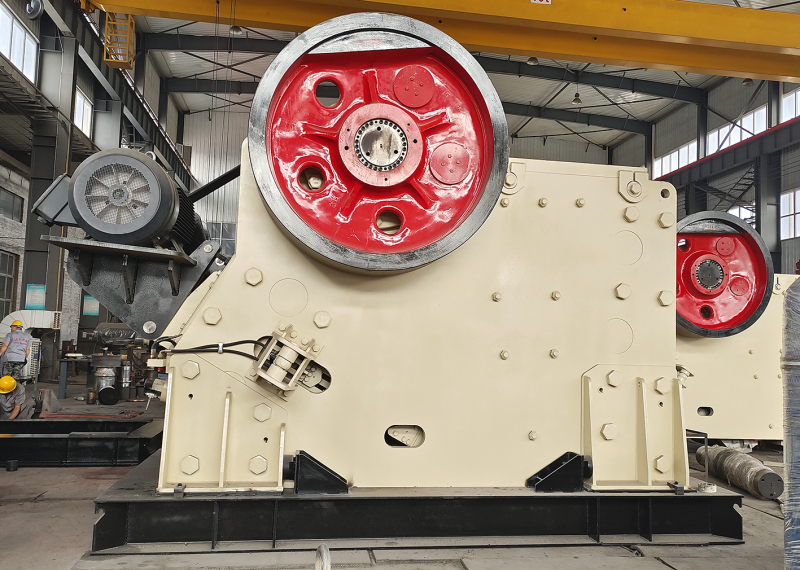

Hebei Zhongwei C series jaw crusher is developed and produced by Zhongwei company introducing advanced foreign technology. Specially designed for crushing the hardest materials. Hundreds of equipment of Zhongwei Company have been used in mines, quarries, sand and gravel aggregates, solid waste utilization, cement, chemical and other industries. This series of products have advantages of simple operation and maintenance, high production efficiency, low vibration and low noise.

Features:

★Modular non-welded structure

Once the welding structure is opened, it will affect the overall life of the crusher. The stress generated after repair welding cannot be eliminated, and it is easy to open the welding again and cause the crusher to be unable to repair. The modular design of the crusher adopts the front and rear gears to be separately casted and connected with the side plates and the integral bearing housing pins, so that the whole machine cannot be repaired due to damage to a certain part. And make the transportation of the crusher more convenient. The detachable modular structure makes Hebei Zhongwei C series crusher the best choice for underground installation.

★Easy to install

The optimized design of the crusher has better balance, and the installation adopts damping pads and limit blocks. The installation time is shorter, and there is no need to make precise anchor bolt holes in advance, and no anchor bolts are needed. Save installation time and cost. Whether it is a new project or the renovation of an old project, it can be completed in a short time.

★Integrated motor installation

Integrated motor installation is the standard configuration of Hebei Zhongwei C series jaw crusher. The electric frame and the crusher are integrated, which reduces the installation space of the crusher and the length of the V-belt. The motor and the crusher move synchronously, thereby maintaining the best alignment and tension of the V-belt and prolonging the service life of the V-belt.

★Enlarged bearing

Hebei Zhongwei C series jaw crusher adopts 4 bearings of the same size, which are larger than other crushers of the same specification and have a longer service life. Increase the use time of the movable jaw assembly and extend the cycle of replacing the bearing.

★Structure optimization

Using mechanism analysis to optimize the stroke of the movable jaw to obtain a larger stroke than the ordinary jaw crusher, so that the output is larger and the efficiency is higher.

★Optimized crushing cavity shape and large bite force

The optimized design of the crushing cavity and the reasonable stroke make the output of the crusher higher. The larger bite angle between the movable jaw plate and the fixed jaw plate ensures a good bite ability and reduces the wear of the tooth plate under the best conditions. Whether it is river pebbles, mountain rocks or ore, there are matching tooth plates.

★Easy to adjust and easy to automate

Hebei Zhongwei C series jaw crusher adopts wedge to adjust the discharge opening. Mechanical adjustment allows the crusher to be adjusted whether it is working or stopped. After replacing it with hydraulic adjustment, the crusher can be automatically controlled, without adding or removing bulky backing plates, and manually tightening the spring rod nuts, and adjusting and moving jaw preload can be realized by simply pressing the button.

★Manufacturing

The parts of Hebei Zhongwei C series jaw crusher use high-quality alloy steel castings and hot-rolled alloy steel plates to ensure the service life of the product and the stability of the equipment.

★Discharge opening hydraulic adjustment system (optional)

Each model of Hebei Zhongwei C series jaw crusher can be equipped with a hydraulic adjustment system. Through the cooperation of hydraulic cylinder and accumulator, the purpose of automatically adjusting the discharge port and pre-tensioning the movable jaw is achieved. The safe and reliable hydraulic system reduces the preparation work before starting up, improves work efficiency, and guarantees the safe operation of the main engine.

Technical parameter：



The output of the crusher indicated by the above data is for an average density of 1.6t/m³, smooth feeding and discharging, no jamming, and no material smaller than the minimum discharge opening size in the feed. In addition, the output is also related to the material's moisture content, loose density, and fragility.

Overall Dimension：

Customer site:

 Company Profile

Hebei Zhongwei Mining Machinery Manufacturing was founded in 1990. After 36 years of development, it has grown into a modern mining machinery manufacturing enterprise integrating scientific research, production, design and EPC project general contracting. It is a director unit of the China Sand and Gravel Association, a member unit of the China Heavy Machinery Association, and a vice president unit of the Hebei Sand and Gravel Association. It is also a qualified supplier for China Power Construction Corporation, China Railway Construction Corporation, China Railway Group, China Energy Construction Corporation, China Nonferrous Metal Mining Group, and China Communications Construction Company.

Hebei Zhongwei is located in Wangdu County, Hebei Province, in the center of the Beijing-Tianjin-Shijiazhuang triangle.Hebei Zhongwei has three mechanical factories and two steel foundries under its umbrella, covering a total area of 101,300 square meters and a construction area of 86,300 square meters. It is equipped with over 90 sets of specialized processing equipment and has more than 160 professional technicians and production workers. Its annual production capacity can reach 700 sets of mining machinery and equipment.

Hebei Zhongwei fully implements the "three systems" certification standards including ISO9001-2015 Quality Management System, ISO14001-2015 Environmental Management System, and ISO45001-2018 Occupational Health and Safety Management System. By introducing advanced foreign technologies and conducting independent research and development, it has produced 18 series of mining machinery and equipment, such as the C series European-style jaw crusher, GP series single-cylinder hydraulic cone crusher, HP series multi-cylinder hydraulic cone crusher, PCZ series hammer crusher, B series vertical shaft impact crusher, N series impact crusher, 2PG series hydraulic double-roller sand making machine, YKJ series thin oil lubrication maintenance-free circular vibrating screen, and ZSW series vibrating feeder. The high manganese steel wear-resistant parts independently cast and produced by Hebei Zhongwei feature advanced technology, low wear cost, and long service life. With excellent quality and comprehensive after-sales service, its products are sold all over the country and exported to the Middle East, Central Asia, Southeast Asia, Africa, South America, Mongolia, Russia and other countries and regions, receiving unanimous praise from customers.

Address: Wangdu Economic Development Zone,Baoding city, Hebei province
