Product ID: 61984103

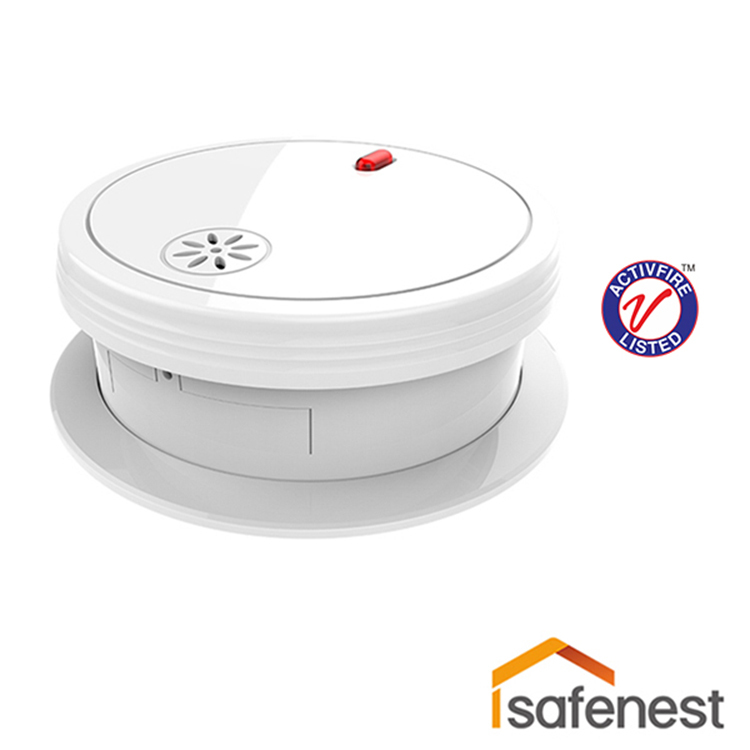

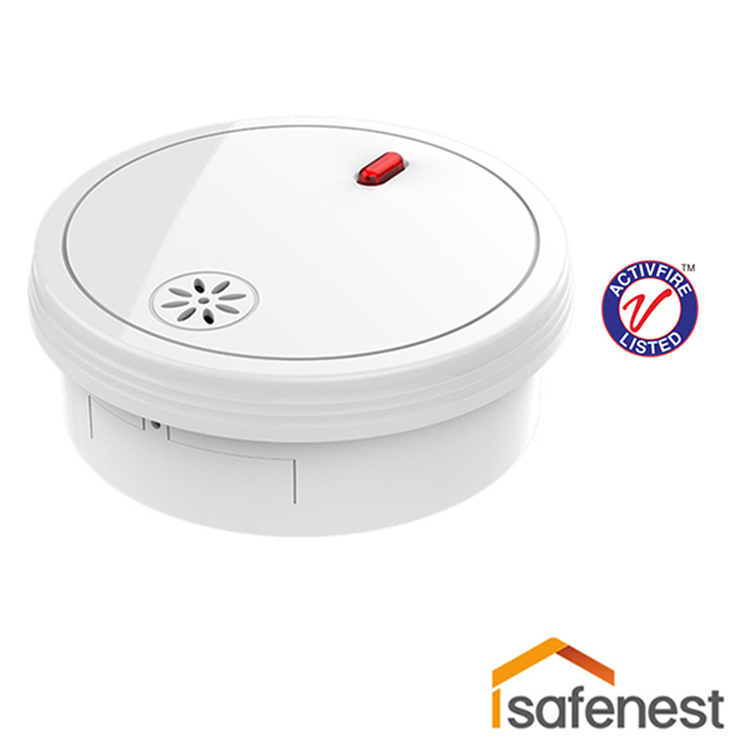

hot sales wireless photoelectric smoke alarm smoke alarm
Contact Now
Description
To test the smoke alarm
1) Monthly Testing: Press the test button on the cover of the unit and hold it until the alarm sounds. If the alarm does not go off, check if the unit is receiving power and test it again. If it still doesn't alarm, check the battery and replace it immediately if needed.
2) Visual Indicators: The signal light on the unit flashes once every 30 seconds to indicate that it is functioning properly. When the alarm goes off, the signal light will flash once every 0.5 seconds.
3) Low Battery Warning: If the alarm emits a low "chirp" sound every 30 seconds, it means the battery needs to be replaced.
4) False Alarms: Normal smoke from cooking or small amounts of smoke will not trigger the alarm. False alarms occur only if you blow smoke directly into the alarm or if you forget to turn on ventilation while cooking.
5) Smoke Activation: Sometimes, smoking near the unit may trigger the alarm. In such cases, simply ventilate the area to stop the alarm from sounding.
Product Description
•AC 240V with DC 9V battery backup
•Photoelectric chamber of early detection from all directions.
•Loud>85db(A) alarm signal(3M)
•Suitable for Ceiling or Wall Mounting
•Operate as Single or Inter-connect up to 24 units

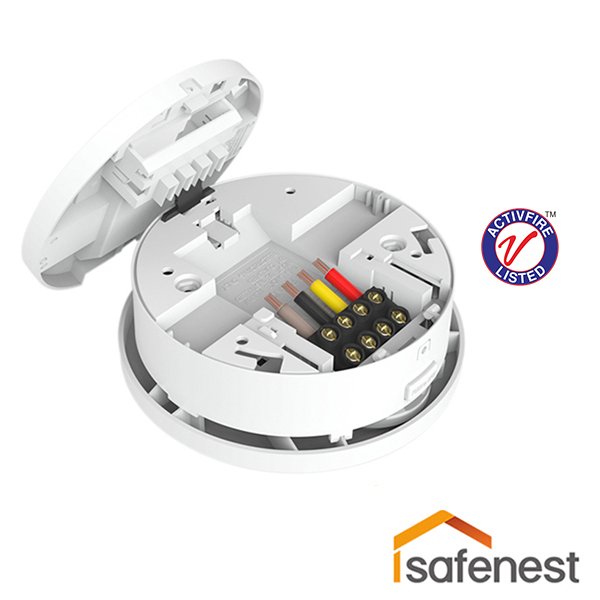

•Surface mount base plate with large cable terminals
•Red LED Alarm Status indication
•Green LED AC Mains Power Indication
•Low Battery signal
•Insect Screen protects Sensing Chamber
• N.W.: ≈255g
• Dimensions: Ф120*46mm
Product Parameter
| Model No. | LZ-1907 |
| Standard | AS3786：2014 |
| Voltage | AC 240V with DC 9V battery back up |
| Standby current | ≤10uA |
| Alarm current | ≤50mA |
| Sensor type | Photoelectric |
| Temperature | 一10°C ~ 50°C |
| Ambient Humidity | ≤95%R.H |
| LED indication | Red LED & Buzzer |
| Hush time | 8~9min |
| Product life | 10 years |
| Sound pressure | ≥85dB(around 3m) |
| Weight | ≈255g |
| Product size | Φ120*46mm |
| Installation way | Wall or Ceiling mounting |
Applicable place of smoke detector
