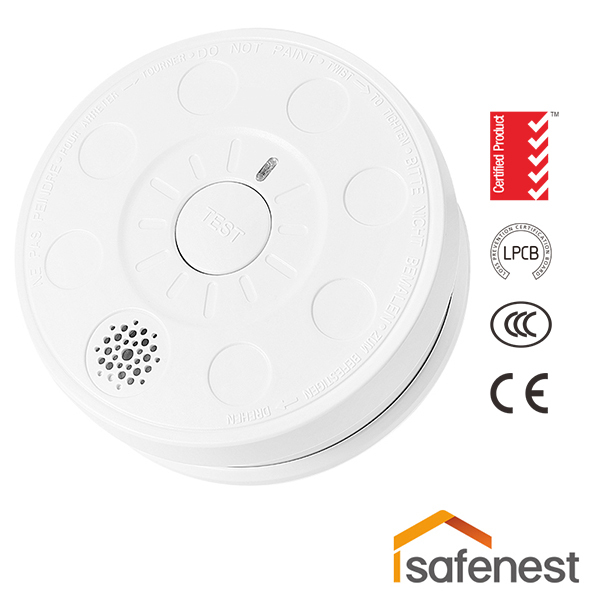

Photoelectric Smoke alarm EN14604
Contact Now
Description
Standalone smoke alarms installation
The standalone smoke alarms are generally installed on the ceiling of the protecting area, for the smoke in a fire is lighter than the air, so it is easier to float upwards. Installing the standalone smoke detector on the ceiling can help detect the smoke better.
When installing, you should first fix the smoke detector base with screws, then rotate the standalone smoke detector into the base.
Product Description smoke alarms
•1 year battery lifetime
•DC 9V battery operated
•Photoelectric chamber of early detection from all directions.
•Loud>85db(A)alarm signal(3M)
•Flash alarm indicator(red LED)
•Test/Hush associative button
•Low Battery signal
•Replaceable battery 1Y/3Y/5Y
• N.W.: ≈ 124g（include battery）
• Dimensions: Ф100*37mm
Product Parameter
| Model No. | LZ-1901 |
| Standard | EN14604: 2005/AC:2008 |
| Voltage | DC 9V |
| Standby current | ≤10uA |
| Alarm current | ≤30mA |
| Sensor type | Photoelectric |
| Temperature | 0°C~+40°C |
| Ambient Humidity | ≤95%R.H |
| Alarm indication | Red LED & Buzzer |
| Sound pressure | ≥85dB(around 3m) |
| Weight | ≈126g(incl.battery) |
| Product size | Φ100*37mm |
| Installation way | Ceiling mounting |
