Product ID: 62017404

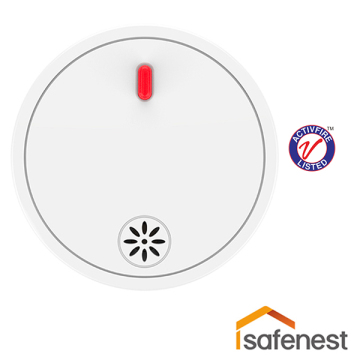

wireless White Smoke Detector

Contact Now

Description

Standalone smoke detector application

The standalone smoke detector can be widely applied in residences, nursing homes, service institutions for the disabled, kindergartens, community activity places, old residential buildings, dormitories, rental flats, hotels, basements, and other places where there might be fire happening.

Standalone smoke detector installation area

The standalone smoke detector should be installed in the public areas of the buildings and places mentioned above.

Besides, it should also be installed in the bedrooms, living rooms, dining rooms, and inner aisles of residential buildings. Outside the residence, the standalone smoke detector should be installed in the upper part of evacuation stairs on each floor, and other places that might catch on fire.

Product Description

•AC 240V with DC 9V battery backup
•Photoelectric chamber of early detection from all directions.
•Loud>85db(A) alarm signal(3M)
•Suitable for Ceiling or Wall Mounting
•Operate as Single or Inter-connect up to 24 units
•Surface mount base plate with large cable terminals
•Red LED Alarm Status indication
•Green LED AC Mains Power Indication
•Low Battery signal
•Insect Screen protects Sensing Chamber
• N.W.: ≈214g
• Dimensions: Ф120*43mm

Product Parameter

Model No.	LZ-1907B
Standard	AS3786：2014
Voltage	AC 240V with DC 9V battery back up
Standby current	≤10uA
Alarm current	≤50mA
Sensor type	Photoelectric
Temperature	一10°C ~ 50°C
Ambient Humidity	≤95%R.H
LED indication	Red LED & Buzzer
Hush time	8~9min
Product life	10 years
Sound pressure	≥85dB(around 3m)
Weight	≈214g
Product size	Φ120*43mm
Installation way	Wall or Ceiling mounting

Where Should Smoke Alarms be Installed?
Fire alarms should be installed on every level of the home, outside sleeping areas, and inside bedrooms A smoke alarm should be installed and maintained according to the manufacturer’s instructions. When installing a smoke alarm, many factors influence where you will place the alarm, including how many are to be installed. Consider placing alarms along your escape path to assist in egress in limited-visibility conditions. In general, you should place alarms in the center of a ceiling or, if you place them on a wall, they should be near the ceiling.

Applicable place

smoke detector
