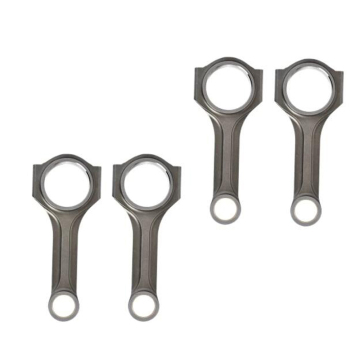

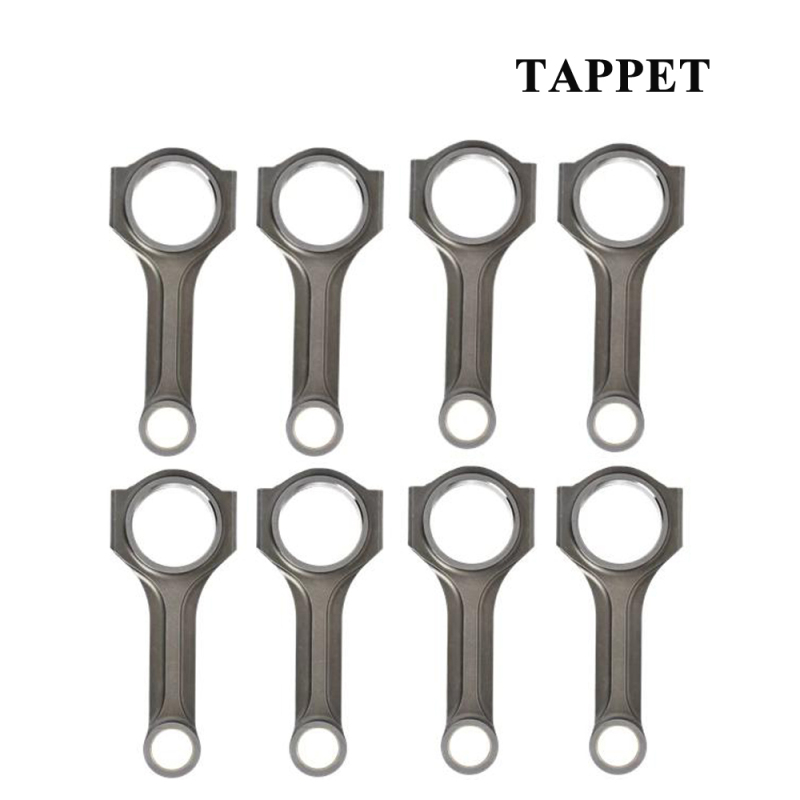

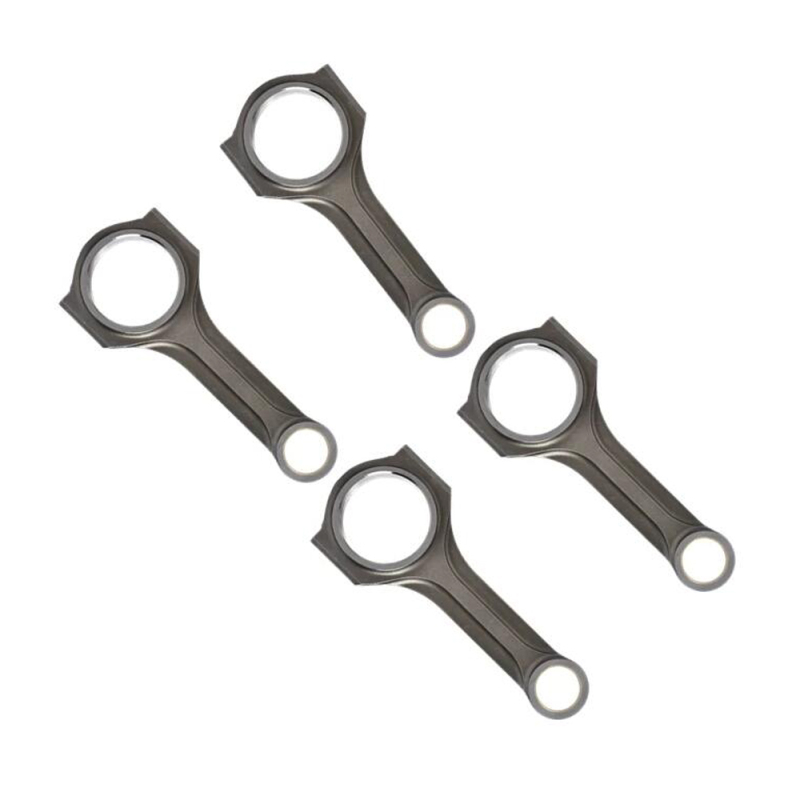

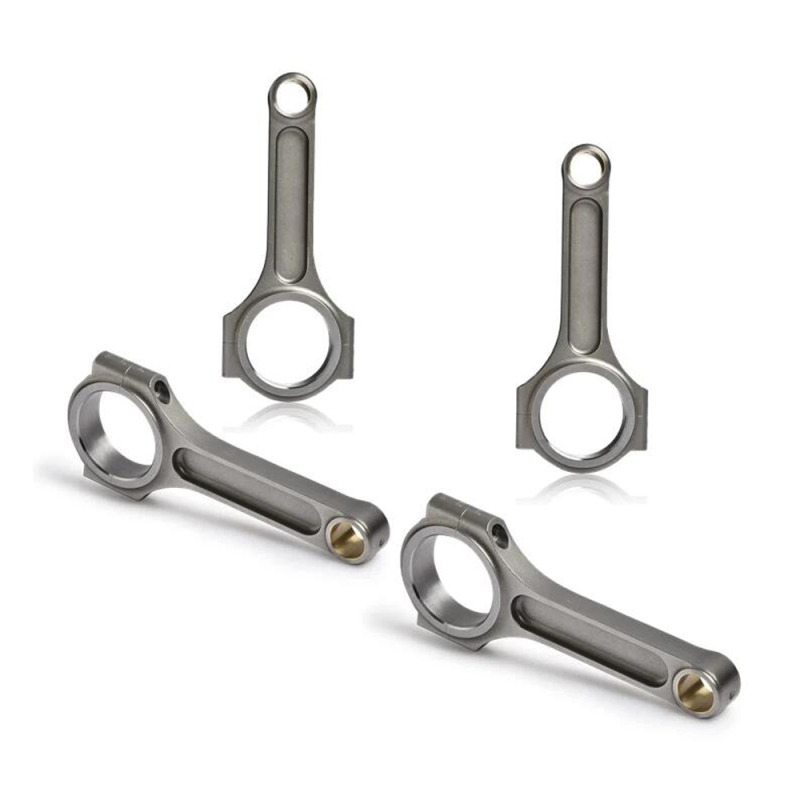

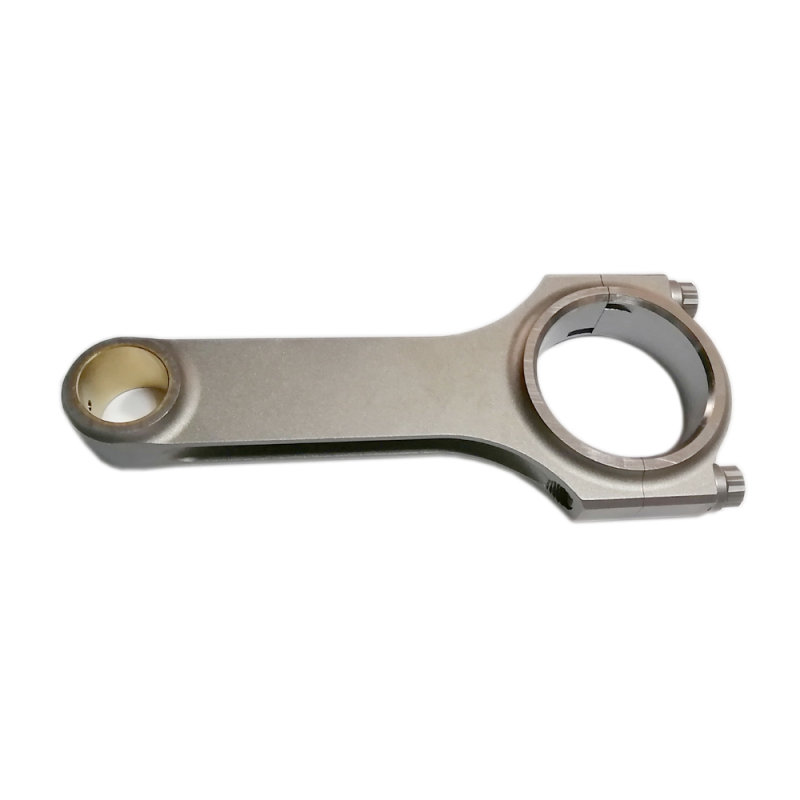

Chrysler Hemi 6.860'' X-beam 4340 Forged Connecting Rods
Contact Now
Description
Chrysler Hemi 6.860" X-beam Conrods Main Dimensions
| Brand: TAPPET |
 |
| Center to Center Length: 174.24mm/6.860" | |
| Big End Bore Diameter: 63.5mm/2.500" | |
| Big End Width: 24.95mm/0.982" | |
| Small End Bore Diameter: 26.16mm /1.030" | |
| Small End Width: 25.4mm/1.250" | |
| Beam Style: X-beam |
Chrysler Hemi 6.860" X-beam Conrods Features
| Connecting Rod Bolt Diameter | 7/16" |
| Approximate Connecting Rod Weight | xxx gram per piece |
| Advertised Horsepower Rating | 1000 HP |
| Quantity | Sold as 8 pieces per set |
| Material | Forged 4340 Steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes Balanced +/- 1g per set |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
Additional Description :
1). MOQ: 100pcs per model .
2). CNC Machined from premium 4340 forged steel forgings .
3). Finished as X-beam beam shape for weight saving and high strength .
4). Per rod polished fully to remove knife mark better .
5). Shot peeded to relieve stress.
6).Magnaflux inspected and dimensionally inspected to insure quality.
7).Oil hole featured at the pin ends to provide enough lubrication and cooling .
8). Packaged in balanced per set: end to end +/- 1 gram.
