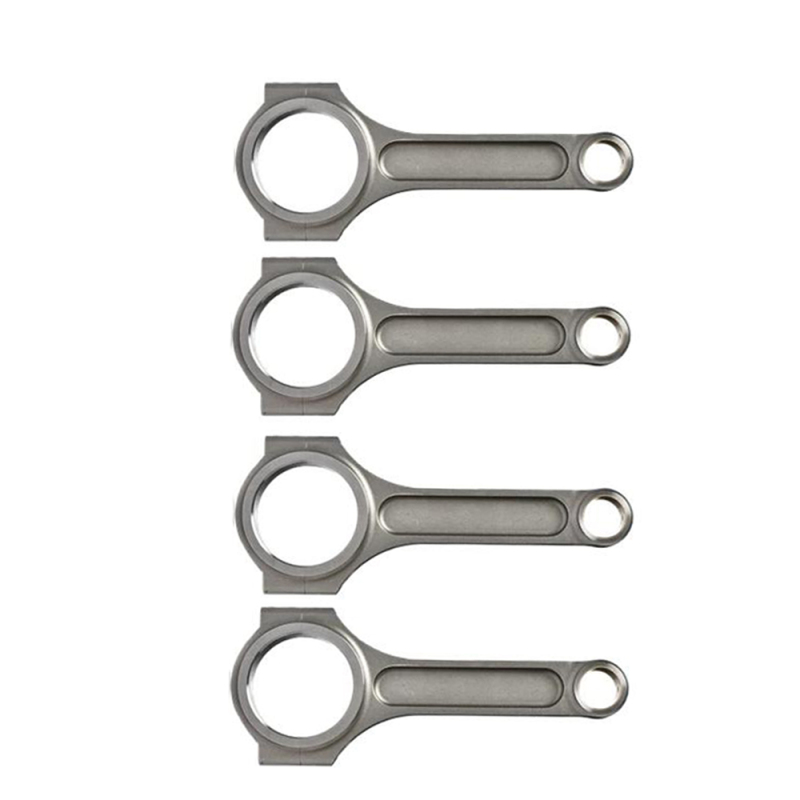

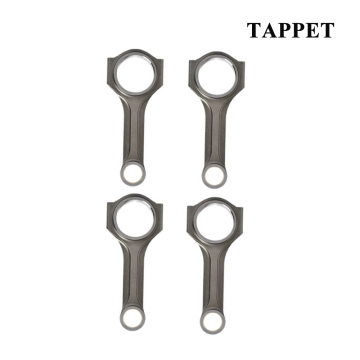

Toyota 3TC 4.835" forged 4340 I-beam connecting rods
Contact Now
Description
Toyota 3TC I-beam Connecting Rods Main Sizes
| Brand: TAPPET |
 |
| Center to Center Length: 122.81mm/4.835" | |
| Big End Bore Diameter: 51.00mm/2.008" | |
| Big End Width: 26.75mm/1.053" | |
| Small End Bore Diameter: 22mm /0.866" | |
| Small End Width: 26.75mm/1.053" | |
| Beam Style: I-beam |
Toyota 3TC Forged 4340 Steel Rods Features
| Connecting Rod Bolt Diameter | 3/8 " |
| Approximate Connecting Rod Weight | xxx |
| Advertised Horsepower Rating | 700hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes, Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
I-Beam Connecting Rods Toyota 3TC Additional Description :
1. MOQ: 100pcs per model
2. Material: Forged 4340 forging steel.
3. Heat treatment: 34-38HRC .
4. Shot peened to relieve stress.
5. Logo engraving service provided .
6. Custom service provided.
