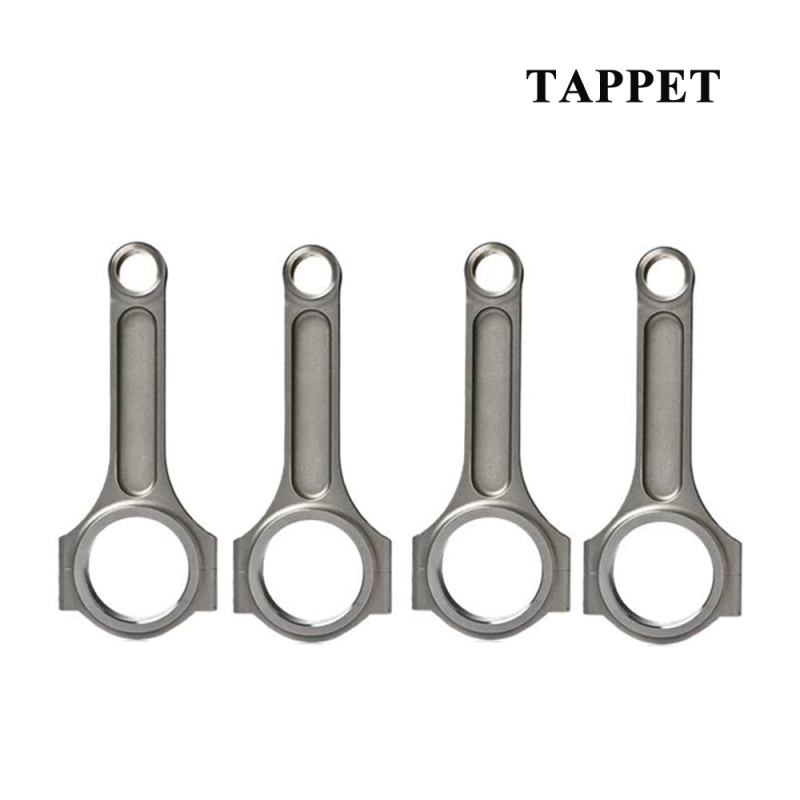

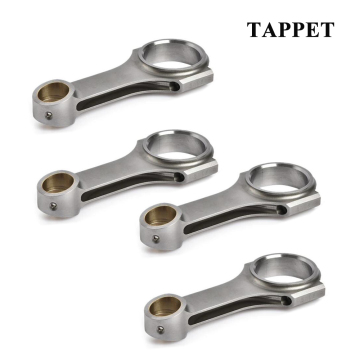

Forged 4340 CONNECTING RODS I-Beam for ISUZU Diesel 4JJ1
Contact Now
Description
ISUZU Diesel Engine 4JJ1 Connecting Rods Main Sizes
| Brand: TAPPET |
|
| Center to Center Length: 158mm/6.221" | |
| Big End Bore Diameter: 56.00mm/2.205" | |
| Big End Width: 33.00mm/1.299" | |
| Small End Bore Diameter:34.00mm /1.339" | |
| Small End Width: 33.00mm/1.299" | |
| Beam Style: I beam |
Isuzu Dmax 4JJ1 Connecting Rods More details
| Connecting Rod Bolt Diameter | 7/16" |
| Approximate Connecting Rod Weight | 1116g/piece |
| Advertised Horsepower Rating | 1000hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 Steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
