Product ID: 62850286

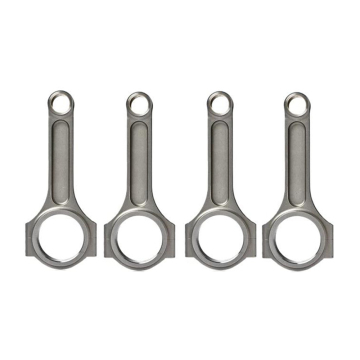

4340 Steel Mazda MZR 2.0L H-beam Connecting Rods

Contact Now

Description

Brand: TAPPET
Engine: Mazda B2000 MZR / Ford Focus Duratec 2.0L
Part Type: Connecting Rods
Center to Center Length: 146mm/5.748"
Big End Bore Diameter: 49.94mm/1.966"
Big End Width: 21.72mm/0.855"
Small End Bore Diameter: 21mm /0.827"
Small End Width: 21.72mm/0.855"

Beam Style: H-beam

Connecting Rod Bolt Diameter:3/8"
Approximate Connecting Rod Weight: 485g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Ford/Mazda Duratec/ MZR 2.0 Forged conrods Main Dimension

Ford/Mazda Durate/MZR 2.0 forged conrods main dimension, tolearance and bearing size information at below:
