Product ID: 62850292

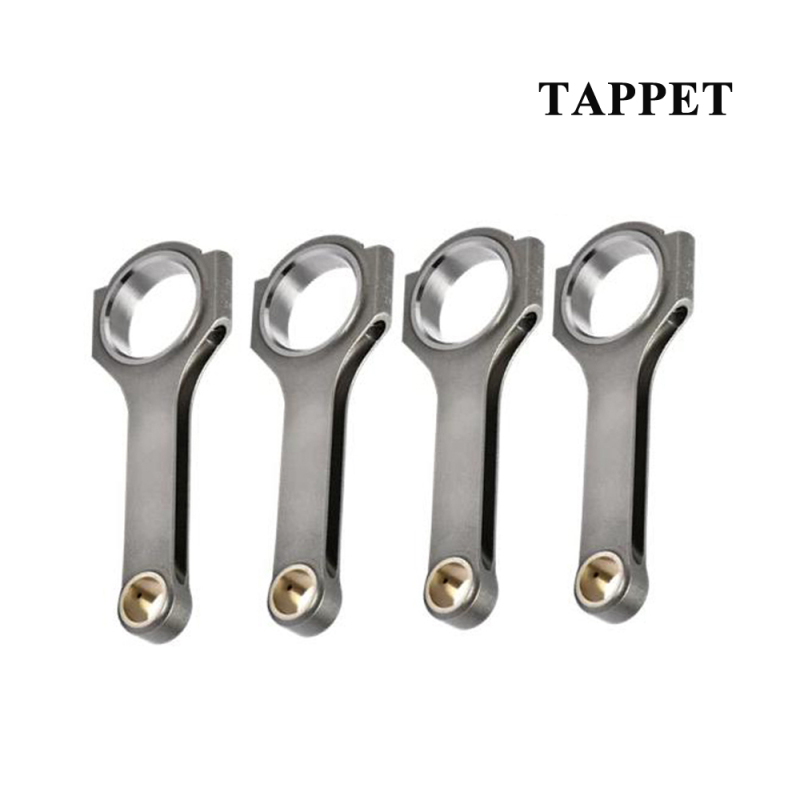

Mazda MZR 1.6L 135mm H beam Connecting Rods
Contact Now
Description
Mazda 135mm conrods Main Sizes
| Brand: TAPPET |
 |
| Center to Center Length: 135mm/5.315" | |
| Big End Bore Diameter: 51mm/2.008" | |
| Big End Width: 21.87mm/0.861" | |
| Small End Bore Diameter: 19mm /0.748" | |
| Small End Width: 21.87mm/0.861" | |
| Beam Style: H-beam |
Mazda Connecting Rods Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | XXXg |
| Advertised Horsepower Rating | 550hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
