Educational competition drone Aerospace model Development class student Drone 550mm
Contact Now
Description
Educational competition drone DIY carbon fiber foldable Small Aerospace model Development class student Drone 550mm school UAV .

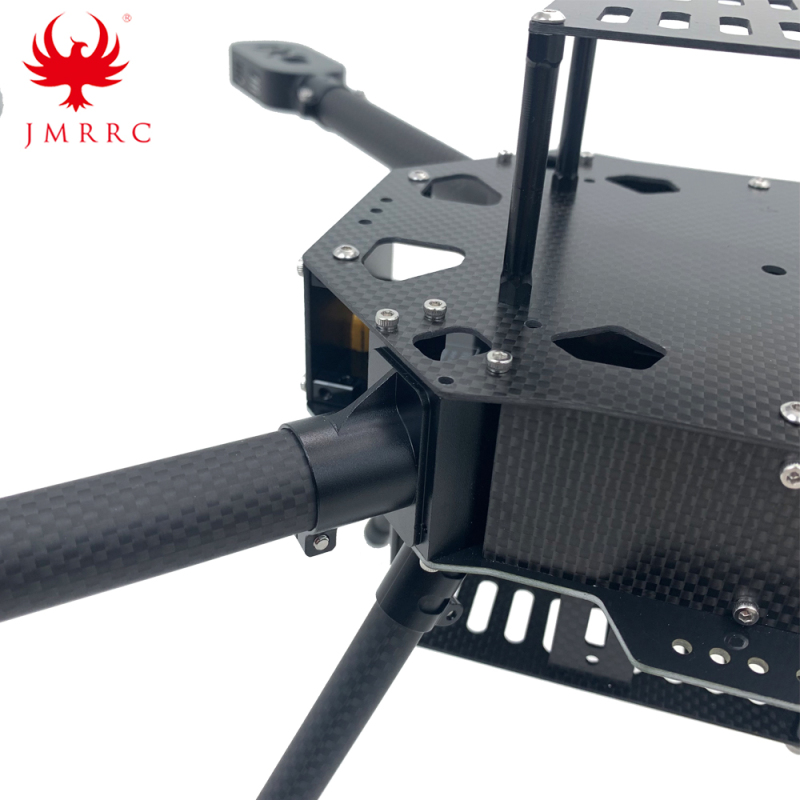

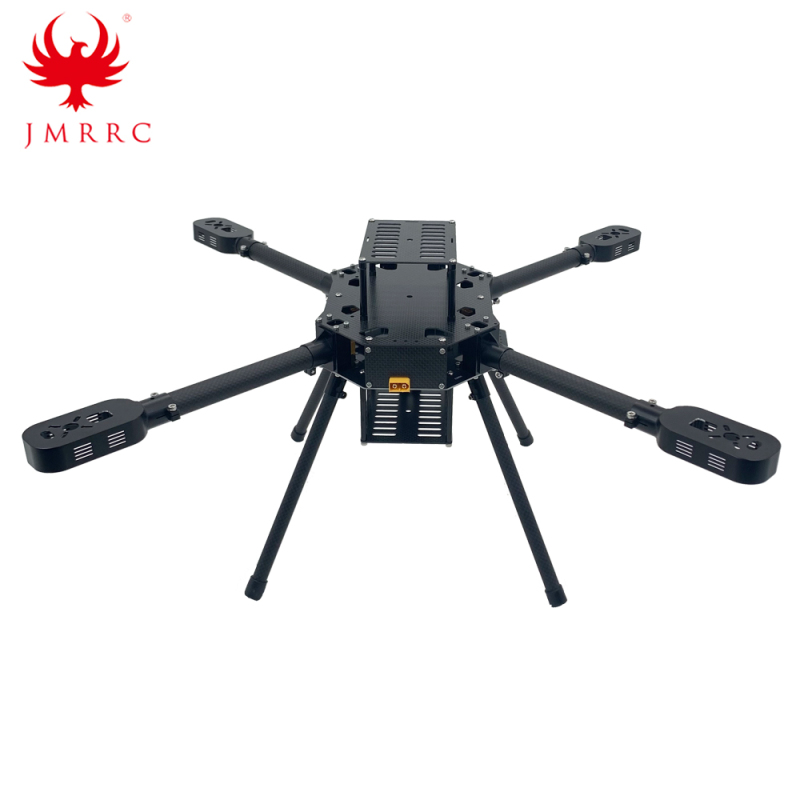

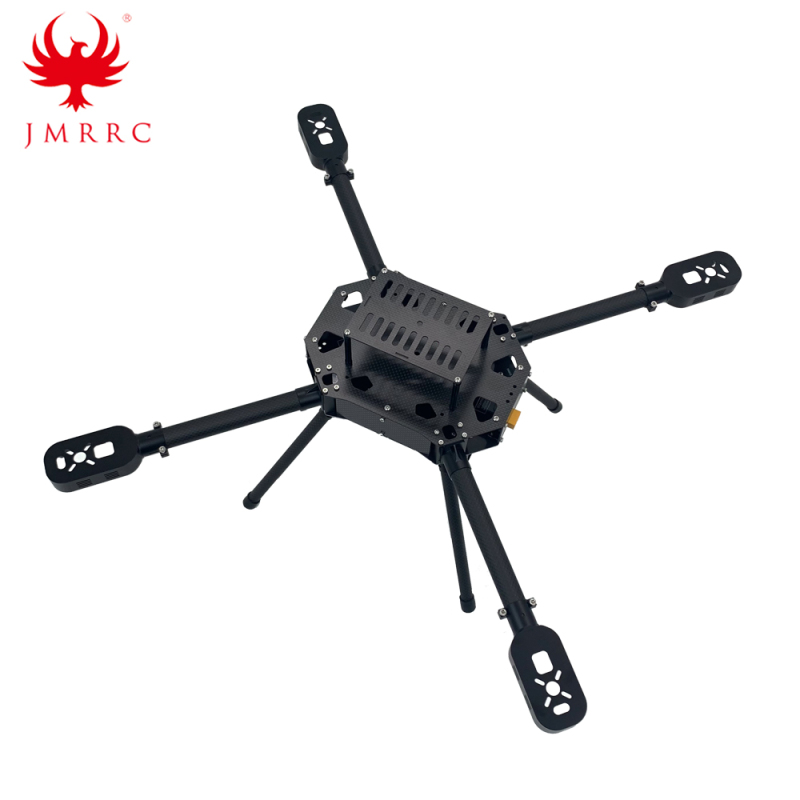

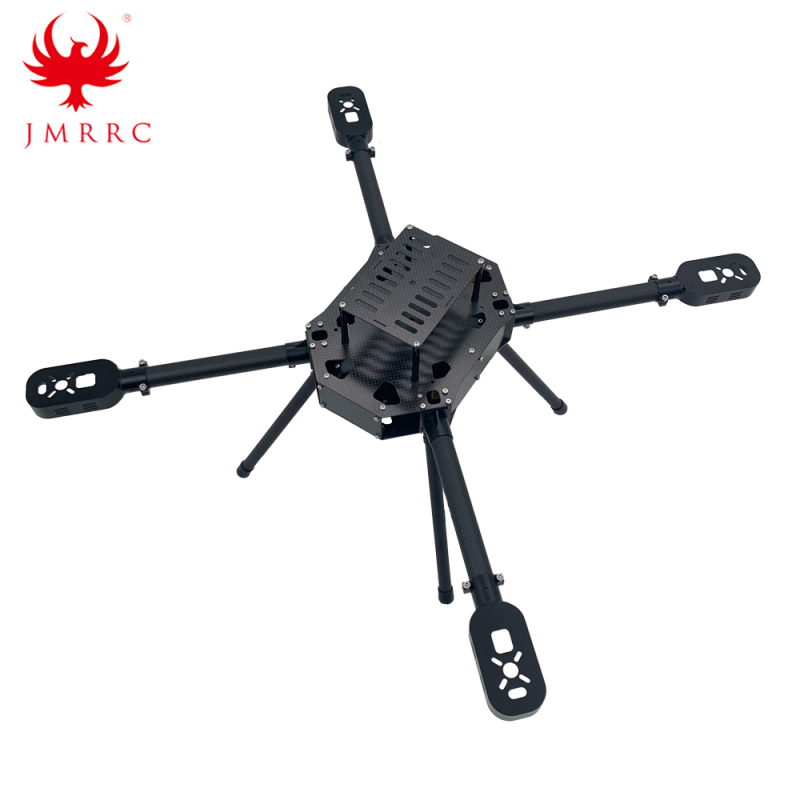

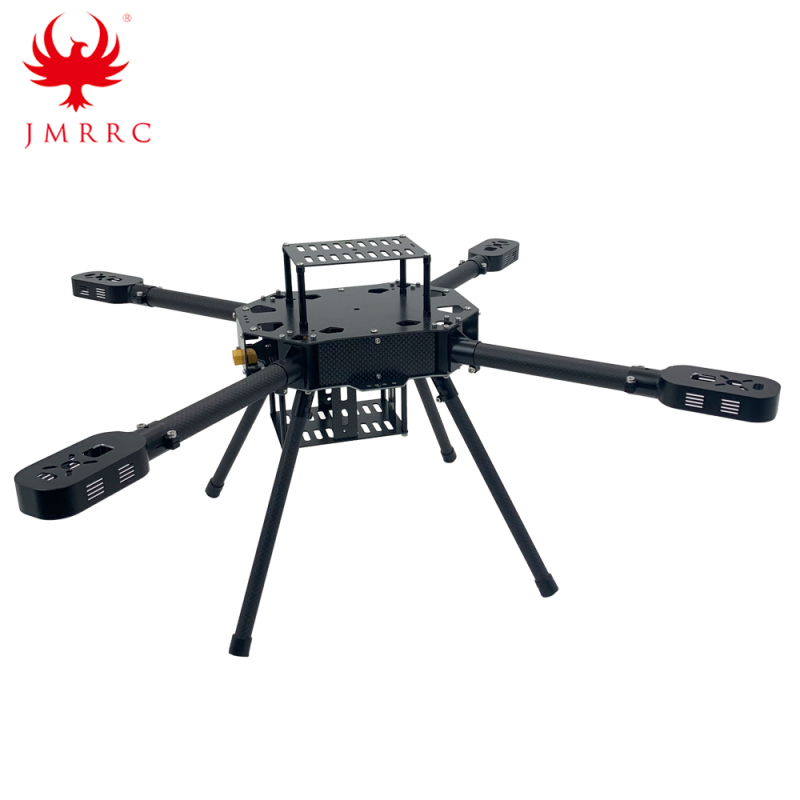

This is a mini foldable Umbrella quadcopter frame 550mm and made by full Carbon fiber (real 3K carbon fiber). Light/mini design and convenience to bring outside.
Design this ED550 Small drone for trip or FPV purpose,school Educational competition drone,Aerospace model or development class student drone,Teacher plane. This is very very strong and Light frame! If use small camera very good for FPV, If with Gopro gimbal and Gopro hero3 ,It is good for Aerial photography.
The big PDB Board as the bottom plates ,so have the big spaces inside easy for put the parts inside,the top and bottom hold plate can make changes follows on your requirements,they are changeable, not fixed, as long as you have an idea, please feel free to tell us, we can discuss and finish it together .
Any questions for this frame please contact me.
Specifications:
Product Name: 550mm Educational drone frame kit
Model: ED550
Max Propeller : 13 inch
Motor: 3508/ 4008
ESC: 20A/ 30A
Diagonal : 550mm (can change the size)
Top carbon fiber plate thickness: 1.5mm
Bottom plate (Big PDB Board) thickness: 1.6mm

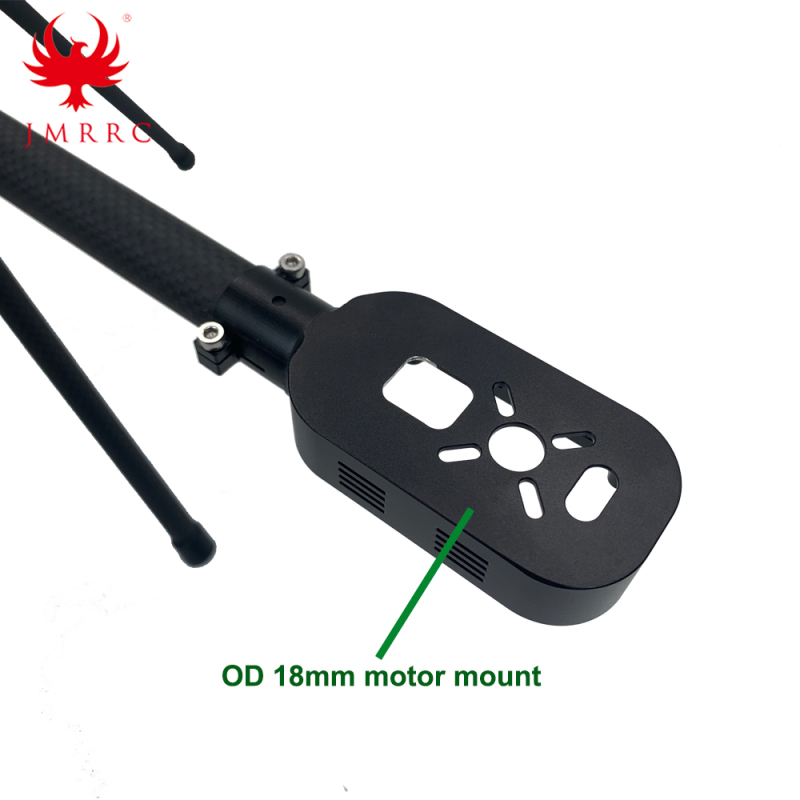

Arm tube(carbon fiber): OD 18mm*16mm
Folding : Cross folding
Weight : 1060g ( frame with landing gear)
Parts List:
ED550 Carbon fiber quad frame body kit with fix landing gear * 1 set
