Product ID: 66081096

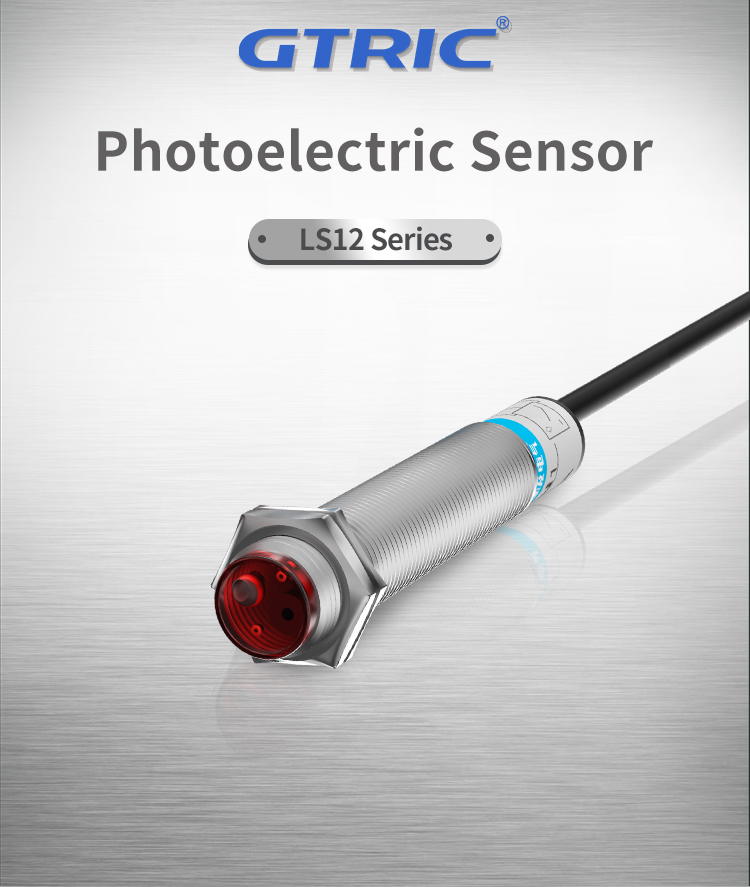

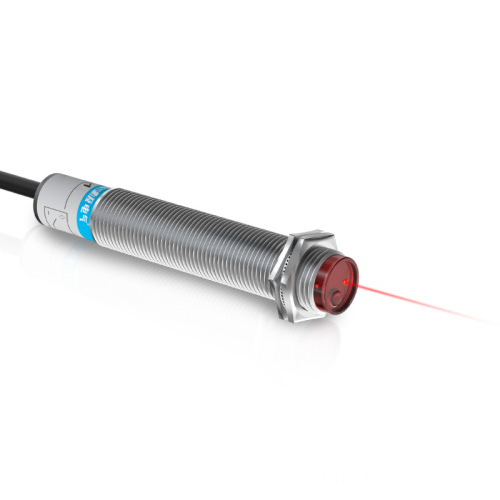

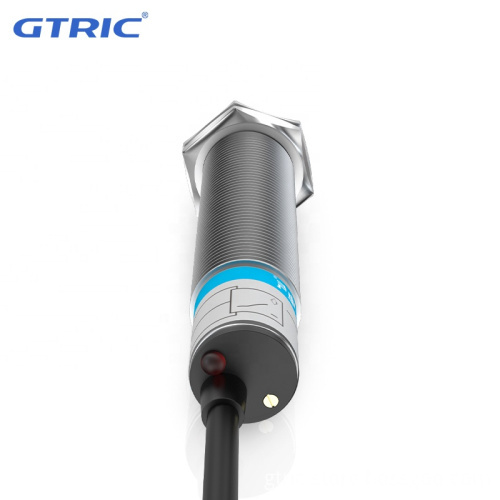

GTRIC M12 Series 15cm Sensing Distance 24V DC PNP NO NC 3-Wire Diffuse Laser Optical Photoelectric Sensor
Contact Now
Description
产品描述
|
规格
|
|
|
|
|
||||
|

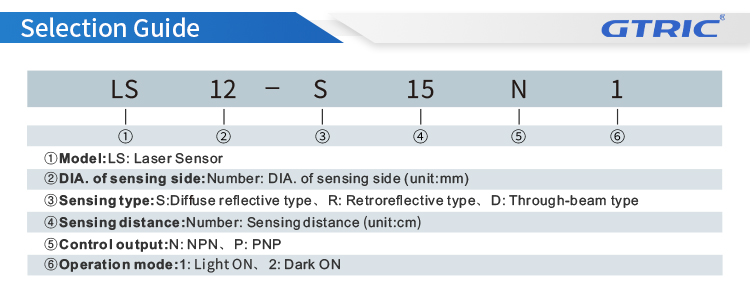

型
|
NPN.NO
|
LS12-S15N1
|
LS12-R6MN1
|
LS12-D25MN1
|
||||
|
|
NPN.NC
|
LS12-S15N2
|
LS12-R6MN2
|
LS12-D25MN2
|
||||
|
|
PNP.NO
|
LS12-S15P1
|
LS12-R6MP1
|
LS12-D25MP1
|
||||
|
|
PNP.NC
|
LS12-S15P2
|
LS12-R6MP2
|
LS12-D25MP2
|
||||
|

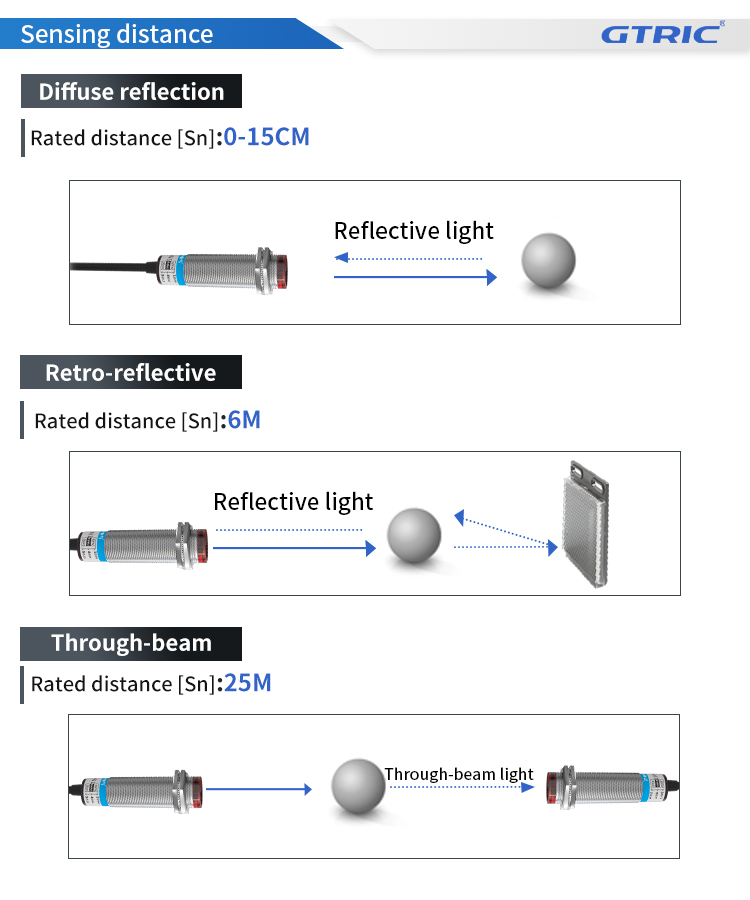

Detection type
|
|
漫反射
|
Retro-reflective
|
对射式
|
||||
|
Sensingdistance
|
|
0-15CM
|
0-6M
|
0-25M
|
||||
|
Settingdistance(Sa)
|
|
0-1MM
|
0-1MM
|
|
||||
|

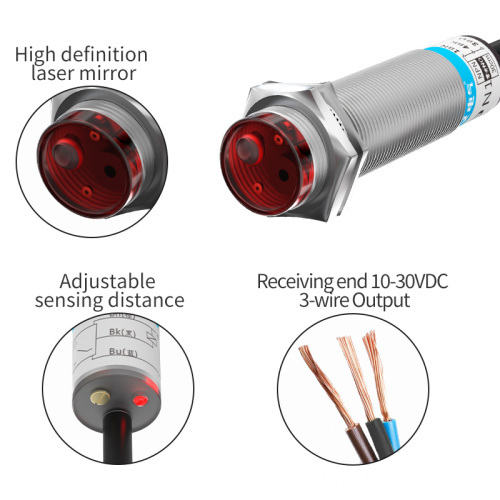

Adjustment method
|
|
Tail potentiometer
|
|
|
||||
|
Hysteresis
|
|
≤10%
|
|
|
||||
|
Light pointing angle
|
|
3°
|
|
|
||||
|
Standard targe
|
|
white card reflcetion rate 90%
|
|
|
||||
|
Detection target
|
|
Opaque Objects and Transparent Objects
|
|
|
||||
|
Supplyvoltage
|
|
DC:10-30VDC
|
|
|
||||
|
Leakagecurrent
|
|
≤0.6mA
|
|
|
||||
|
Responsefrequency(F)
|
|
600Hz(DC)
|
|
|
||||
|
Ambient illuminance incandescent
|
|
incandescent lights3000Lux sunshine≤100Lu
|
|
|
||||
|
Consunptioncurrent
|
|
Diffuse reflection and Retro-reflective:≤15mA;Through-beam:≤25mA
|
|
|
||||
|
Loadcurrent
|
|
200mA
|
|
|
||||
|
Voltagedrop
|
|
DC≤1V
|
|
|
||||
|
Circuitprotection
|
|
short-circuit.EMlprotectionrevers epolarityprotection
|
|
|
||||
|
Outputindicator
|
|
Red LEd
|
|
|
||||
|
Ambienttemperature
|
|
-20~+55℃
|
|
|
||||
|
Shock
|
|
500m/s(50G)ineachX,YZdirectionfor3times
|
|
|
||||
|
Vibration
|
|
1mmamplitudeatfrequency10~55Hz(forlmin)ineachXYZdirectionfor2hours
|
|
|
||||
|
Protectiondegree
|
|
IP65
|
|
|
||||
|
连接
|
|
2mPVCcable or connector
|
|
|
||||
|
Meterial
|
|
Nickel-copperalloy
|
|
|
||||
|
Sensingside
|
|
PC
|
|
|
||||
