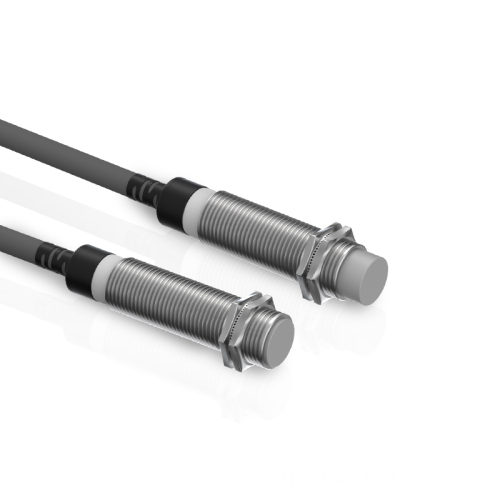

GTRIC M12 Series: 12V Non-Contact 3-Wire NPN IP67 Metal Inductive Proximity Sensor
Contact Now
Description
产品描述
|
规格
|
|
|
|
|
|
|||||
|

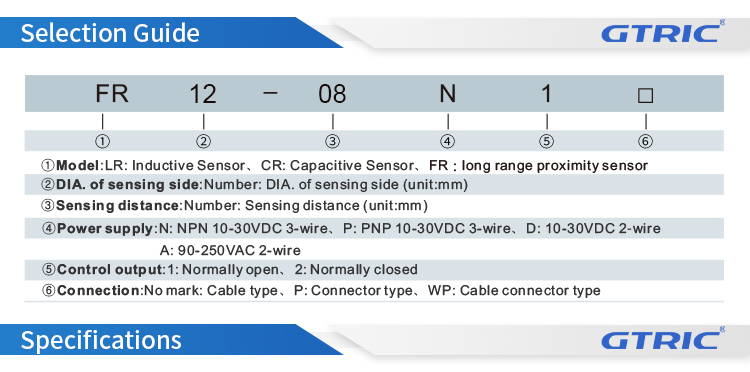

型
|
DC3-wireNPN.NO
|
FR12--04N1
|
FR12-08N1
|
LR12--04N1-P
|
LR12-08N1-P
|
|||||
|
|
DC3-wireNPN.NC
|
FR12-04N2
|
FR12-08N2
|
LR12--04N2-P
|
LR12-08N2-P
|
|||||
|
|
DC3-wirePNP.NO
|
FR12-04P1
|
FR12-08P1
|
LR12--04P1-P
|
LR12-08P1-P
|
|||||
|
|
DC3-wirePNP.NC
|
FR12-04P2
|
FR12-08P2
|
FR12--04P2-P
|
LR12-08P2-P
|
|||||
|
|
DC2-wireNO
|
FR12-04D1
|
FR12-08D1
|
FR12-04D1-P
|
LR12-08D1-P
|
|||||
|
|
DC2-wireNC
|
FR12-04D2
|
FR12-08D2
|
FR12-04D2-P
|
LR12-08D2-P
|
|||||
|

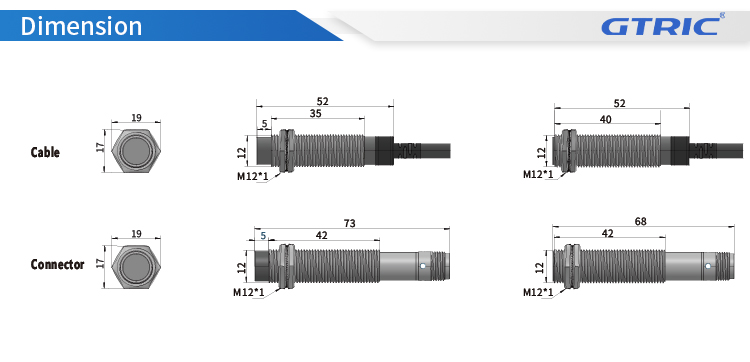

Mounting
|
|
Flush
|
Non-Flush
|
Flush
|
Non-Flush
|
|||||
|

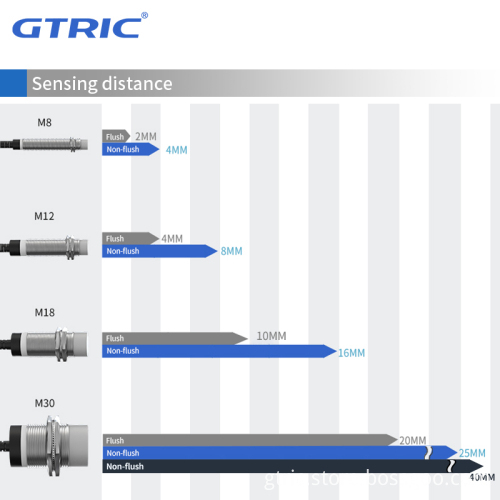

Sensing distance
|
|
4MM±10%
|
8MM±10%
|
4MM±10%
|
8MM±10%
|
|||||
|
Setting distance(Sa)
|
|
0-3.6MM
|
0-7.2MM
|
0-3.6MM
|
0-7.2MM
|
|||||
|
磁滞现象
|
|
≤10%
|
|
|
|
|||||
|

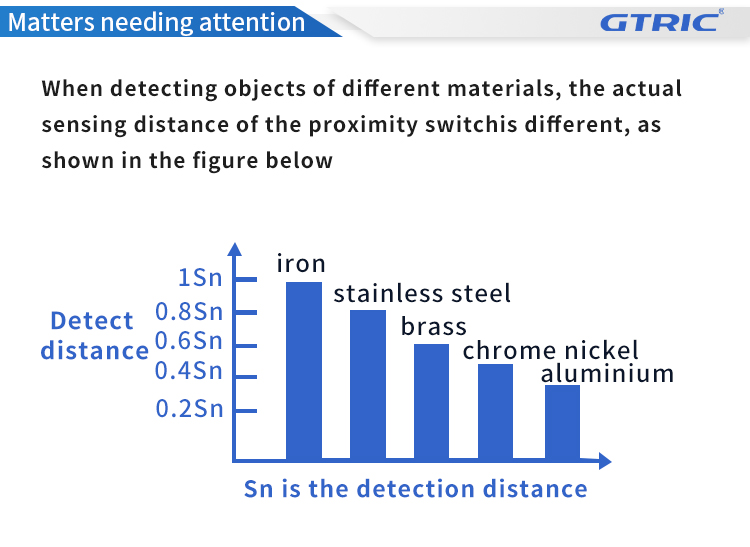

Standar dsensing target
|
|
12*12*1MM（iron）
|
|
|
|
|||||
|
Supply voltage
|
|
直流：10-30VDC
|
|
|
|
|||||
|
Leakage current
|
|
≤0.6mA
|
|
|
|
|||||
|
Response frequency(F)
|
|
500Hz（DC）
|
|
|
|
|||||
|
Consunption current
|
|
DC3-wireNPNPNP：≤10mA ; DC2-wire：≤3mA
|
|
|
|
|||||
|
Load current
|
|
200 毫安
|
|
|
|
|||||
|
电压降
|
|
≤2.5V
|
|
|
|
|||||
|
电路保护
|
|
Short-circuit,overload,reversepolarityprotection
|
|
|
|
|||||
|
输出指示器
|
|
GreenLED
|
|
|
|
|||||
|
环境温度
|
|
-20~+70℃
|
|
|
|
|||||
|
休克
|
|
500m/s(50G)ineachX,Y,Zdirectionfor3times
|
|
|
|
|||||
|
振动
|
|
1mmamplitudeatfrequency10~55Hz(for1min）ineachX.Y.Zdirectionfor2hours
|
|
|
|
|||||
|

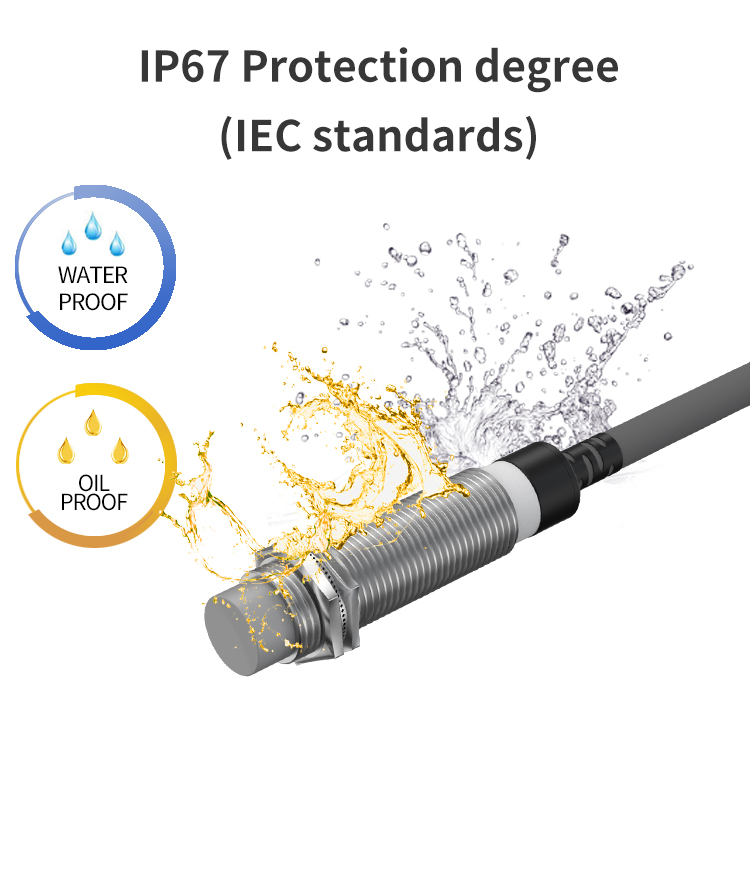

防护度
|
|
IP67(IECstandards)
|
|
|
|
|||||
|
连接
|
|
2mPVCcable
|
|
M12connector
|
|
|||||
|
材料
|
|
镍铜合金
|
|
|
|
|||||
|
森辛赛德
|
|
PBT
|
|
|
|
|||||
