Description
产品描述

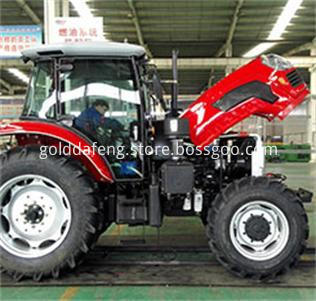

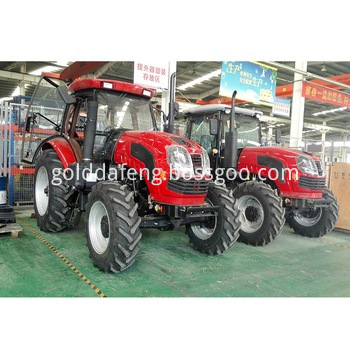

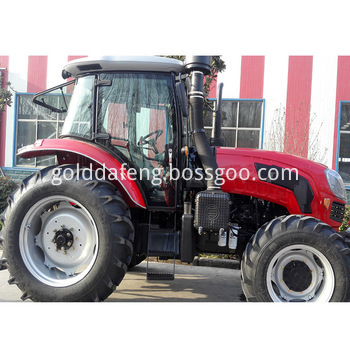

Chinese FOTON LOVOL TB404 130 Hp 4wd Farm Tractor with CE
TB Series Wheel tractor----from 120 to 150HP, Basic Specifciation as following
Quanchai/Xinchai Engine,8.3-20/12.4-28 tyre,12+12 shuttle shift,10" double action clutch,double speed PTO,4WD,Hydraulic drive,suspension group
TB Series Wheel tractor----from 70HP to 80HP, Basic Specifciation as following
Quanchai/Xinchai Engine,8.3-24/14.9-30 Tyre,12+12 Shuttle shift,11 " double action clutch,double speed PTO,4WD,Hydraulic Steering,forced lifting and dropping,suspension group
TD Series Wheel tractor-----from 90HP to 120HP, Basic Specifciation as following
YTO Engine,,12.4-24 front tyre,16.9-34 rear tyre,16+8 Shuttle shift(Creeping shift optional),4WD,12" double action clutch,Hydraulic Drive,Double Speed PTO,suspension group,forced lifting and dropping,multitandem valve
TF Series Wheel Tractor -----From 130HP to 150HP, Basic Specifciation as following
TF Chassis,YTO Engine,14.9-26 front tyre,18.4-38 rear tyre,16+8Shuttle shift,4WD,13"double action clutch,Hydraulic Drive,reinforced front axle,Double Speed PTO,suspension group,forced lifting and dropping,multitandem valve
|
SPECIFICATIONS FOR FOUR WHEELED DRIVE TRACTOR
|
|||
|
发动机
|
型
|
/
|
WP6G130E311
|
|
类型
|
/
|
vertical, water-cooled, four-stroke, direct injection
|
|
|
Rated Power
|
Kw
|
95.6
|
|
|
The number of Cylinder
|
/
|
6
|
|
|
Main performance parameters
|
Steering Type
|
/
|
hydraulic steering
|
|
离合 器
|
/
|
dry,single disc, independent dual-stage
|
|
|
Walk System(Front Tire/Rear Tire)
|
/
|
13.6-24/16.9-34
|
|
|
Drive
|
Drive type
|
/
|
4×4
|
|
Wheeltrack
|
mm
|
2604
|
|
|
Wheel Track(Front/Rear)
|
mm
|
1554.1654.1682.1740.1782.1840.1868.1968/1610~2210
|
|
|
Min. Operation Weight
|
Kg
|
4580
|
|
|
Gears
|
/
|
16F+8R
|
|
|
PTO Axle Power
|
Kw
|
82
|
|
|
Max. Tractive Effort
|
Kn
|
28
|
|
|
|
L
|
mm
|
5060
|
|
W
|
mm
|
2330
|
|
|
H
|
mm
|
2983
|
|
|
Working equipment
|
Three-Point Suspension
|
/
|
Category Ⅱ
|
|
Hydraulic pumb type
|
/
|
gear pumb
|
|
|
hydraulic output valva
|
/
|
2 ways
|
|
|
别人
|
PTO axle splines number
|
/
|
8
|
|
PTO Speed
|
R/Min
|
760/850(540/1000.540/760.760/1000 is optional)
|
|
|
Max. Lifting Capacity
|
Kn
|
23.4
|
|
