5kw Low Fuel Consumption generator set
Description
产品描述
• Own Factory with R&D, Support OEM&ODM
• Scientific Management, Sophisticated Technology, Continuous Innovation
• Premium Quality with CE, ISO, GS Certificates
• Fast Shipping, 7-15 Days for Stock Items
• 3-month-1 year warranty, worry free after-sales service
Good quality , best price !
2-8kw gasoline generator normally have in stock
|
Technical specifications and parameters of 4KW gasoline generator set |
||
|
Rated frequency[Hz] |
50/60 |
|
|
Rated voltage[V] |
110/120/220/230/240 |
|
|
Rated current[A] |
17.3/18.2 |
|
|
Rated output power[KW] |
5.0 |
|
|
Max output power[KW] |
5.5 |
|
|
Rated rotation speed[rpm] |
3000/3600 |
|
|
Power factor[cos@] |
1.0 |
|
|
Phase number |
Single phase |
|
|
Structure type |
Open-frame |
|
|
Continuous running time(at rated load) |
12 hours |
|
|
Starting system |
E:electric start |
|
|
Engine model |
Single cylinder,4-stroke,air-cooled,direct injection, diesel engine |
|
|
Engine type |
TP186FA/E |
|
|
Rated power[KW(Hp)/rpm] |
5.0/3600 |
|
|
Fuel |
0#(summer) or 10#(winter)-20#(chillness) diesel |
|
|
Lube |
CD grade or SAE 10W-30,15W-40 |
|
|
Fuel tank Capacity (L[gal] |
15 |
|
|
Overall dimension(LxWxH)[mm] |
740x500x670 |
|
|
Dry weight[kg(lbs)] |
115 |
|
|
1*20GP |
102SETS |
|

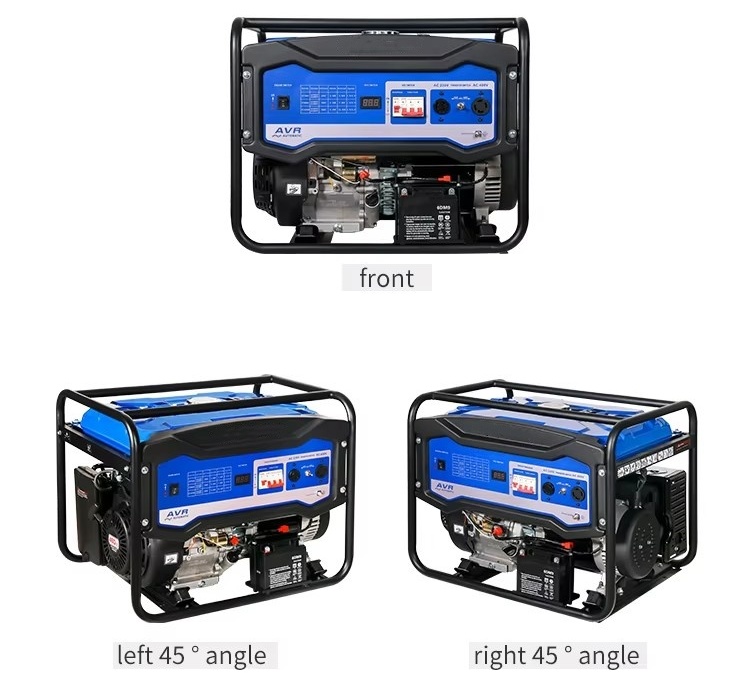

详细照片

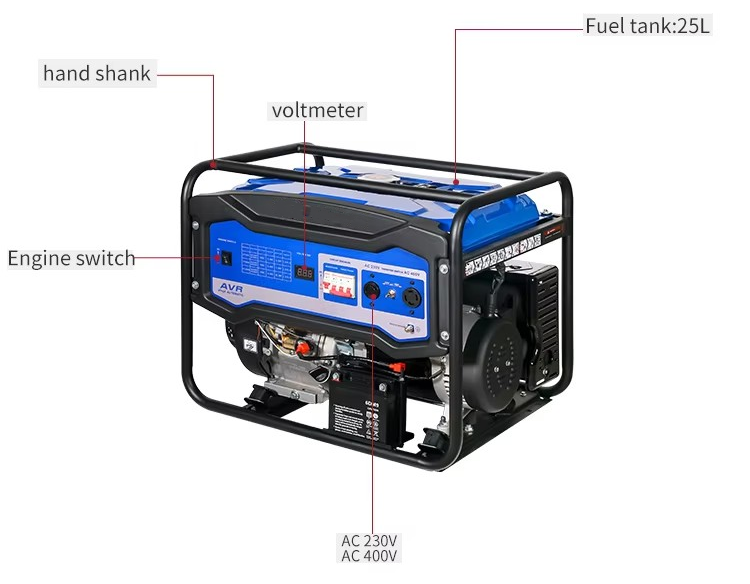

Product detail labeling
