CNC 14 Motor Stone Vertical Edging and Polishing Machine
Description
产品描述
Products of JGS14-45°
The machine is suitable for grinding straight stone and 45°edging stones with different sizes and thickness.The 45°oblique plane and straight side plane processing can be finished by rough,fine edging and polishing at once.After polishing,it is close to the smoothness of the stone matrix,Using variable frequency speed feed,it can adjusting the thickness of different processing,it can be adjusted according to the digital display table on the front beam.This machine has the advantages of advanced structure,high accuracy,convenient operation and continuous thickness machining.It is a necessary equipment for deep processing of stones.
JGS11-45°straight line polishing machine grinding wheel configuration diagram
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
φ150 |
Φ300 |
|
diamond whee |
diamond whee |
Polishing wheels |
Polishing wheels |
Polishing wheels |
Polishing wheels |
diamond whee |
Polishing wheels |
Polishing wheels |
Polishing wheels |
Saw blade |
Main technical parameters
|
型 |
JGS14-45° |
|
power supply |
380V/50HZ(Can be customized) |
|
Power |
38KW |
|
Min.glass size |
100*100mm |
|
Glass thickness |
3-60mm |
|
Weight |
3800KG |
|
Bevel angle |
45° |
|
Transmission |
Variable speed governor
|
|
Process speed |
0.7-5m/min |
|
Machine size |
8000*1100*1700mm |

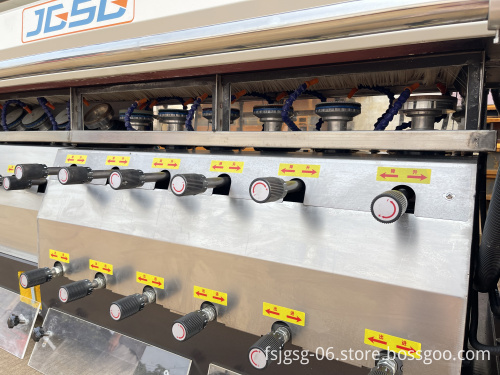

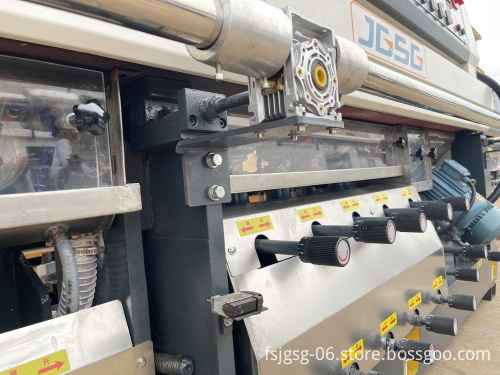

Machine Details
The machine has a high-power motor, and the saw blade can be used to cut 45-degree hypotenuse at one time.
