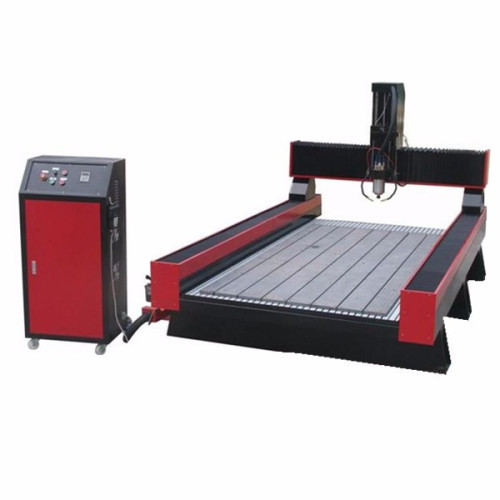

High Quality CNC Stone Engraving Machine 1318 for Marble and Granite with Updated Motor and Gear
Description
产品描述
Features
1, Three axises adopt import linear orbit,two line sliding track,heavy loading ,stable working ,high precision,long lifetime.
2, Whole seamless weld steelstructure,not easy to distort,the table back lining is armor plate,good rigidity,the machine can bear TMT weight at least
3, Constant power spindle and motor,hightly cutting capability,high efficiency.
4, Well compatibility,compatible sofetware CAD/XAM,such as type3.Artcam,castmate,wentai,coredraw.
5, Double direction cutters cooling system can prolong the lifetime of using
6, High flefility,uneasy distroted eable and imported electronic com ponents guarantee the stabitity of operating the machines.
Configuration
|
Description |
参数 |
|
X,Y working area |
1300*1800mm |
|
Z working area |
200mm/300mm |
|
Table size |
1340*2540mm |
|
Resolution |
0.05mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Pack and pinion transmission, Linear orbit |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
30m/min |
|
Spindle motor power |
3.0Kw |
|
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
|
Working mode |
Stepper |
|
Driver |
Leadshine |
|
Command |
G code, HPGL, U00, mmg, plt |
|
Operating system |
DSP |
|
Interface |
USB |
|
Diameter of cutter |
φ3.175 , φ6 φ, 12.7mm |
|
Dust-collect function |
Yes |
|
Working-holding |
By clamp |
|
Net weight |
1600KG |

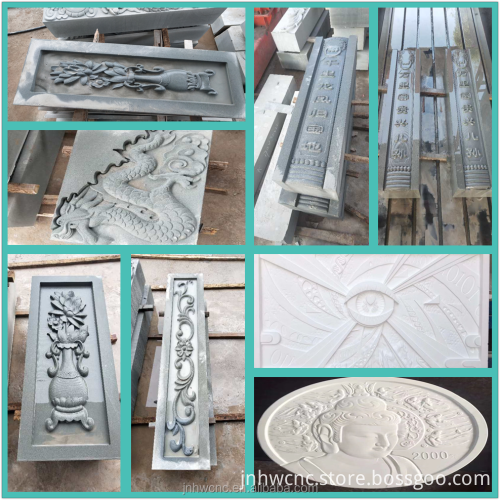

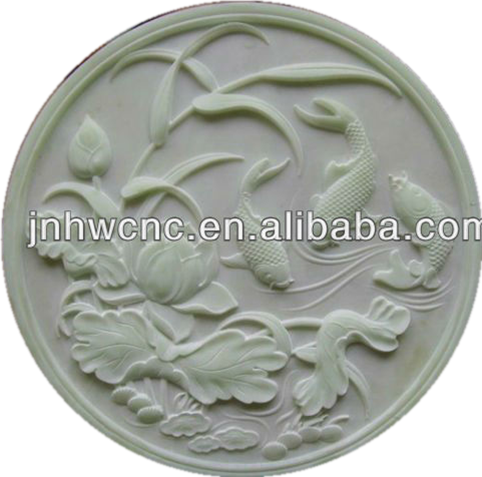

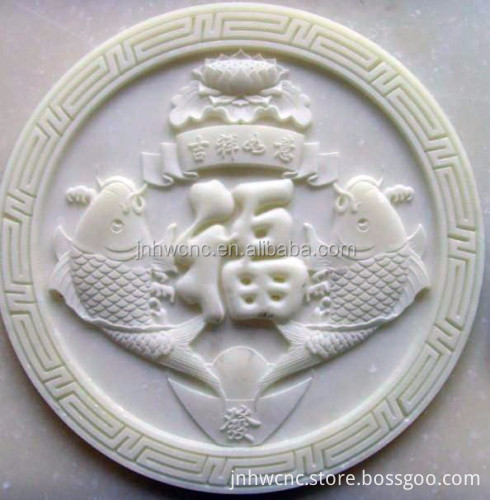

Sample

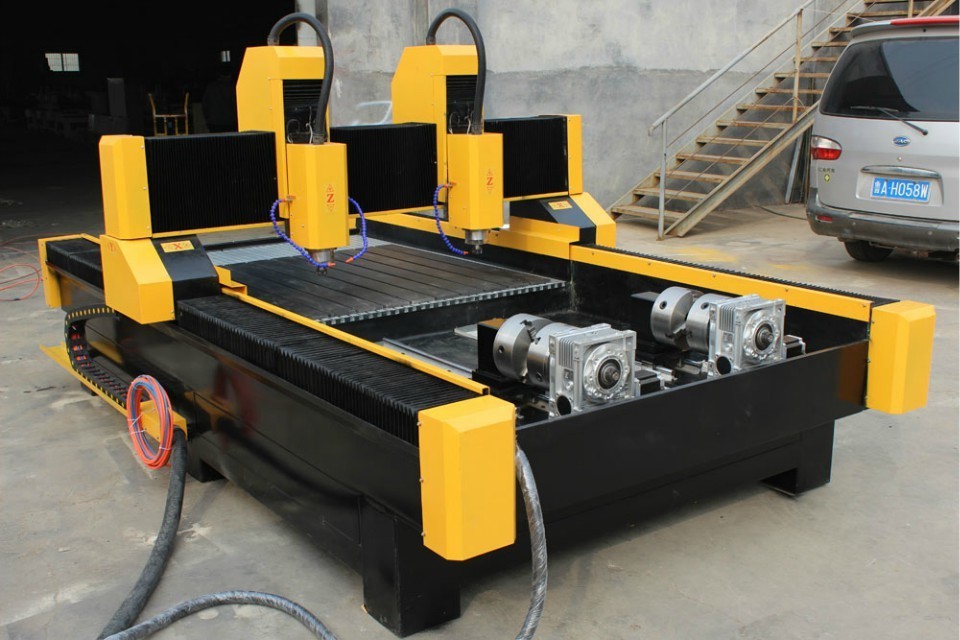

other stone cnc router machine
|
After sales service |
1.24 hour technical support by email and calling. |
|
2. English manual and CD vedio for machine using and maintaining. |
|
|
3.Whole machine Warranty 1 Year. Laser tube and lens for six months. |
|
|
Quality Control |
1.Strect control machine assembly each link,ensure the machine clean and beautiful. |
|
2.48 hours continuous work before the machine leave the factory, ensure high quality of the machine. |
