New Condition 3 Tons Construction Tower Crane Components: Gearbox and Pump for Overseas Building Projects in Philippines
Contact Now
Description
Product description
Product Overview
XGCM JFYT2527-30

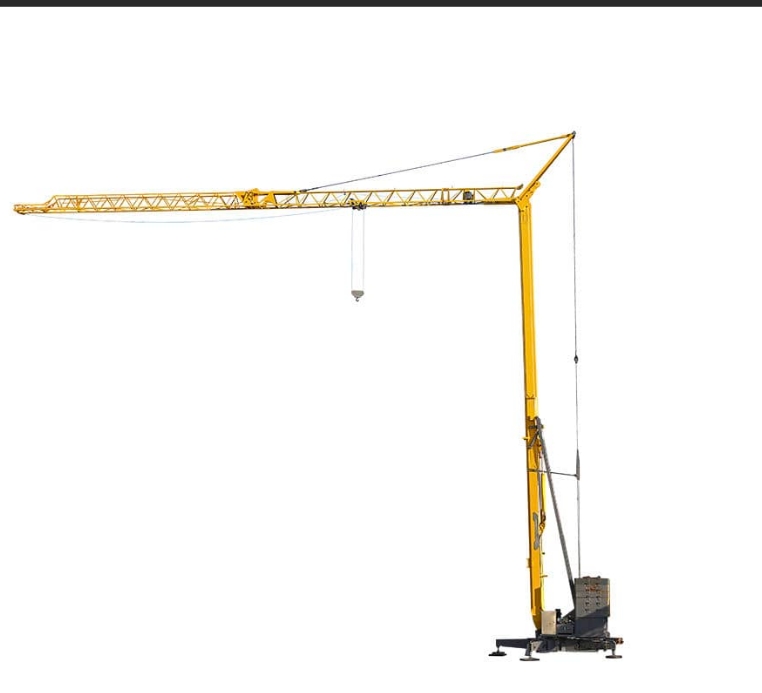

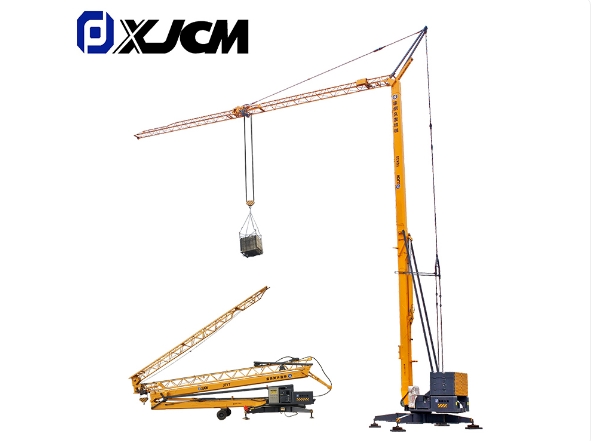

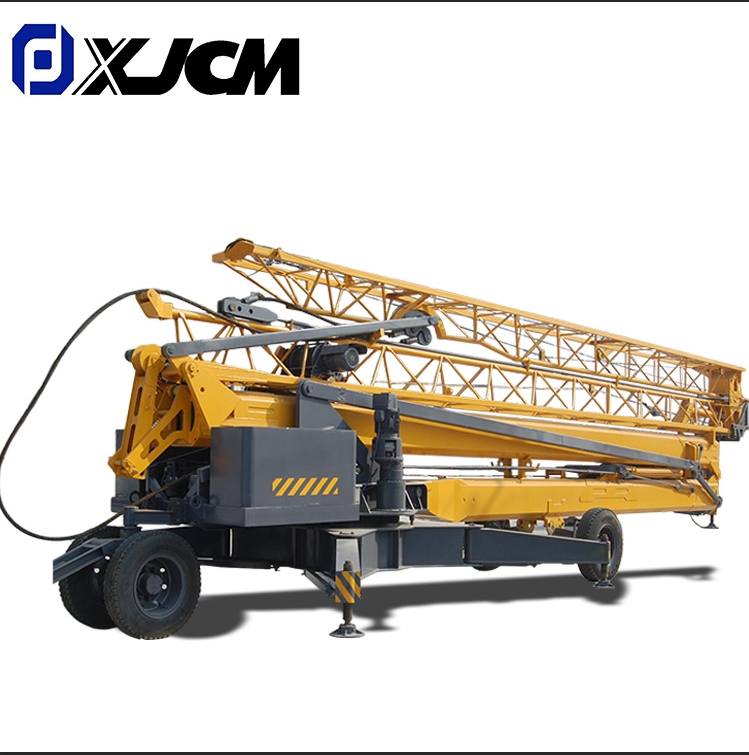

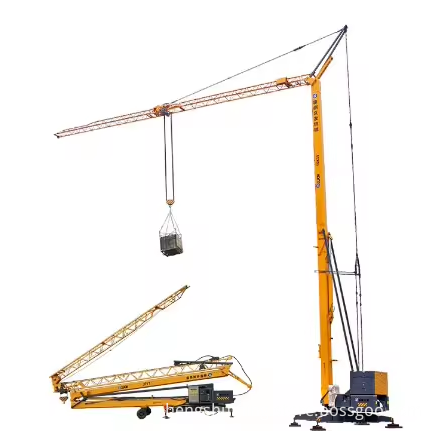

XJCM brand 3-ton tower crane with high working speed and good adjustment performance Smooth work and high efficiency Advantages of quick release tower crane:
1、No foundation is needed, saving foundation cost, low requirement for site condition.
2、Rapid erection, arriving at the site to quickly complete the erection, and quickly put into work.
3、All erection and dismantling process without any artificial overhead work.
4、 Automatic locking of tower body and automatic docking of boom in the air.
5、No need for full-time driver, easy to operate, that is, learn to know.
6、Remote control operation, liberate the labor intensity of the operator, and increase the operating field of view.
7、 Overall transportation
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
NO
|
Item
|
Unit/Type
|
|
1
|
Model NO
|
JFYT2527-30
|
|
2
|
Operation
|
Wireless Remote Operation
|
|
3
|
Structura
|
Folding
|
|
4
|
Specification
|
45′HC
|
|
5
|
Trademark
|
Trademark
|
|
6
|
Max.hoisting height
|
25m
|
|
7
|
Max.working radius
|
27m
|
|
8
|
Max.hoisting weight
|
3000kg
|
|
9
|
Hoisting speed
|
13/26 m/min
|
|
10
|
Trolleying speed
|
20/40 m/min
|
|
11
|
Slewing speed
|
0.25/0.8m/min
|
|
12
|
Erecting time
|
10min
|
|
13
|
Outrigger span
|
4.2x4.2m
|
|
14
|
Dead weight
|
32000Kg
|
|
15
|
Max.towing speed
|
15Km/h
|
|
16
|
Hydraulic system
|
28Mpa Mpa
|
|
17
|
Rated Power
|
23.1KW
|
|
18
|
Power supply
|
380/50HZ 380/50HZ
|
