Well Known Lifting Machinery 10t Construction tower crane
Description
产品描述

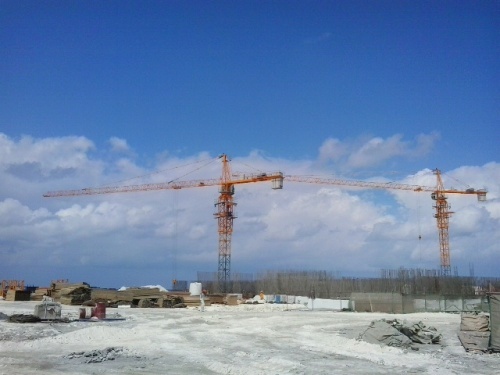

QTZ125(TC6512P) tower crane is a kind of level-jib、trolley derricking、high level slewing、self-hoisting multi-purpose tower crane. Hoisting, trolleying and slewing adopt frequency control, so have wide speed range and gentle running and braking, and prolong the life of the crane structure, driving medium and steel wire rope, at the same time improve the crane safety.

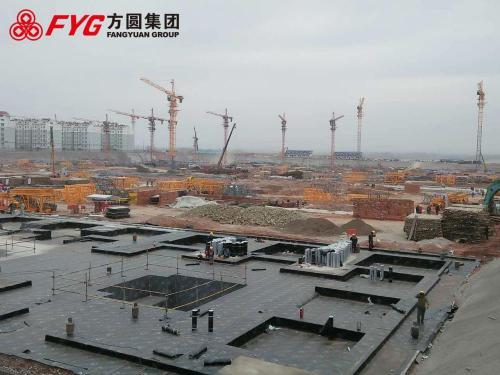

Fangyuan Group have much experience on producing construction machinery, in the past few years, our company product have widely used in the worldwide, for the tower crane, we have two types, one is hammer head tower crane, the other is flat top tower crane, we committed in provide best service with customers.except that, the concrete mixing plant and concrete pump are also popular in the construction yeild, and the quality of our production is also trustable in the construction machinery.Taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our innovations play a role in virtually every sector of construction industry, from machines for construction material production & logistics to software solutions that pave the way for smart construction sites. Some 2200 people work at FANGYUAN, helping to promote its positive attitude and achievements as an employee-owned company.
|
Name |
Unit |
Parameters |
||||
|
rated lifting moment |
kN.m |
1250 |
||||
|
max.lifting capacity |
t |
10 |
||||
|
work range |
m |
2.5～65/60/55 |
||||
|
rated lifting capacity at max.working range |
t |
1.2 |
||||
|
independent lifting height |
m
|
Magnification |
Detached |
Attached |
||
|
2 |
55 |
200 |
||||
|
4 |
55 |
100 |
||||
|
Lifting performance |
Magnification |
|
2 |
4 |
||
|
Lifting speed |
m/min |
90 |
45 |
45 |
22.5 |
|
|
提升能力 |
t |
2.5 |
5 |
5 |
10 |
|
|
Swing speed |
r/min |
0-0.62 |
||||
|
Luffing speed |
m/min |
20/40 |
||||
|
Jacking speed |
m/min |
0.35 |
||||
|
Tower section size |
m |
1.8×1.8×3 |
||||
|
Balance weight |
t |
17.5 |
||||
|
Operating temperature |
℃ |
-20～+40 |
||||
|
Total power |
kW |
44.3(No including jacking motor) |
||||
— —
