Hot selling&quality 10t flat top tower crane
Description
产品描述
Main Advantage

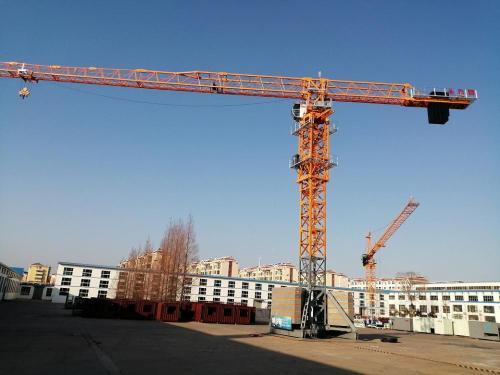

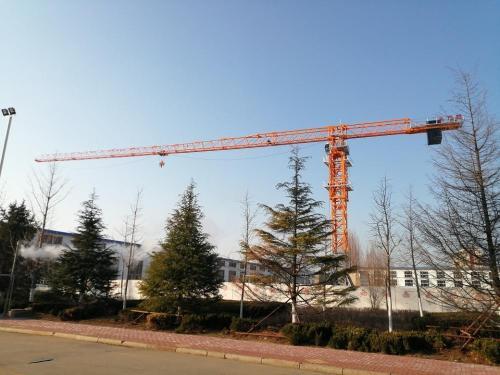

Flat top crane offers a wide Various of crane models ,which is a high quality flat top tower crane,these are high performance cranes that ensure optimal productivity on the job site ,easy to assemble ,especially on projects that have several cranes working at the same time.

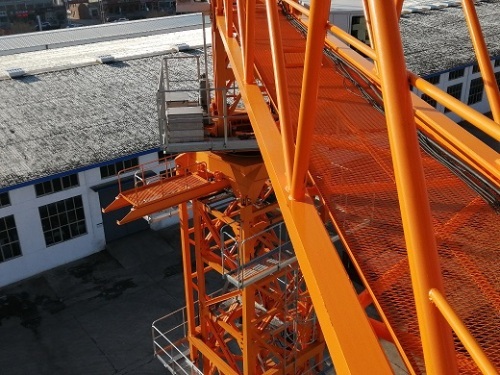

Our 10t tower crane structure is strictly following with standard ,the slewing table adpot multilayer multipass welding to prevent the cracking . The hoisting jib adopts a quick assembly structure, which is easy to install and disassemble. The boom section can be adjusted in the air at any time. All booms are pre-assembled and tested before leaving the factory to ensure the straightness and horizontal inclination upwards degree.
Main technical parameters
|
Name |
unit |
parameter |
||||||
|
Rated lifting moment |
kN.m |
2000 |
||||||
|
max.lifting capacity |
t |
10 | ||||||
|
work range |
m |
3～65
|
||||||
|
rated lifting capacity at max.working range |
t |
2
|
||||||
|
Lifting height |
m |
Magnification |
Detached |
Attached |
||||
|
2 |
61
|
200 |
||||||
|
4 |
61
|
100 |
||||||
|
Lifting performance |
Magnification |
|
2 |
4 |
||||
|
Lifting speed |
m/min |
42.5
|
85
|
21
|
42.5
|
|||
|
Lifting capacity |
t |
5
|
2.5 |
10 |
5 |
|||
|
Swing speed |
r/min |
0-0.7 |
||||||
|
Luffing speed |
m/min |
0-60 |
||||||
|
Operating temperature |
℃ |
-20～+40 |
||||||
|
Total power |
kW |
61.5(No including jacking motor)
|
||||||
Fangyuan Group have much experience on producing construction machinery, in the past few years, our company product have widely used in the worldwide, for the tower crane, we have two types, one is hammer head tower crane, the other is flat top tower crane, we committed in provide best service with customers.except that, the concrete mixing plant and concrete pump are also popular in the construction yeild, and the quality of our production is also trustable in the construction machinery.
— —
