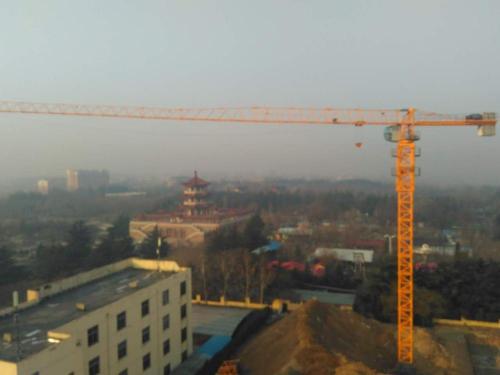

FYG Brand 6t Flat Top Tower Crane
Description
产品描述

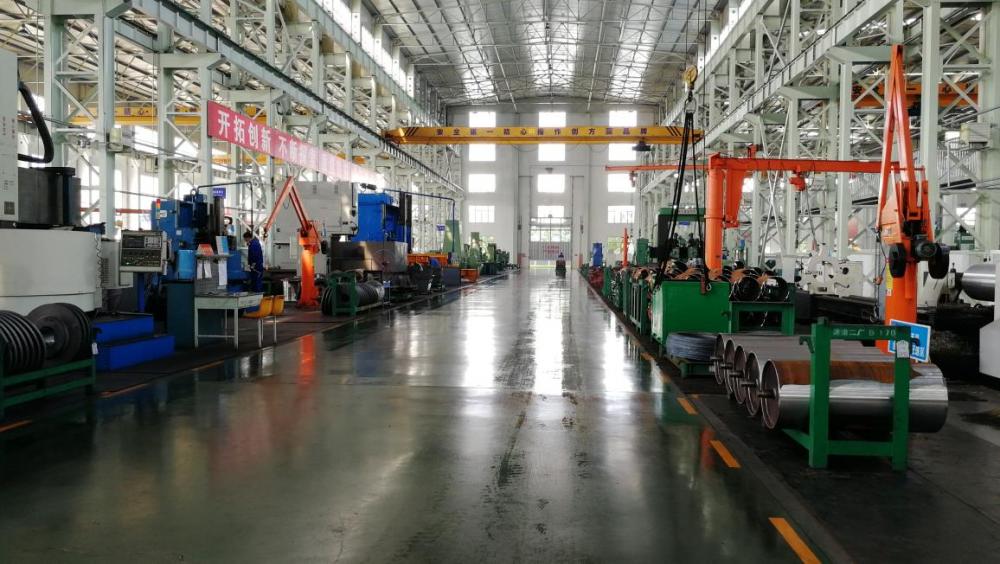

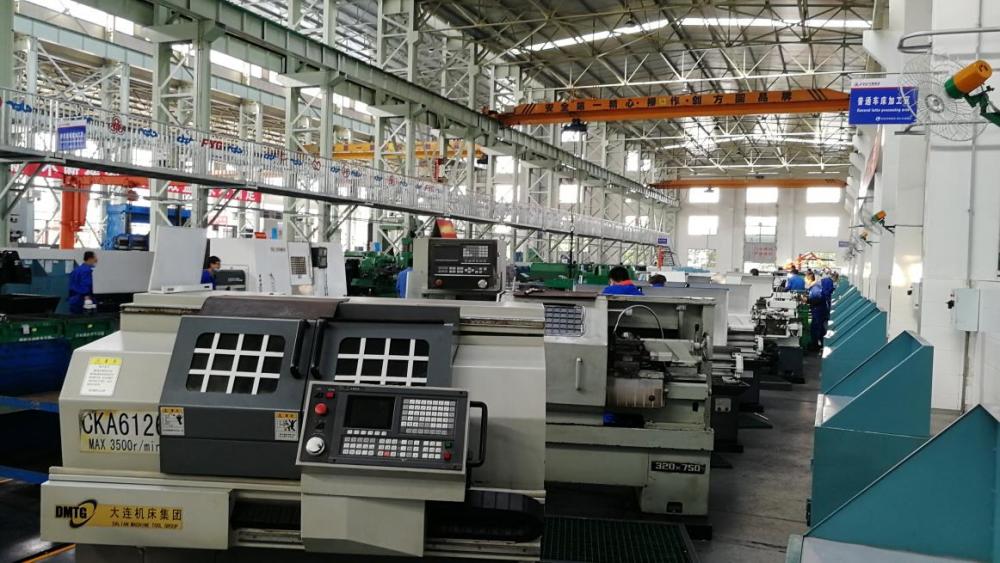

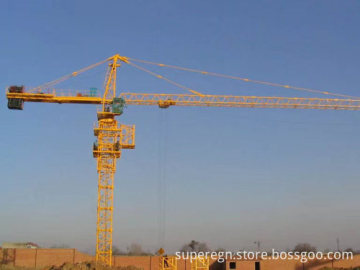

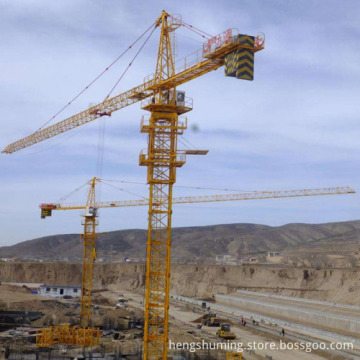

Fangyuan Group have much experience on producing construction machinery, in the past few years, our company product have widely used in the worldwide, for the tower crane, we have two types, one is hammer head tower crane, the other is flat top tower crane, we committed in provide best service with customers.except that, the concrete mixing plant and concrete pump are also popular in the construction yeild, and the quality of our production is also trustable in the construction machinery.
1、main technical parameters
|
Name |
unit |
parameter |
||||||
|
Rated lifting moment |
kN.m |
1000 |
||||||
|
the max lifting load |
t |
6 |
||||||
|
working radius |
m |
2.5～60/55/50/45/40/35 |
||||||
|
The load at the max working radius |
t |
1.3 |
||||||
|
lifting height |
m |
Ropes |
Fixed |
Attached |
||||
|
2 |
41 |
151 |
||||||
|
4 |
41 |
75 |
||||||
|
lifting performance |
rope |
|
2 |
4 |
||||
|
lifting speed |
m/min |
0～40 |
0～80 |
0～20 |
0～40 |
|||
|
lifting load |
t |
3 |
2 |
6 |
3 |
|||
|
slewing speed |
r/min |
0～0.62 |
||||||
|
derricking speed |
m/min |
0～40/20 |
||||||
|
climbing speed |
m/min |
0.58 |
||||||
|
Working temperature |
℃ |
-20～+40 |
||||||
|
the whole power |
kW |
37.3no including climbing motor |
||||||
Product advantage:

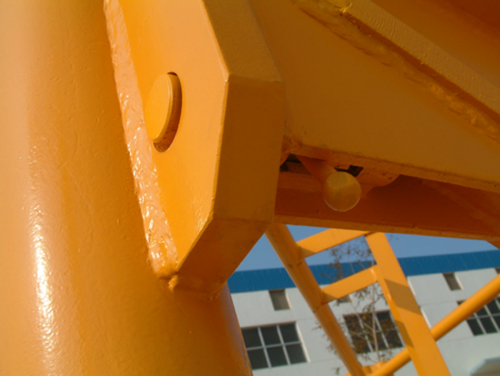

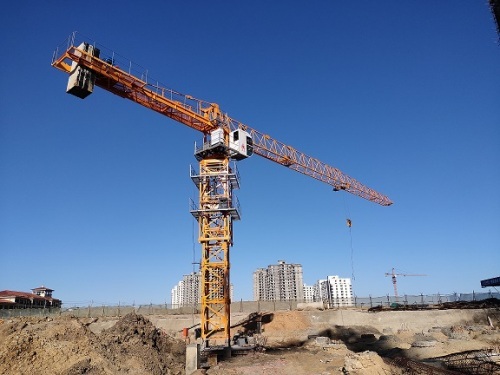

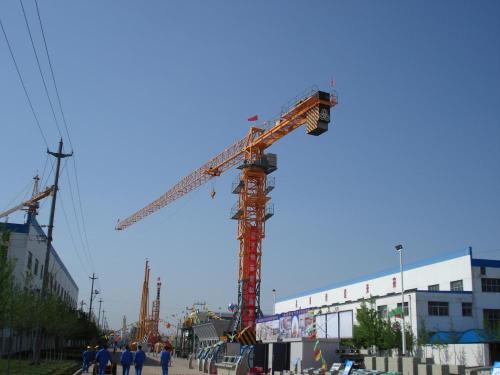

The Steel Structure with Long Lifespan and High Safety The flat-top tower crane is designed without any pull rod so as to reduce the height of the tower top and meet the requirements on different work sites. Especially suitable for disassembling and assembling on restricted construction sites or during the multi-tower cross operation The height difference between tower bodies can be reduced to save much space and cost.
— —
