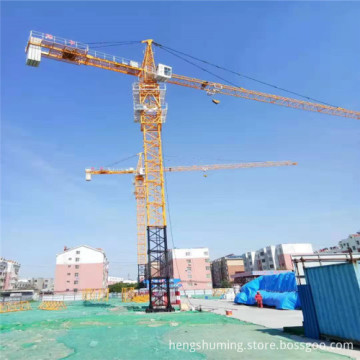

Max.70m radius 12t loading hot selling Tower Crane
Description
产品描述
Fangyuan Group is well known for construction machinery manufacturing, for the hammer head tower crane, you will find many tower cranes from Fangyuan Group using in construction site, the product quality is trustable, 12t construction tower crane you will find the detailed in this indroduction, about the tower crane with 12t max load more detailed please feel free to contact us, we always committed in providing better service with customers.
From our site, you will find our company and factory picture and video,hope this can help you to get more infor about us!especially some video about concrete mixing plant, we have many types of concrte mixing plant, the modular skip concrete mixing plant and modular conveyor concrete mixing plant are the hot selling product, excepet that, construction elevator,stationary mixing plant and some compact concrete mixing plant is very popular in the world.
In the past few years, we have exported many tower cranes, concrete mixing plants and construction hoists in the world, taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our innovations play a role in virtually every sector of construction industry, from machines for construction material production & logistics to software solutions that pave the way for smart construction sites. Some 2200 people work at FANGYUAN, helping to promote its positive attitude and achievements as an employee-owned company.
|
Name |
Unit |
Parameters |
||||
|
rated lifting moment |
kN.m |
2500 |
||||
|
max.lifting capacity |
t |
12-16 |
||||
|
work range |
m |
3.1～70/65/60 |
||||
|
rated lifting capacity at max.working range |
t |
3/3.7/4.2 |
||||
|
independent lifting height |
m |
Magnification |
Detached |
Attached |
||
|
2 |
61 |
250 |
||||
|
4 |
61 |
125 |
||||
|
Lifting performance
|
Magnification |
|
2 |
4 |
||
|
Lifting speed |
m/min |
0-80 |
0-40 |
0-40 |
0-20 |
|
|
Lifting capacity |
t |
4 |
8 |
8 |
16 |
|
|
Swing speed |
r/min |
0～0.7 |
||||
|
Luffing speed |
m/min |
0～63 |
||||
|
Jacking speed |
m/min |
0.45 |
||||
|
Tower section size |
m |
2×2 |
||||
|
Balance weight |
t |
22.5 |
||||
|
Operating temperature |
℃ |
-20～+40 |
||||
|
Total power |
kW |
97.5(No including jacking motor) |
||||
— —
