ISO CE Best Price Selling for Tower Crane
Description
产品描述
1、Main Characteristic

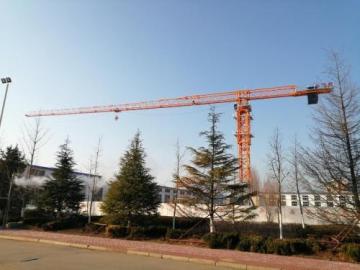

The QTZ250 (TC7030) tower crane is a kind of level-jib、trolley derricking、high level slewing、self-hoisting multi-purpose tower crane. Hoisting, trolleying and slewing adopt frequency control, so have wide speed range and gentle running and braking, and prolong the life of the crane structure, driving medium and steel wire rope, at the same time improve the crane safety; the mast section is lamella assembly structure that connected by the fish plate pin shaft, which is convenient for storage and transportation. In addition, it is equipped with an inclined climbing ladder to make the tower crane more convenient and safer. The climbing frame is a detachable double U-shaped structure, and the counter jib is a multi-section combined type, which can meet the requirement of container transportation.
2、Main Technical Parameters
|
Name |
unit |
parameter |
||||||
|
Rated lifting moment |
kN.m |
2500 |
||||||
|
the max lifting load |
t |
16 |
||||||
|
working radius |
m |
3.1～70/65/60 |
||||||
|
The load at the max working radius |
t |
3/3.7/4.2 |
||||||
|
lifting height |
m |
Ropes |
Fixed |
Attached |
||||
|
2 |
61 |
250 |
||||||
|
4 |
61 |
125 |
||||||
|
lifting performance |
rope |
|
2 |
4 |
||||
|
lifting speed |
m/min |
0～80 |
0～40 |
0～40 |
0～20 |
|||
|
lifting load |
t |
4 |
8 |
8 |
16 |
|||
|
slewing speed |
r/min |
0～0.7 |
||||||
|
derricking speed |
m/min |
0～63 |
||||||
|
climbing speed |
m/min |
0.45 |
||||||
|
tower body section demension |
m |
2×2 |
||||||
|
counter weight |
t |
22.5 |
||||||
|
Working temperature |
℃ |
-20～+40 |
||||||
|
the whole power |
kW |
97.5no including climbing motor |
||||||

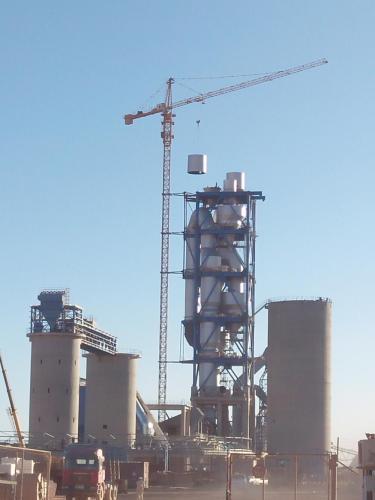

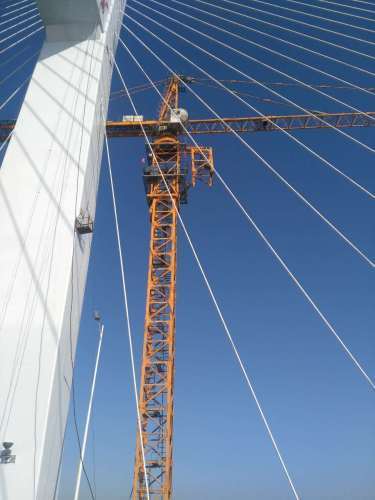

Fangyuan Group have much experience on producing construction machinery, in the past few years, our company product have widely used in the worldwide, for the tower crane, we have two types, one is hammer head tower crane, the other is flat top tower crane, we committed in provide best service with customers.except that, the concrete mixing plant and concrete pump are also popular in the construction yeild, and the quality of our production is also trustable in the construction machinery.Many construction jobs worldwide are done through FYG machinery. Founded in 1970, FYG is the China’s only company fully devoted to construction machinery providing both tailor made machinery and knowledge to the highest standards. Our machines are sold to leading companies in building, road, railway, and bridge constructions and other industries both in China and worldwide. Our TC-series tower crane has been firstly preferred by construction companies for more than three decades in China and our HZS-series concrete batching plants produced more than 46% of the concrete used to construct China high-speed railways in recent years.
— —
