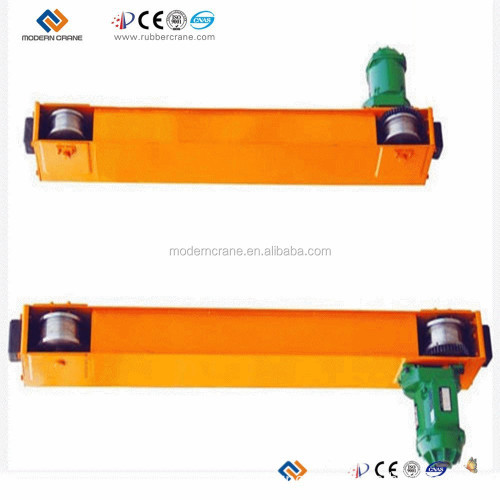

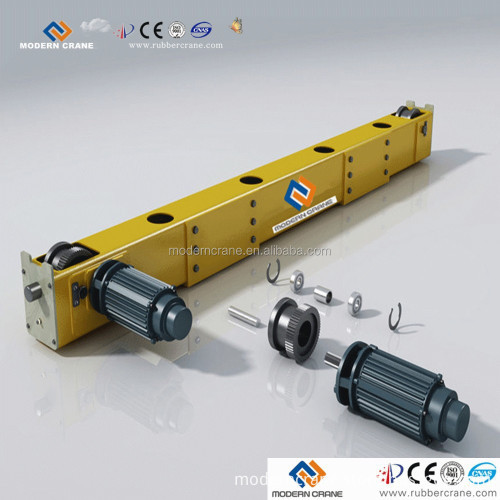

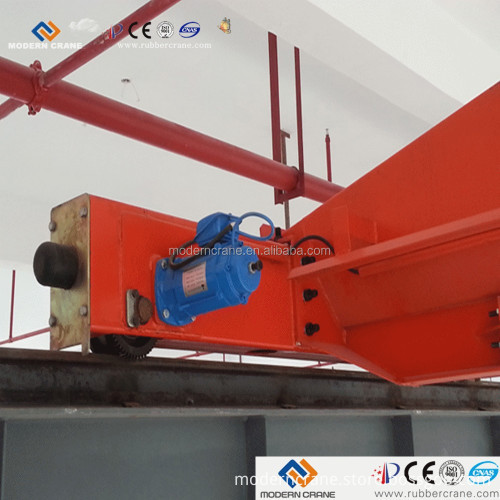

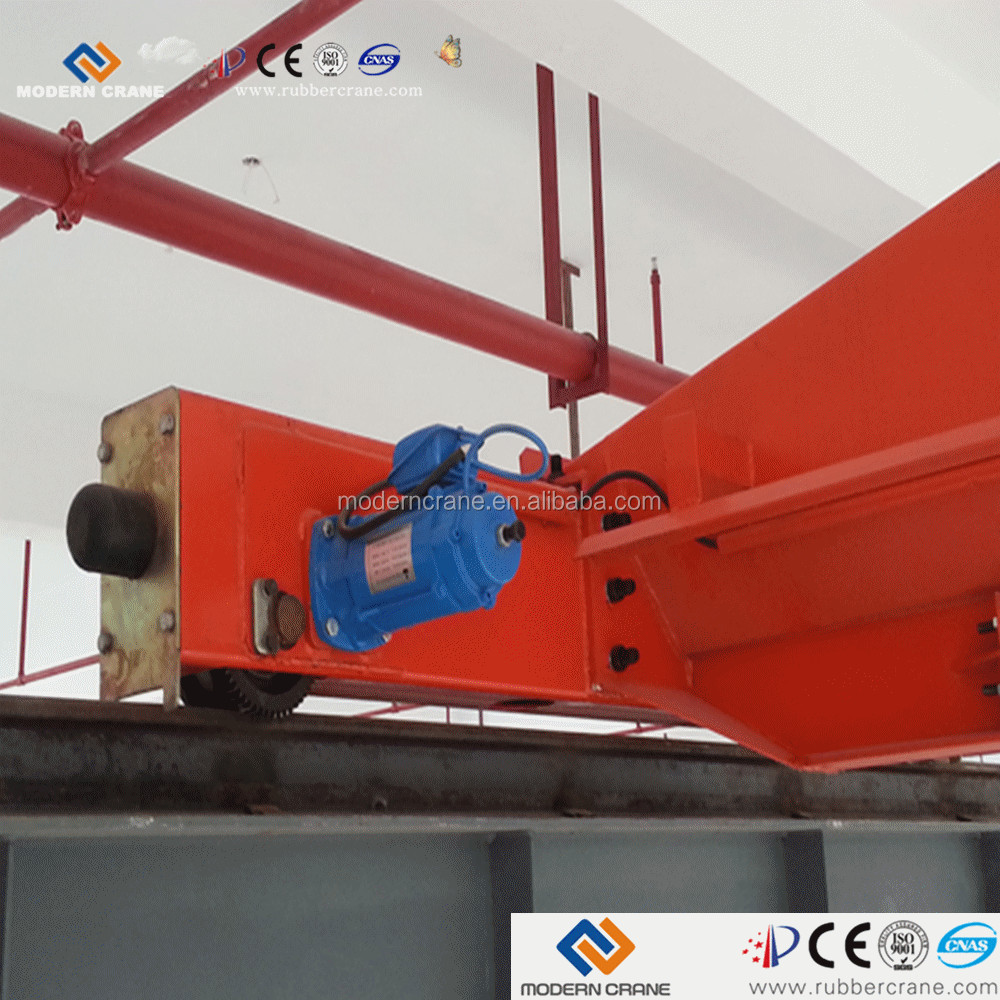

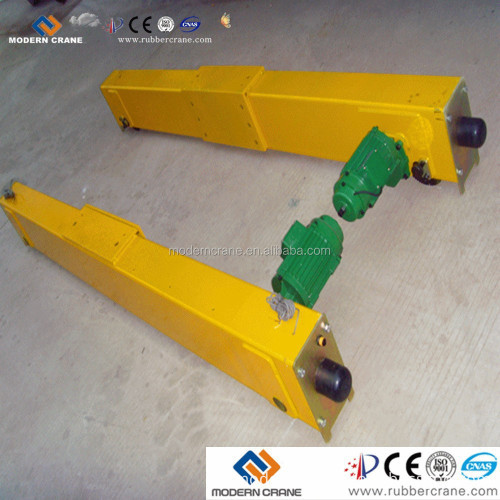

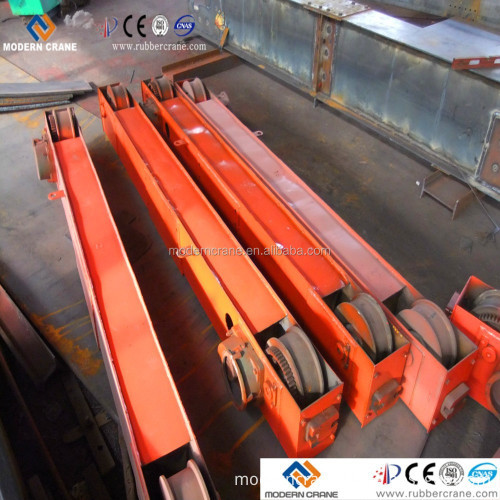

EOT Crane End Carriage Beam
Description
产品描述
Girder EOT Crane End Carriage Beam
| Item&Brief introduction |
Electric overhead crane is one of the overhead crane families. Characterized as compact structure, easy to operation and low maintenance, this kind of crane is widely used in plant, warehouse and workshop for material lifting and moving. |
| Features |
1.This machine suitable to work in warehouse, workshop, plant etc for material handling and transportation. 2.This type machine with advantages of the compact structure, operate convenience. |
| Components |
a) Steel structure: main bridge beam, end carriages with wheels driven by motors.
b) Hoisting mechanism: electric hoist mounted on main bridge beam.
c) Electrics: electric box/cables/operator. |
| Control method |
Remote control or pendent line with press button. |
| Design and construction rules |
All the standards which is required for the crane is the Chinese standard |
| Painting |
Primer and finishing paint Color: according to your demand. Average thickness: about 100 microns |
| Power supply | 380V/50Hz or as per client's requirement |
| Motors | Nanjing Zongchang (Number 1 in China.) |
| Hoisting mechanism | CD/MD model electric hoist |
| Speed | Single speed/Dual speed |
| Manufacturing standard |
All crane design and manufacturing is according to Chinese Standard but customized products are avialable. |
| Safety feature |
1. Limit switch. 2. Overload stop device for hoisting. 3. Long bearing buffer for crane traveling. 4. Power faliure backup. |
| Payment term |
40% payment in advance and the balance paid defore delivery by TT. |
| Shipping port | Qingdao port by Containers; Tianjin port by bulk cargo. |
| 保证 | 12 months |
| Order tips |
1. lifting capacity. 2. span length.(cantilever length) 3. lifting height.(hook center to ground) 4. Power supply: Voltage. 5. Do you need rails? How long is the crane traveling distance? 6. Working condition: which material to lift? temprature? 7. Would be better if you have drawings of your plant. |
EOT Crae End Carriage Beam
| Crane motion mechanism | Moving speed V(m/min) | 20 | 30 | 45 | 75 | |
| Decelerate speed rate | 58.78 | 39.38 | 26.36 | 15.88 | ||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY21-4 | ZDY21-4 | |
| Power(kw) | 2x0.8 | 2x0.8 | 2x0.8 | 2x1.5 | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | ||
| Lifting mechanism(electrichoist) and its motion mechainism | eletron hoist | CD1 | MD1 | |||
| lifting speed V1(m/min) | 8 | 8/0.8 | ||||
| Lifting height H(m) | 6;9;12;18;24;30 | |||||
| Moving speed V2(m/min) | 20;30 | |||||
| Motor | taper squrrel-cage | |||||
| Working system | Medium JC=25% | |||||
| Power source | 3-phase 50HZ 380V | |||||
| Wheel diameter | 270mm | |||||
| Width rail surface | 37-70mm | |||||
| A | 1550(1-5ton and 10ton 7.5<s≤16.5 application)="" 1700="" (10ton="" 16.5<s≤22.5="" application)<="" span="" style="box-sizing: border-box;"></s≤16.5> | |||||
| B | 1640(1-5ton and 10ton 7.5<s≤16.5 application)="" 1515="" (10ton="" 16.5<s≤22.5="" application)<="" span="" style="box-sizing: border-box;"></s≤16.5> | |||||
| C | 520(1-5ton moving size) 584(3-5ton 17<s≤22.5 10ton="" 7.5<s≤16.5="" moving="" size) ="" 634(10ton="" 16.5<s≤22.5)<="" span="" style="box-sizing: border-box;"></s≤22.5 > | |||||
We Modern Crane Company is professional at cranes & hoists for over 10 years, our products cover cranes, hoist, winches and the end beam lifting accessories etc.
Hope we can have opportunity to cooperate with you.
